Shaft copying systems

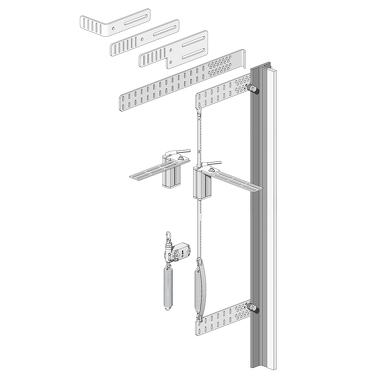

LES.MK - Safe
|
|
Shaft copying system - mounting kit Safe

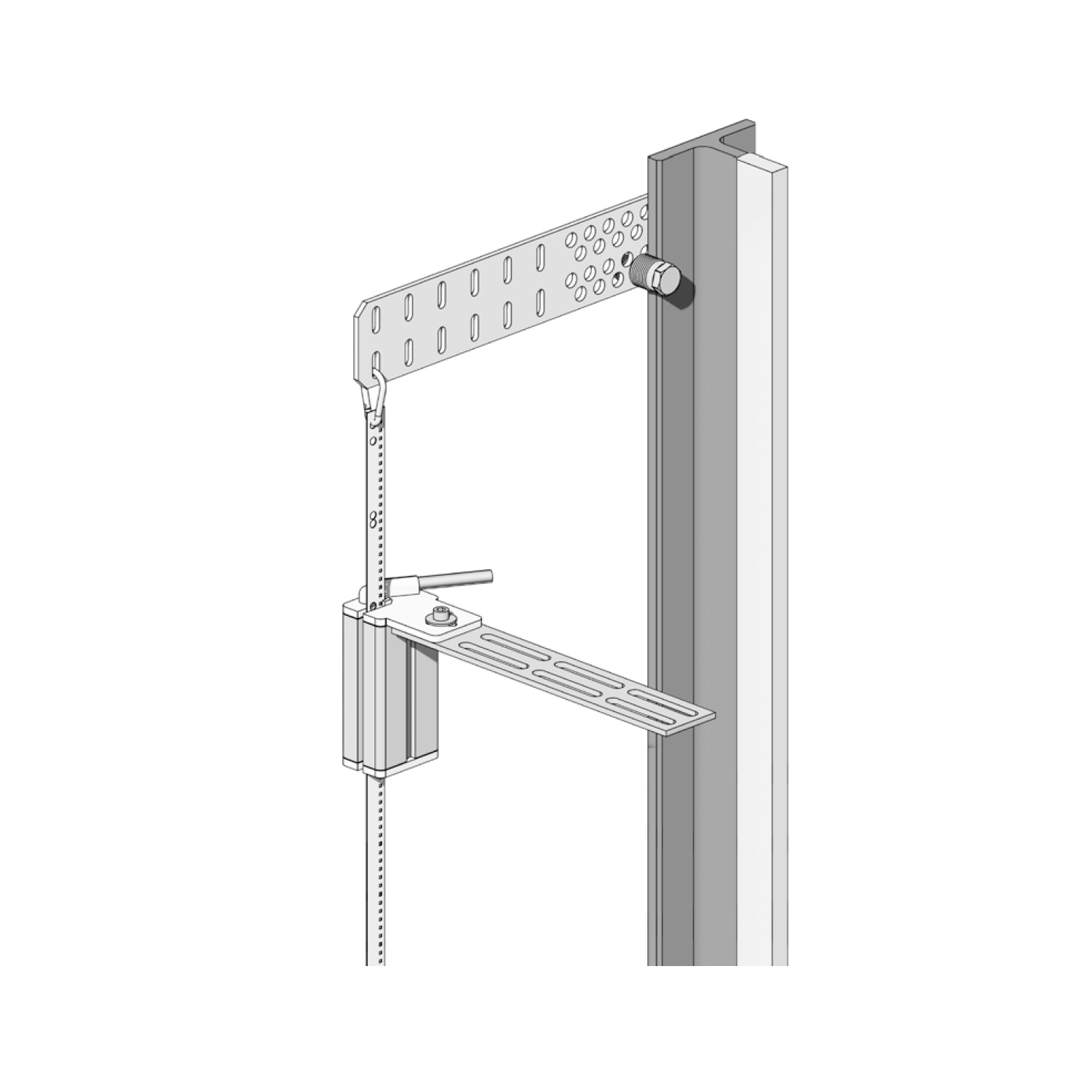

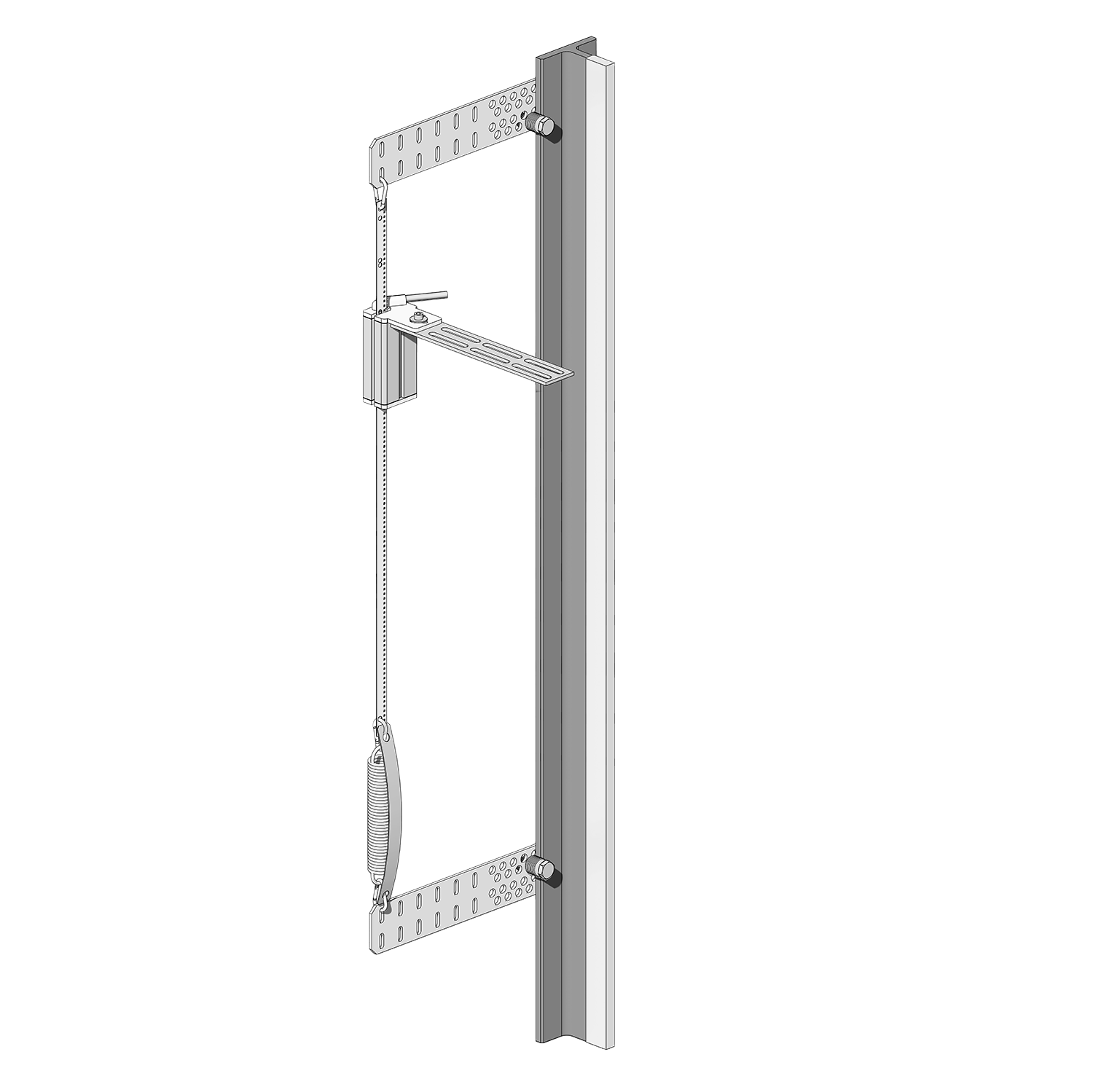

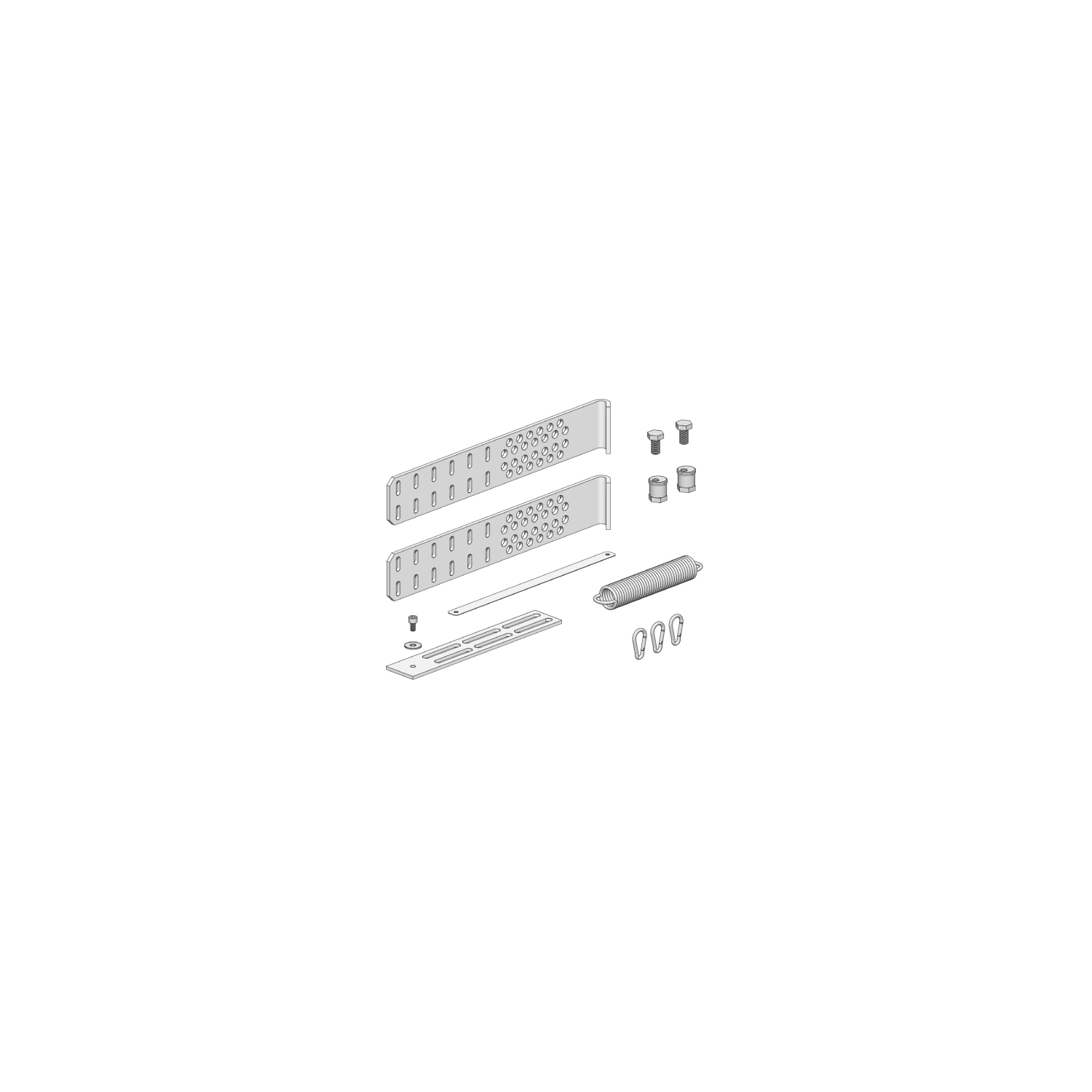

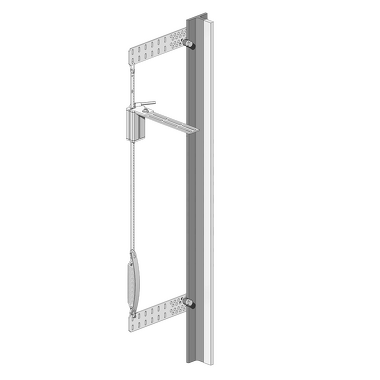

The LES.MK mounting kit contains all components required for installing the Ants LES02, Ants LES02D, and Ants LES03 sensors on the elevator car and for attaching the code band in the elevator shaft.| Mechanical | |
|---|---|
| Measuring system | Shaft copying systems |
| Electrical |
|---|
Mounting options

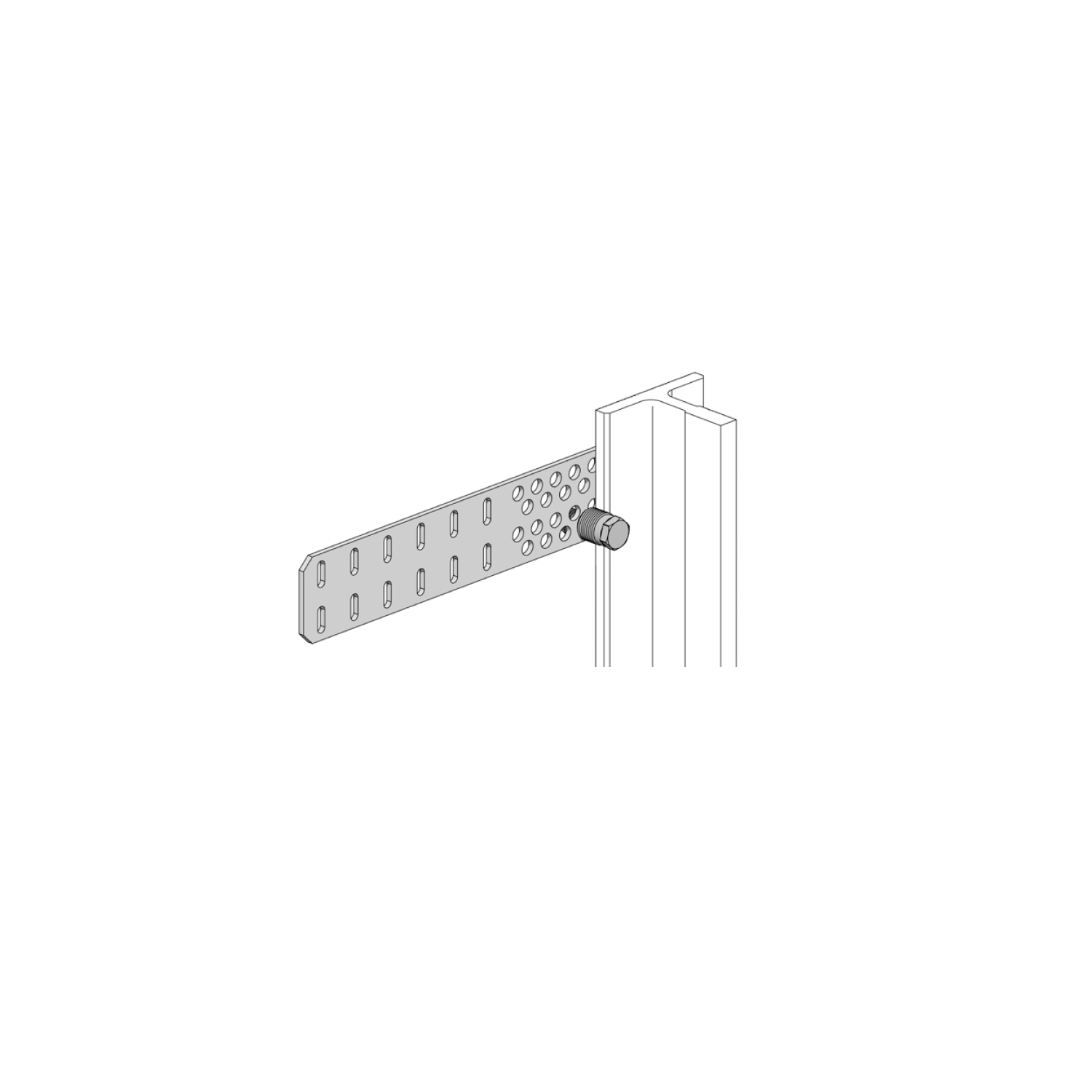

Rail mounting with eccentric claw screws
Mounting principle: The rail fastener is hooked into the lift rail and clamped with a claw screw that can be rotated eccentrically to the counter screw.

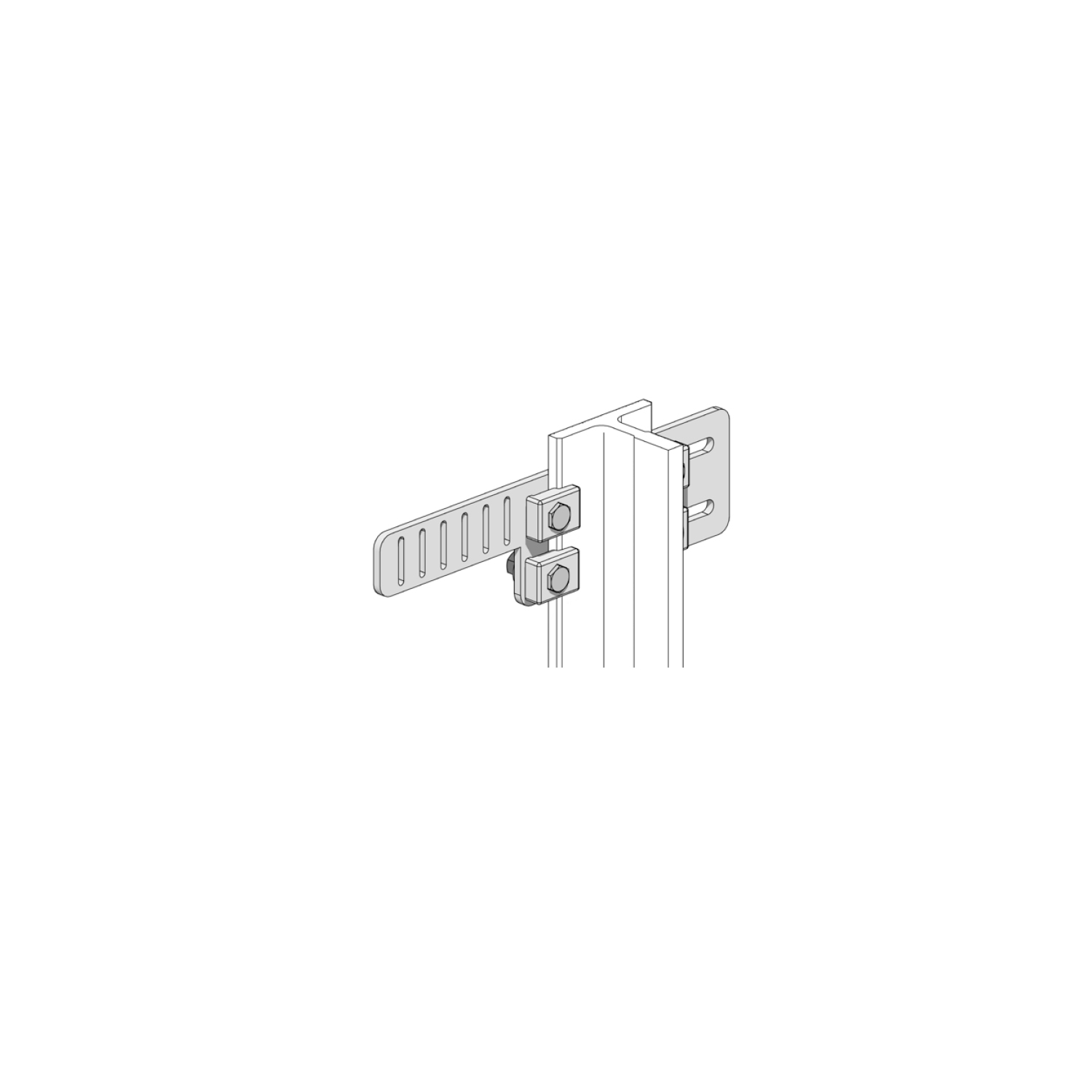

Rail mounting with clamping plates
Mounting principle: The rail fastener is screwed to the lift rail with 4 clamping jaws.
