Magnetic length measuring systems
LIM5000
|
|
Incremental, magnetic length measuring systems

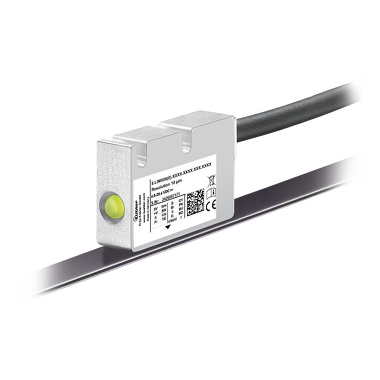

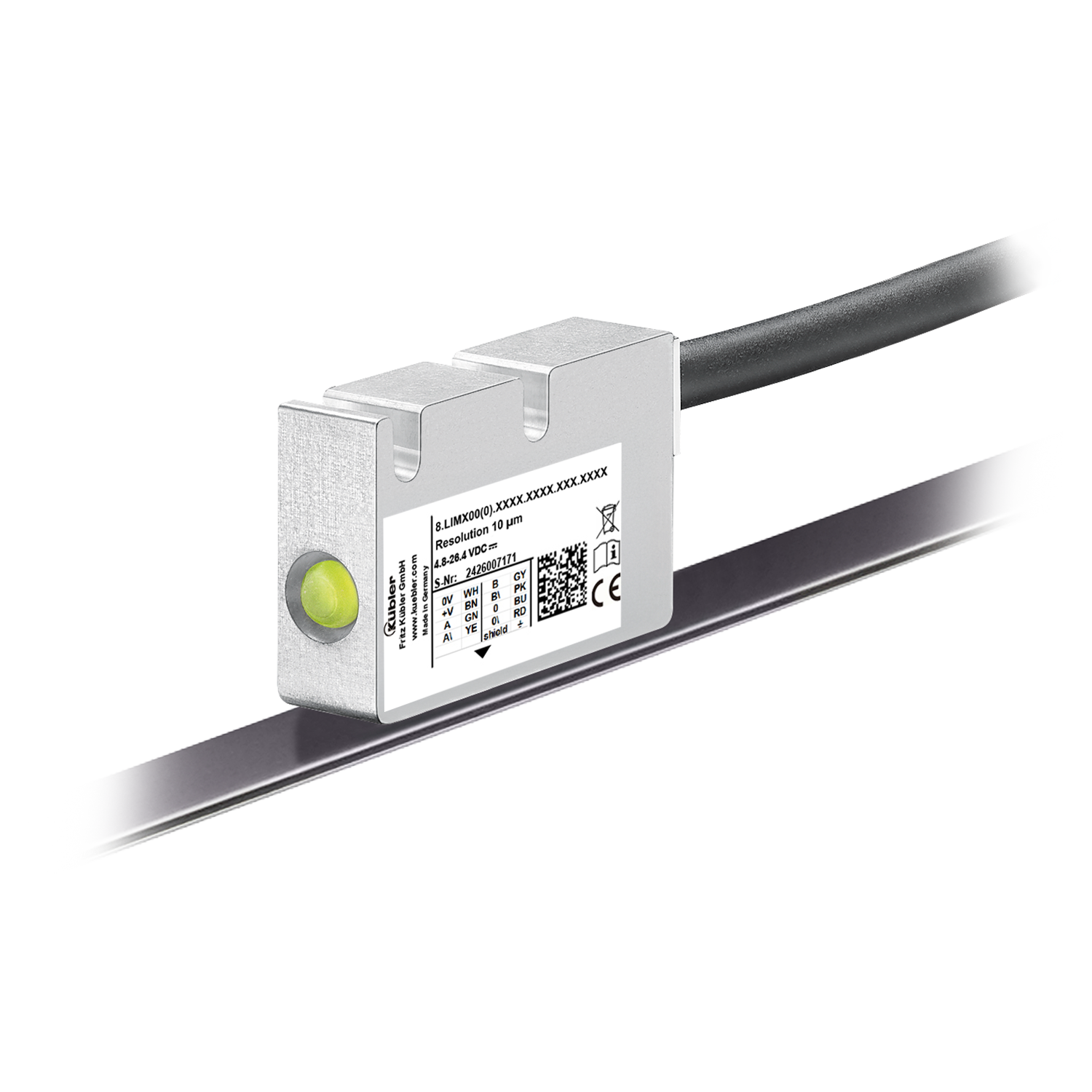

With the new non-contact magnetic length measuring systems - consisting of a sensor head and magnetic tape - for pole lengths of 2 mm and 5 mm, the desired resolution of the sensor is freely selectable. In the customer-programmable LIM5000 version, the sensor system can be easily and flexibly adapted to the respective application requirements using a programming device. Together with the wide temperature range and a protection class of IP68 / IP69k, this results in maximum reliability even in unprotected outdoor applications.| Mechanical | |
|---|---|
| Measuring system | Magnetic length measuring systems |
| Measuring length |
70 m |
| Speed |
40 m/s |
| Connection types |
Radial cable |
| Working temperature | -20 °C ... 80 °C |
| Protection level |
IP67 IP68 IP69 |
| Electrical | |
|---|---|
| Resolution max. |
1 μm |
| Accuracy |
35µm |
| Interfaces |
HTL TTL / RS422 |
| Power supply |
4,8...26 V DC |
Maximum flexibility through programmability
- Programmable (even in the field) via a programming device with touch display.
- Freely programmable resolution of up to 1 nm for the user.
Maximum accuracy
Active offset, phase and amplitude control automatically optimizes the sensor to the current operating situation. Effects of individual installation and temperature differences during operation are automatically compensated in the sensor head.
Optimized for larger mounting tolerances
If the application requires a larger air gap (up to max. 2 mm), the LIM5000/B2 system with 5 mm pole length is used – without any restrictions in terms of signal quality or performance.
Quick and easy commissioning
- Use where installation space is limited.
- Mounting tolerances between the magnetic tape and Sensor head are compensated by the electronics.
- Easy adjustment by mounting via elongated holes.
- Function display via LED.
Robust and insensitive
- Contactless and wear-free measuring system for a long service life.
- High resistance to shock and vibration.
- Sturdy housing with IP67 protection, optional: special housing for high resistance to condensation (IP68 / IP69, resistance to cyclic moisture acc. to EN 60068-2-38 and damp heat acc. to EN 60068-2-78).
Accessories
Programming unit with touch display EP1000
Programming unit for PC-independent use, even in the field| 8.0010.9000.1000 |
