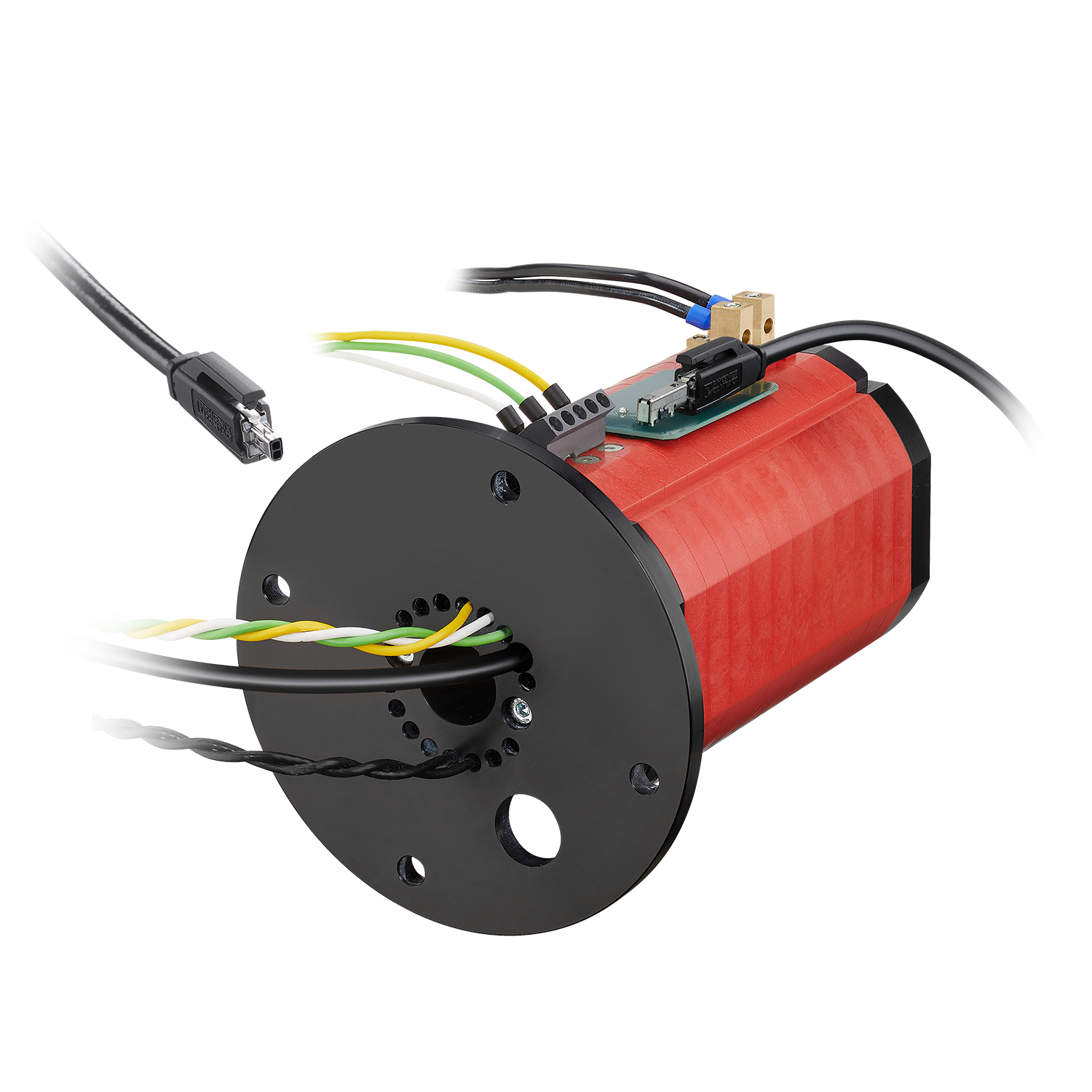

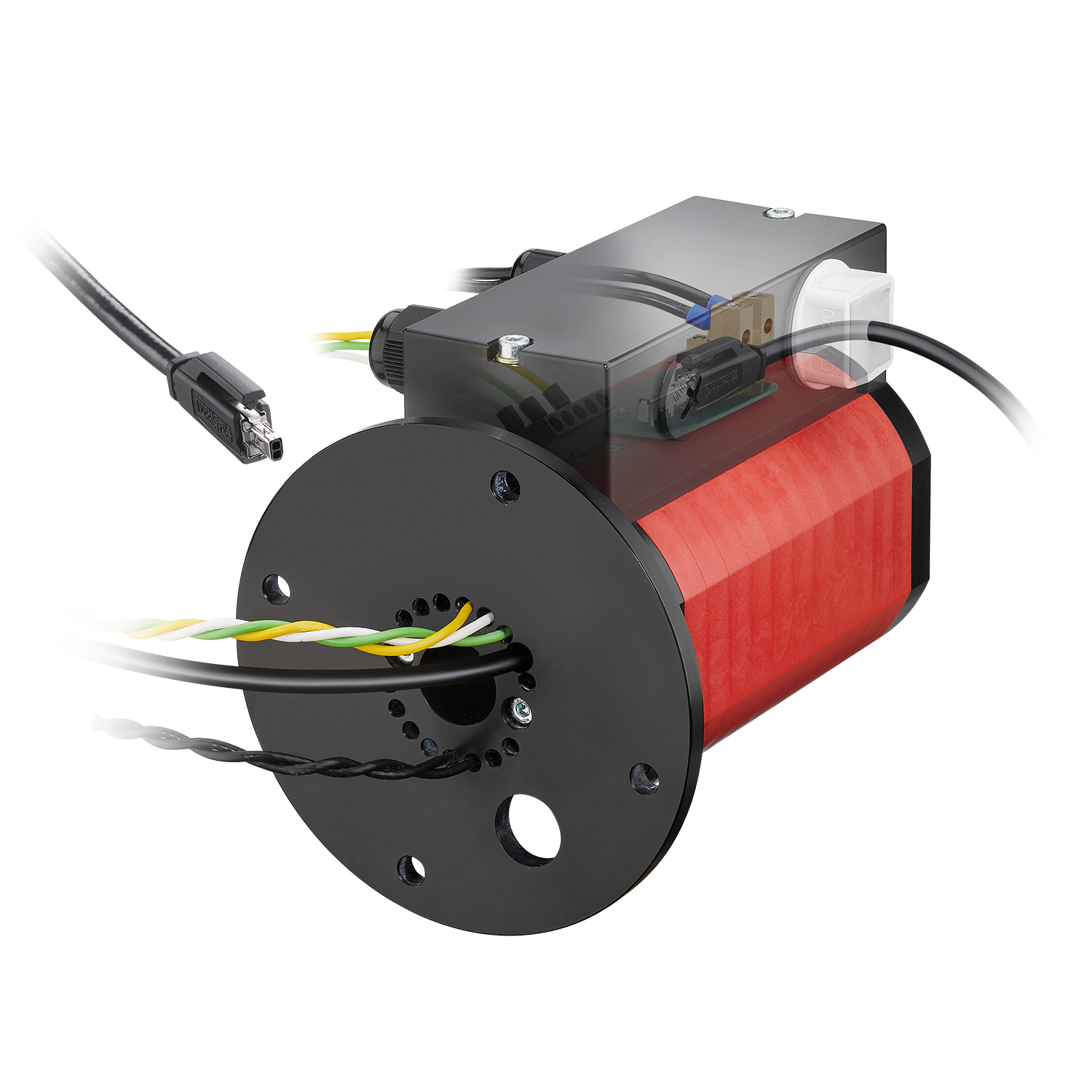

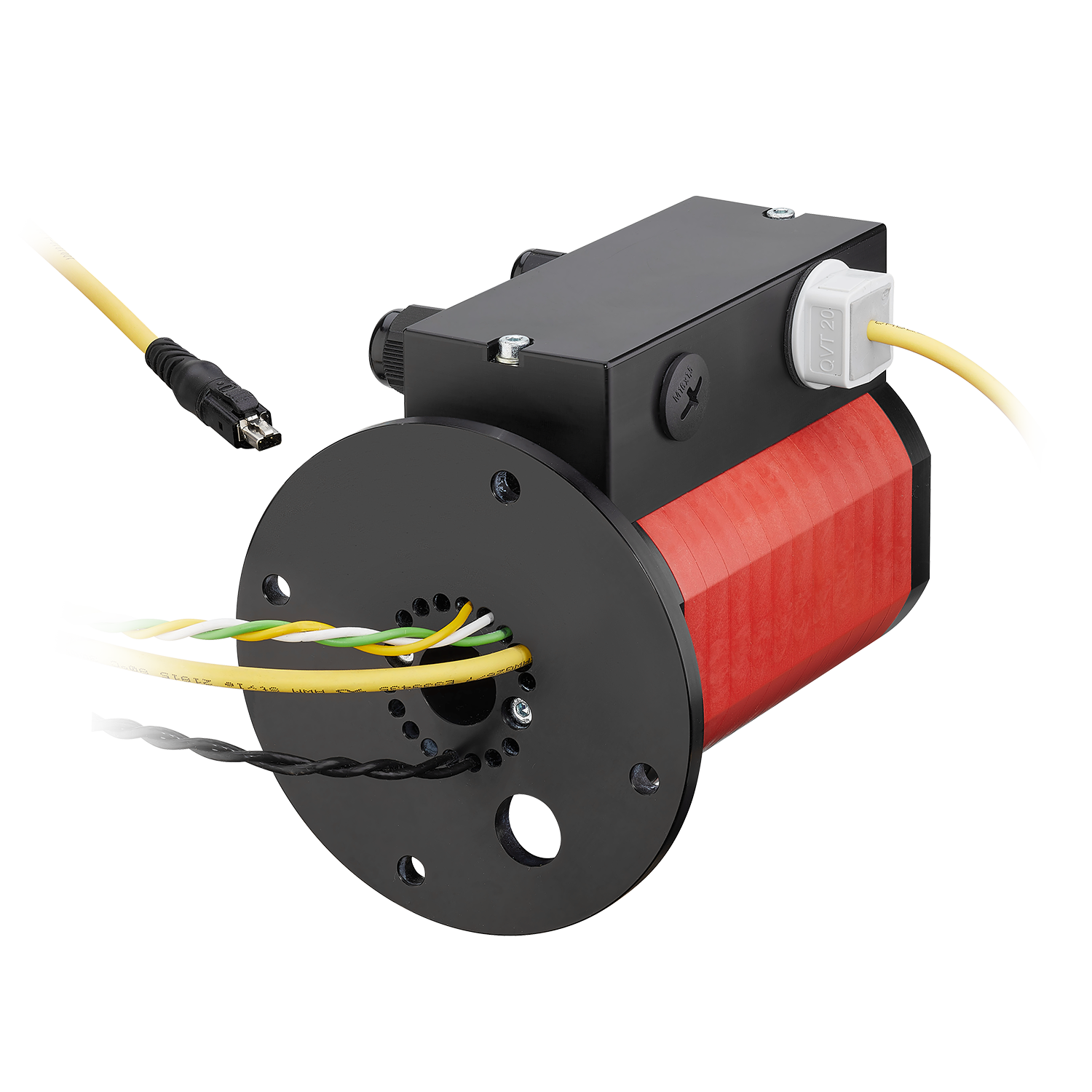

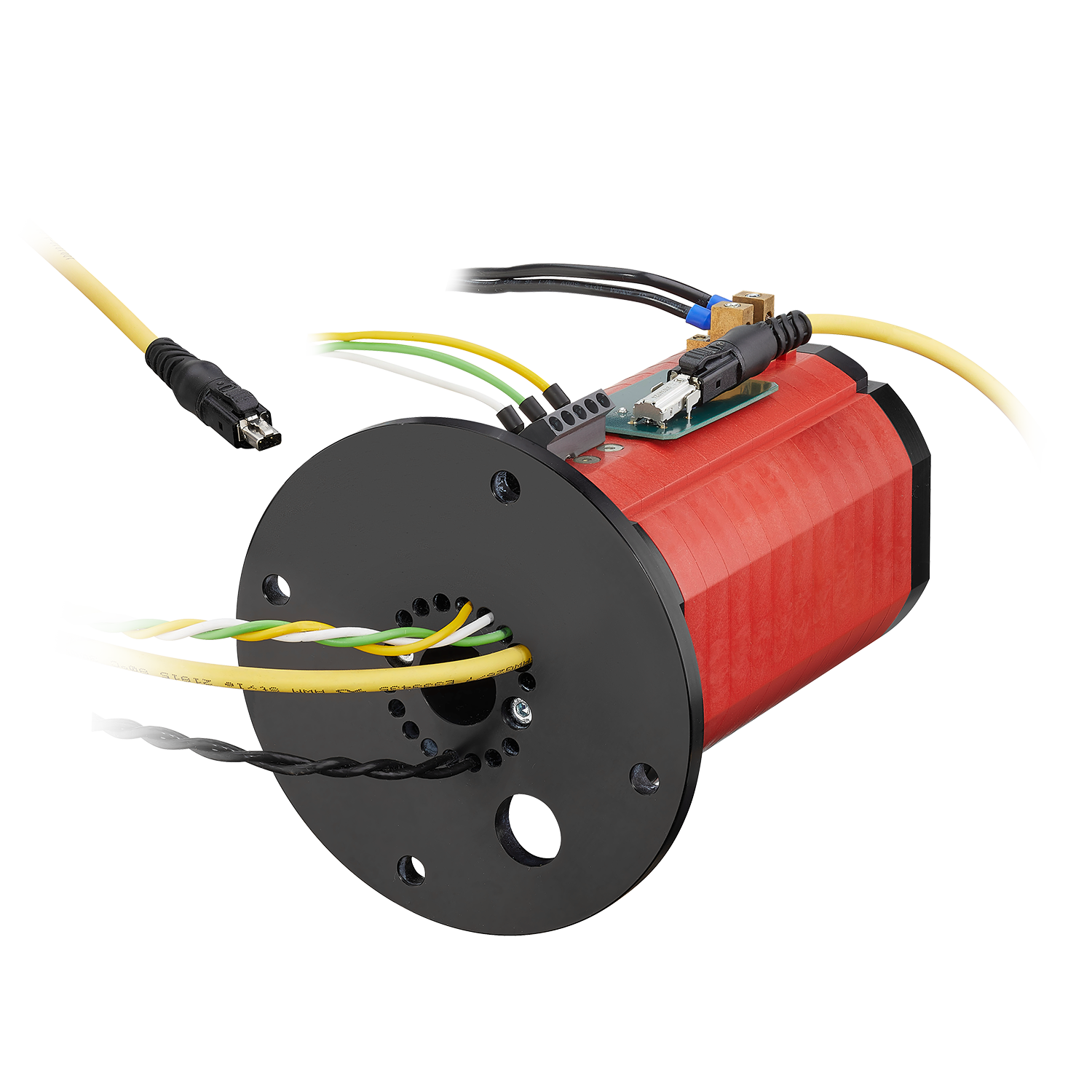

Slip ring

SR085SE

  • Simple mounting

Reliable Single Pair Ethernet communication with Industrial Ethernet slip ring

Single Pair EthernetReliable transmission of Industrial Ethernet is now also possible in the 85 mm size. For this purpose, the SR085IE/SR085SE slip rings from Kübler have been expanded with a Fast Ethernet module that enables a transmission rate of up to 100 MBit/s. The connection for data transmission can be made via a shielded two-wire twisted-pair Ethernet cable.

Mechanical
Dimension 85 mm
Mounting type Flange
Connection types Cable
Connectors
Working temperature -35 °C ... +85 °C
Protection level IP50
IP64
Rotational speed 800 min-1
Service life 500 million revolutions
Maintenance cycles 100 million revolutions
Electrical
Max. number of signal channels 13
Max. number of load channels 13
Load current transmission 16 A, 240 V AC
10 A, 400 V AC/DC
20 A, 400 V AC/DC
25 A, 240 V AC/DC
Features
  • Optional Ethernet module for the transmission of all common Industrial Ethernet protocols.
  • Robust GRP housing in modular design.
  • Reliable transmission of loads up to 25 A.
  • Flange mounting or simple plug-on through a hollow shaft.

Benefits
  • Transmission of Industrial Ethernet up to 100 Mbit/s.
  • Fast connection via RJ45 connector with CAT5e cable.
  • Quick and easy replacement by user.
  • Individual configuration for all applications.
  • Prepared for a wide range of applications even with high current load.
  • The application determines the mechanical connection - the SR085IE slip ring adapts to.
Data sheet

SR085IE (Industrial Ethernet) / SR085SE (Single Pair Ethernet)

PDF ∼ 504,3 KB | 12.2024
DE
EN
FR

Accessories

Cables and connectors
