Solutions for automatic guided vehicles / Logistics

Precise and reliable
  • Incremental and absolute rotary encoders
  • Draw wire encoders
  • Optimal travel speed
  • Precise steering angle monitoring
  • Measuring the lift height
Request custom solution

Speed detection and steering angle monitoring with Kübler sensors.

Materials handling vehicles, also called automatic guided vehicles (AGV), have been used successfully in modern logistics centers for many years – a growing trend. Goods and materials of different loads are transported to defined locations, stacked and either put into storage or removed. Logistics centers are only made more efficient if automatic guided vehicles are steered precisely. Sensors play an essential role here. Kübler encoders are successfully used here for speed detection and precise steering angle monitoring. Draw-wire encoders ensure an exact position of the load carrier and thus for a precise measuring of the lift height. Precise and reliable sensors result in an optimal travel speed and flawless storage and retrieval of goods.

Example applications with Kübler products:

Product details
1
Measuring the travel speed
  • Incremental encoder
  • Optical scanning
  • Dimension ø 24 mm
2
Monitoring the steering angle
  • Singleturn encoders
  • Magnetic scanning
  • Dimension ø 36 mm
Product details
3

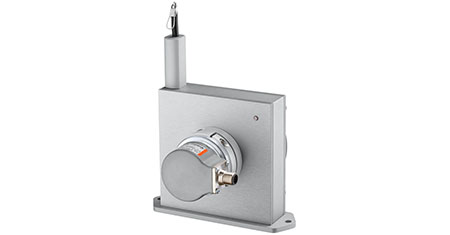

Monitoring the lift height up to 3 m
  • Draw wire encoders
  • High dynamics up to 10 m/s
  • Simple interchangeable installation
Product details
3
Monitoring the lift height up to 6 m
  • Draw wire encoders
  • Linearity up to ± 0.02%
  • Simple interchangeable installation

Speed detection with incremental encoders


Various options are available to you: From compact encoders to bearingless encoders as a redundant and space-saving solution, to certified encoders for functional safety. We are also happy to implement modifications and special solutions. We look forward to your inquiry.

Product details
1
Compact solution
  • Optical scanning
  • Dimension of ø 36 mm
  • Resolution max. 3600 ppr.
Product details
2

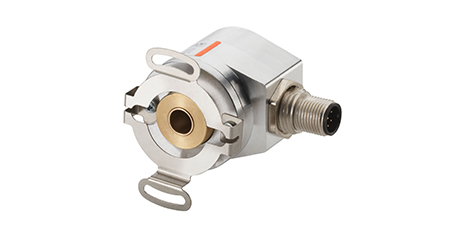

Redundant and space-saving
  • Bearingless encoders
  • Magnetic scanning
  • Resolution max. 3600 ppr.
3
Functional safety up to SIL3//PLe
  • Optical scanning
  • Dimension ø 58 mm
  • Resolution max. 2048 ppr.

Steering angle monitoring and speed detection


Precise steering angle adjustment and optimal travel speed with absolute and incremental encoders. With us, you will find the right solution for your need. We are also happy to implement modifications and special solutions. We look forward to your inquiry.
1
Functional safety up to SIL3//PLe
  • Optical scanning
  • Dimension ø 58 mm
  • Resolution max. 2048 ppr.
2
Fieldbus communication
  • Multiturn encoder
  • Optical scanning
  • Dimension of ø 58 mm
Brochures
   05.2019

Mobile Automation

Brochures
   03.2019

Automatic Guided Vehicles (AGV)

Your application is our priority

We are happy to take on custom challenges. Describe your application to us. Together we will find the right solution. We look forward to your inquiry.
