Integrated servomotors - Synapticon by Kübler
Maximum performance
- Space-saving - compact design
- Efficient - optimized thermal concept
- Precise - battery-free Kübler multiturn encoder
- Flexible - 200W-1000W, with/without brake, single-cable solution
- Simple - quick commissioning via web interface
More space for your system concepts: space-saving all-in-one solution with maximum power density.
Integrated servomotors - Synapticon by Kübler
Space, time and costs are decisive factors in modern automation. The new servomotors with integrated drive control offer high power density in a compact design and therefore enable more efficient machine concepts.
This solution is suitable for numerous applications - from automation to intralogistics and across a wide performance spectrum. Thanks to the innovative thermal concept, motor derating remains virtually zero - more power without energy losses.
Actilink-S: integrated servomotor
- From 200W to 1000W
- Torque from 0.65 Nm to 3.2 Nm
- With or without brake
- Interfaces: EtherCAT, PROFINET, EtherNet/IP and in future CAN and other secure Ethernet protocols
- Safety functions: STO, SBC.
Integrated encoder solution with high-performance multiturn technology
Real-time capability: Precise positioning and short cycle times
The integrated, electronic multiturn sensor system without mechanical gearing from Kübler measures the absolute position, speed and direction of rotation of the motor shaft in real time. Compared to conventional resolvers, the encoder offers a higher resolution and accuracy, which enables precise and fast positioning.
Less space
More compact machines and flexible installation options create significantly more space in your application - less control cabinet requirement, more space for your production.
less material

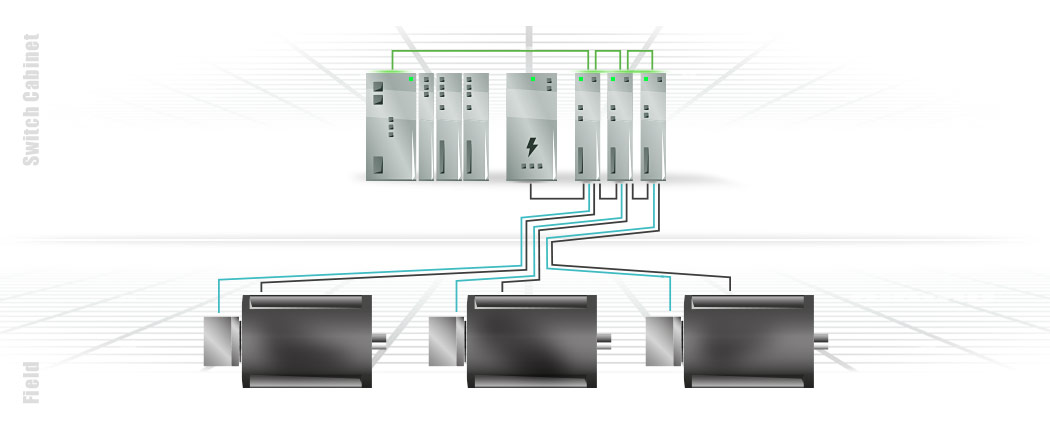

Thanks to the all-in-one solution, there is no need for meters of cabling, control cabinets become more compact and systems and machines can be designed to save space.
Lower costs
by optimizing the entire value chain (TCO): Material savings thanks to compact system structure, reduced cabling and therefore time and cost savings during installation.
Performance
Maximum power density in a compact design thanks to innovative thermal concept - Motor derating almost at zero.

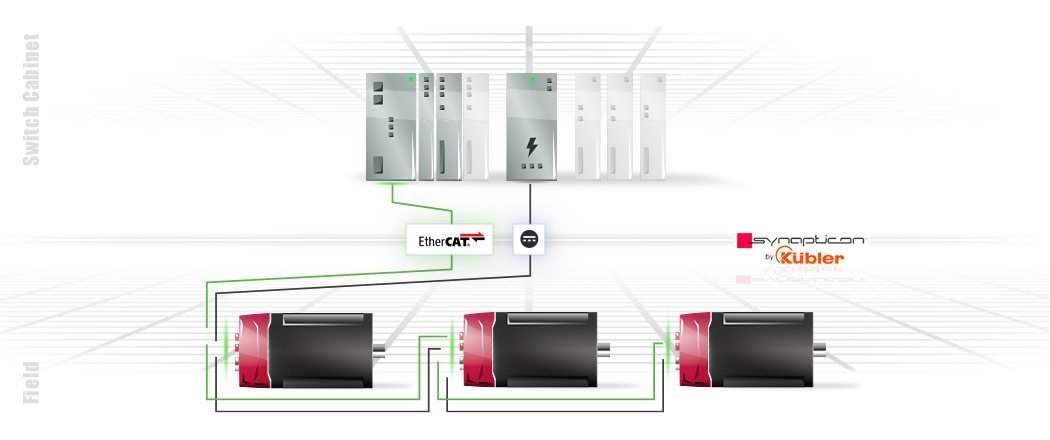

Efficient line topology as it should be.
Find the right motor for your application
Actilink-SC 6 with a rated power of 200 W - 600 W in a compact design of 600 mm.
With or without brake.
- Rated power 200 W
- Length 104 mm
- with brake 133 mm
- Rated power 400 W
- Length 121 mm
- with brake 150 mm
- Rated power 600 W
- Length 141 mm
- with brake 170 mm
Actilink-SC 8 with a rated power of 700 W - 1000 W in the compact 800 mm design.
With or without brake.
- Rated power 700 W
- Length 124 mm
- with brake 157 mm
- Rated power 1000 W
- Length 137 mm
- with brake 170 mm
Online operating instructions
OBLAC Drive Tools
Brochure & Technical Reports
NCP - Neugart Calculation Program
Recommended for gearbox design and drive design
Cloud-native CAD & PDM
Online CAD Editor for Actilink-S
Accessories & cables for Actilink-S
