Focus on your application
Your requirements give rise to products and solutions that inspire and set standards. Our latest developments are the best proof of this. Be inspired by our innovations and experience the incomparable quality and reliability of Kübler products and solutions.
MEASUREMENT
Rotary speed and position detection, linear position and speed measurement and inclination angle detection. Rotary encoders, bearingless rotary encoders, motor feedback systems, linear measurement technology, Shaft copying systems and inclination sensors.
State-of-the-art technology

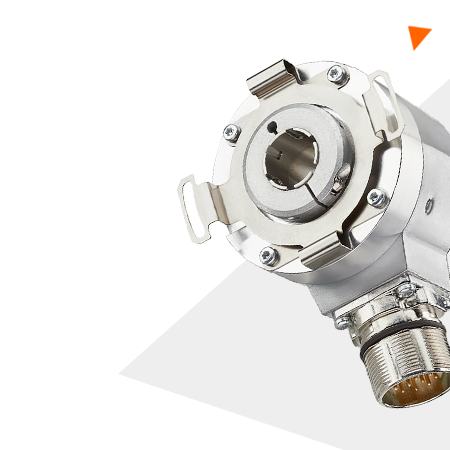

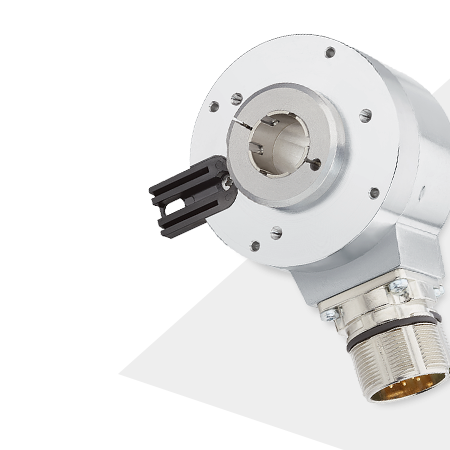

New generation of Kübler Sendix encoders
Powerful - Flexible - Future-proof

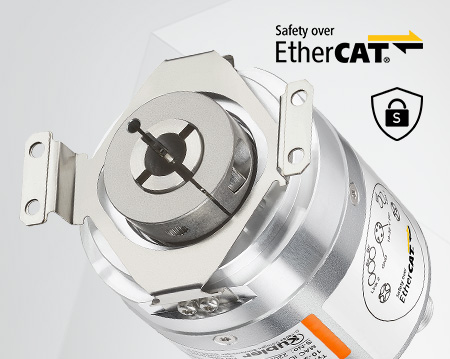

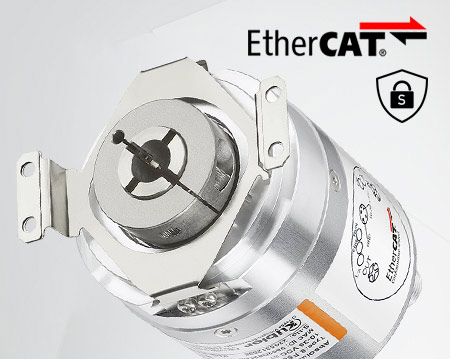

Safety Sendix S58 encoder with FSoE interface and cyber security
The Sendix S58 encoders with FSoE interface (Safety over EtherCAT) are now also available for safety applications. Benefit from maximum system availability and future-proofing thanks to cyber security and simple firmware updates.
For safety applications PROFIsafe encoders
The Industrial Ethernet encoders with PROFIsafe interface are based on the latest encoder and Profinet profiles and are adaptable and therefore future-proof thanks to the new encoder platform.
New generation: PROFINET encoders
Predestined for real-time applications. Thanks to the new technical platform, the encoders can also be integrated into PROFIdrive networks.
For extreme requirements
An even more robust bearing design, with optional stainless steel housing and the highest degree of protection up to IP69k are features that characterize this version.
Rotary encoder with IO-Link
Absolute encoders in a compact 36 mm design with a total resolution of up to 32 bits available as singleturn and multiturn variants.
Draw-wire encoder with IO-Link
Draw-wire encoder with IO-Link encoder for measuring lengths up to 42.5 m withpractical solutions such as fixed and interchangeable mounting of the encoder on the draw-wire mechanism.

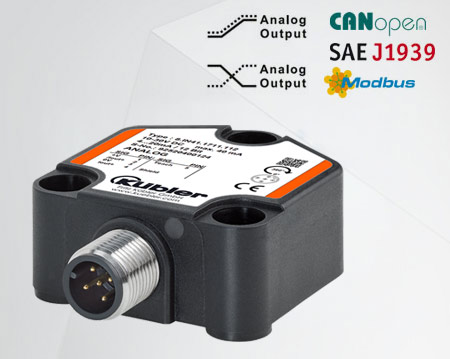

For static and dynamic applications.
Various parameters can be customized to meet individual requirements. Thanks to the high robustness of the new IN6x and IN7x inclination sensors, they are also ideally suited for outdoor use.

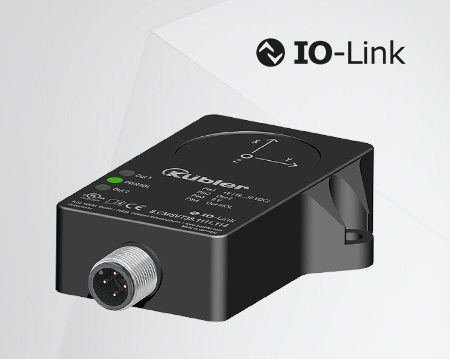

Condition monitoring sensors
The Kübler condition monitoring sensors record vibrations, oscillations and temperatures in 3 axes. Data is processed via IO-Link or SIO mode and used for predictive maintenance.
Radar sensor for precise positioning tasks
The compact RAD51, RAD52 and RAD58 radar sensors are ideal for reliable object detection and precise positioning tasks - predestined for tight installation spaces in the harshest environments.
Radar sensor with PROFINET
The RAD78 with PROFINET and web server impresses with its ±1.5° aperture angle, 500 Hz measuring rate and ±0.1 mm accuracy - and can be used as a stand-alone or system solution.
Radar sensor for ultra-precise measurements
The RAD78UP is optimally designed for ultra-precise condition monitoring applications and enables reference point-based distance change measurements.

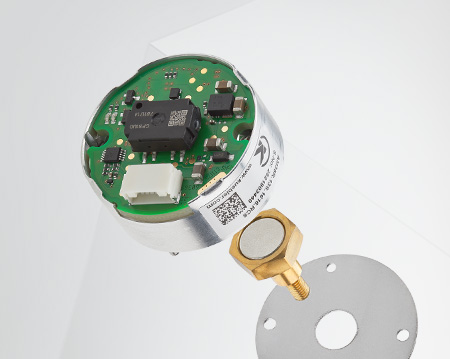

Integrated magnetic solution for drive technology
The magnetic MagKIT encoder is based on energy-harvesting technology and is suitable for precise positioning tasks in demanding applications and motors.
Compact with inductive detection
The InduMulti encoders are available in incremental, singleturn and multiturn versions and offer high scalability, simple installation and high resistance - ideal for hollow shaft torque motors.

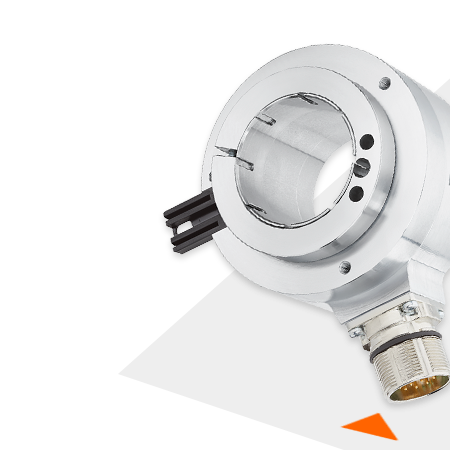

New generation of bearingless encoders
The new generation offers you maximum flexibility: any resolution can now be realized with any magnetic ring. You can also adjust the number of pulses at any time with the programmable variants.
For a compact motor design
Fully integrated encoder solution with magnetic sensors. Suitable for asynchronous motors thanks to high signal quality. Prepare your motors for the future with smart technology.
Magnetic length measuring systems - now also programmable
The incremental, magnetic length measuring systems offer a customizable resolution. The programmable versions deliver maximum reliability with IP68/IP69k protection.
Broad portfolio of measuring wheel systems
Kübler is expanding its portfolio of measuring wheel systems. From measuring wheel systems with high contact pressure to double measuring wheel systems and much more.
Draw-wire encoder with redundant analog sensor.
Measuring length up to 3 m: The B75 draw-wire encoder is predestined for outdoor use thanks to its robust design. Wide range of electrical interfaces available.TRANSMISSION

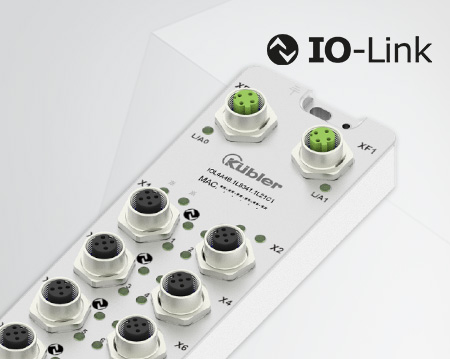

Gateway to the world of the Industrial Ethernet
Simple connection for any Ethernet protocol. The Kübler IO-Link masters are available with the Ethernet/IP, EtherCAT and PROFINET protocols. 4 or 8 ports in Class A and Class B available from stock.

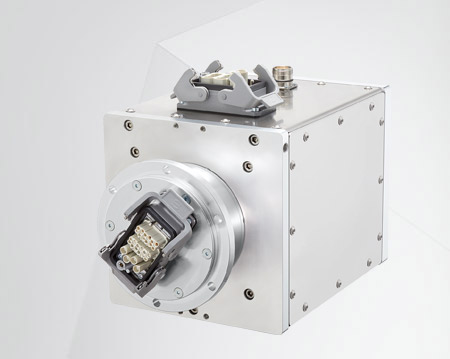

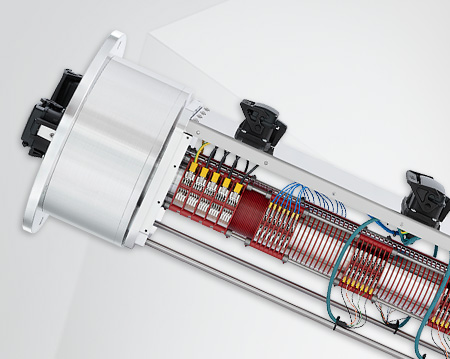

New Slip ring platform for high-end transmission
With the new Slip ring platform, up to 1 Gbit can be transmitted in a maximally compact design. Mechanical and electrical properties can be adapted to almost any application.
Smart solution for Industry 4.0
In addition to the reliable transmission of load, signal and data, the integrated sensor technology supports the implementation of Industry 4.0 concepts with functions such as condition monitoring and much more.
The Flow-Pack slip ring specialist SR060E in size 60 mm is now also available with the new Easy Connect module - a pre-wired connection cap with connectors.
New Slip rings with Single Pair Ethernet communication
Single Pair Ethernet is now also possible with a size of 85mm. The Kübler Slip rings have been extended with a Fast Ethernet module, which enables a transmission rate of up to 100 Mbit/s.
For Industry 4.0 / IIoT concepts.
Reliable transmission of Industrial Ethernet is now also possible in the 85 mm size.EVALUATION
Signaling of statuses with signal lights
The signal lights with diameters of 35 mm and 55 mm are optionally available with a siren and complement Kübler products for simple measured value signaling in traffic light colors.
Signaling statuses with signal tower
The ST40 signal tower with a diameter of 40 mm, optional siren and IO-Link interface enables visual and acoustic signaling of machine statuses.

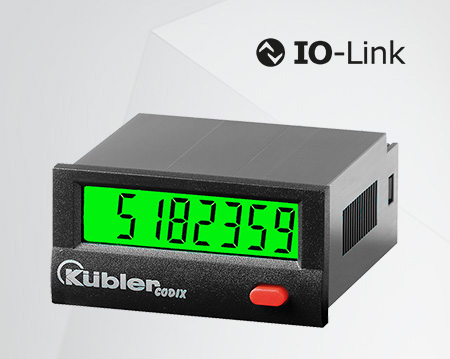

Pulse / time counter with IO-Link
The Codix 144/145 with IO-Link are suitable for pulse, time, service and batch counting. Parameterization via IO-Link enables flexible control and monitoring.
IO-Link touch display & process control unit
Available as a pure touch display or as a process control device. Realization of all counting, measuring and control tasks. Easy commissioning thanks to simple plain text programming with resistive touchscreen.FOR DRIVE TECHNOLOGY
Integrated servomotors
Synapticon by Kübler
Benefit from the enormous advantages of this solution, such as 80 % less installation space, 70 % less material, 50 % lower costs and 100 % performance.
