Slip ring

SR085IE


For Industry 4.0 / IIoT concepts.

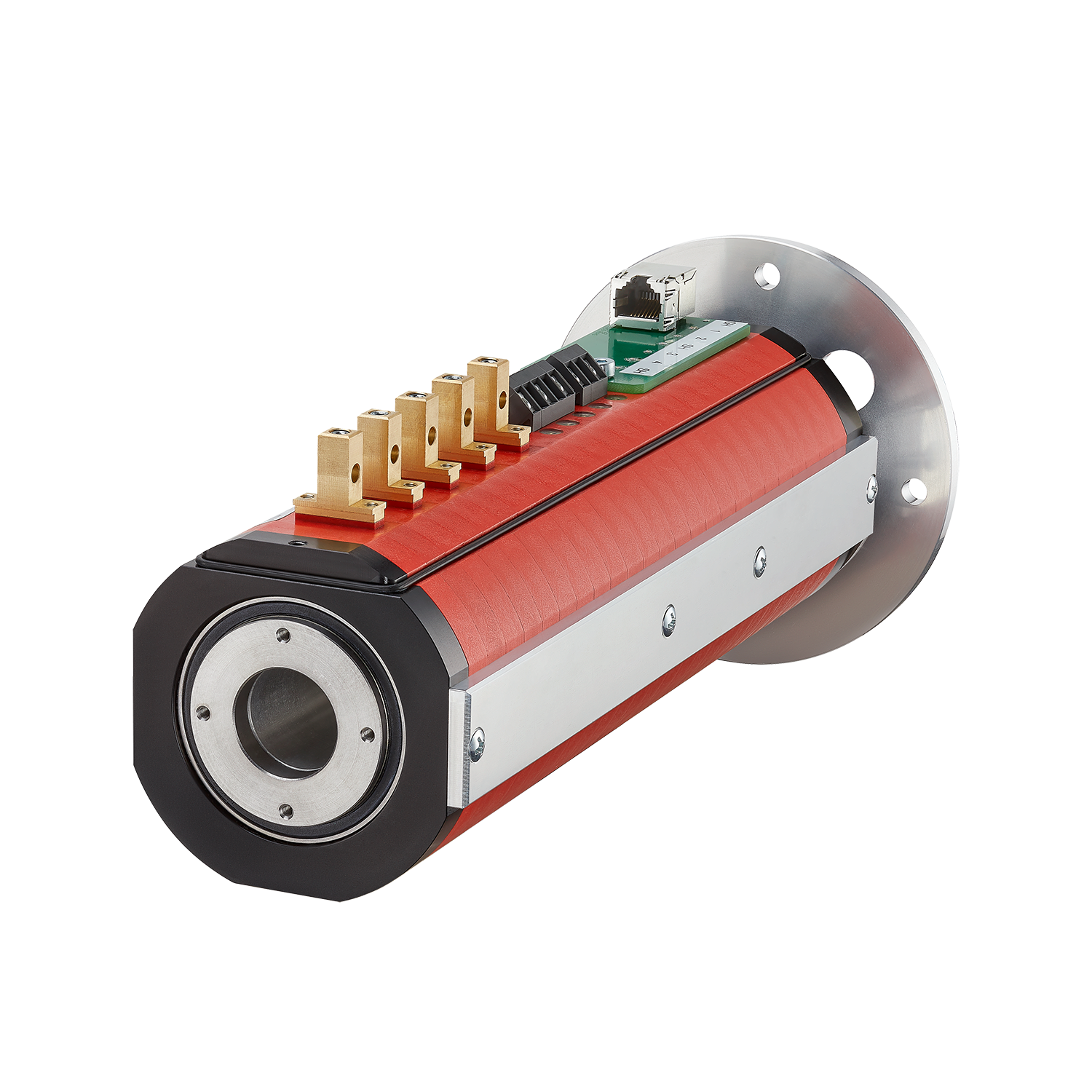

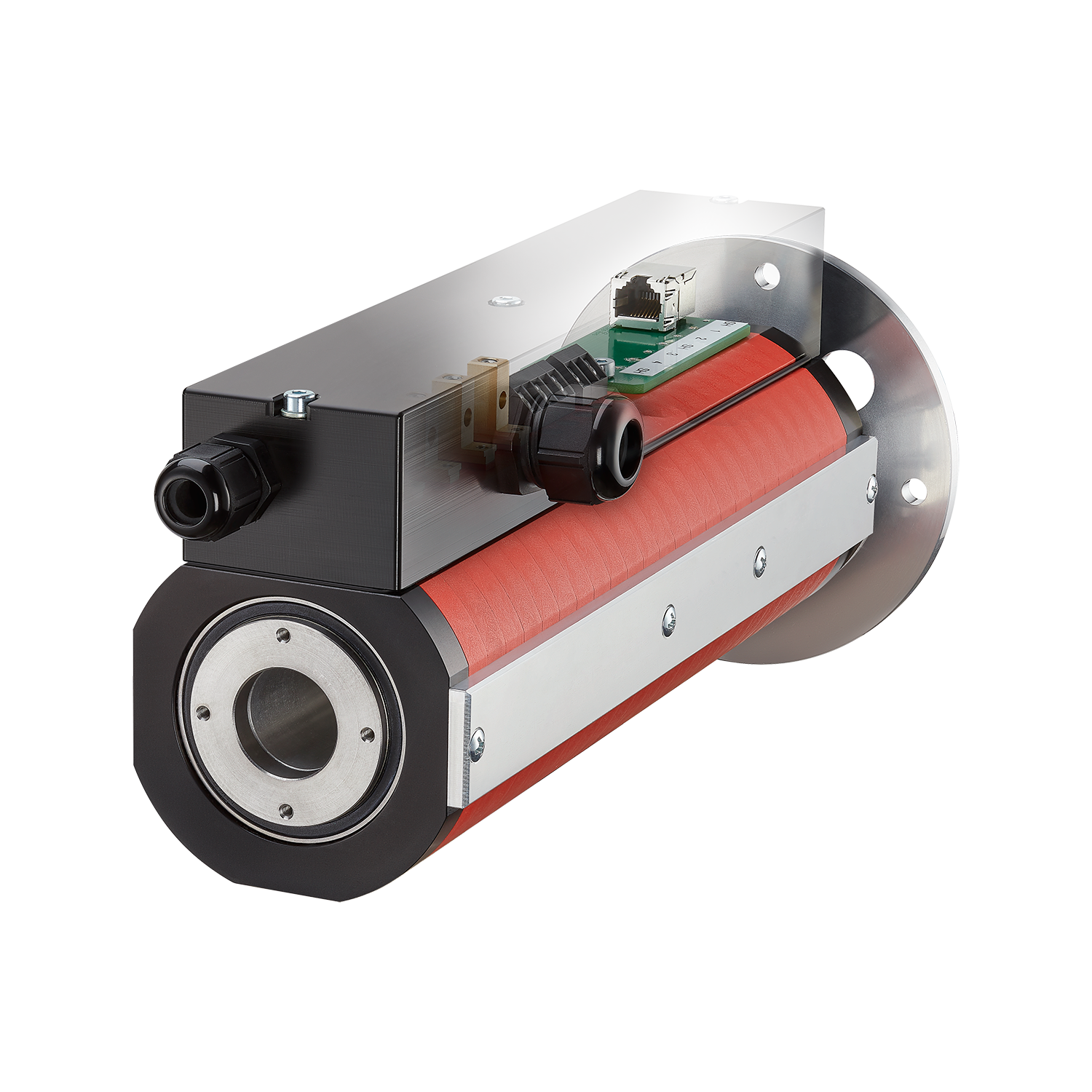

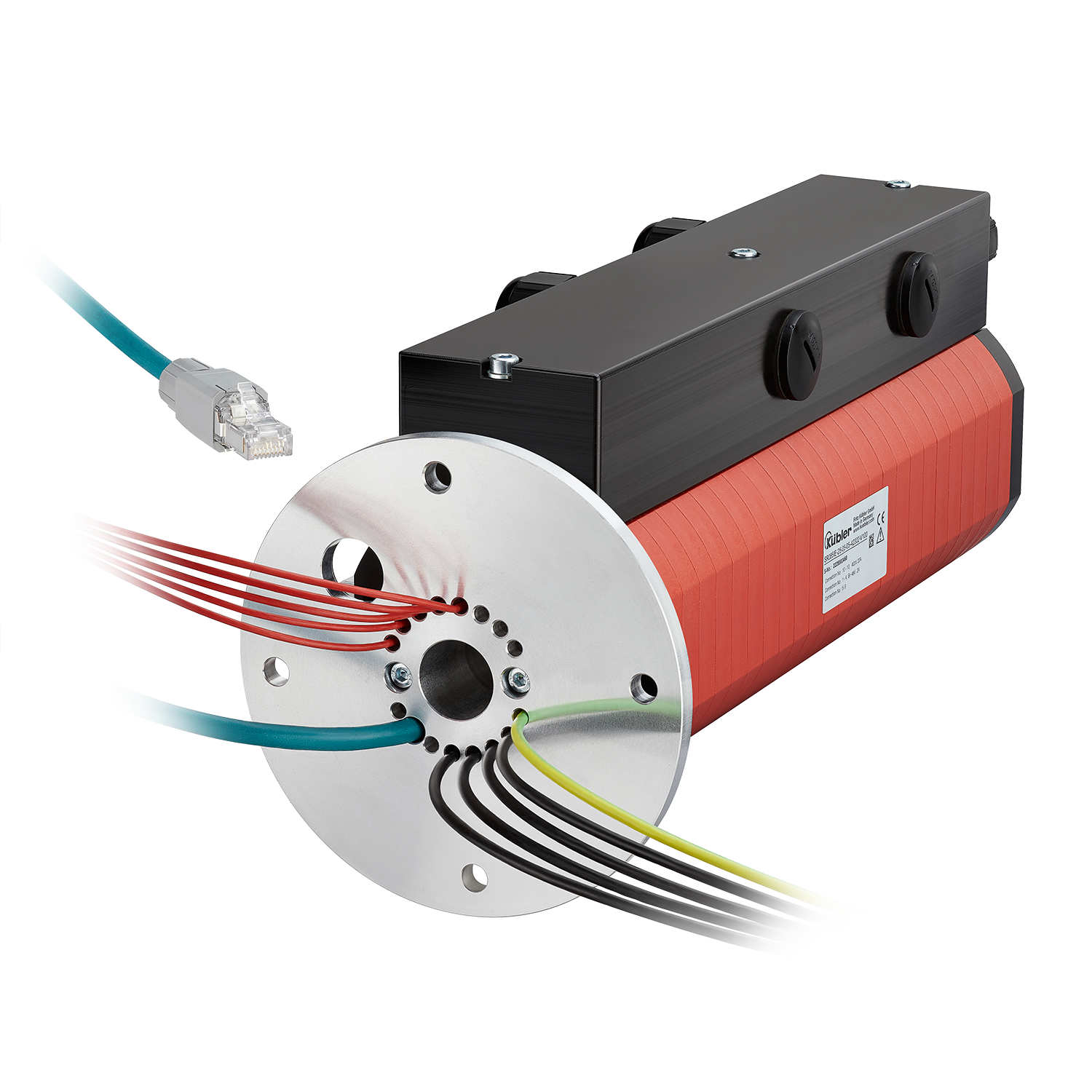

Reliable transmission of Industrial Ethernet is now also possible in the 85 mm size. For this purpose, the SR085IE slip rings from Kübler have been expanded with a Fast Ethernet module, which enables a transmission rate of up to 100 Mbit/s. The connection for data transmission is made as standard via a CAT5e cable with RJ45 plug connection. Customer-specific solutions can also be implemented on request, such as M-type industrial connectors.

Transmission of Industrial Ethernet among others:



and many more.

Mechanical
Dimension 85 mm
Mounting type Flange
Connection types Cable
Connectors
Working temperature -35 °C ... +85 °C
Protection level IP64
Rotational speed 800 min-1
Service life 500 million revolutions
Maintenance cycles 100 million revolutions
Electrical
Max. number of signal channels 13
Max. number of load channels 13
Load current transmission 16 A, 240 V AC
10 A, 400 V AC/DC
20 A, 400 V AC/DC
25 A, 240 V AC/DC
Features
  • Optional Ethernet module for the transmission of all common Industrial Ethernet protocols.
  • Robust GRP housing in modular design.
  • Reliable transmission of loads up to 25 A.
  • Flange mounting or simple plug-on through a hollow shaft.

Benefits
  • Transmission of Industrial Ethernet up to 100 Mbit/s.
  • Fast connection via RJ45 connector with CAT5e cable.
  • Quick and easy replacement by user.
  • Individual configuration for all applications.
  • Prepared for a wide range of applications even with high current load.
  • The application determines the mechanical connection - the SR085IE slip ring adapts to.
Data sheet

SR085IE (Industrial Ethernet) / SR085SE (Single Pair Ethernet)

PDF ∼ 1,1 MB | 06.2024
DE
EN
FR

Accessories

Cables and connectors

RJ45 Connector with cable ,  Ethernet cable

RJ45 Connector with cable , Ethernet cable

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 8-pin

Male connector 4-pin PUR Ø 6,5 mm ± mm
4 x 0,34 mm2
05.00.6031.7444.XXXM

Data sheet
Cordset RJ45 connector + M12 pin, 4-pin, D-coded, PUR cable, Profibus
DE EN FR

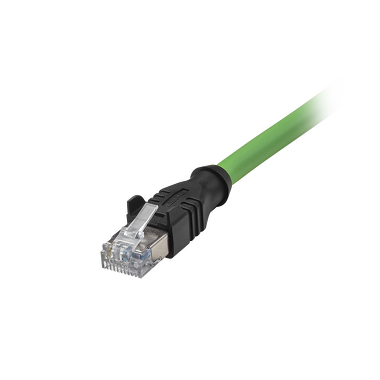

RJ45 Connector with cable ,

RJ45 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 4,8 mm ± 0,2 mm
4 x 0,324 mm2
05.00.60A1.7711.XXXM


RJ45 Connector ,

RJ45 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 8-pin
05.VS-08-RJ45-5-Q/IP20

Operation Manual
RJ45 Connector - Installation notes for electricians
Data sheet
RJ45 connector, straight, 8-pin
DE EN FR
