Due to a technical problem, our website is only available to a limited extent. This also affects our download service area. We are already working on the solution and ask for your understanding.Elevation and azimuth control of heliostats
Precise positioning of heliostats with Kübler encoders.
At a solar tower power plant, the sunlight is reflected by numerous heliostats onto the receiver of the solar tower. It is only possible to efficiently produce power by precisely positioning the heliostats. Kübler offers an extensive product range of encoders, inclinometers and linear measuring systems for this purpose. High-resolution and sturdy – these are the properties that make up our products. Renowned manufactures of solar-thermal systems around the world use Kübler encoders as precise sensors for positioning heliostats – no matter whether in Spain, South Africa, Chile or China. We gladly also face individual challenges and realize modifications and special solutions quickly and easily.
Precision for more efficiency
- Absolute and incremental encoders
- Linear measuring systems
- Suitable for harsh environments
- Sturdy design for a long service life
- High degree of protection up to IP69k
- Wide temperature range -40° ... +85°
Elevation and azimuth control of heliostats
Precise positioning of heliostats with Kübler encoders.
At a solar tower power plant, the sunlight is reflected by numerous heliostats onto the receiver of the solar tower. It is only possible to efficiently produce power by precisely positioning the heliostats. Kübler offers an extensive product range of encoders, inclinometers and linear measuring systems for this purpose. High-resolution and sturdy – these are the properties that make up our products. Renowned manufactures of solar-thermal systems around the world use Kübler encoders as precise sensors for positioning heliostats – no matter whether in Spain, South Africa, Chile or China. We gladly also face individual challenges and realize modifications and special solutions quickly and easily.
1+2 Fieldbus absolute multiturn encoder
- Optical – precise
- Dimension of ø 58 mm
- Total resolution max. 32 bits
- Modbus or CANopen interface
1+2 SSI absolute multiturn encoder
- Optical – precise
- Dimension of ø 58 mm
- Total resolution max. 24 bits
1+2 Incremental encoders
- Optical – precise
- Dimension of ø 58 mm
- Resolution up to 5000 ppr.

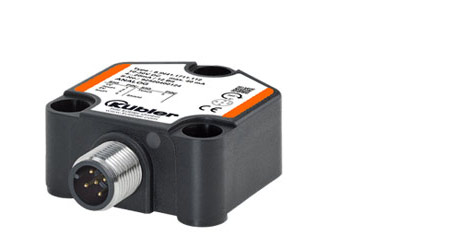

1+2 Inclinometer
- Präzise 1- oder 2-achsige Messung
- Maximal kompakt
- Wirtschaftliche Lösung
1+2 Incremental length measuring system
- Magnetic – sturdy
- Contactless – durable
- High degree of protection IP69k
- Resolution min. 5 μm
