Space-saving solutions for compact and maintenance-free drive systems
The trend in drive technology is towards more compact, efficient and low-maintenance motors. Companies need to reduce installation space, lower installation costs and at the same time increase the reliability of their drive systems. Integrated encoders for motors offer the right solution for this. They are integrated directly into the motor and replace classic surface-mounted encoders. There are clear advantages for users: less installation space, less installation effort, reduced wear and lower overall costs over the entire life cycle.
life cycle. Integrated encoders are becoming increasingly popular, particularly in compact machines, servo drives and dynamic applications.
Integrated encoders for motors
Space-saving solutions for compact and maintenance-free drive systems
The trend in drive technology is towards more compact, efficient and low-maintenance motors. Companies need to reduce installation space, lower installation costs and at the same time increase the reliability of their drive systems. Integrated encoders for motors offer the right solution for this. They are integrated directly into the motor and replace classic surface-mounted encoders. There are clear advantages for users: less installation space, less installation effort, reduced wear and lower overall costs over the entire life cycle.
life cycle. Integrated encoders are becoming increasingly popular, particularly in compact machines, servo drives and dynamic applications.
External Encoders vs. Integrated Encoders – An Overview of the Key Differences

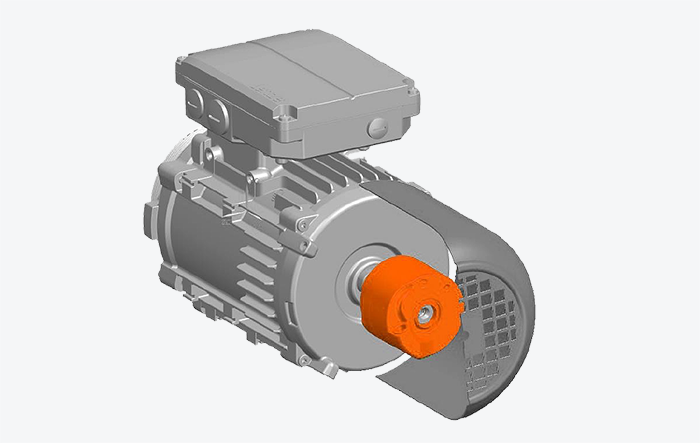

Attachment encoder
Additional installation space for add-on encoders
Bearing-mounted encoders are susceptible to wear and tear
Encoder is mounted, calibrated and wired separately
High overall costs for the drive system

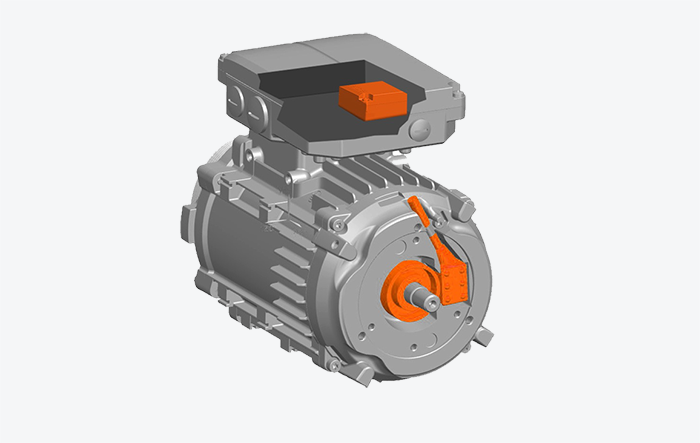

Integrated encoder solutions
For extremely compact drive concepts
Wear and maintenance-free thanks to bearingless technology
Less effort required to install and connect the sensors
Reduced overall costs
Benefits of Kübler's integrated encoders
COMPACT
MAINTENANCE-FREE
TIME-SAVING
COST-SAVING
Customized solutions developed in collaboration
Individual concepts - Kübler technology meetings
The bearingless encoder solutions from Kübler for direct integration into drives go one step further. All installation solutions can be individually adapted to the respective application - ideal as part of a joint development of your drive systems with us in "Kübler Technology Meetings".
Integrated Encoder Solutions – Kit Systems

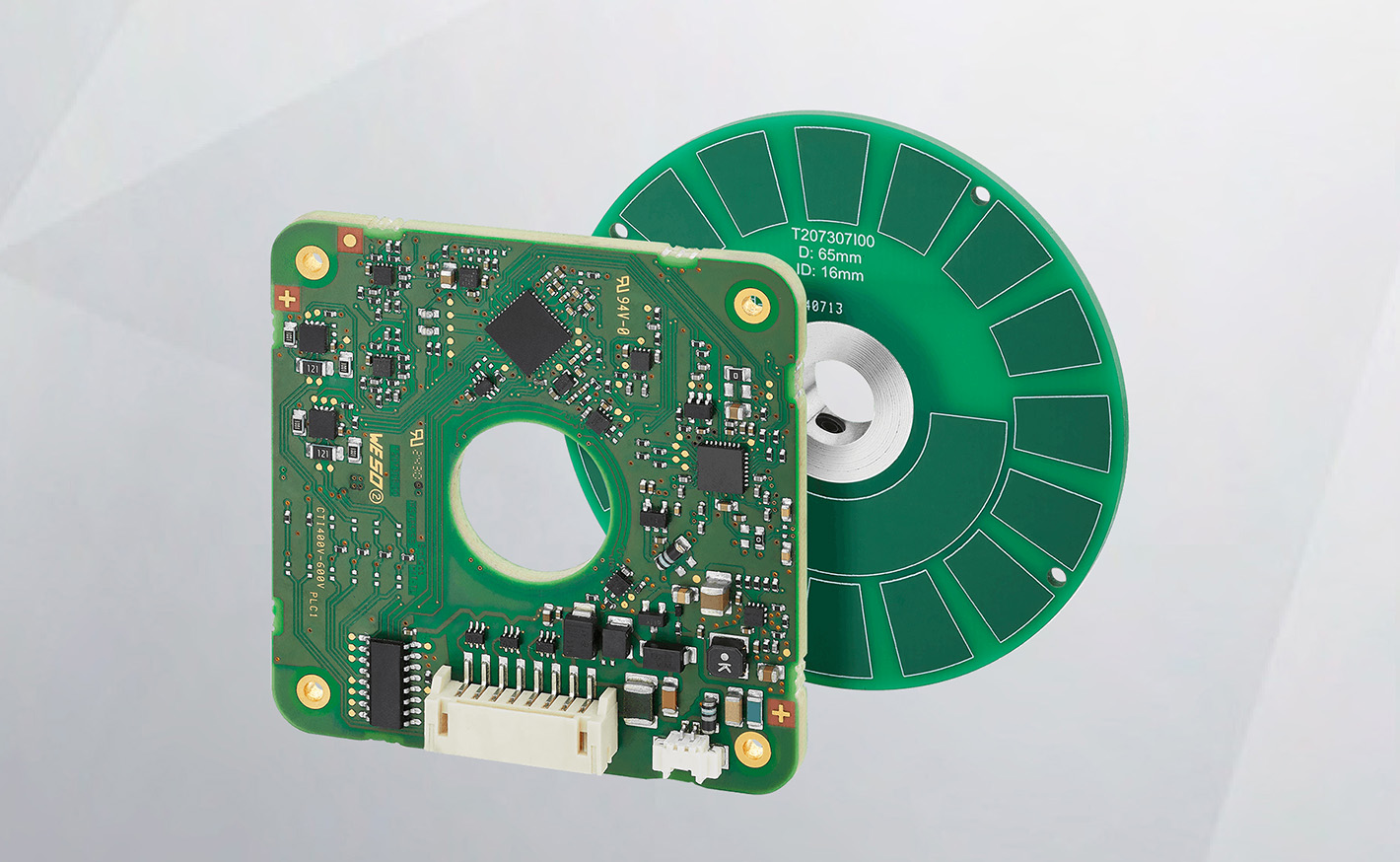

Integrated inductive encoders
Inductive measuring principle
Extremely slim design
High resistance to dust, oil, vibrations and moisture
Induvidual circuit board geometries
Robust against assembly tolerances

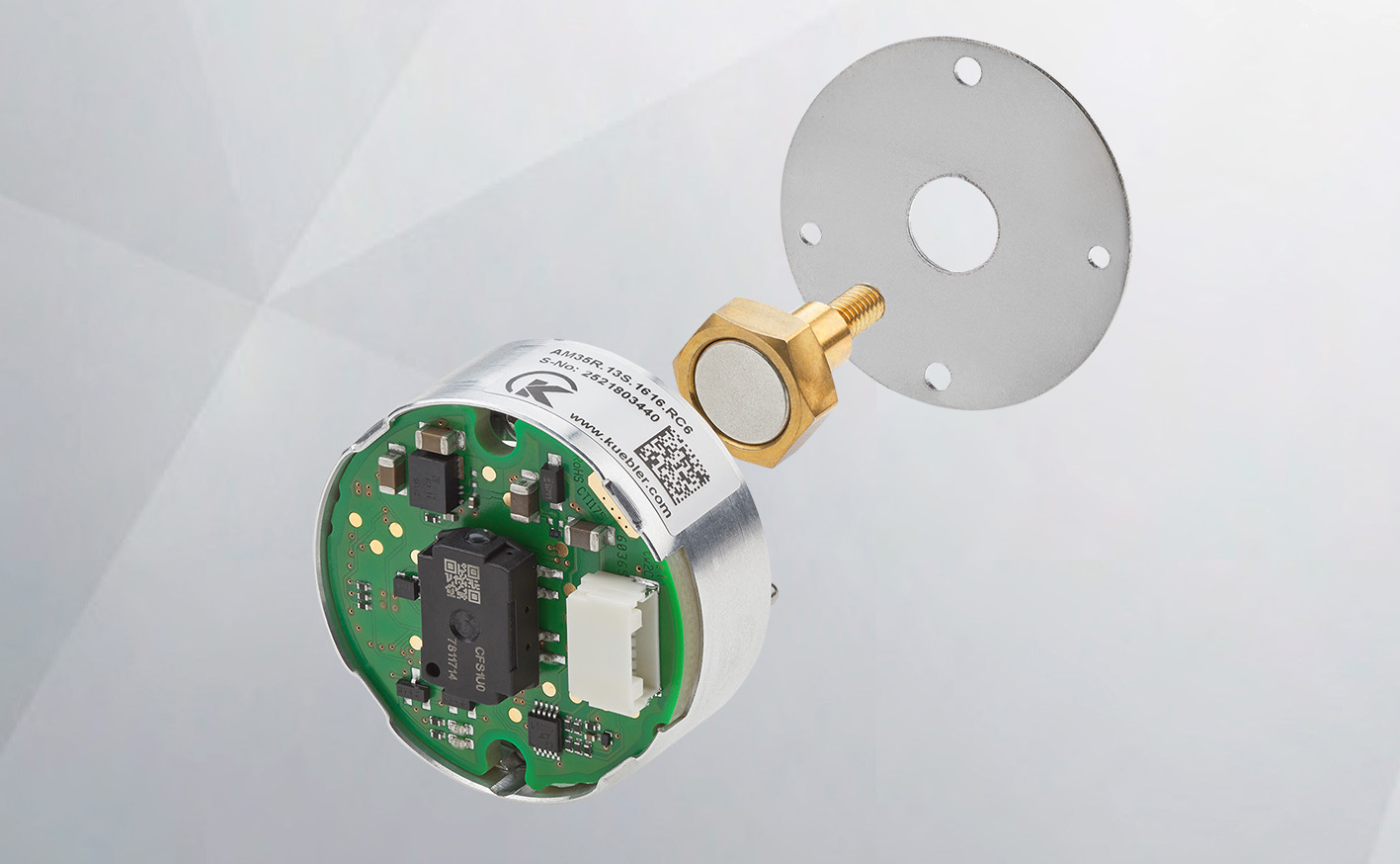

Integrated magnetic end-of-shaft encoders
Robust against external influences
Simple integration directly on the shaft or in the housing
Precise angle measurement even at high speeds
Flexible interfaces and high accuracy

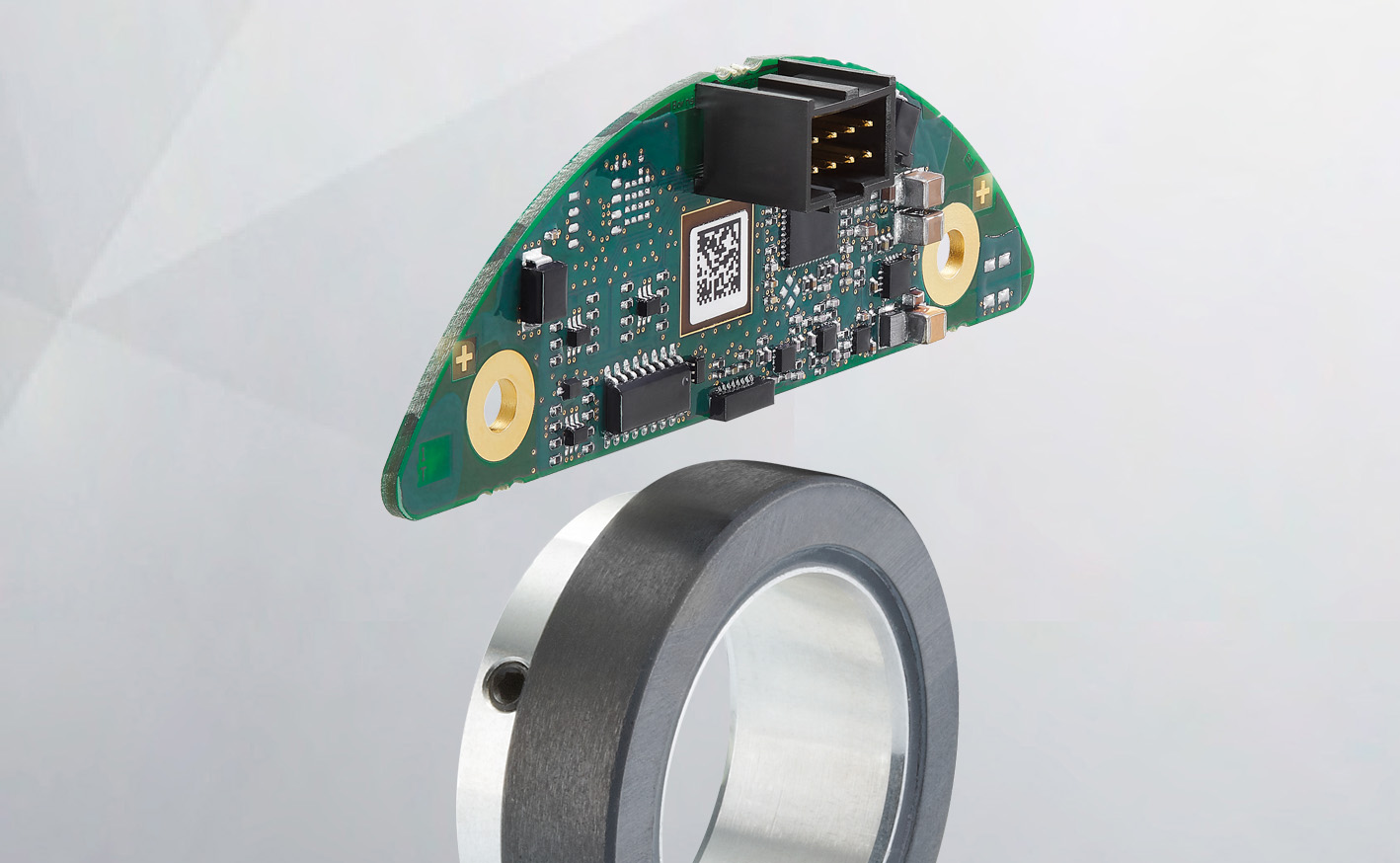

Integrated rotary encoder with magnetic ring
High flexibility thanks to a wide range of magnetic rings, pole pitches and resolutions
Programmable resolution up to 999,999 ppr
Robust and sensitive
Quick and easy commissioning
Which sensor solution is best suited for which application?
Inductive sensors
Magnetic sensors - End of shaft
Magnetic sensors with magnetic ring
Output Signal Variants
Push-pull, RS422 SSI, BiSS
SSI, BiSS
Push-pull, RS422
Resolution / Pulses
up to 24 bit
up to 24 bit
up to 999,999 ppr programmable
Mounting / Installation Requirements
Robust against mounting tolerances, extremely slim design
Relatively easy installation as a kit solution
Very large hollow shaft (up to Ø 180 mm) possible, compact installation depth
Cost / Effort
Medium installation effort, integration into the motor possible
Cost-effective, compact series solutions, kit character
Possible interaction with electromagnetic motor brakes must be considered
Flexibility
Individual adaptation of PCB geometries, easily scalable
Independent of shaft diameter
Sensor head in housing or as a PCB – multiple ring options for different shaft diameters
Limitations
Despite good tolerance: possibly higher costs and more complex integration compared to simple magnetic solutions
Magnetic technology may be more sensitive to strong external magnetic fields
Magnetic technology may be more sensitive to strong external magnetic fields
Summary / Recommendation
For robust signal detection in environments with dirt, oil, or tight installation conditions
Cost-effective solution for compact series motors with a free shaft end
Wide range of options for different shaft diameters
