Draw-wire encoders

Measuring range from 0.3 m to 42.5 m

Precision measurement: Linearity up to 0.02%
Dynamic: Travel speed up to 10 m/s
Safety: Redundant sensors
High protection class: IP69k
All in One: Integrated inclinometer

Go to Product Finder

Linear measuring system for position detection.

The right draw-wire encoder for every application. From precise to compact to robust and cost-optimized. Kübler offers a comprehensive portfolio based on different measuring lengths. In addition to all common interfaces, innovative features such as integrated inclinometers or redundant sensors make the difference. From analog to fieldbus – draw-wire mechanisms can be combined with a wide variety of Sendix encoders according to customer requirements. That's why we offer countless ordering options and are ready to realize modifications and special solutions for you.

Draw-wire encoders by measuring length

The right draw-wire encoder for any measurement. Choose the right solution for your application from our large portfolio.

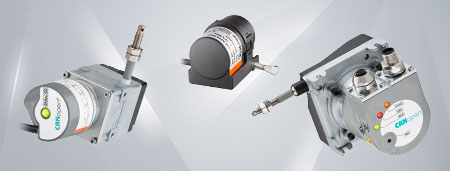

Length measurement up to 3 m

Extremely compact design
Various interfaces
Various housing and cable types
High precision

To the products

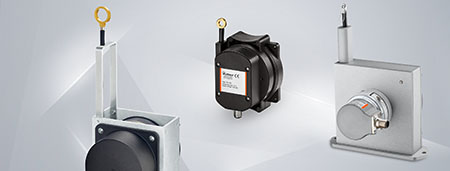

Length measurement up to 10 m

Redundant sensor technology
Integrated inclinometer
Various interfaces
Various housing and spool types

To the products

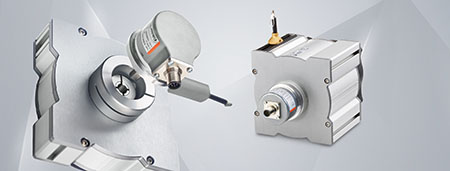

Length measurement up to 42.5 m

Various interfaces
Extremely robust construction
High dynamics
High precision

To the products

Performance classes

Whether for simple applications or for the highest demands –
you can use our performance classes to find the right sensor solution quickly and easily.

Performance

Dynamic and precise – suitable for the highest demands.

To the products

Base

Cost-optimized – simple sensor solution with added value.

To the products

Robust

Durable – designed for the harshest environments.

To the products

Compact

Space-saving – flexible installation in the tightest of installation spaces.

To the products

Dynamic and precise – suitable for the highest demands.

To the products

Cost-optimized – simple sensor solution with added value.

To the products

Durable – designed for the harshest environments.

To the products

Space-saving – flexible installation in the tightest of installation spaces.

To the products

Application examples

Medical technology

Medical technology applications require the highest of precision. Draw-wire sensors from the Performance Line range offer linearity up to ±0.02%. Draw-wire sensors are often chosen for their flexible integration into the application. To change the path of the measuring cable, Kübler also offers suitable deflection pulleys. In addition to precision, the compactness of products is also an important factor. Linear measurement technology from Kübler is an important component of patient tables in a wide variety of areas such as MRI or X-ray.

Select your suitable draw-wire encoder

Automatic guided vehicle systems

Draw-wire encoders are used in driverless transport systems with lifting devices. These measure the lift height using the draw wire to move transported goods in or out of storage. Different requirements apply to the linear measuring technology with respect to size, measuring length, travel speed, linearity, and communication interface. Kübler provides the most extensive portfolio of draw-wire encoders on the market. True to the motto: The right solution for any application.

Select your suitable draw-wire encoder

Mobile crane

Draw-wire encoders are an important component of the load monitoring system in mobile cranes. They precisely determine the position of the support and the telescopic mast. All measurements can be taken from the cab at a glance. With its comprehensive product portfolio, Kübler covers the measurements of all geometric data. Whether draw-wire encoder, inclinometer, or encoder, customers can choose from a large number of variants to adapt products to specific application requirements. For mobile cranes, these are variants such as size, measuring length, travel speed, linearity or communication interface.

Select your suitable draw-wire encoder

Working platforms

Wherever people are deployed, only the highest safety standards count. Kübler draw-wire sensors monitor the position of the cage and the support – for work platforms with their own drive as well as mounted on a trailer or truck. Flexibility, speed, and safety are the most important characteristics of working platforms. The requirements for fast setup and access as well as absolute stability regardless of the inclination or condition of the ground require precisely fitting sensors for monitoring and automation. Draw-wire encoders and inclinometers also play an important role here.

Select your suitable draw-wire encoder
