Incremental encoders

Unique diversity of variants
  • Dimensions from Ø 24 mm to Ø 100 mm
  • Optical and magnetic scanning
  • Working temperature range -40 °C to +105 °C
  • Resolution up to 36,000 ppr
  • HTL, TTL, and SinCos output signal
Go to Product Finder

Speed measuring on rotating axes with incremental encoders.

Incremental encoders deliver a certain number of pulses per shaft revolution. The speed of a movement is determined by measuring the period or counting the pulses per time unit. The Sendix encoder made in Germany – is the result of the highest quality awareness and careful selection of materials. It has proved its value in many industries as a robust and precise sensor technology. We are also happy to implement special solutions and modifications. We look forward to your challenge.

Encoders by dimension


If space is an important factor, you can find the right encoder here. They range from miniature to maxi encoders.
Nearly limitless possibilities await you when configuring your encoder. There are also a variety of mechanical and electrical ordering options.

Ø 24 mm miniature encoder
  • Optical and magnetic
  • Resolution up to 1024 ppr
  • Shaft or hollow shaft
    up to 6 mm
  • Flexible solutions

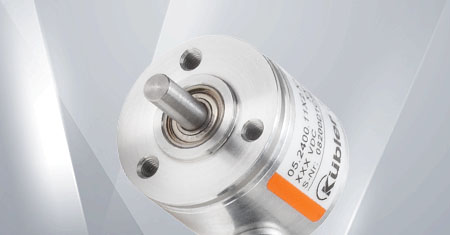

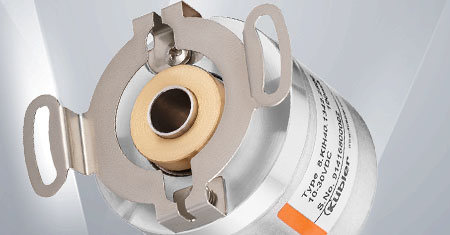

Ø 36 mm to Ø 40 mm compact encoder
  • Optical
  • Resolution up to 3600 ppr
  • Shaft or hollow shaft
    up to 8 mm
  • Also with plastic housing

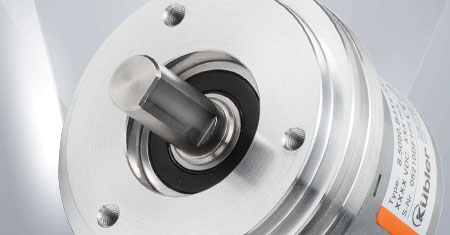

Ø 50 mm to Ø 70 mm standard encoder
  • Optical
  • Resolution up to 36000 ppr
  • Shaft or hollow shaft
    up to 15 mm
  • Special approvals

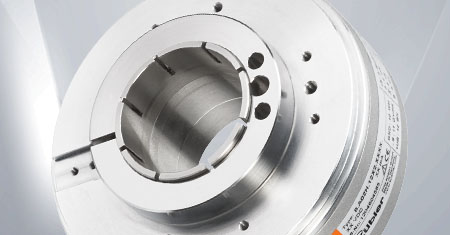

Hollow shaft maxi encoder up to Ø 42 mm
  • Optical
  • Resolution up to 5000 ppr
  • Also available in extremely robust versions

Encoders for special requirements


Are you looking for specific technical features or do you have special sensor requirements?
With us you'll find the perfect encoder for your machines, systems, or motors. We are also happy to accept individual challenges. Please contact us.

Explosion protection
  • ATEX / IECEx certified
  • Encoders for zones 1/21
  • Shaft and hollow shaft versions
  • Also for functional safety
Corrosion resistant
  • Incremental encoders
    with surface protection
  • Stainless steel V2A or V4A
  • Shaft and hollow shaft variants
Functional safety
  • For SIL2/PLd or SIL3/PLe
  • TÜV-certified encoders
  • Shaft and hollow shaft versions
Heavy duty applications
  • Extremely robust encoders
    with bearing insulation
  • Highly shock and vibration resistant
