Condition Monitoring Sensor
CMSVT38
|
|
Condition monitoring sensor with IO-Link interface: detect and analyse vibrations
The CMSVT38 condition monitoring sensor records reliable information about vibrations / oscillations in 3 axes as well as temperatures. The measurement data is exchanged with the controller for processing via an IO-Link interface. Alternatively, two PNP/NPN switching outputs can be used individually in SIO mode and parameterized via IO-Link communication. The CMSVT38 can be integrated into various condition monitoring concepts or used as a stand-alone solution in combination with signal lights from Kübler. In addition to condition monitoring, the sensors can also be used to record process steps.| Mechanical | |
|---|---|
| Dimension | 62,6 mm x 71,6 mm x 20 mm |
| Connection types |

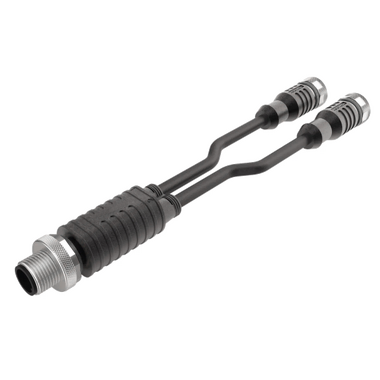

M12 connector |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP68 IP69k |
| Electrical | |
|---|---|
| Interfaces |
IO-Link |
| Power supply |
18...30 V DC |
Precise vibration measurement in three axes
Various setting options depending on the application requirements
IO-Link interface for seamless integration and communication in the latest Industry 4.0 / IIoT control concepts.
Visual status display made easy
The sensor can be used in SIO mode with two PNP/NPN switching outputs, which are individually parameterized to the respective requirements via IO-Link. Limit values can then be visualized via suitable signal lights.
Precise measurement even under harsh environmental conditions
Various setting options depending on the application requirements
- Effective vibration speed (acceleration)
- Peak-to-peak values
- Visualization of operating states via LEDs.
- LEDs in a translucent housing without bridging. This provides additional added value for the protection class.
- Simple setting and adaptation of parameters and limit values to a wide range of application requirements (according to ISO 10816-3) via IO-Link.
IO-Link interface for seamless integration and communication in the latest Industry 4.0 / IIoT control concepts.
Visual status display made easy
The sensor can be used in SIO mode with two PNP/NPN switching outputs, which are individually parameterized to the respective requirements via IO-Link. Limit values can then be visualized via suitable signal lights.
Precise measurement even under harsh environmental conditions
- Temperature range -40 °C... +85 °C and protection class IP68 / IP69K
- Robust housing with shock resistance up to 200 g
Accessories
EMC shield terminal
For EMC-compliant installation of the encoder cable.- Mounting on top hat rail
- Shield diameter
8.0000.4G06.0312 (03-12 mm)
- Weight approx. 7.4 g
- Clamp (spring steel, galvanized)
- Foot (spring steel)
| 8.0000.4G06.0312 |
Simple connection for any Ethernet protocol.
Different variants for the EtherNet/IP, EtherCAT and PROFINET protocols with 4 Class A ports.Existing field devices that send classic switching signals can also be operated in SIO mode via the Class A ports.
| IOL4A.124341.1222XX |
Simple connection for any Ethernet protocol.
Different variants for the EtherNet/IP, EtherCAT and PROFINET protocols with 4 Class A and 4 Class B ports.Existing field devices that send classic switching signals can also be operated in SIO mode via the Class A ports.
| IOL4A4B.1L8341.1L21XX |
Signal light SL35 / SL55: space-saving solution for reliable signalling of machine and system statuses.
The SL35 and SL55 signal lights with a 360° LED display are the perfect solution for quickly and reliably signalling machine and system statuses.In combination with Kübler sensors, measured values can be optimally displayed using the traffic light function (green, yellow, red) with the help of set limit values.
The optional siren can be used to attract attention over a long distance. The compact design and robust housing of the signal lights make them versatile and provide workers and supervisors with quick and clear status information.
| SLX5.XXX.XXX |
Signal tower ST40: Reliable signalling of machine and system statuses.
The ST40 signal tower with a 360° all-round LED display is the perfect solution for fast and reliable signaling of machine and plant statuses. A far-reaching perception can be achieved with the optional siren.Thanks to the integrated IO-Link interface, the product can be easily and seamlessly integrated into an existing IO-Link network.
The signal tower is the ideal choice for maintaining maintaining visibility, especially in confusing or spacious environments.
| ST40.1X2.3X8 |
