Due to a technical problem, our website is only available to a limited extent. This also affects our download service area. We are already working on the solution and ask for your understanding.Invisible, precise radar technology for measurements in complex and demanding environments
Radar sensors for industrial use
Reliable measurement and maximum efficiency, even under difficult conditions - for a smooth production process.
Robust. Precise. Compact.
- Flexible use due to contactless measurement
- Insensitive to dust, dirt, wind, rain, fog, temperature
- Measure through materials
- Quick and easy installation
Invisible, precise radar technology for measurements in complex and demanding environments
Radar sensors for industrial use
Reliable measurement and maximum efficiency, even under difficult conditions - for a smooth production process.

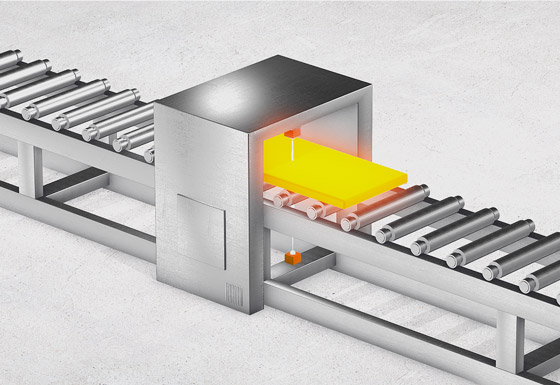

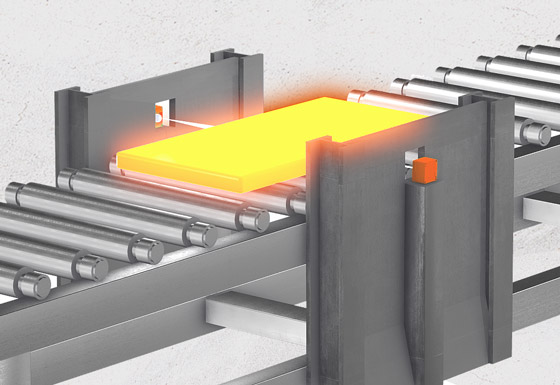

Operating modes such as distance measurement, object detection, collision avoidance and positioning
Depending on the operating mode, different aperture angles of the radar signals are available.
Large measuring range
Very wide opening angle ± 8° (16°)
- Measuring range up to 30 m
- Linearity up to ± 10 mm
Precise measurements
More precise measurement due to wide opening angle of ± 3° (6°)
- Measuring range up to 40 m
- Linearity up to ± 5 mm
High precision
Highly precise due to narrow opening angle of ± 1.5° (3°)
- Measuring range up to 6 m
- Linearity up to ± 0.7 mm
- With Profinet interface
Level measurement / level control
Radar sensors provide reliable level control in demanding applications of liquids and solids, even under extreme conditions.
High precision
Ideal for level measurements due to opening angle of ± 1.5° (3°)
- Measuring range up to 20 m
- Linearity up to ± 0.7 mm
- With Profinet interface

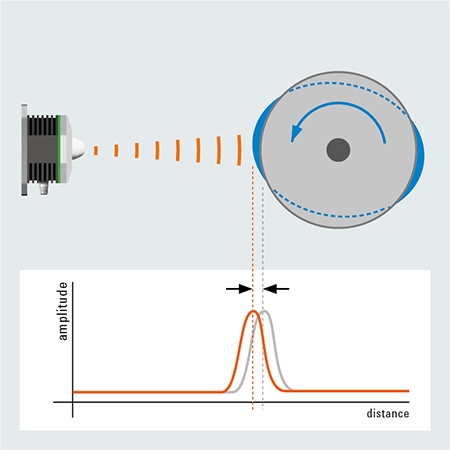

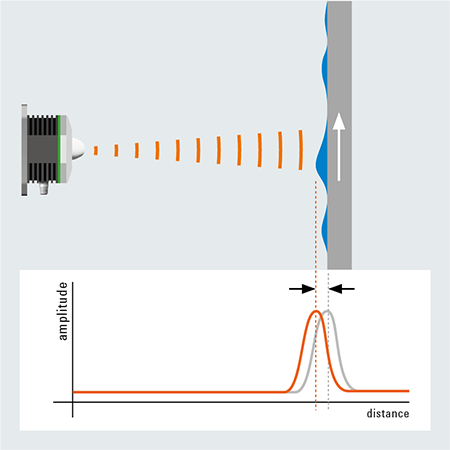

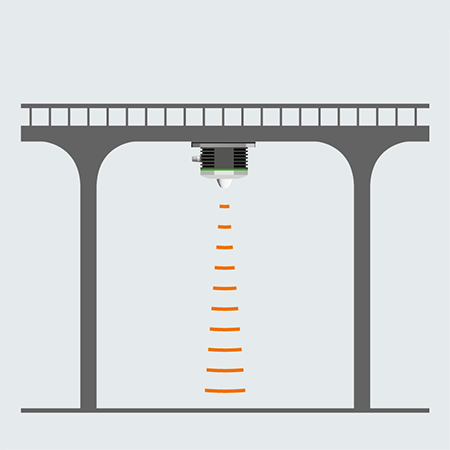

Distance change measurement / distance changes
The high-precision measurement of changes in distance to a reference point of up to 1 μm enables improved process control and quality assurance.
High precision
Ideal for distance change measurement due to narrow aperture angle of ± 1.5° (3°)
- Measuring range up to 40 m
- Linearity up to ± 1 μm
- With Profinet interface
