Due to a technical problem, our website is only available to a limited extent. This also affects our download service area. We are already working on the solution and ask for your understanding.Absolute encoders singleturn
Absolute position over 360°
- Resolution up to 21 bits
- Suppl. incremental track for speed measuring
- Optical and magnetic scanning
- Dimensions from Ø 24 mm to Ø 70 mm
- Working temperature range from -40 °C to +90 °C
- Analog, SSI, BiSS, fieldbus, Industrial Ethernet

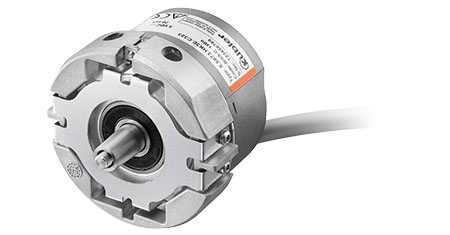

Position acquisition over 360° with singleturn absolute encoders
With absolute singleturn encoders, a coded position value is assigned to each angular position in order to record the absolute position. Even after the encoder has been disconnected from the power supply, the unambiguous position is still available. The Sendix encoder – made in Germany – is the result of the highest quality awareness and careful selection of materials. It has proved its value in many industries as a robust and precise sensor technology. We are also happy to implement special solutions and modifications. We look forward to your challenge.
Encoders by dimension
If space is an important factor, you can find the right encoder here. They range from miniature to standard encoders.
Nearly limitless possibilities await you when configuring your encoder. There are also a variety of mechanical and electrical ordering options.
Ø 24 mm miniature encoders
- Magnetic
- Resolution up to 12 bits
- Shaft or hollow shaft up to 6 mm
- SSI interface

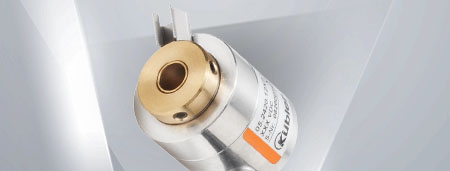

Ø 36 mm compact encoders
- Optical and magnetic
- Resolution up to 17 bits
- Shaft or hollow shaft up to 10 mm
- Numerous interfaces

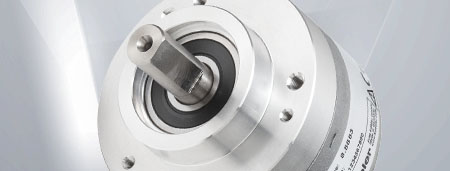

Ø 50 mm to Ø 70 mm standard encoders
- Optical
- Resolution up to 21 bits
- Special approvals
- Standard, fieldbus, and Industrial Ethernet interfaces
Encoders for special requirements
Are you looking for specific technical features or do you have special sensor requirements?
With us you'll find the perfect encoder for your machines, systems, or motors. We are also happy to accept individual challenges. Please contact us.
Explosion protection
- ATEX / IECEx certified
- Encoders for zones 1/21
- Shaft and hollow shaft versions
- Also for functional safety
Fieldbus communication
- SAE J1939, PROFIBUS DP, CANopen
- Resolution up to 16 bits
- Also available in ATEX / IECEx explosion protection variants
Industrial Ethernet
- EtherCAT, PROFINET IO, EtherNet/IP
- Resolution up to 16 bits
- Shaft and hollow shaft variants
For direct drives – elevator technology
Singleturn encoder with additional incremental track and suitable mounting solutions. Resolution up to 21 bits.
