Sendix 5873 Motor-Line
Sendix 5873 Motor-Line

Encoders Absolute singleturn

Sendix 5873 Motor-Line

  • High precision
  • With incremental track SinCos
  • Resilient
  • Dimension Ø 58 mm
  • 2.048 ppr incremental
  • 21 bits singleturn
SSI, binary
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422

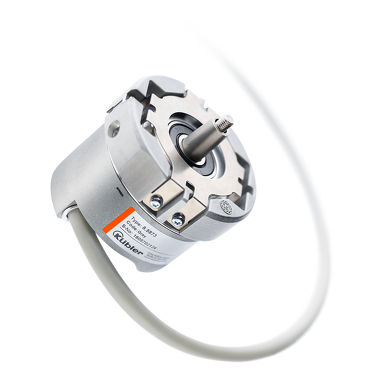

The standard for direct drives. Encoder with conical shaft.

The absolute encoder Singleturn Sendix 5873 in the Motor-Line version with SSI or BiSS interface is predestined for mounting on direct drives.
With the high fully digital 21 bit resolution or 17 bit + 2048 ppr SinCos incremental track, the drive is optimally controlled. Your benefits: Plug-and-Play during
commissioning including electronic data sheet, as well as the option of setting the absolute measuring system to a predefined position value.
Specially designed for mounting on direct drives in the elevator technology.

Mechanical
Dimension Ø 58 mm
Flange type Ø 58.00 mm
Ø 65.00 mm
Ø 72.00 mm
Working temperature -40 °C ... +90 °C
Protection level IP65
Connection types Tangential cable
Printed circuit board connector
Max. rotational speed 12.000 min-1
Weight 350 g
Electrical
Scanning optical
Resolution max. 2.048 ppr incremental
21 bits singleturn
Power supply 5 V DC
10...30 V DC
Interfaces SSI, binär
SSI, gray
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Reliable and insensitive
  • Robust bearing construction in safety Lock™ Design for resistance to vibration and installation errors.
  • Due to IP67 protection and wide temperature range from -40°C to +90°C also suitable for outdoor use.
Versatile
  • High precision with a data update of the position value ≤ 1μs.
  • High-resolution feedback in real time via 21-bit fully digital or incremental SinCos and RS422 outputs.
  • BiSS-C Encoder Profile BP3.
  • Short control cycles, clock frequency with SSI up to 2 MHz / with BiSS up to 10 MHz.
Data sheet

Sendix 5873 Motor-Line

PDF ∼ 704,2 KB | 09.2022
DE
EN
FR
Installation manual

Sendix 5834.GK / 5873.GK

Multilingual: German, English
PDF ∼ 812,7 KB | 09.2022

Sendix 5834.HK / Sendix 5873.HK

Multilingual: German, English
PDF ∼ 889,2 KB | 09.2022

Safety Advice for Encoders

Multilingual: English, French
PDF ∼ 839,3 KB | 09.2022

Declaration of conformity

Sendix 5853 / 5873 CE

Multilingual: German, English, French
PDF ∼ 380,1 KB | 09.2022

Sendix 5873.xxxL CE

Multilingual: German, English, French
PDF ∼ 351,9 KB | 09.2022

Device file

BiSS EDS

ZIP ∼ 1,4 KB | 09.2022

Mechanical CAD / STEP

Sendix 5834 / 5873 Motor-Line

ZIP ∼ 3,2 MB | 09.2022

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 09.2022
EN

Encoder UL USA

PDF ∼ 78,2 KB | 09.2022
EN
Notice

BiSS - Protocol Description Bidirectional


Website

BISS - Protocol Description Unidirectional


Website

BISS - Encoder Profile PB3


Website

BISS - Drives list

Multilingual: German, English
PDF ∼ 23,6 KB | 09.2022

BiSS - Universal Profile PB0


Website

BiSS - Interface Homepage


Website
Brochures

BiSS

PDF ∼ 2,8 MB | 10.2022
DE
EN

Accessories

Cables and connectors

Cable Connector with cable ,  Printed circuit board connector

Cable Connector with cable , Printed circuit board connector

Preassembled cable set

SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin PVC Ø 7,0 mm ± 0,3 mm
16 x 0,14 mm2
8.0000.6D91.XXXX
