SGT02
SGT02

Shaft copying systems

SGT02

  • Triggering electromechanical safety gears
  • Monitoring and reset funktion
  • Refuge spaces
  • Speed 12 m/s
CANopen-Lift

Shaft copying systems - triggering electromechanical safety gears

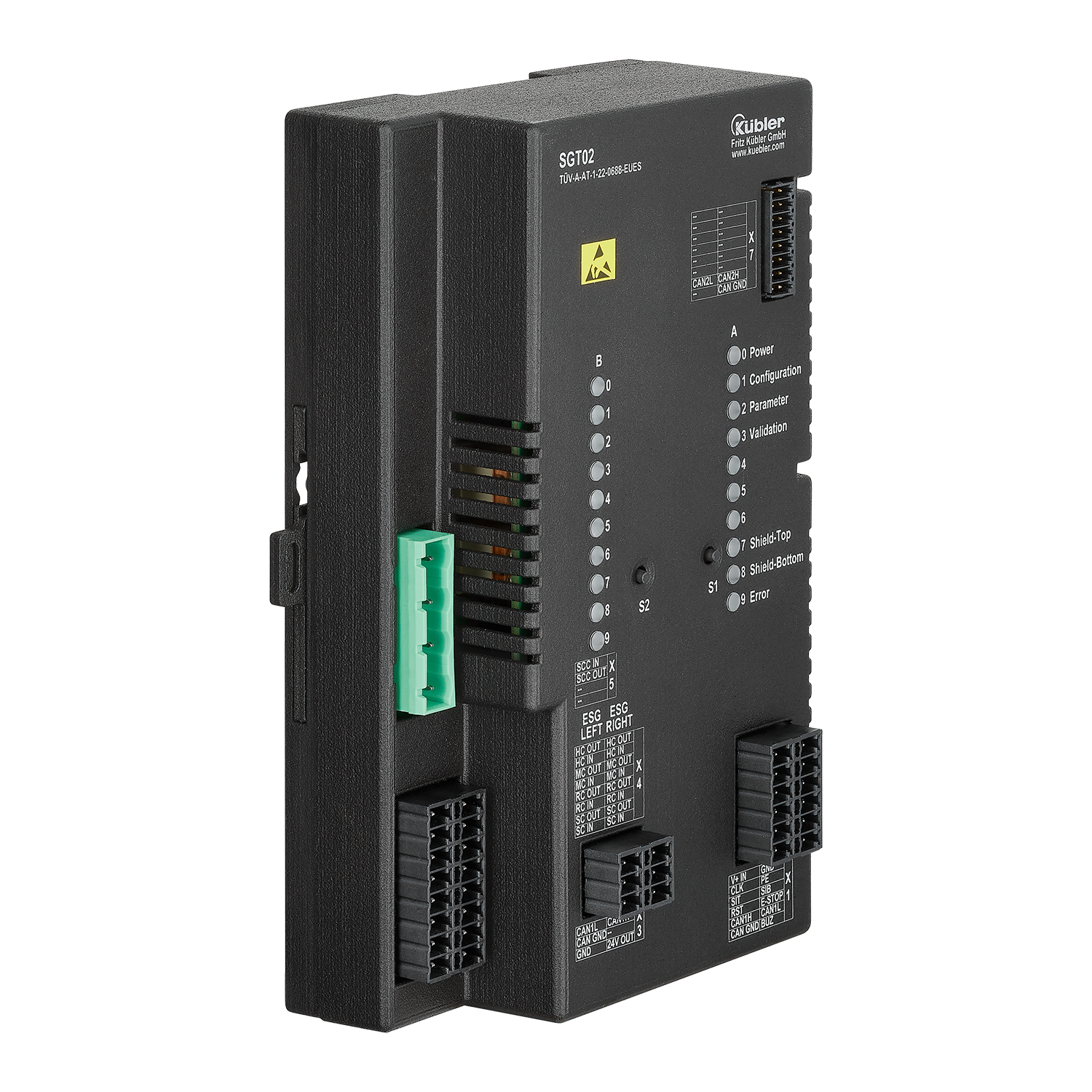

The next level of digitalization of shaft installations. To trigger electromechanical safety gears, the SIL3-certified sensor Ants LES03 can be combined with the SIL3-certified Safety Gear Trigger SGT02. This means that classic mechanical solutions with all the relevant components can be replaced. In addition to the safe triggering of an electromechanical safety gear, Kübler can also reset it. The state of the safety gear is constantly monitored. The SGT02 thus not only provides a high level of safety for passengers, but also implements refuge spaces during the installation and maintenance of the elevator systems. The so-called shield mode thus also offers a high level of safety for installation and service teams.

Mechanical
Measuring system Shaft copying systems
Speed 12 m/s
Electrical
Interfaces CANopen-Lift
Features
  • Triggering, monitoring and resetting of the electromechanical safety gear.
  • Shield mode for refuge spaces.
  • Pre-triggering and overspeed detection.
  • Can be combined with the PSU02 evaluation unit.
  • Visual feedback by status LEDs.
  • SIL3-certified by TÜV.
Benefits
  • Replaces the mechanical overspeed governor.
  • Realization of refuge spaces during commissioning and maintenance.
  • Maximum safety for passengers and employees.
  • In combination with the PSU02, fulfills safety functions according to EN 81-20/21/50.
  • Elimination of existing components.
  • Reduced installation effort.
  • Saves time, space and costs.
Data sheet

SGT02 (Safety Gear Trigger)

PDF ∼ 302,5 KB | 07.2024
DE
EN
FR
Operation Manual

SGT02

Multilingual: , German, English, French, Italian, Spanish
PDF ∼ 6,2 MB | 12.2022

Declaration of conformity

SGT02 CE

Multilingual: German, English, French
PDF ∼ 169,2 KB | 12.2022

Device file

SGT02 CANopen EDS

ZIP ∼ 2,4 KB | 07.2024

Mechanical CAD / STEP

SGT02

ZIP ∼ 5,0 MB | 01.2024

Product Certificates

TÜV SIL3 EN81 SGT02

Multilingual: German, English
PDF ∼ 1,5 MB | 12.2022

Notice

SGT02 Validation Protocol

Multilingual: German, English
PDF ∼ 542,7 KB | 12.2022

Manufacturer declaration Cybersecurity

PDF ∼ 123,3 KB | 05.2024
DE
EN
Brochures

Shaft copying systems for triggering electromechanical safety gears

PDF ∼ 998,0 KB | 04.2022
DE
EN

Solutions for Elevator Technology

PDF ∼ 5,5 MB | 07.2023
DE
EN
Flyer

Smart Teaching Unit STU02

PDF ∼ 2,6 MB | 04.2022

Accessories

Cables and connectors
