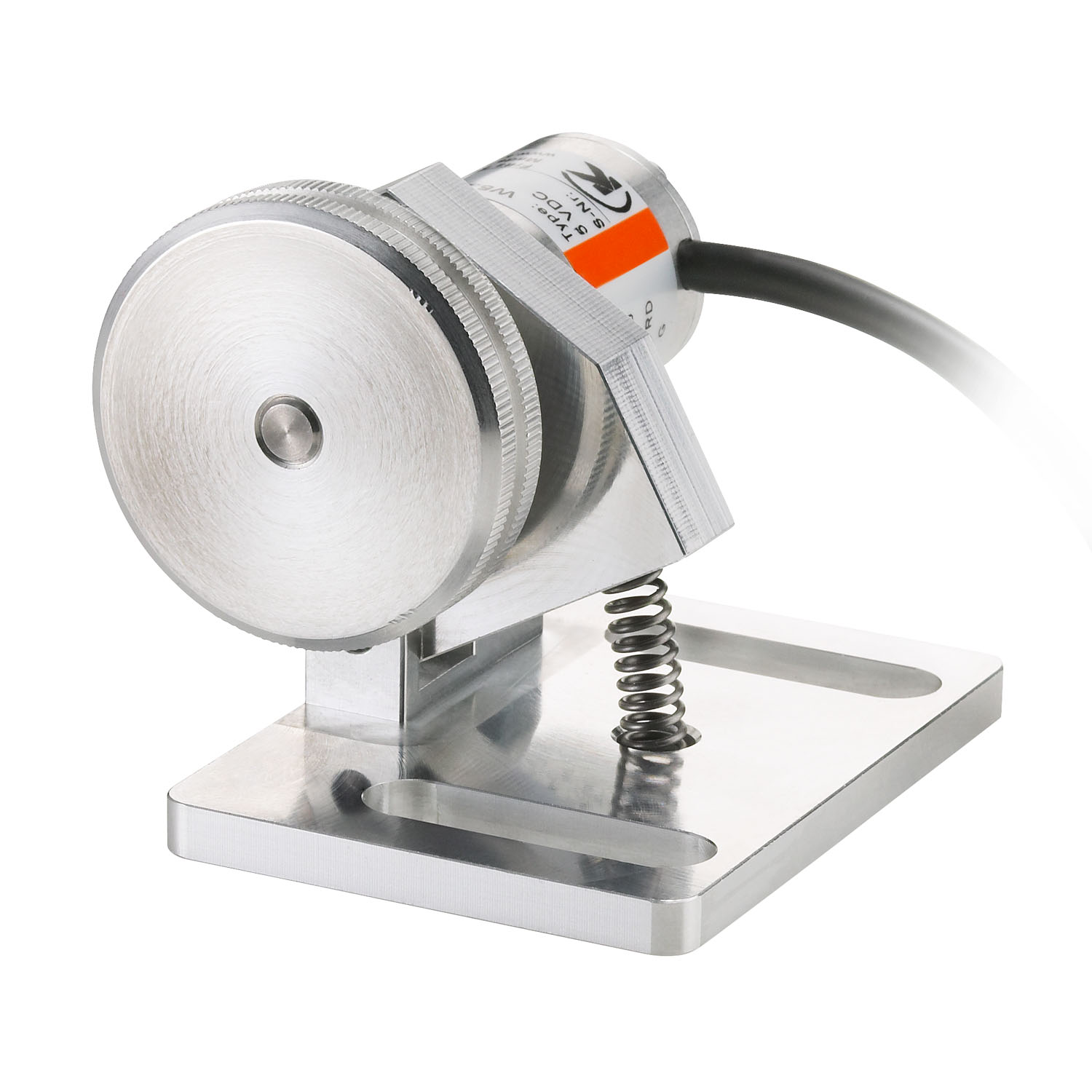

360 MWE11
MWE11

Measuring Wheel Systems

MWE11

  • Extremely compact
  • Simple mounting
  • Robust design
  • Pre-assembled sensors
  • Incremental encoder
  • Speed 2 m/s
  • Accuracy ±0,015 °
Push-pull

Measuring system – suitable for the tightest installation spaces.

Measuring wheel systems from Kübler are the ideal solution for reliable speed, position and distance measurement in applications with linear movements. These are recorded rotationally via the measuring wheel with attached encoder directly on the surface of the material to be measured and converted into linear data. The compact measuring wheel system MWE11 with its smallest size can be integrated very flexibly even in the tightest installation spaces.

Mechanical
Measuring system Measuring Wheel Systems
Speed 2 m/s
Dimension 74 mm x 50 mm x 52 mm
Working temperature -20 °C ... +80 °C
Electrical
Accuracy ±0,015 °
Interfaces Gegentakt
Power supply 5...24 V DC
Easy handling
  • Measuring wheel, sensor and spring bracket are pre-assembled and therefore easy to install: screw on - connect - done.
Compact design
  • Dimensions of the complete unit only 74 x 50 x 52 mm.
Measuring wheels in 2 variants
  • Circumference 100 mm - Measuring wheel lining available with cross knurl or rubber surface.
Data sheet

MWE11

PDF ∼ 238,2 KB | 07.2022
DE
EN
Mechanical CAD / STEP

Mini measurement system

ZIP ∼ 724,4 KB | 08.2016

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Cables and connectors

„Do you have technical questions about the linear measurement technology or are you looking for individual solutions? We at Application Support are here for you.“

Rainer Grueninger
Application support
Rainer Grueninger
Application Engineering


support@kuebler.com
+49 7720 3903 849

„We will be pleased to give you information about prices and delivery times. We are looking forward to your inquiry.“
