Shaft copying systems

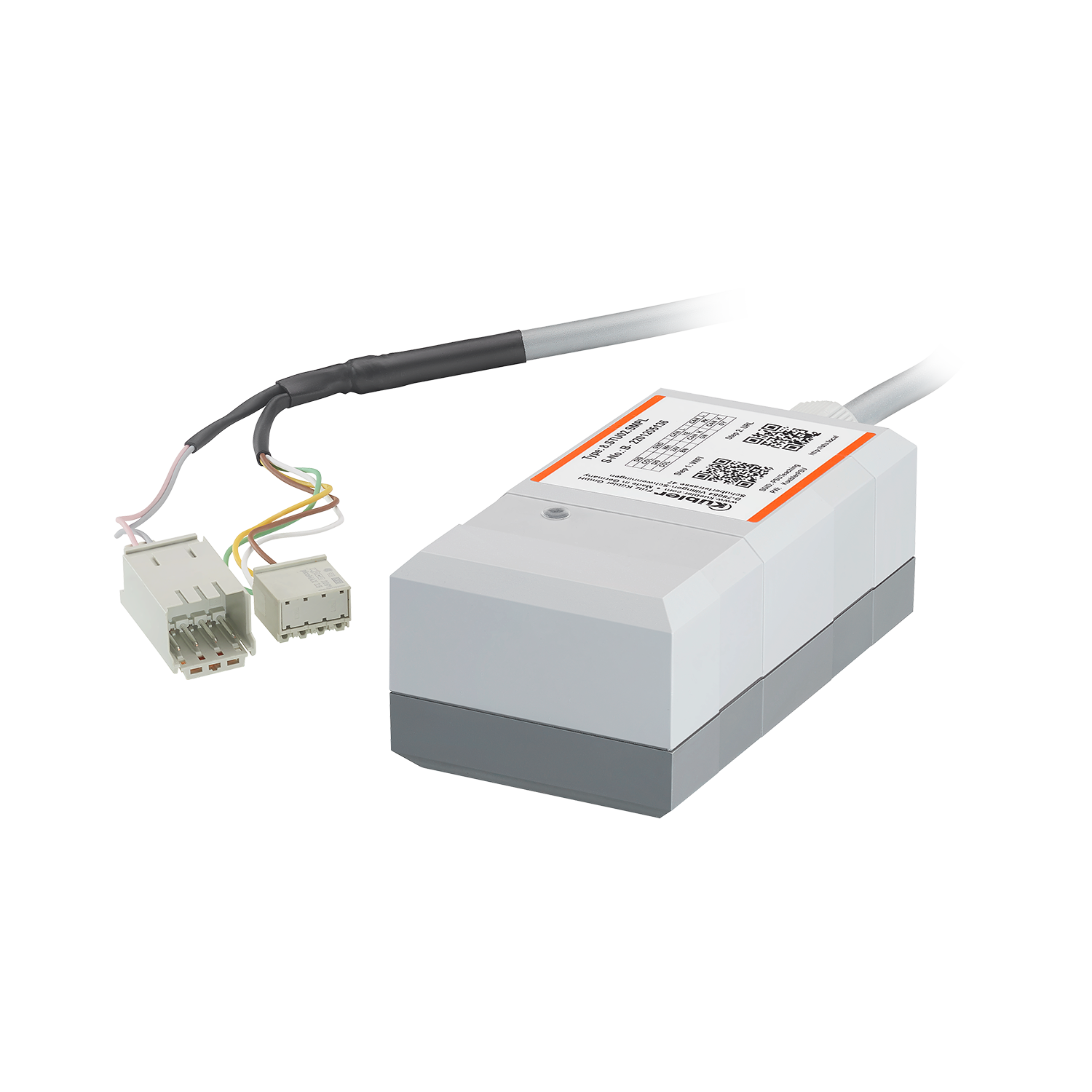

Smart Teaching Unit STU02

  • Teaching the evaluation unit PSU02
  • Parameter Overview
  • Diagnostic function
CAN

Concept Study: Easy teaching of the evaluation unit PSU02

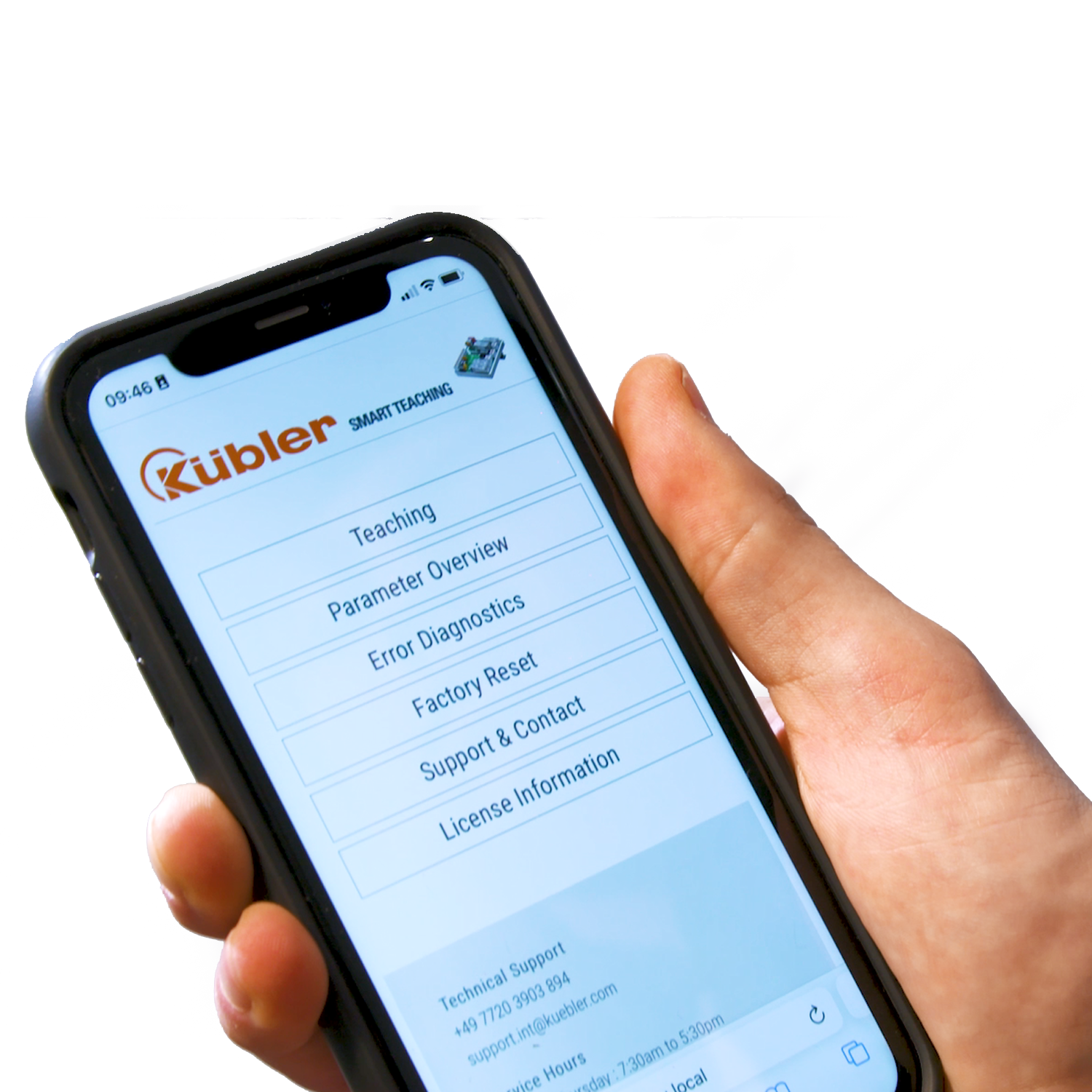

Kübler presents another evolutionary step in elevator technology: The Concept Study Smart Teaching Unit STU02. With this innovation, the evaluation unit or shaft copying system is parameterized quickly and easily via an intuitive web interface for desktop and mobile devices. Ideally, the parameterization process is implemented in a CAN-capable controller. The controller manufacturer integrates the so-called teach process of the evaluation unit directly into the controller. The STU communicates with the PSU02 evaluation unit via CAN and also provides a WLAN network. The user can access this secure network with a smartphone or any other terminal device. A website opens via the respective web browser, which guides the user through the parameterization of the PSU02 evaluation unit. In addition to the guided teaching process, the Smart Teaching Unit offers an overview of the parameters entered as well as a diagnostic function with automatic error detection.

Product Video

Mechanical
Measuring system Shaft copying systems
Dimension 100 mm x 55 mm x 40 mm
Connection types Printed circuit board connector
Electrical
Interfaces CAN
Power supply 24 V DC
  • Control-independent parameterization via CAN communication
  • Parameter overview:
    • Supports commissioning
    • Facilitates acceptance with the Notified Body
    • Transparency in case of service
  • Diagnostic function:
    • Fast diagnostics
    • Reduction of downtimes
    • Overview of error messages
Flyer

Smart Teaching Unit STU02

PDF ∼ 2,6 MB | 04.2022

Trade press

Shaft copying systems: New tool for control-independent parameterization

PDF ∼ 1,9 MB | 12.2021
