Shaft copying systems

Ants LEB02

  • Precise position feedback
  • 100% slip-free
  • Conveyor heights up to 392 m
  • Maximum compact
  • Max. measuring length 392 m
  • Speed 8 m/s
  • Resolution max. 0,25 mm
  • Accuracy ±1 mm
CANopen-Lift
RS485
SSI, gray

Shaft copying system – absolute positioning of the elevator car.

LEB02 is an extremely robust, compact and contactless measuring system. With a resolution of 1 mm and a travel speed of up to 8 m/s, absolute position values of the elevator car are determined slip-free via a contactless measuring principle. Additional components such as magnetic switches become superfluous.
The simple mounting in particular reduces installation times and thus contributes to lowering overall costs.

Mechanical
Measuring system Shaft copying systems
Measuring length 392 m
Speed 8 m/s
Dimension 126 mm x 55 mm x 37 mm
Working temperature -10 °C ... +70 °C
Protection level IP54
Weight 500 g
Electrical
Resolution max. 0,25 mm
Accuracy ±1 mm
Interfaces CANopen-Lift
RS485
SSI, gray
Power supply 10...30 V DC
Precise position feedback
The sensor system provides absolute position values. No reference run necessary after power failure.

100 % slip-free
Mounting on, next to or under the elevator car always provides direct position feedback without the influence of possible slippage of the suspension means.

Conveyor heights up to 392 m
With a resolution of 1 mm, a travel speed of up to 8 m/s and a maximum code tape length of 392 m the measuring system can also be used for high-rise installations.

Maximum compactness
With its compactness, the sensor is not only easy to mount, but can also be integrated into the tightest installation spaces. Even in glass elevators, it blends in very well with the overall appearance of the elevator system.
Data sheet

Ants LEB02

PDF ∼ 777,4 KB | 09.2023
DE
EN
FR
Operation Manual

Ants LEB02

Multilingual: German, English, French
PDF ∼ 3,3 MB | 11.2021

Installation manual

Coded band packaging Ants

Multilingual: , German, English, French, Italian, Spanish
PDF ∼ 1,1 MB | 04.2019

Manual

Ants LEB02 (Linear Encoder Base)

PDF ∼ 3,2 MB | 12.2021
DE
EN
Safety characteristics

Ants LEB02 MTTF

Multilingual: German, English
PDF ∼ 470,1 KB | 07.2019

Declaration of conformity

Ants LEB02 CE

Multilingual: German, English, French
PDF ∼ 146,1 KB | 03.2023

Device file

LEB02 / EDS-Datei

ZIP ∼ 1,9 KB | 10.2017

Mechanical CAD / STEP

LEB.MK

ZIP ∼ 1,7 MB | 07.2019

LEX02.1

ZIP ∼ 2,5 MB | 08.2020

LEX02.2

ZIP ∼ 2,4 MB | 08.2020

Product Certificates

LEx02 UL Canada

PDF ∼ 75,5 KB | 02.2021
EN

LEx02 UL USA

PDF ∼ 71,3 KB | 02.2021
EN
Notice

Montage-Kit Ants Base and Ants Safe

Multilingual: , German, English, French, Italian, Spanish
PDF ∼ 356,1 KB | 04.2021

Cutting to length, marking and tracing Code band 392 m

Multilingual: , German, English, French, Italian, Spanish
PDF ∼ 1,5 MB | 06.2019

Brochures

Solutions for Elevator Technology

PDF ∼ 5,5 MB | 07.2023
DE
EN

Accessories

EMC shield terminal

EMC shield terminal

For EMC-compliant installation of the encoder cable.
  • Mounting on top hat rail
  • Shield diameter
8.0000.4G06.0312 (03-12 mm)

  • Weight approx. 7.4 g
  • Clamp (spring steel, galvanized)
  • Foot (spring steel)
8.0000.4G06.0312
Data sheet
EMC shield terminal
DE EN FR
Mechanical CAD / STEP
8.0000.4G06.0XXX

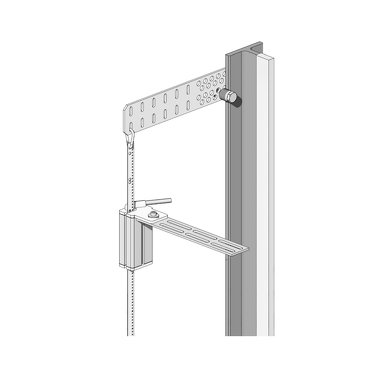

Mounting kit Base

Mounting kit Base

The LEB.MK mounting kit includes all components required for installing the Ants LEB02 sensor and its coded band in the elevator shaft.
Base 8.LEB.MK.0001
Data sheet
LEB.MK - Mounting kit Base
DE EN FR
Mechanical CAD / STEP
LEB.MK

Sliding plates

Sliding plates

The sliding plates for the lateral guidance of the coded band LEX.BA in the sensors LEB02 and LES02.

Scope of delivery:
2 x sliding plates for LEB02 / LES02
8.LEX.ZB.0002
Data sheet
8.LEX.ZB.0002 Slides
DE EN FR

Carabiner

Carabiner

Carabiner for fastening the code band LEX.BA to the rail fastening plates.

Scope of delivery:
1 x carabiner
8.LEX.ZB.0007
Data sheet
8.LEX.ZB.0007 Carabiner
DE EN FR

Locking element

Locking element

The locking element is used for fastening the slides in the Ants LEB02 and Ants LES02 sensors.
The locking element is to be replaced in case of deformations or damages.

Scope of delivery:
1 x locking element
1 x oval head screw M3.5 x 12
8.LEX.ZB.0013
Data sheet
8.LEX.ZB.0013 Locking element
DE EN FR
