Shaft copying systems

Ants LES02

  • Safe position and speed detection
  • 100% slip-free
  • Maximum compact
  • Digitalization of elevator systems
  • Max. measuring length 392 m
  • Speed 12 m/s
  • Resolution max. 0,5 mm
  • Accuracy 1 mm
CAN

Shaft copy system – safe and absolute positioning of the elevator car.

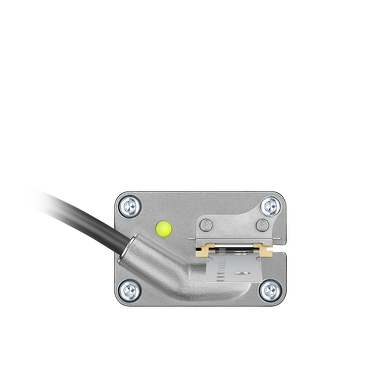

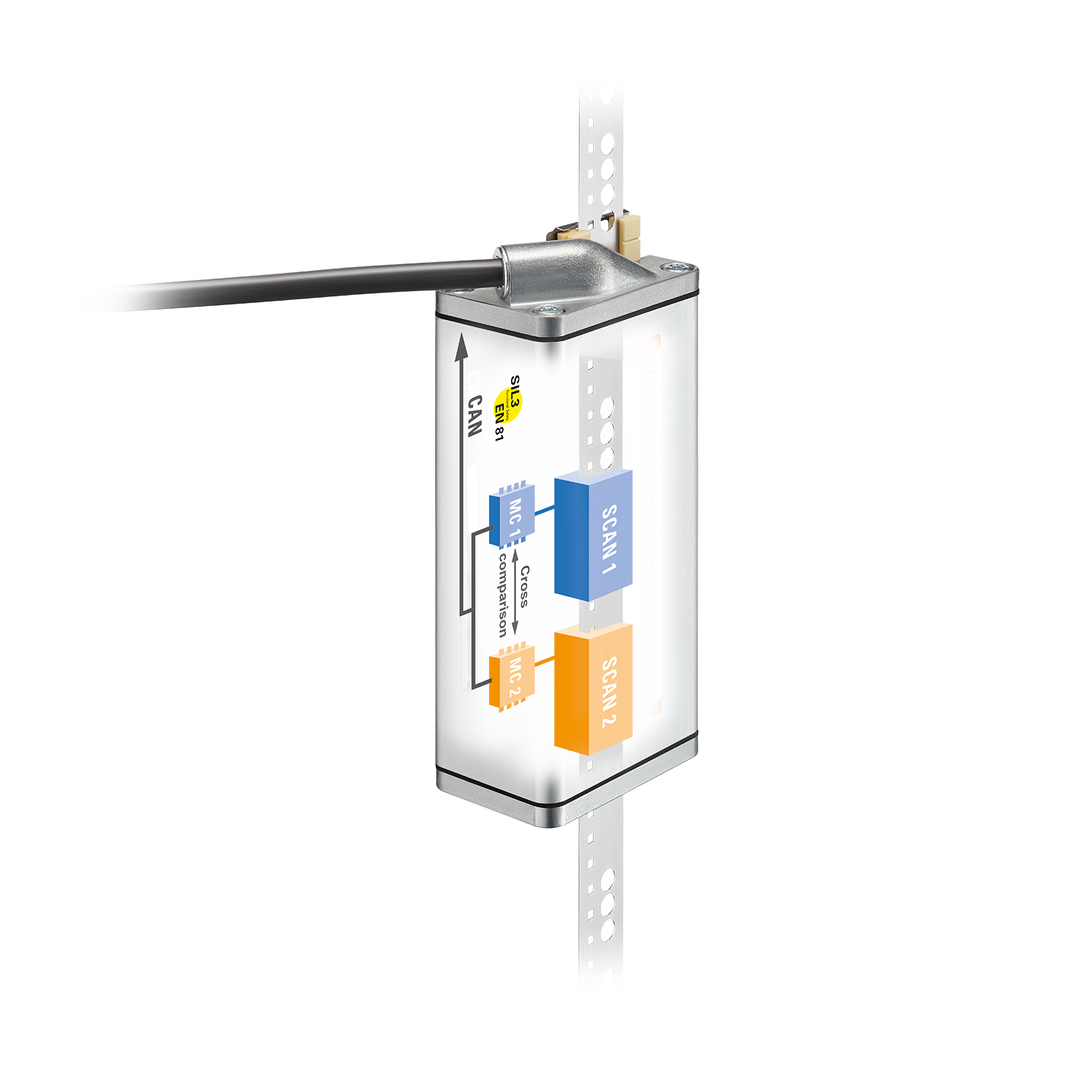

The sensor Ants LES02 is an extremely robust, compact and contactless measuring system. With a resolution of 0.5 mm and a travel speed of up to 12 m/s, absolute position values of the elevator car are determined slip-free via a contactless measuring principle.
In combination with the PSU02 evaluation unit, numerous elevator and safety functions can be implemented as the Kübler LES02/PSU02 Safe System.

Mechanical
Measuring system Shaft copying systems
Measuring length 392 m
Speed 12 m/s
Dimension 126 mm x 55 mm x 37 mm
Working temperature -10 °C ... +70 °C
Protection level IP54
Weight 500 g
Electrical
Resolution max. 0,5 mm
Accuracy 1 mm
Interfaces CAN
Power supply 10...30 V DC
Safe position and speed detection
The SIL3-certified measuring system consisting of sensor and code tape provides speed information in addition to absolute position values.

100 % slip-free

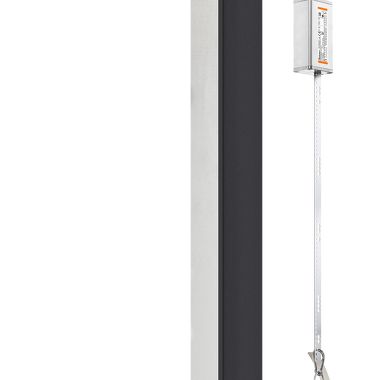

Mounting on, next to or under the elevator car always provides direct position feedback without the influence of possible slippage of the suspension means.

Maximum compactness

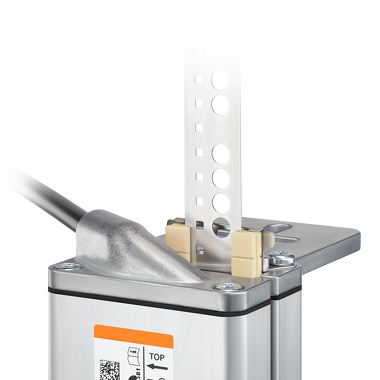

With its compactness, the sensor is not only easy to mount, but can also be integrated into the tightest installation spaces. Even in glass elevators, it blends in very well with the overall appearance of the elevator system.

Digitalization of elevator systems
With its compactness, the sensor is not only easy to mount, but can also be integrated into the tightest installation spaces. Even in glass elevators, it blends in very well with the overall appearance of the elevator system.

Data sheet

Ants LES02

PDF ∼ 518,4 KB | 08.2024
DE
EN
FR
Operation Manual

Ants LES02

Multilingual: , German, English, French, Italian, Spanish
PDF ∼ 5,7 MB | 07.2024

Installation manual

Coded band packaging Ants

Multilingual: , German, English, French, Italian, Spanish
PDF ∼ 1,1 MB | 04.2019

Manual

Ants LES02 (Linear Encoder Safe)

PDF ∼ 1,1 MB | 10.2020
DE
EN
Declaration of conformity

Ants LES02 CE

Multilingual: German, English, French
PDF ∼ 166,7 KB | 02.2023

Mechanical CAD / STEP

LEX02.1

ZIP ∼ 2,5 MB | 08.2020

LEX02.2

ZIP ∼ 2,4 MB | 08.2020

LES.MK

ZIP ∼ 1,7 MB | 07.2019

Product Certificates

TÜV SIL3 EN81 Ants LES02

Multilingual: German, English
PDF ∼ 1,3 MB | 10.2019

LEx02 UL USA

PDF ∼ 71,3 KB | 02.2021
EN

LEx02 UL Canada

PDF ∼ 75,5 KB | 02.2021
EN
Notice

Montage-Kit Ants Base and Ants Safe

Multilingual: , German, English, French, Italian, Spanish
PDF ∼ 356,1 KB | 04.2021

Verification code tape numbers

Multilingual: , German, English, French, Italian, Spanish
PDF ∼ 617,2 KB | 06.2019

Cutting to length, marking and tracing Code band 392 m

Multilingual: , German, English, French, Italian, Spanish
PDF ∼ 1,5 MB | 06.2019

Manufacturer declaration Cybersecurity

PDF ∼ 123,3 KB | 05.2024
DE
EN
Brochures

Solutions for Elevator Technology

PDF ∼ 5,5 MB | 07.2023
DE
EN

Accessories

EMC shield terminal

EMC shield terminal

For EMC-compliant installation of the encoder cable.
  • Mounting on top hat rail
  • Shield diameter
8.0000.4G06.0312 (03-12 mm)

  • Weight approx. 7.4 g
  • Clamp (spring steel, galvanized)
  • Foot (spring steel)
8.0000.4G06.0312
Data sheet
EMC shield terminal
DE EN FR
Mechanical CAD / STEP
8.0000.4G06.0XXX

Safe mounting kit

Safe mounting kit

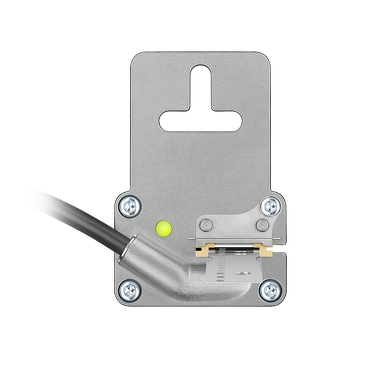

The LES.MK mounting kit contains all the components you need to install the Ants LES02 sensor and its code tape in the lift shaft.
Safe 8.LES.MK.0001
Data sheet
LES.MK - Mounting kit Safe
DE EN FR
Mechanical CAD / STEP
LES.MK

Sliding plates

Sliding plates

The sliding plates for the lateral guidance of the coded band LEX.BA in the sensors LEB02 and LES02.

Scope of delivery:
2 x sliding plates for LEB02 / LES02
8.LEX.ZB.0002
Data sheet
8.LEX.ZB.0002 Slides
DE EN FR

Carabiner

Carabiner

Carabiner for fastening the code band LEX.BA to the rail fastening plates.

Scope of delivery:
1 x carabiner
8.LEX.ZB.0007
Data sheet
8.LEX.ZB.0007 Carabiner
DE EN FR

Locking element

Locking element

The locking element is used for fastening the slides in the Ants LEB02 and Ants LES02 sensors.
The locking element is to be replaced in case of deformations or damages.

Scope of delivery:
1 x locking element
1 x oval head screw M3.5 x 12
8.LEX.ZB.0013
Data sheet
8.LEX.ZB.0013 Locking element
DE EN FR
