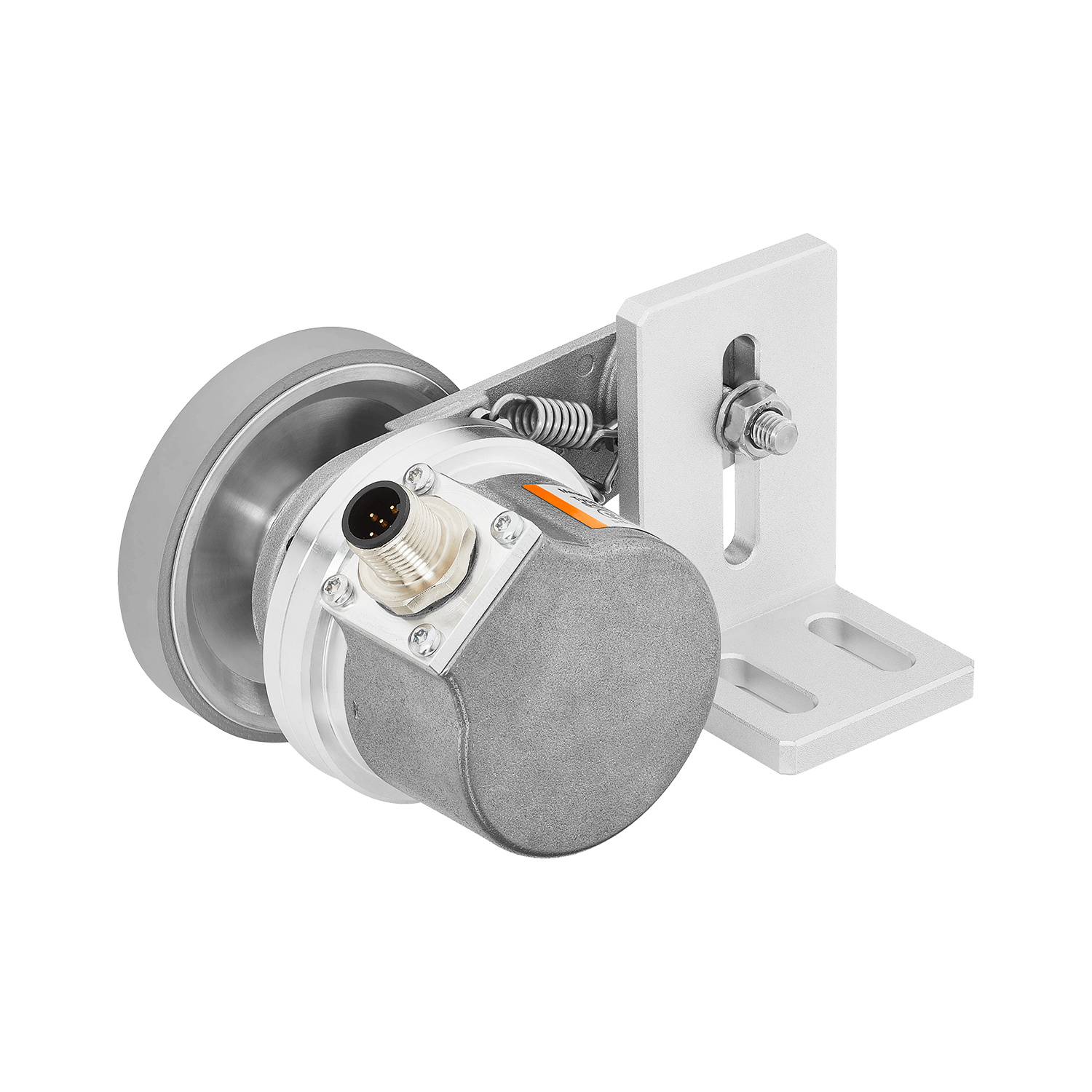

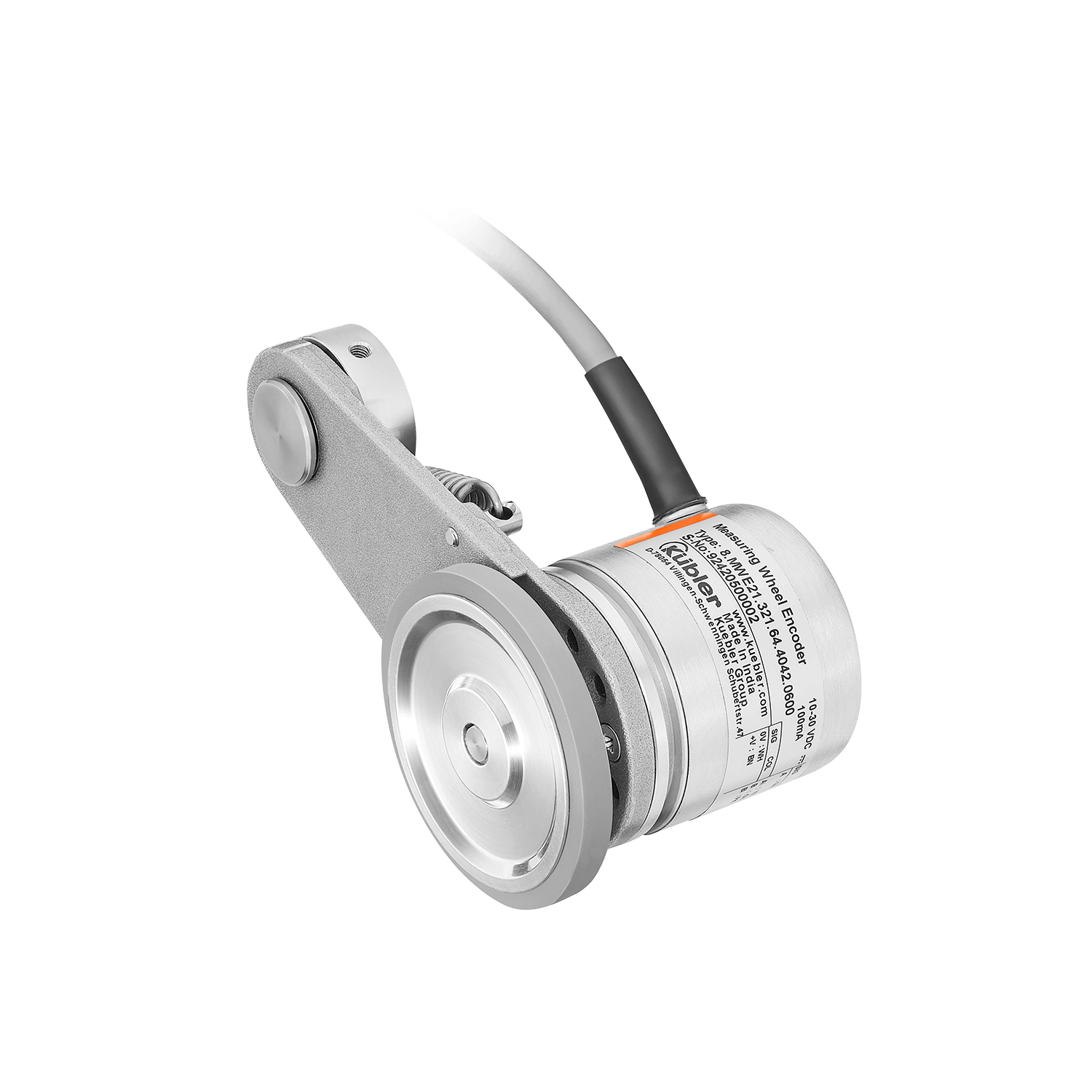

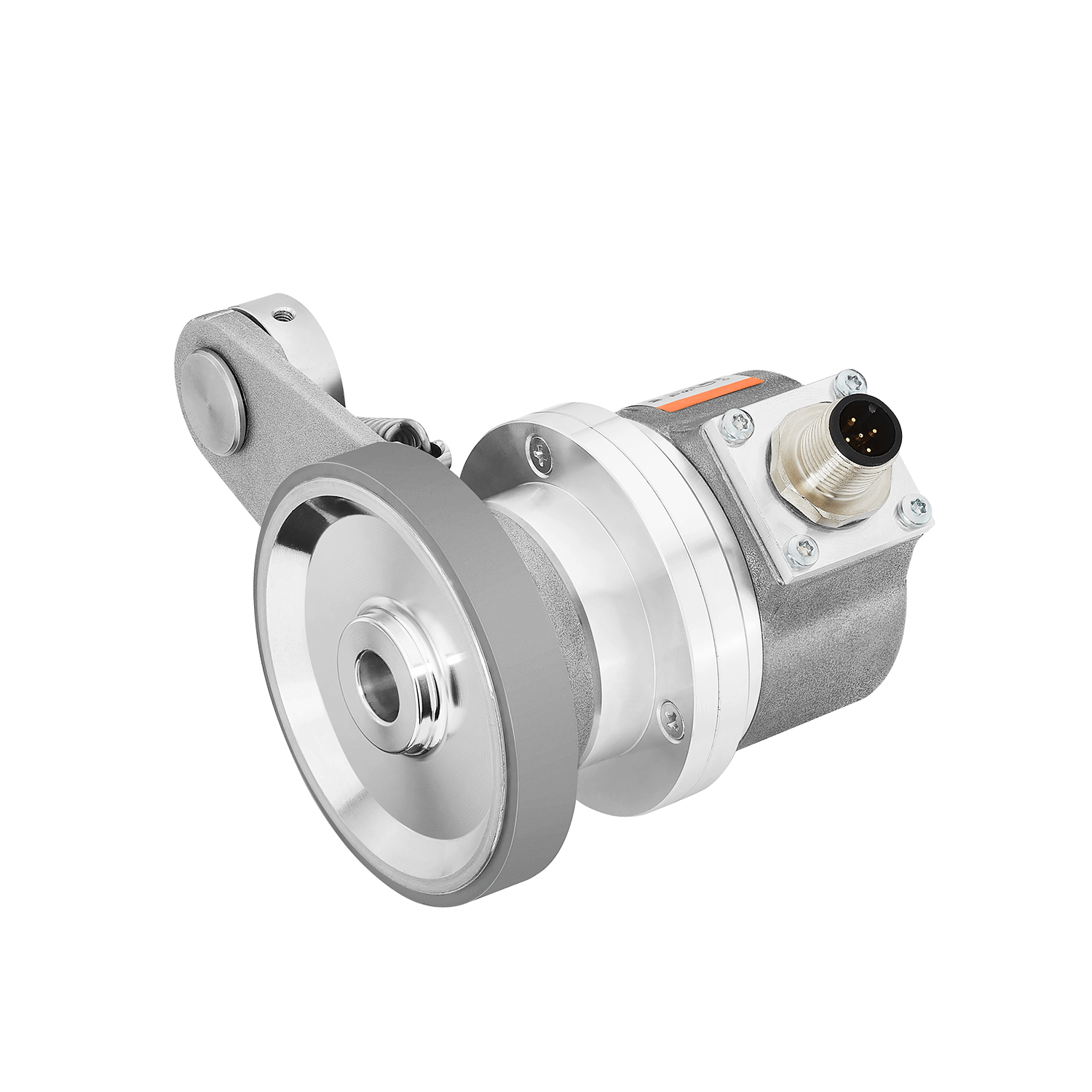

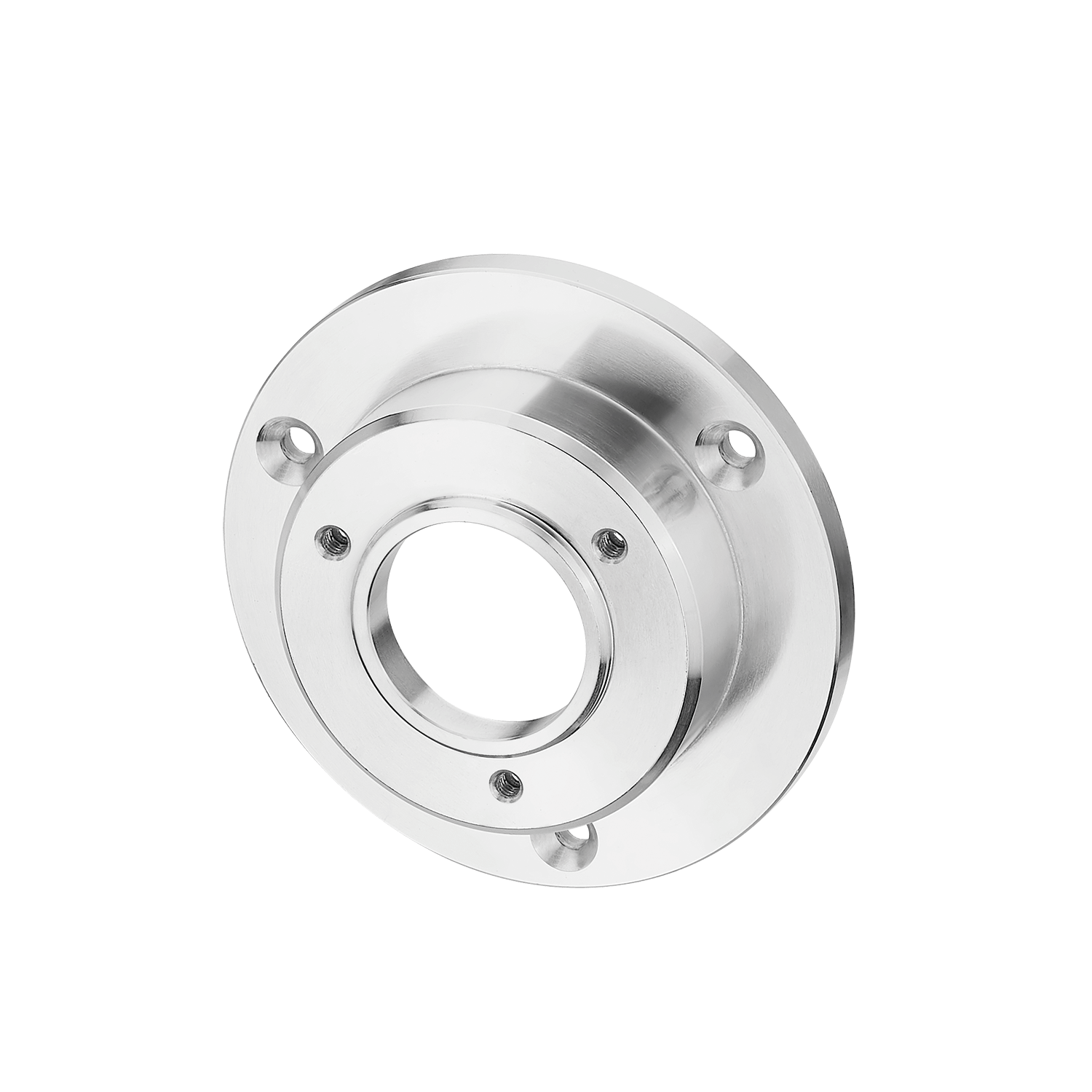

Measuring Wheel Systems

MWE21

  • Precise measuring
  • Compact solution
  • Flexible assembly
  • Different measuring wheels
  • Resolution max. 3.600 ppr incremental
  • Contact force 20 N
  • Measuring wheel circumference
    · 200 mm
    · 6"
Analog 0–10 V
CANopen
Push-pull
TTL / RS422
Open Collector
SSI
IO-Link

With adjustable preload

Measuring wheel systems from Kübler are the ideal solution for reliable speed, position and distance measurement in applications with linear movements. These are recorded rotationally directly on the surface of the material to be measured via the measuring wheel with attached encoder and converted into linear data.
The compact measuring wheel system MWE21 with adjustable preload can be integrated very flexibly even in the tightest installation spaces.

Product Video

Mechanical
Measuring system Measuring Wheel Systems
Measuring wheel circumference 200 mm
6"
Contact force 20 N
Working temperature -20 °C ... +70 °C
Weight 37 g
Electrical
Resolution max. 3.600 ppr incremental
Interfaces Analog 0...5 V
Analog 0...10 V
Analog 4–20 mA
CANopen
Gegentakt
TTL / RS422
Open Collector
SSI
IO-Link
Compact measuring wheel system
For the tightest installation spaces with flexible mounting options: vertical, horizontal or overhead. Encoders can be mounted on either side of the spring arm in 30° increments.

Wide range of encoders
Incremental Sendix encoders with a max. resolution of up to 2500 pulses/revolution as well as absolute encoders for different communication interfaces such as IO-Link for integration in Industry 4.0 concepts.

Suitable measuring wheels for all measuring surfaces
Circumference 200 mm or 6" - measuring wheel lining available with O-ring, smooth plastic or cross-knurled surface.

Contact pressure up to max. 20 N
With adjustable preload and mechanical spring travel limiter for long life. The integrated spring ensures a working range of the measuring wheel of up to 16 mm perpendicular to the measuring surface to compensate for tolerances.
Data sheet

MWE21

PDF ∼ 1,9 MB | 01.2024
DE
EN
FR
Operation Manual

MWE2x

Multilingual: German, English, French
PDF ∼ 2,0 MB | 08.2022

Declaration of conformity

MWEx1 MWEx2 CE

Multilingual: German, English, French
PDF ∼ 67,8 KB | 09.2022

Mechanical CAD / STEP

MWE21

ZIP ∼ 18,0 MB | 08.2022

MWE20 Encoder spring arm

ZIP ∼ 502,3 KB | 12.2021

MWE2x Mounting Bracket

ZIP ∼ 9,5 KB | 09.2021

Electronic CAD / ePlan

Sendix KIS40 / KIH40

ZIP ∼ 2,8 MB | 02.2020

Product Certificates

UL CoC Encoder USA/ Canada

PDF ∼ 209,3 KB | 11.2023
EN
Product video

MWE02/MWE21 Video SPS 2021

MP4 ∼ 150,7 MB | 06.2022
EN
YouTube Video

Benefits of Measuring wheel system MWE02 - english


Website

Accessories

Measuring wheel in different surfaces: cross knurls, knobs, plastic smooth or ribbed and natural rubber smooth

Measuring wheel in different surfaces: cross knurls, knobs, plastic smooth or ribbed and natural rubber smooth

Measuring wheels for measuring the length of products in movement, e.g. in the paper, metal, textile, wood or plastic industry. Different wheel surfaces to meet the requirements of the various surfaces of the product to be measured – different circumferences, designed for use with Kübler encoders, available for metric and imperial systems. For evaluation, you can rely on a multitude of counters and displays from our Codix portfolio.
8.0000.3XXX.00XX
Data sheet
Measuring wheels
DE EN FR
Mechanical CAD / STEP
Measuring wheels

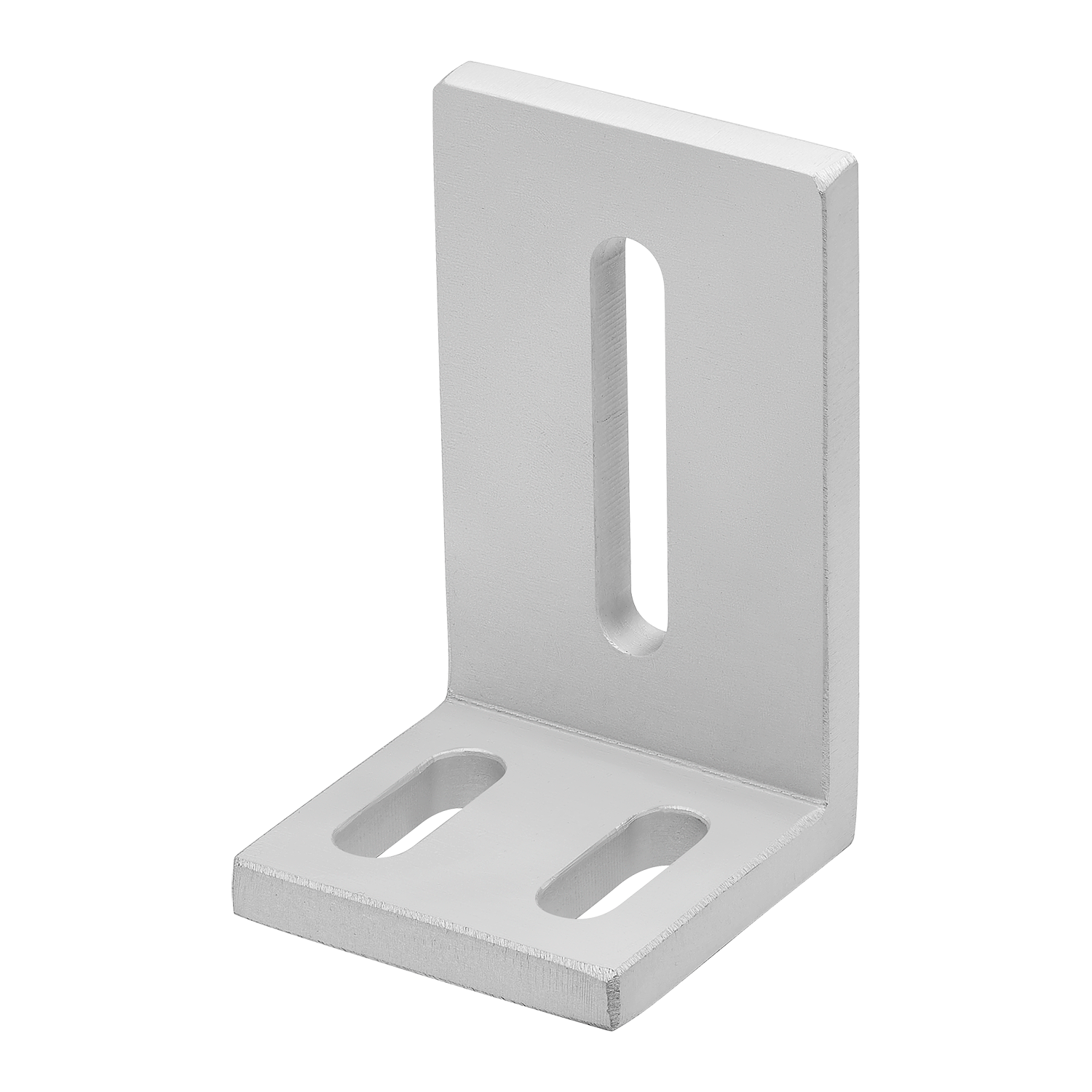

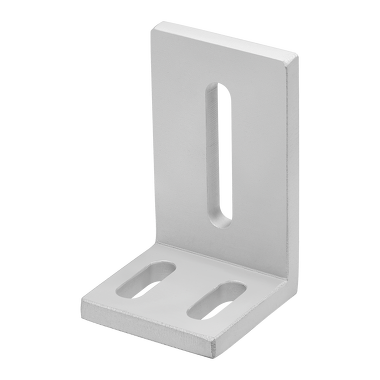

Mounting bracket for encoder spring arm MWE20

Mounting bracket for encoder spring arm MWE20

Or in combination with the measuring wheel system MWE21.
8.0000.7000.0065
Data sheet
MWE20 - Mounting bracket 8.0000.7000.0065
DE EN FR

Rack and pinion

Rack and pinion

Measuring system with movable, spring-loaded encoder holder (with rack and pinion) for optimum contact pressure and protection of the encoder shaft.
Optimally matched components: One rotation of the pinion corresponds to a travel of 50 mm.
8.0010.7000.0001 8.0000.7000.000X

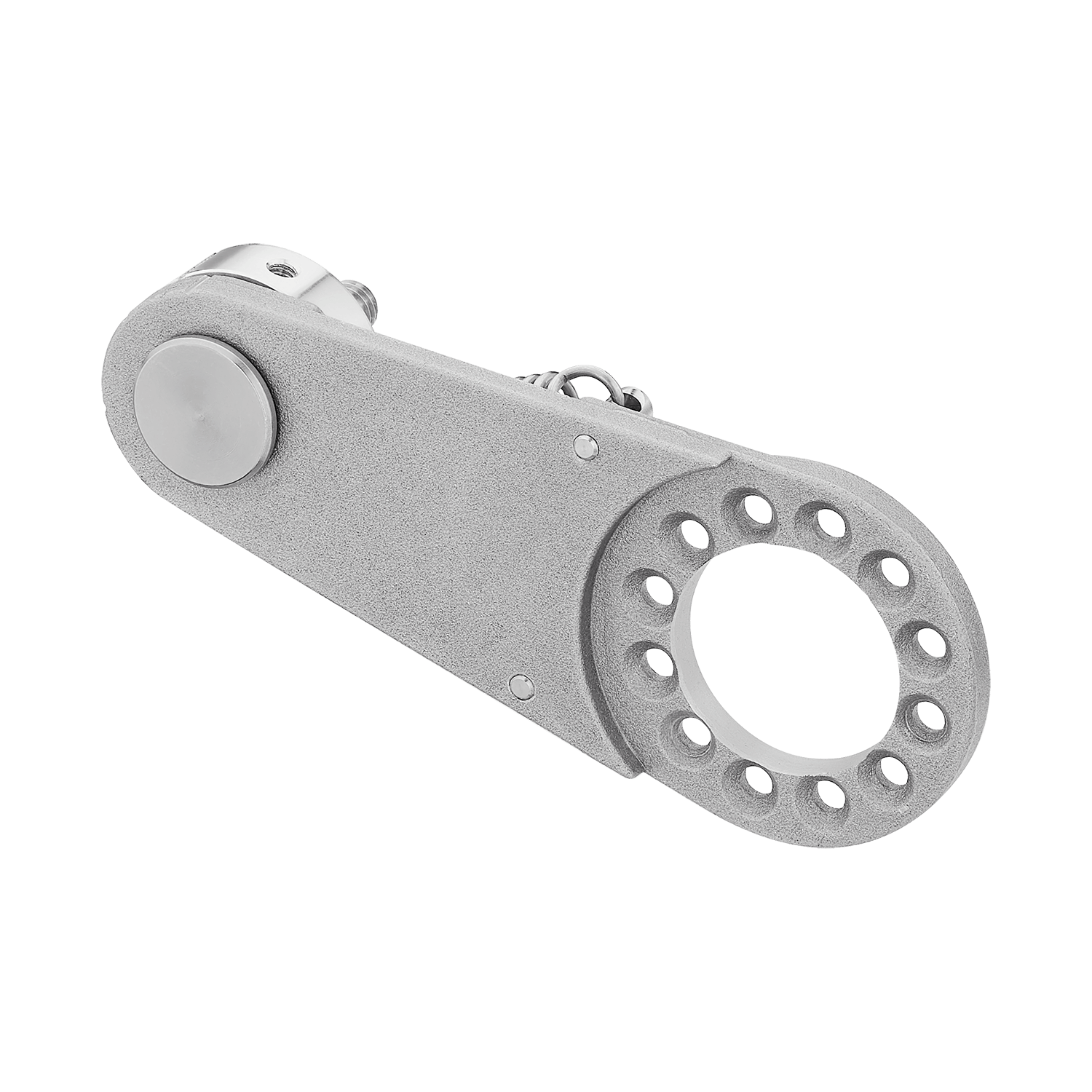

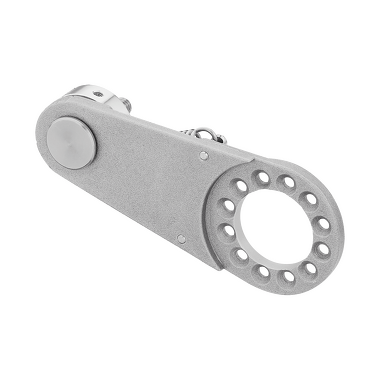

Encoder spring arm for incremental encoders KIS40 and 3610 as well as for absolute encoders M36 and F36

Encoder spring arm for incremental encoders KIS40 and 3610 as well as for absolute encoders M36 and F36

The MWE20 encoder spring arm in combination with an encoder and a measuring wheel is the ideal solution for reliable speed, position and distance measurement in applications with linear movements. An integrated spring ensures the contact pressure of the measuring wheel on the measuring surface required for reliable measured value acquisition. The system's compact design makes it suitable for even the tightest installation spaces and it can be installed quickly and easily horizontally, vertically or overhead.
8.MWE20.X11.00.0000.0000
Data sheet
MWE20 - Encoder spring arm
DE EN FR
