Measuring Wheel Systems

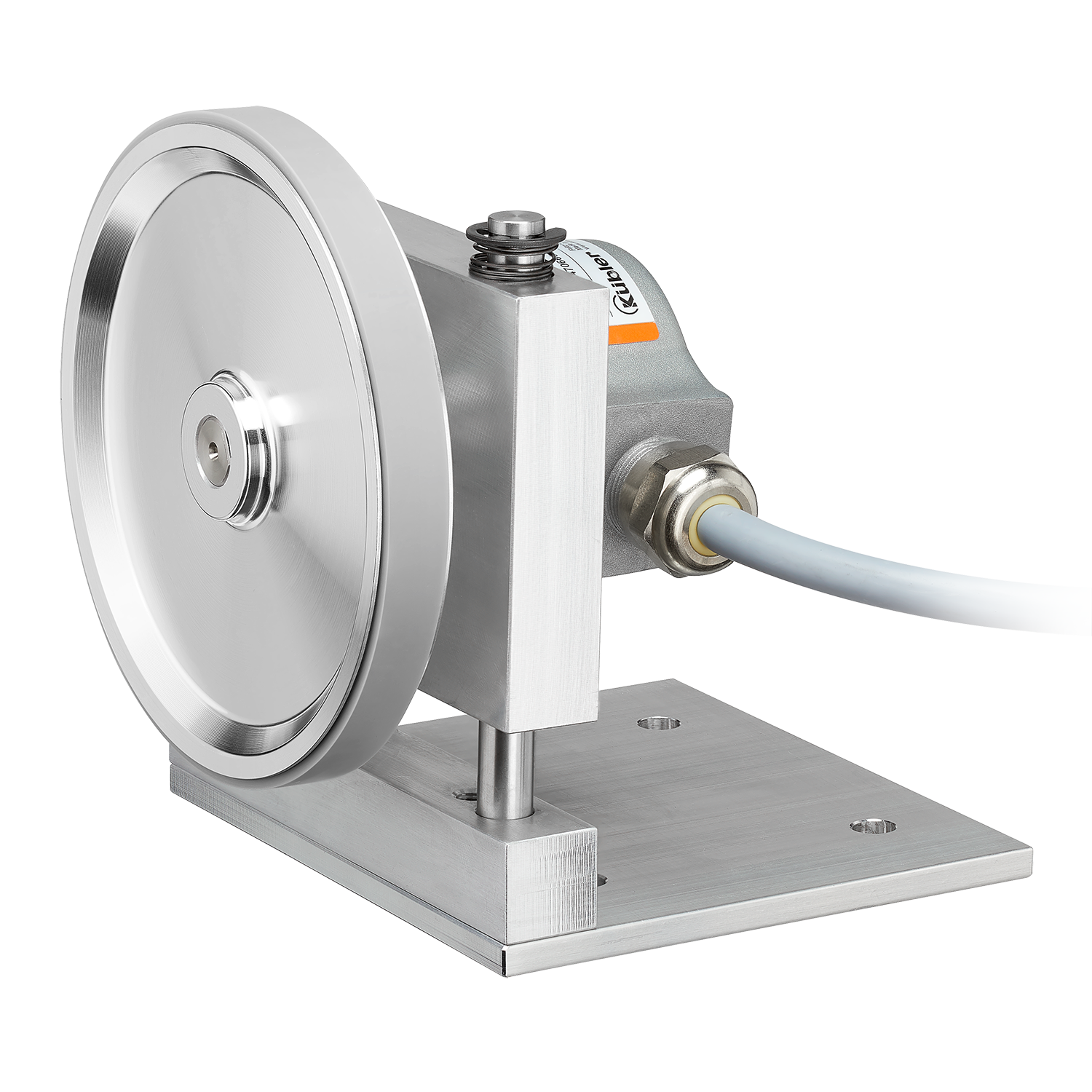

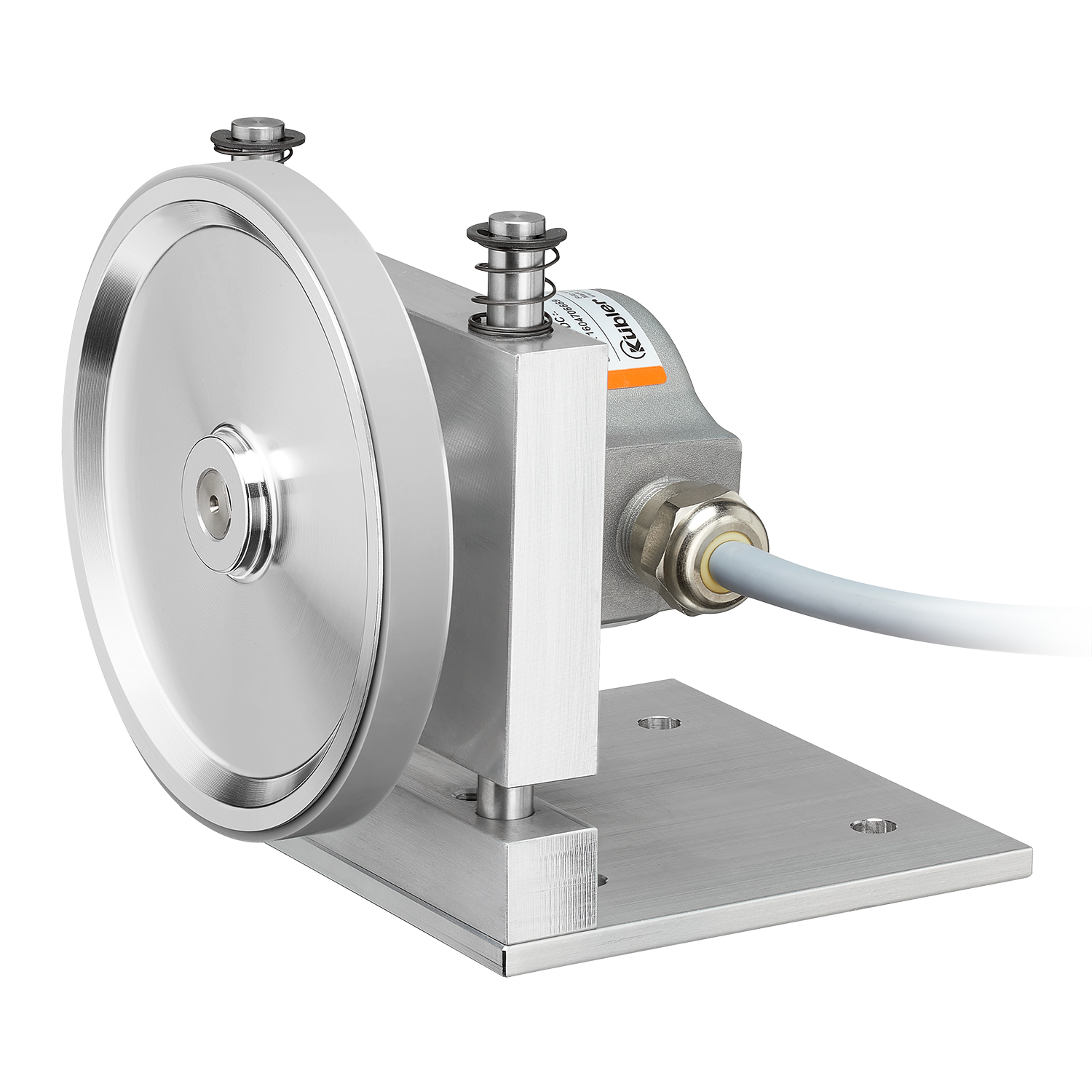

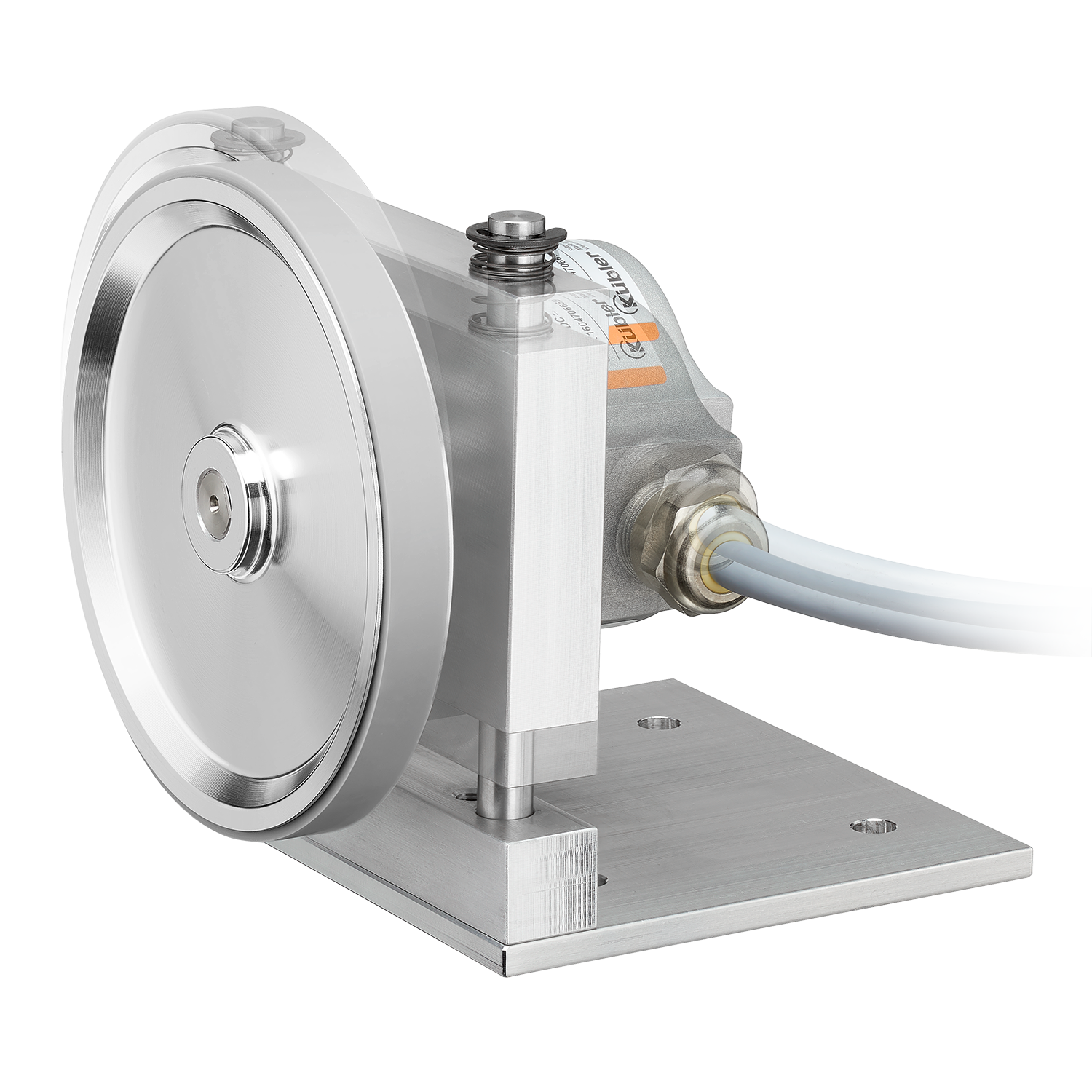

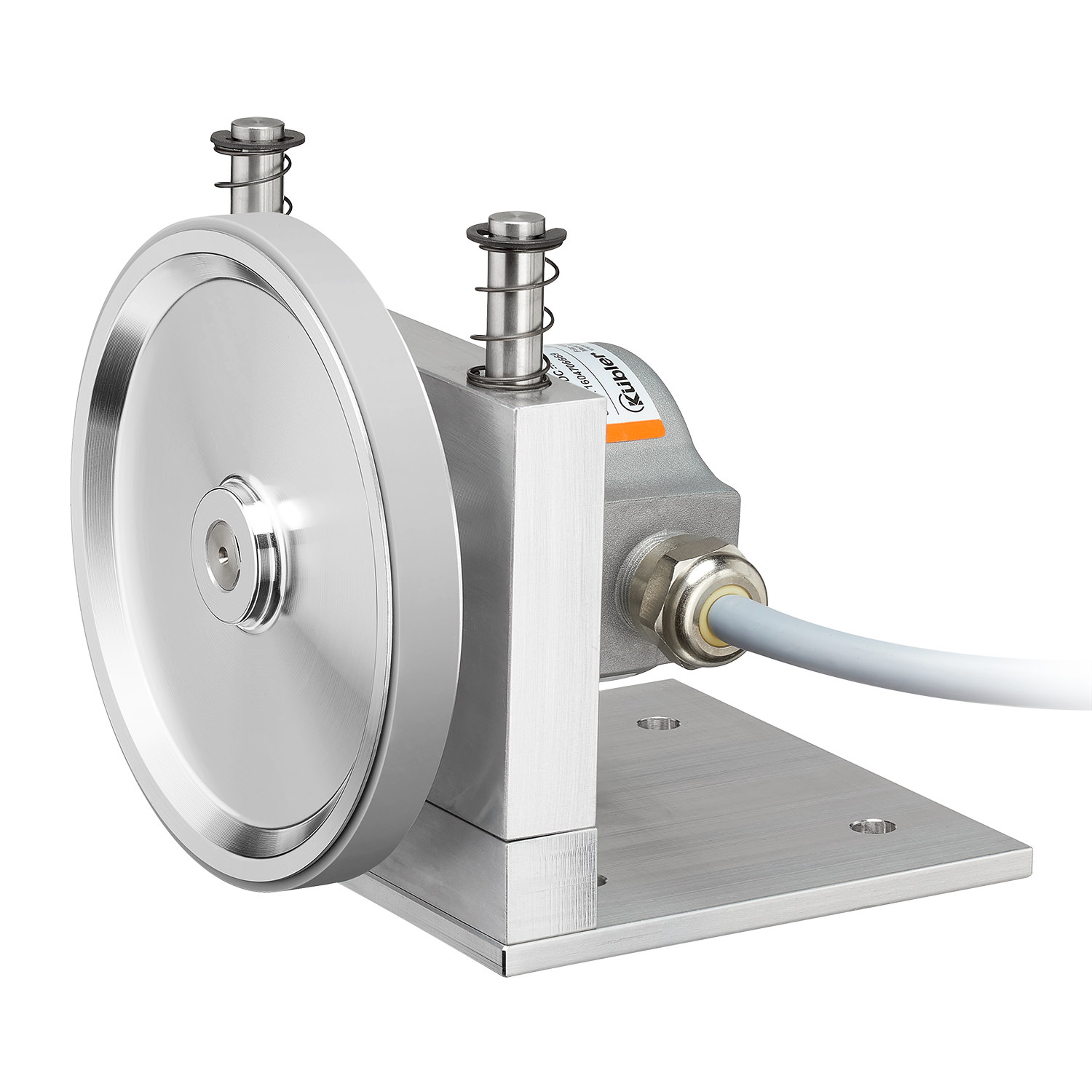

Length measuring set with measuring wheel

  • Encoder freely selectable
  • Springy encoder holder
  • Different measuring wheels
  • Different surfaces
  • Simple mounting
  • Resolution max. 1 mm
Push-pull
TTL / RS422

Can be combined with rotary encoder and preset counter.

The (metric) measuring kit is a complete solution for the quick and simple implementation of length measurements on products in movement.

Mechanical
Measuring system Measuring Wheel Systems
Dimension 100 mm x 100 mm x 90 mm
Protection level IP65
Electrical
Resolution max. 1 mm
Interfaces Gegentakt
TTL / RS422
Power supply 10...30 V DC
Flexible
  • Various measuring wheels for various applications:
          - Hytrel for the textile industry.
          - Vulkollan for the wood, paper, metal and plastics industry.
  • Resolution 1 mm.
Easy operation
  • The encoder support ensures an optimal load on the encodershaft.
  • No additional power supply is required for the encoder, since it can be powered directly by the preset counter.

.
Data sheet

Length measuring kit with measuring wheel

PDF ∼ 79,3 KB | 12.2018
DE
EN
FR
