Shaft copying systems
LEB.MK - Base
|
|
Shaft copying system - mounting kit Base

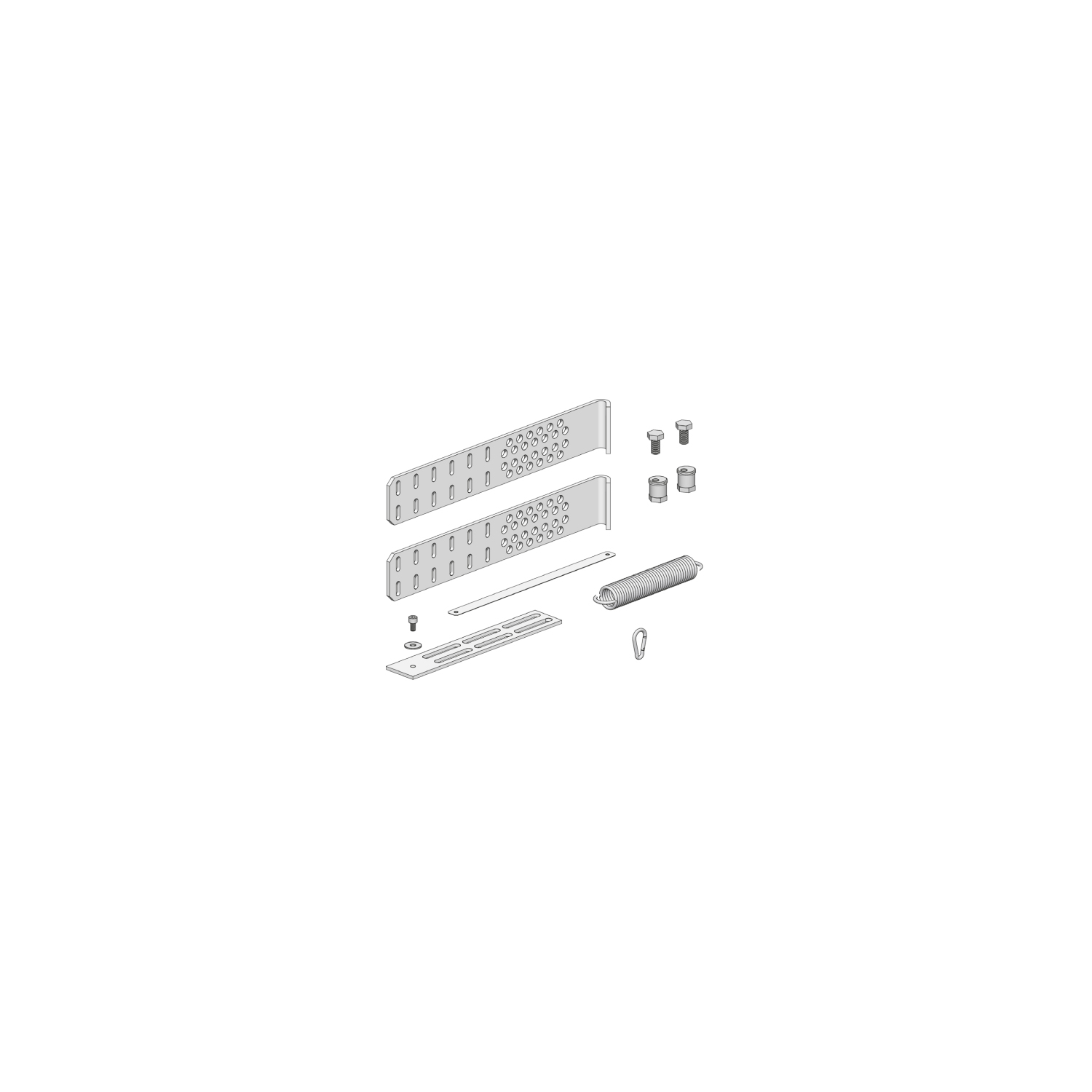

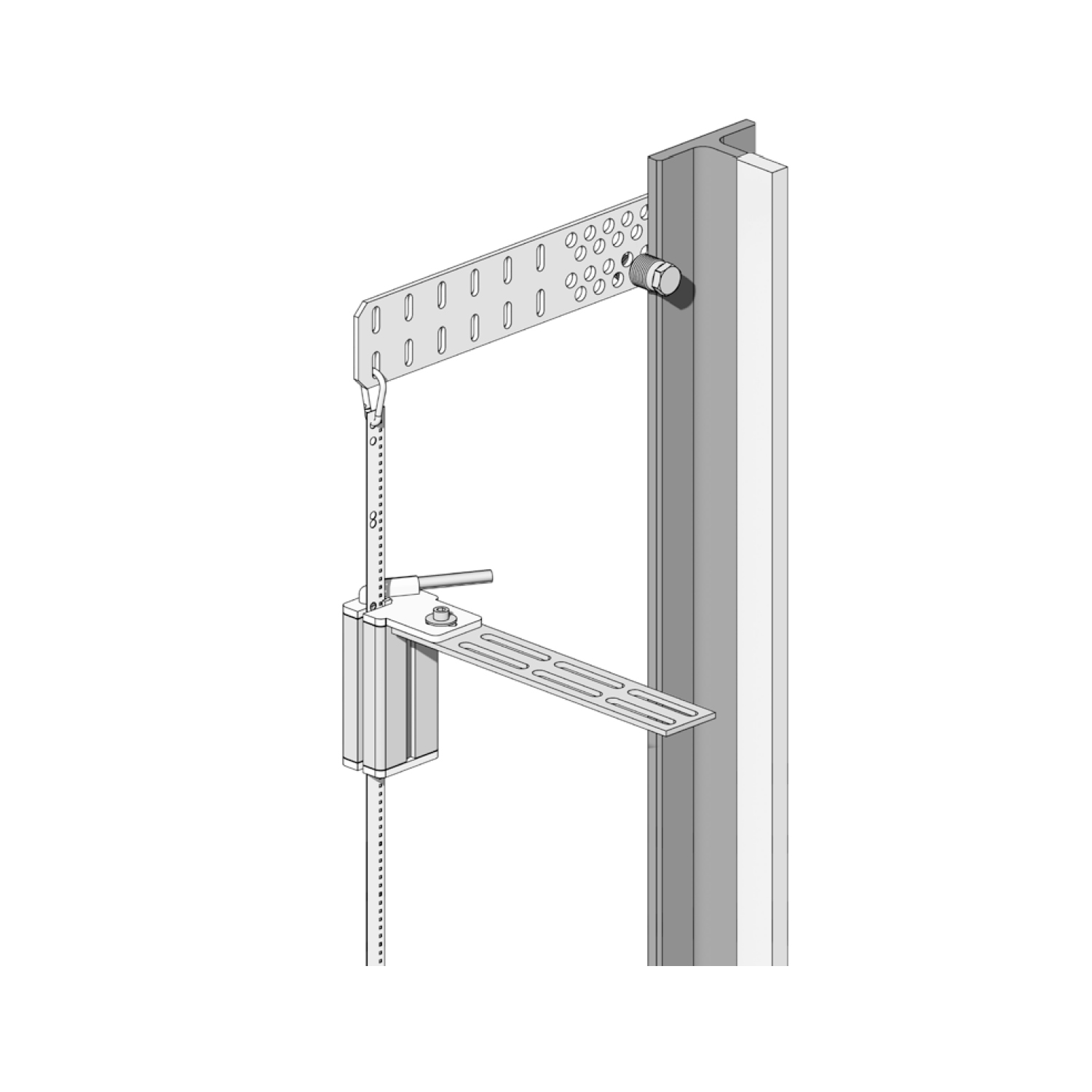

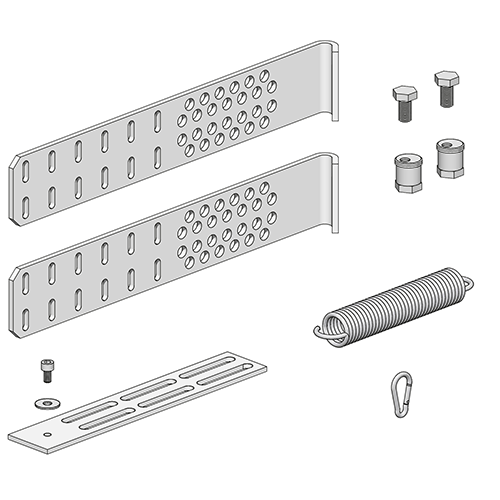

The LEB.MK mounting kit contains all components required for installing Ants LEB02 sensor on the elevator car and attaching the code band in the elevator shaft.| Mechanical | |
|---|---|
| Measuring system | Shaft copying systems |
| Electrical |
|---|
Mounting options

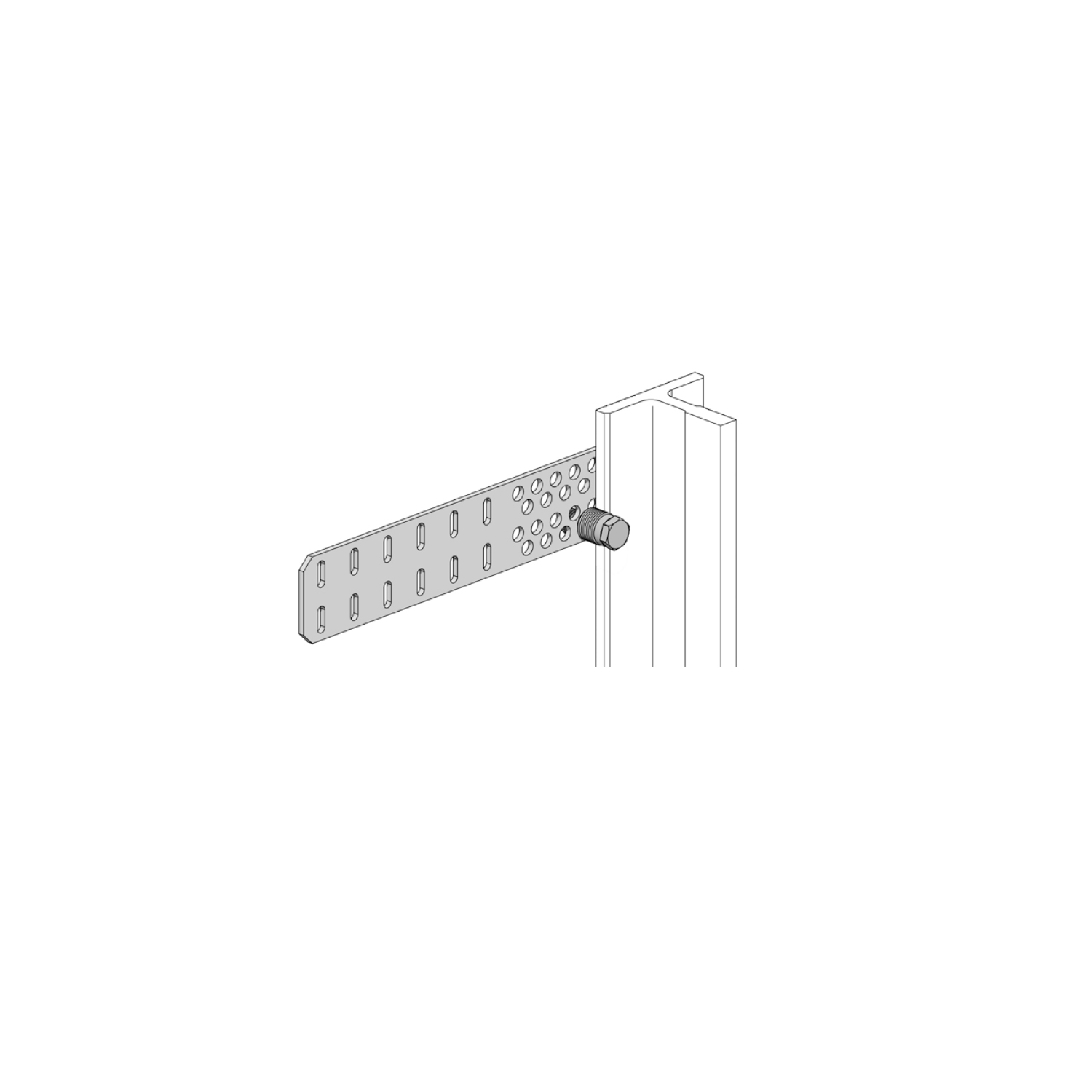

Rail mounting with eccentric claw screws
Mounting principle: The rail fastener is hooked into the lift rail and clamped with a claw screw that can be rotated eccentrically to the counter screw.

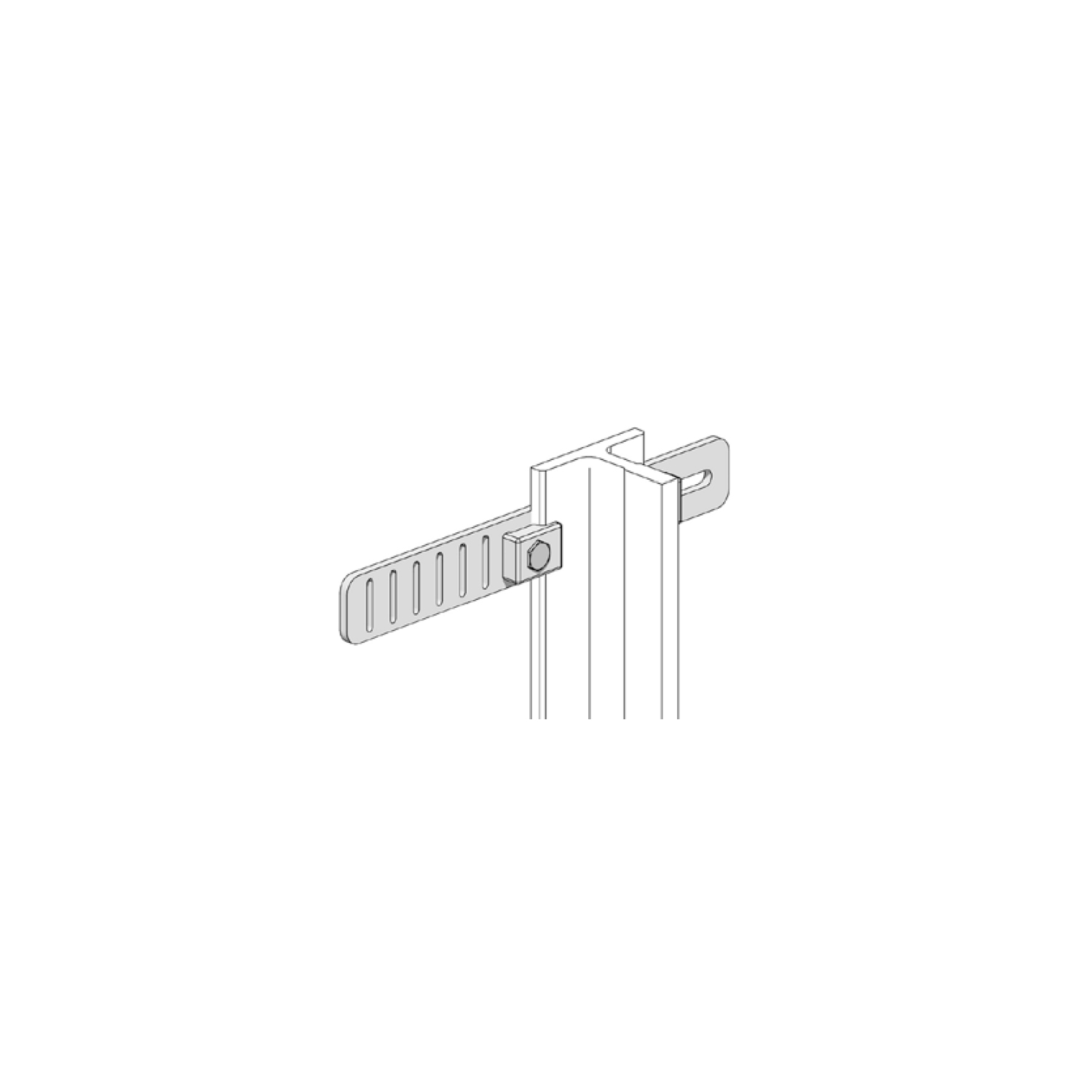

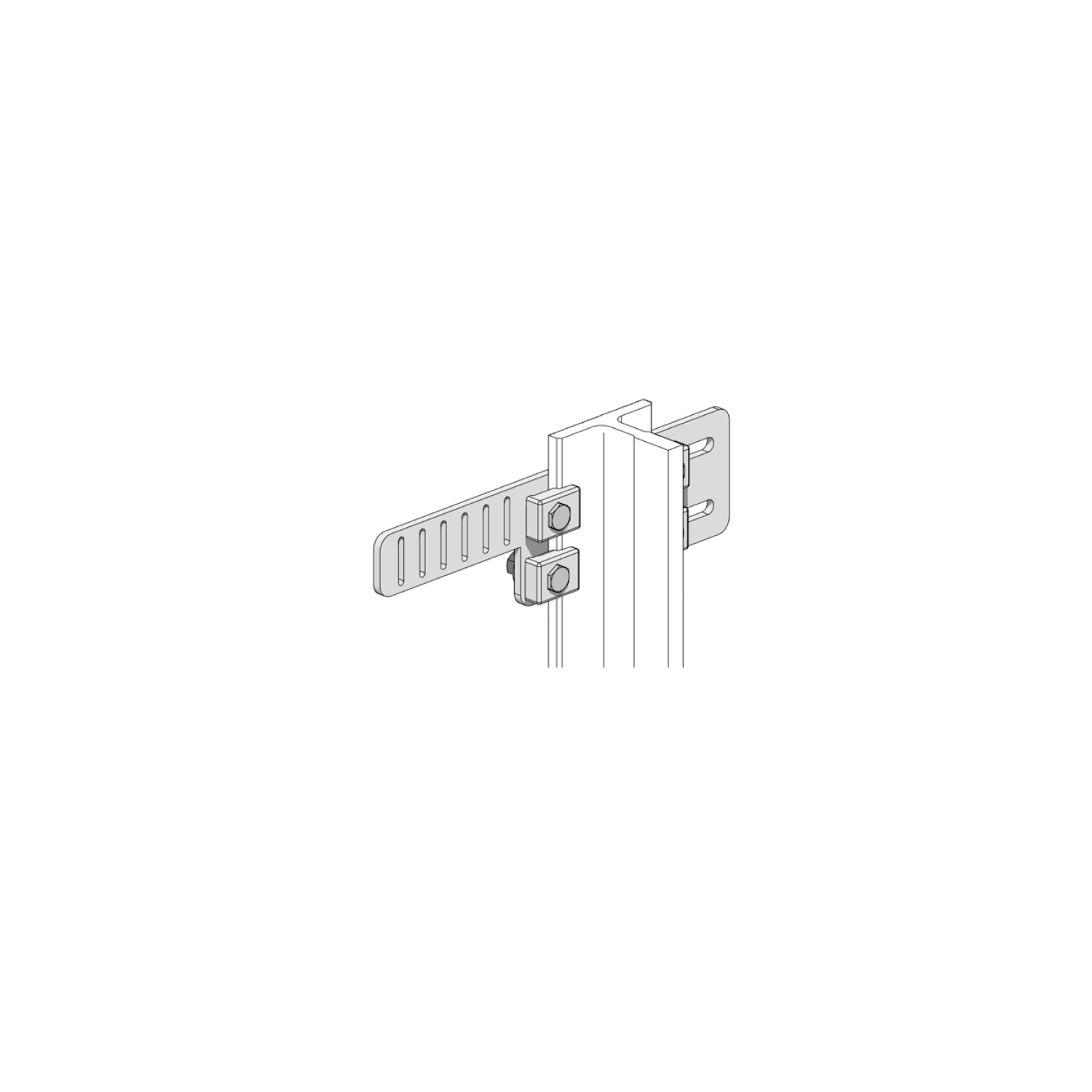

Rail mounting with clamping plates
Mounting principle: The rail fastener is screwed to the lift rail with 4 clamping jaws.
Dowel mounting in shaft ceiling and floor (only for Ants LEB02)
Drill holes in ceiling and floor for inserting screw hooks with dowels.
