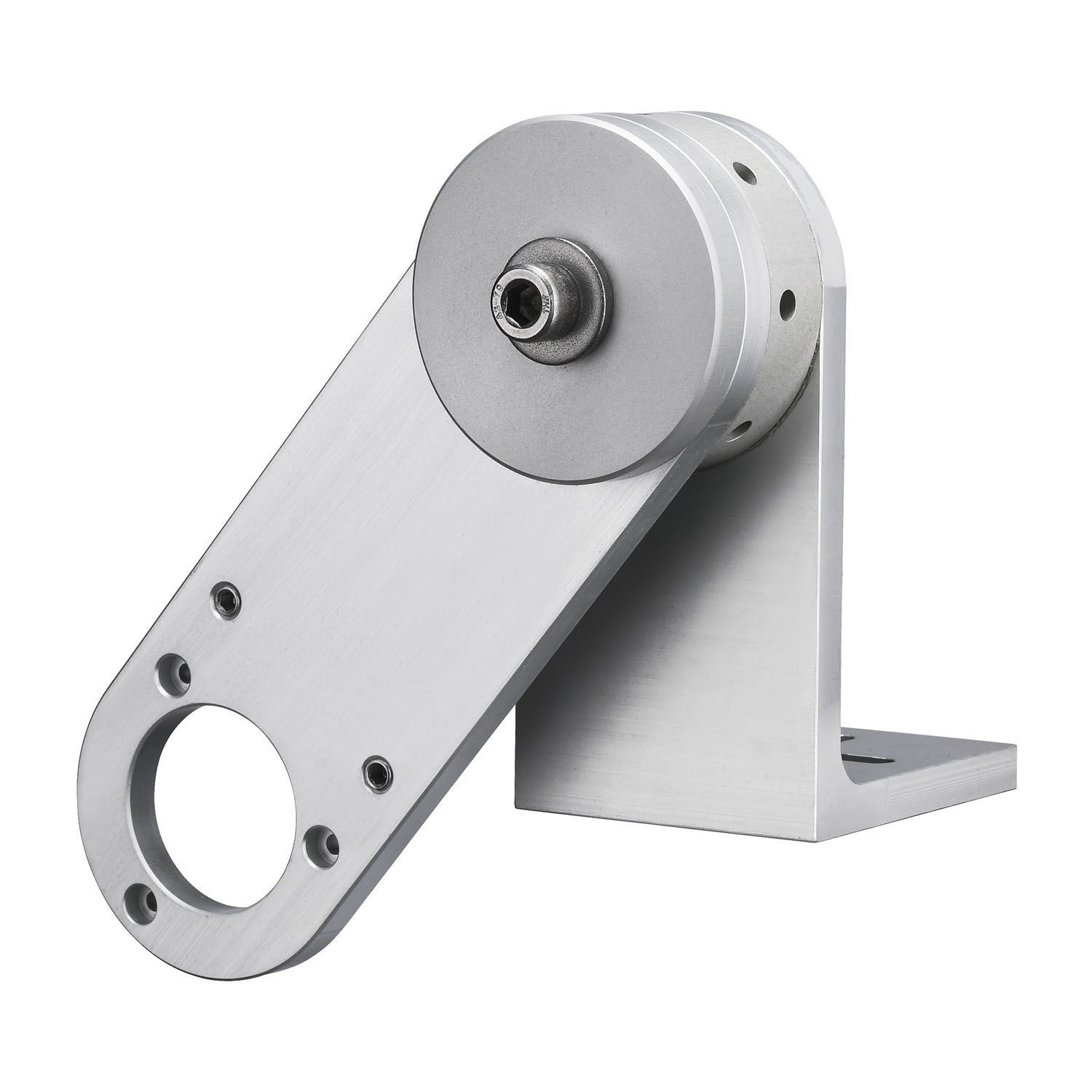

Drehgeberfederarm

Length Measuring Sets / Measuring Wheel Systems

Drehgeberfederarm

  • Adjustable pressing force up to 40 N
  • Encoder freely selectable
  • Flexible assembly
  • Easy handling
  • Extremely robust

Easy integration into the application.

Robust, safe and versatile. Contact force max. 40 N (adjustable), spring force available in every position, contact pressure per detent approx. 20 N (first detent between 0 and approx. 20 N). Wide temperature range -40 °C to +120 °C. Any mounting position - 9 setting positions in 40° steps possible. Base plate variable in 4 directions.

Mechanical
Measuring system Length Measuring Sets / Measuring Wheel Systems
Dimension 102 mm x 180 mm x 120 mm
Working temperature -40 °C ... +120 °C
Electrical

Limes KIT TB1

Versatile
  • Large measuring range (up to 400 m).
  • Can be used linearly or rotatively.
  • Incremental or absolute measurement.
  • All common / field bus interfaces.
  • Application-specific adaptation of the encoder spring arm (adjustable contact pressure).
  • Compensation of application tolerances.


Robust and cost-efficient
  • Simple mounting.
  • Steel-reinforced plastic toothed belt.
  • Robust Sendix encoders.
  • Wide temperature range -10 °C to +80 °C.
  • High travel speed of up to 5 m/s.
Data sheet

encoder arm

PDF ∼ 167,5 KB | 09.2018
DE
EN
FR
Installation manual

encoder arm

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 554,9 KB | 10.2016

mechanical CAD / STEP

8.0010.7000.0010

ZIP ∼ 829,6 KB | 11.2014

Accessories

Cables and connectors
