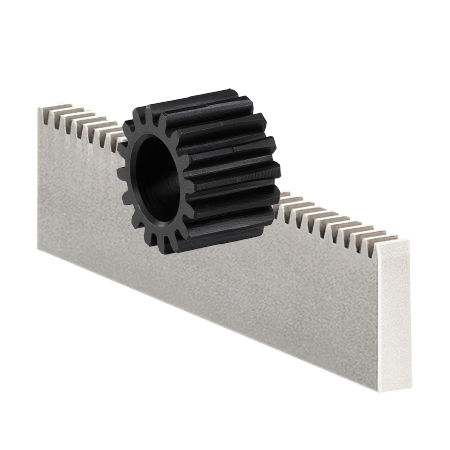

 Pinion with rack
 Pinion with rack

Measuring Wheel Systems

Pinion with rack

  • Robust rack
  • Resolution max. 0,1 mm

For 100 % slip-free measurement of linear movements.

Optimally matched combination of pinion and rack. The pitch of the rack and pinion is chosen so that one revolution of the pinion on the rack corresponds to a travel of 50 mm.

Mechanical
Measuring system Measuring Wheel Systems
Connection types up to 1 m cable axial
Protection level IP65
Electrical
Resolution max. 0,1 mm
Pinion
With 16 teeth for a travel of 50 mm per revolution. Bore for shafts with 6 mm or 10 mm diameter.

Rack
1 meter long rack - with an optionally orderable installation aid, it is possible to line up several racks at exact intervals.
Data sheet

Length measuring kit with rack and pinion

PDF ∼ 674,6 KB | 08.2022
DE
EN
FR
