Measuring Wheel Systems

Measuring wheels

  • Different surfaces
  • Different circumferences
  • Different diameters
  • Wide temperature range
  • Robust design

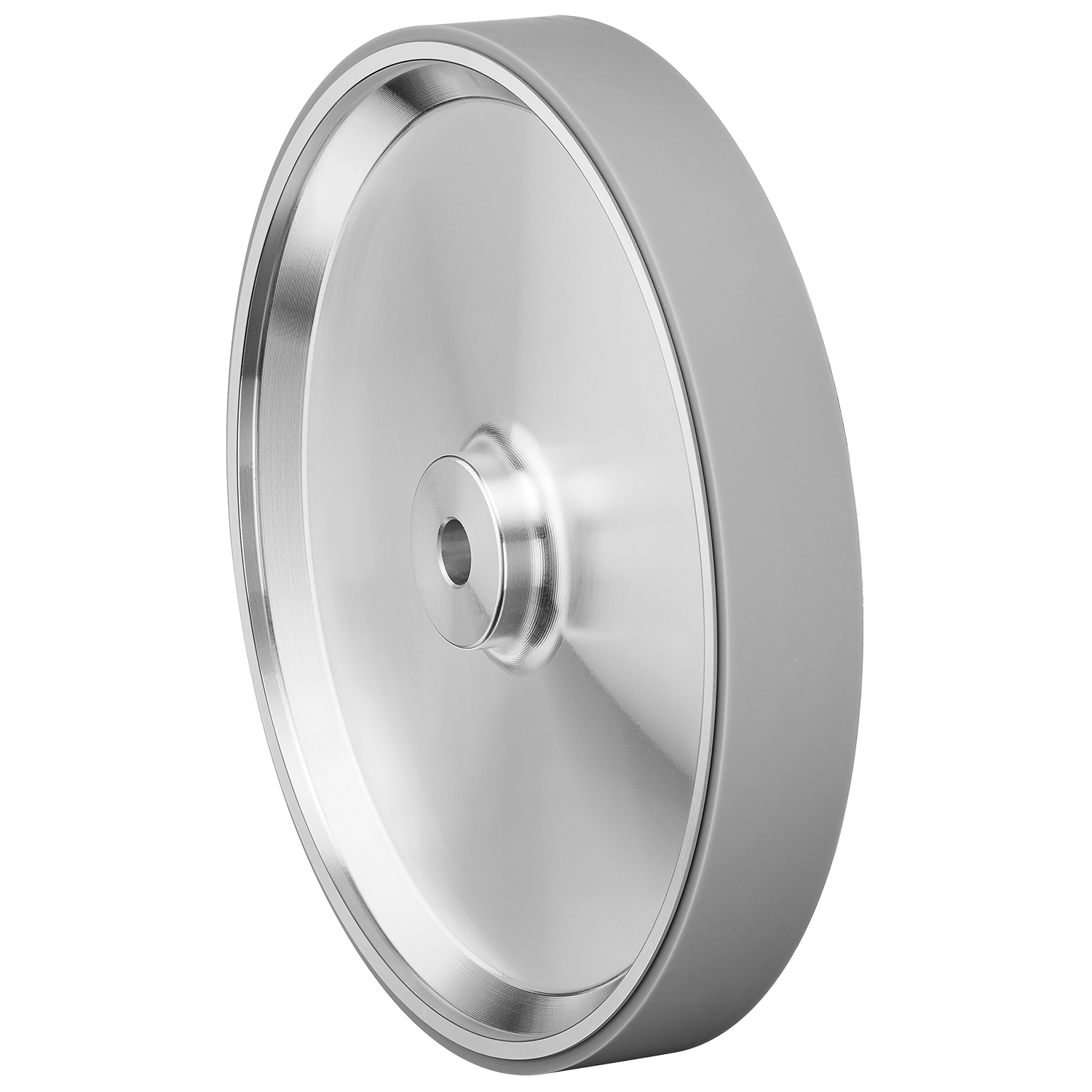

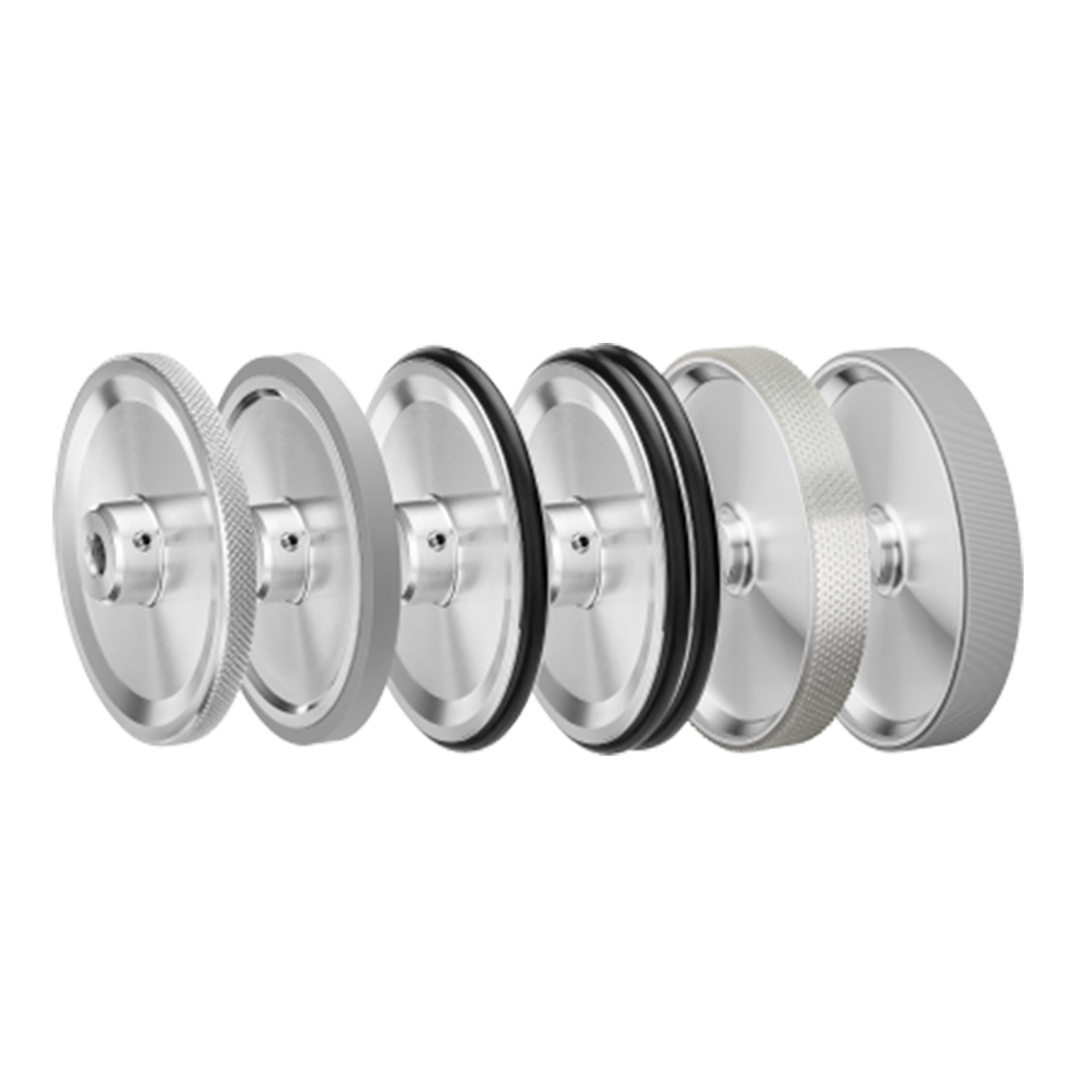

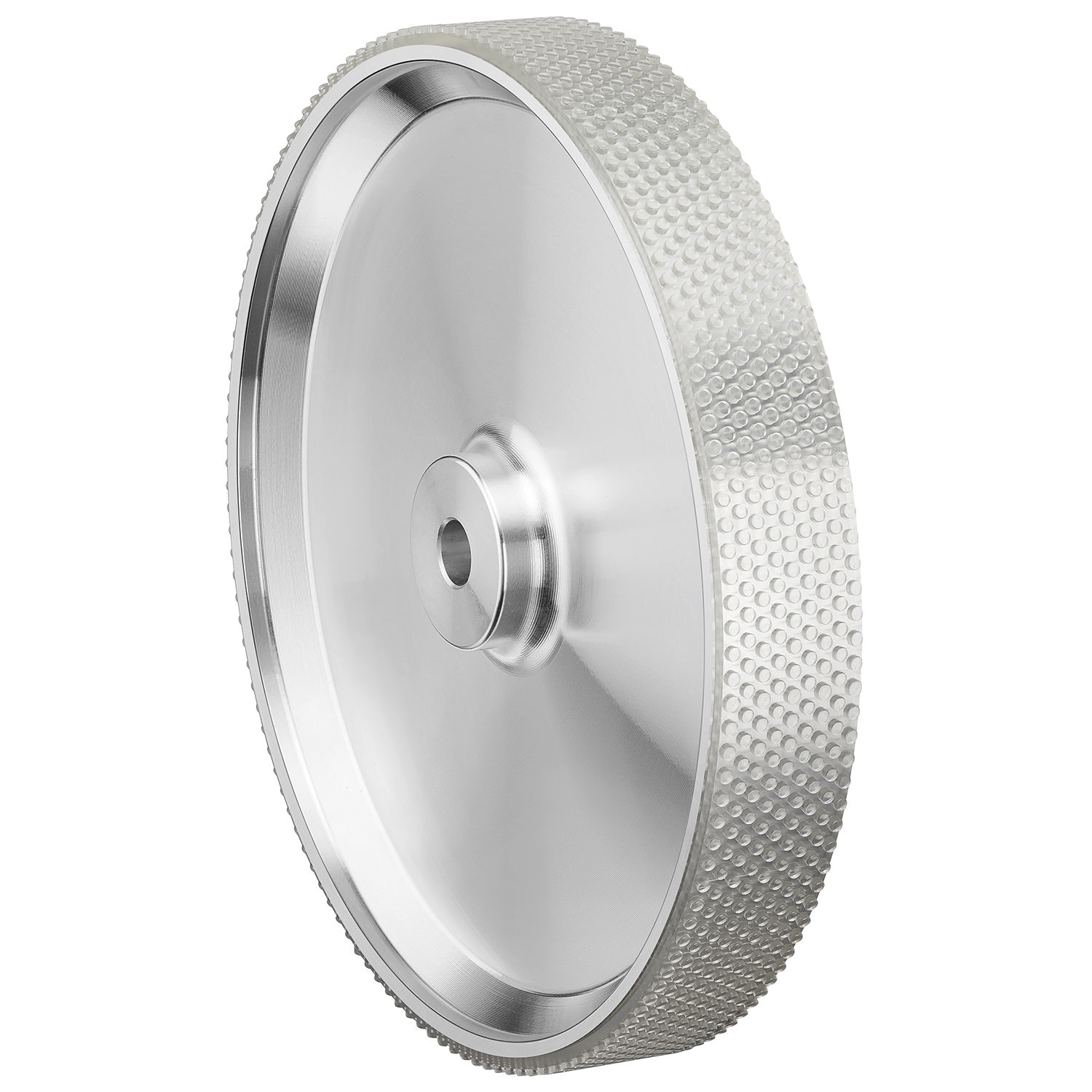

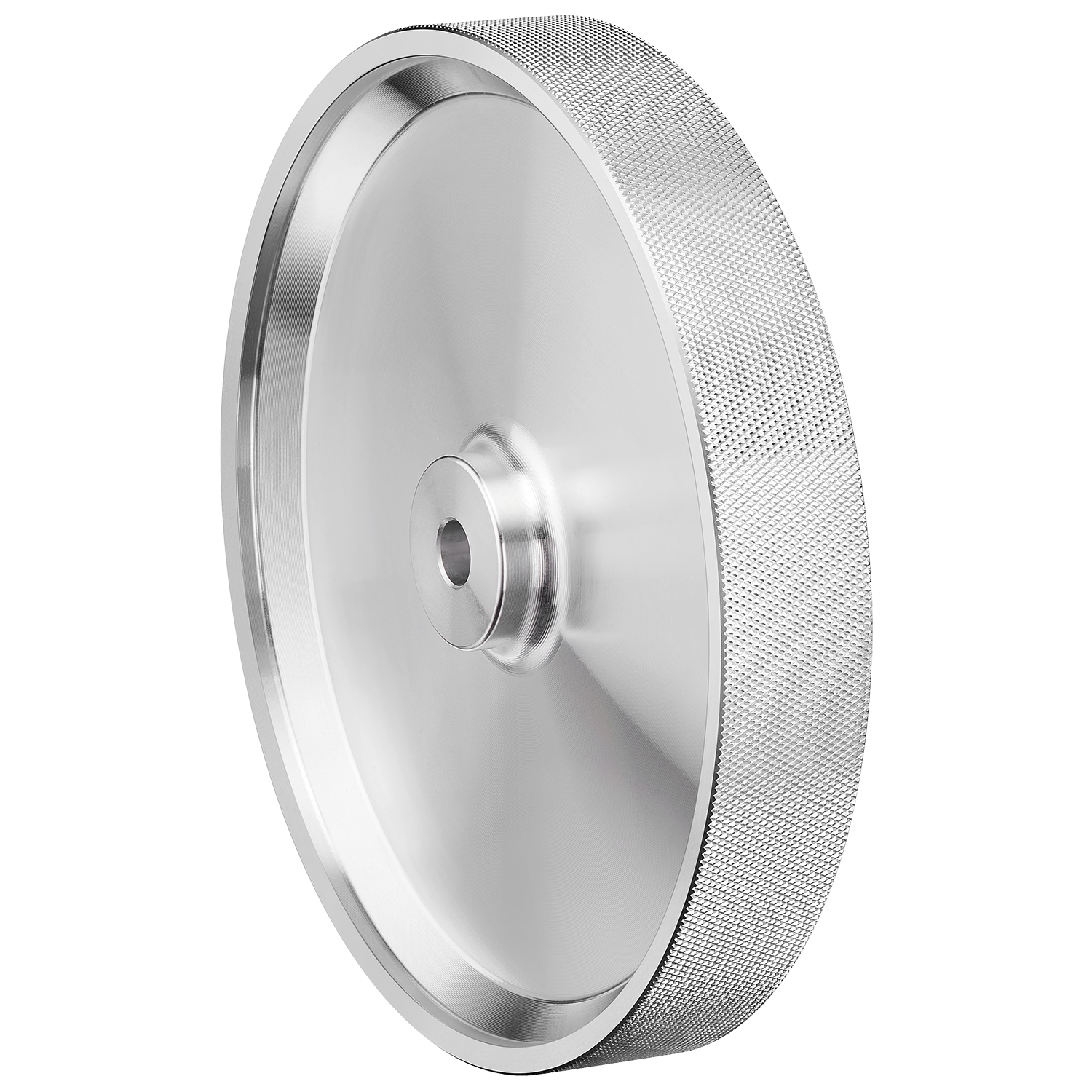

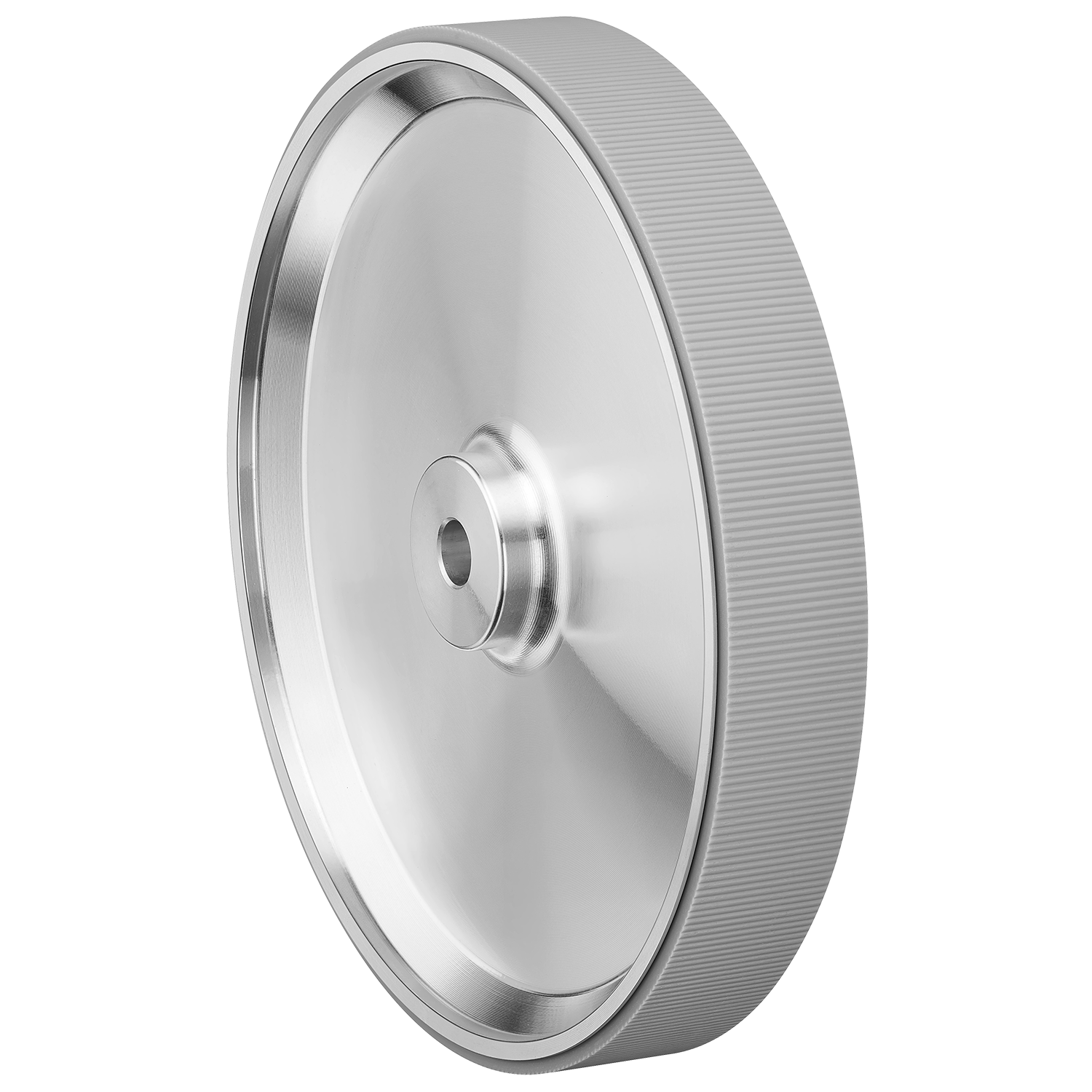

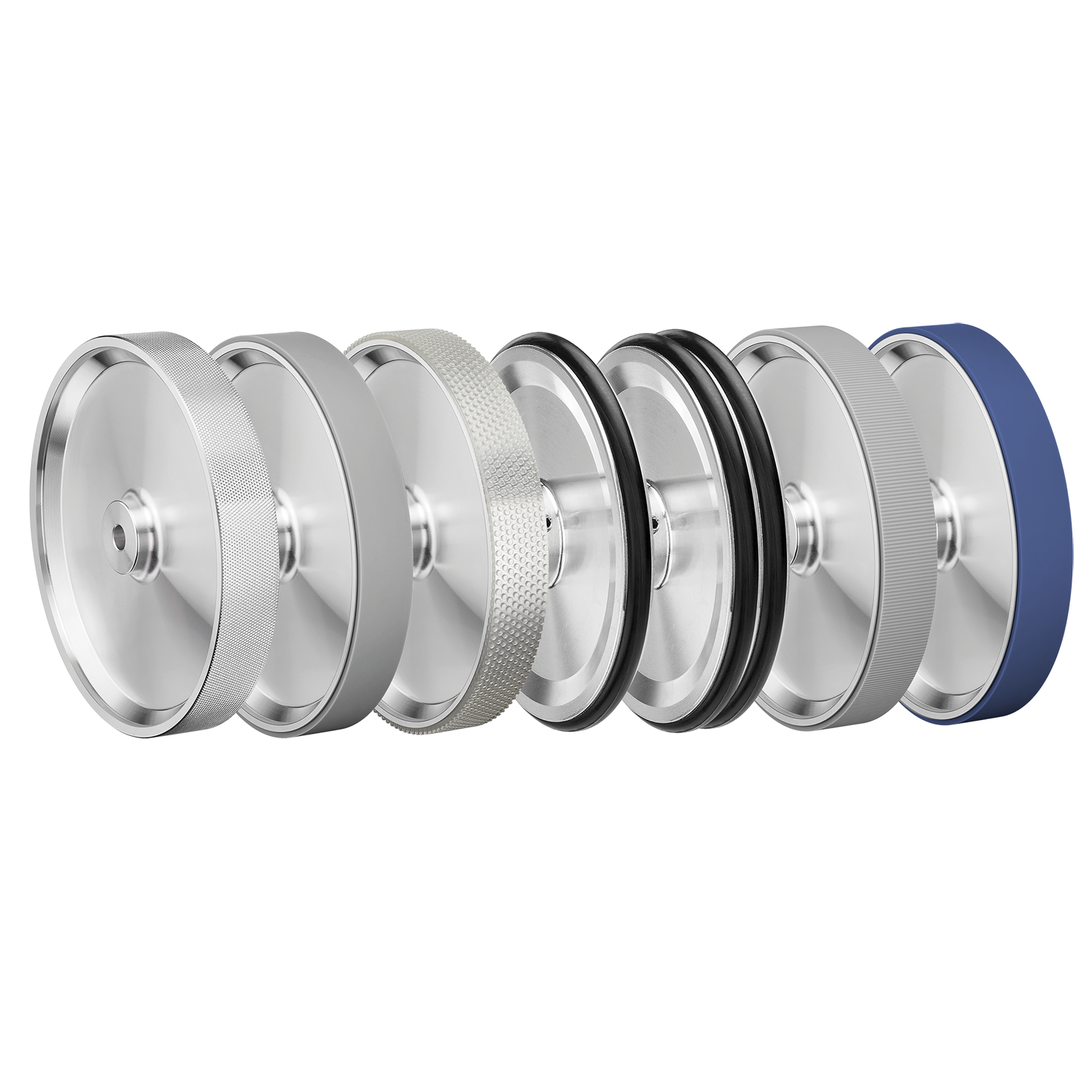

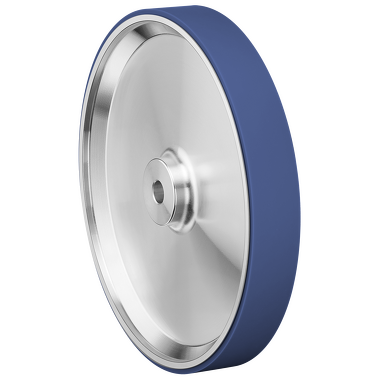

Measuring wheel in different surfaces: cross knurls, knobs, plastic smooth or ribbed and natural rubber smooth

Measuring wheels for measuring the length of products in movement, e.g. in the paper, metal, textile, wood or plastic industry. Different wheel surfaces to meet the requirements of the various surfaces of the product to be measured – different circumferences, designed for use with Kübler encoders, available for metric and imperial systems. For evaluation, you can rely on a multitude of counters and displays from our Codix portfolio.

Mechanical
Measuring system Measuring Wheel Systems
Working temperature -30 °C ... +80 °C
Electrical

Different surfaces, different circumferences

Measuring wheels for measuring the length of products in movement, e.g. in the paper, metal, textile, wood or plastic industry.
Different wheel surfaces to meet the requirements of the various surfaces of the product to be measured – different circumferences, designed for use with Kübler encoders, available for metric and imperial systems.
Data sheet

Measuring wheels

PDF ∼ 1,1 MB | 07.2022
DE
EN
Mechanical CAD / STEP

Measuring wheels

ZIP ∼ 13,9 MB | 05.2022

Measuring wheels

ZIP ∼ 13,9 MB | 05.2022

Accessories

Cables and connectors
