 SK07  SK07  SK07
 SK07  SK07  SK07

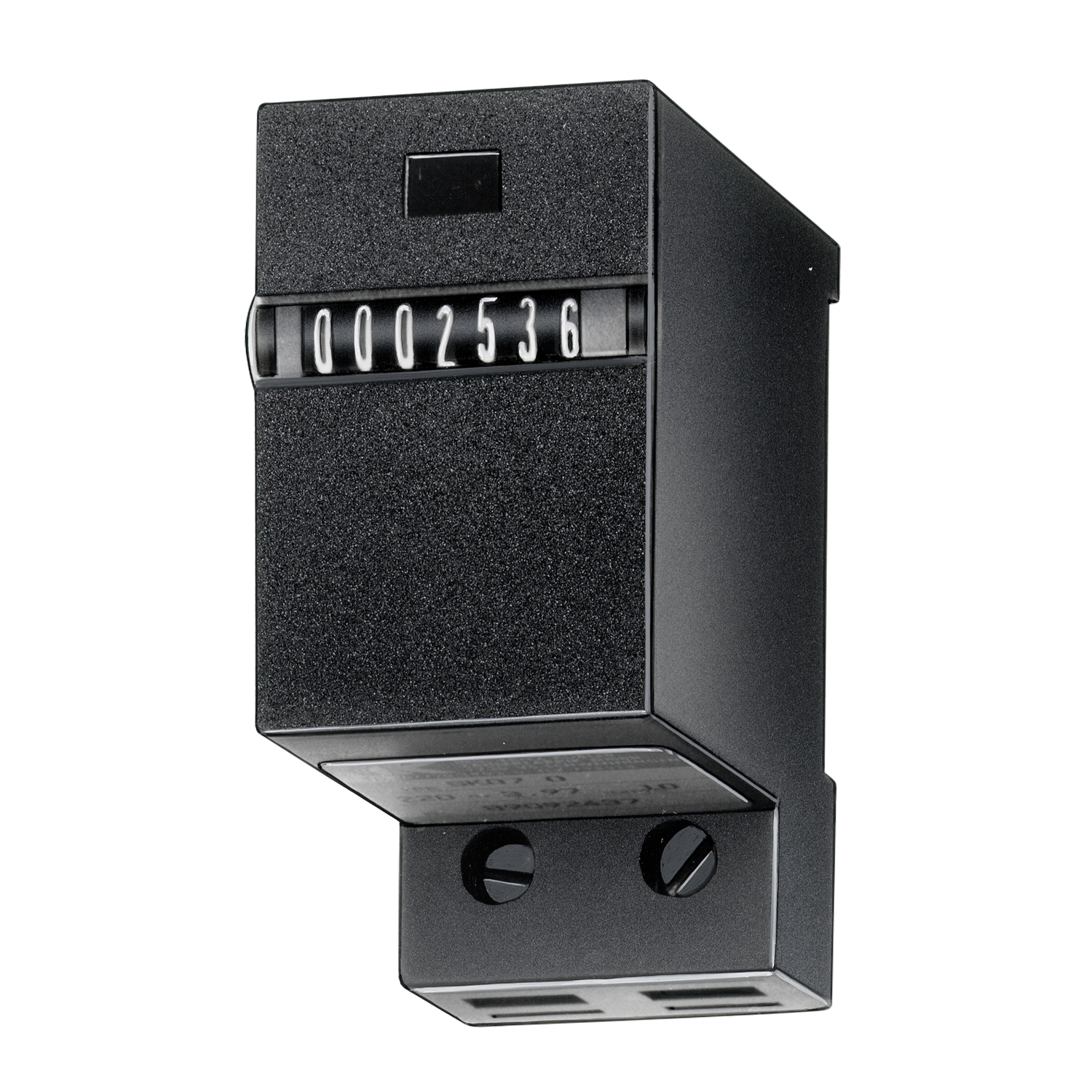

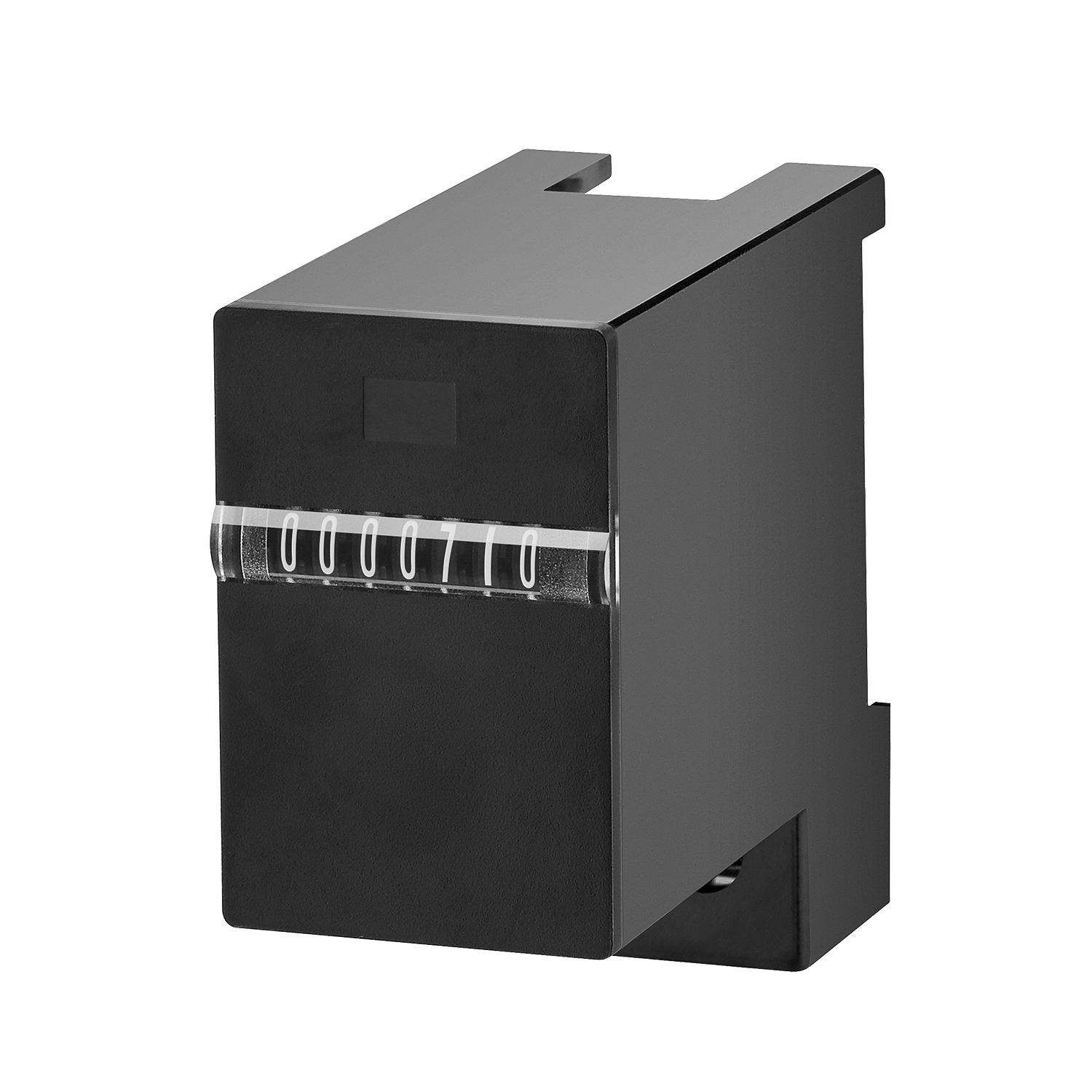

Pulse counter electromechanical

SK07

  • High shock resistance
  • No zero position
  • Retains value in the event of power failure
  • Dimension
    · 30 x 58 mm
  • Power supply:
      · 115 V AC
      · 230 V AC
      · 12 V DC
      · 24 V DC
  • Display 7-digit number, mech. roller counter

Micro pulse counters – surface-mounted and DIN rail counters.

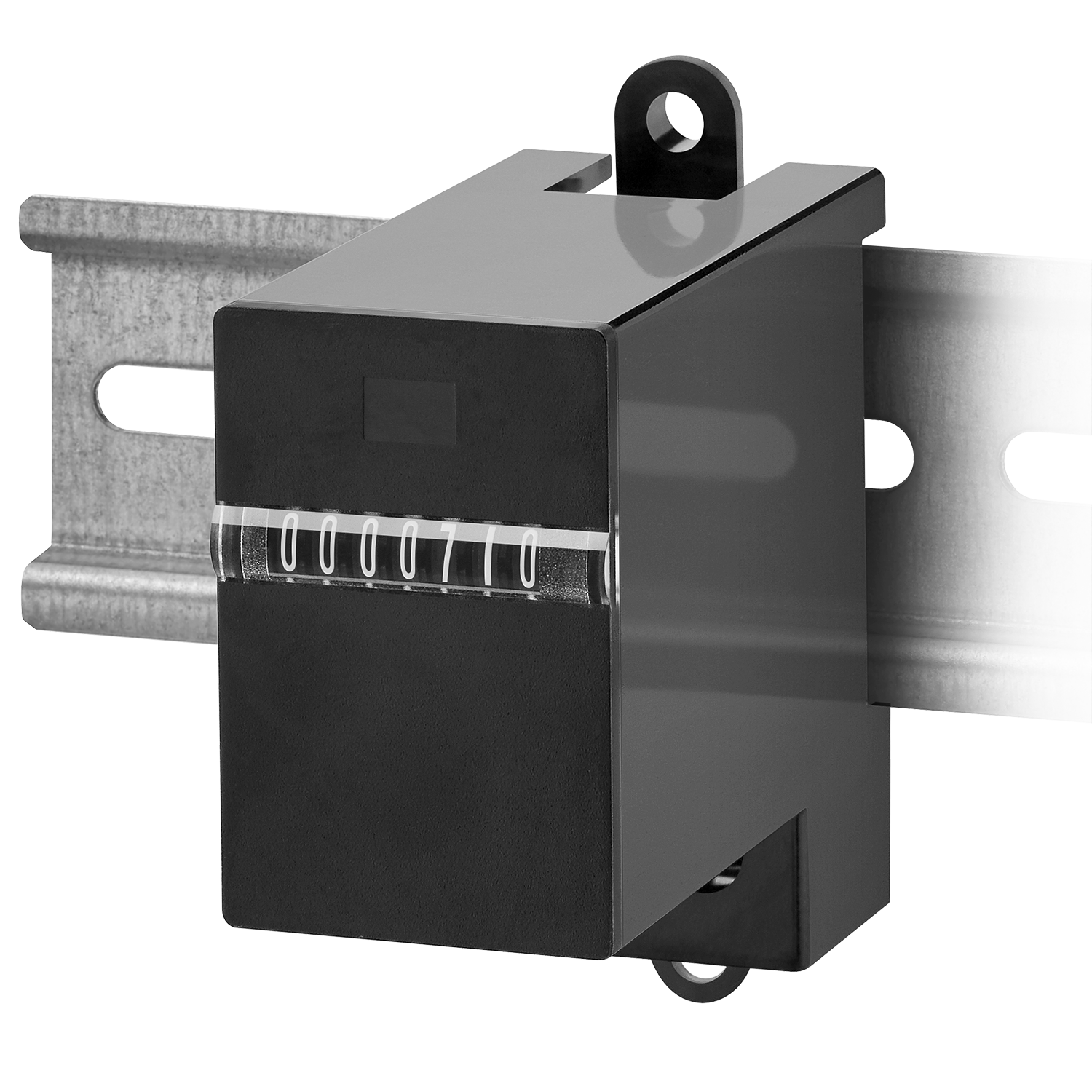

SK07 micro totaling counters are characterized by a very high shock resistance. Thanks to their DIN rail mounting, they are easy and quick to use in various application areas

Mechanical
Model electromechanical
Dimension 1 30 x 58 mm
Protection level IP50
Working temperature -10 °C ... +60 °C
Weight 55 g

(1) Front panel size | Panel cut-out
Electrical
Power supply 115 V AC
230 V AC
12 V DC
24 V DC
Properties
  • 7-digit micro totaling counter.
  • EN 50022-compatible rail mounting.
  • Base mount counter.
  • Optically large digits.
  • Low power consumption.
  • Small dimensions.
Benefits
  • High shock resistance.
  • Retains value in the event of power failure.
  • Long service life.
Applications
General quantity counting, installation in control cabinets and distribution boxes.
