Measuring Wheel Systems

MWE41

  • Compact solution
  • Flexible assembly
  • Different measuring wheels
  • Various encoders
  • Resolution max. 10.000 ppr incremental
  • Contact force 25 N
  • Measuring wheel circumference
    · 300 mm
    · 12"
Analog 0–10 V
EtherNet/IP
CANopen
EtherCAT
Push-pull
TTL / RS422
SAE J1939
SinCos
PROFIBUS DP
PROFINET IO
SSI, binary
BiSS
IO-Link

Capture linear motion rotationally

Measuring wheel systems from Kübler are the ideal solution for reliable speed, position and distance measurement in applications with linear movements. These are recorded rotationally via the measuring wheel with attached encoder directly on the surface of the material to be measured and converted into linear data.
The MWE41 measuring wheel system with internal springs can be quickly and easily integrated into many applications.

Mechanical
Measuring system Measuring Wheel Systems
Measuring wheel circumference 300 mm
12"
Contact force 25 N
Working temperature - 20 °C ... + 70 °C
Protection level IP65
Weight 740 g
Electrical
Resolution max. 10.000 ppr incremental
Interfaces Analog 0...10 V
Analog 4–20 mA
EtherNet/IP
CANopen
EtherCAT
Gegentakt
TTL / RS422
SAE J1939
SinCos
Potentiometer output
PROFIBUS DP
PROFINET IO
SSI, binär
BiSS
IO-Link
Power supply 10...30 V DC
Simple and safe mounting
Measuring wheel system with internal springs to protect against unwanted influences for and by the springs. Encoder can be mounted in 30° increments on the spring angle.

Wide range of encoders
Incremental Sendix encoders with a max. resolution of up to 36,000 pulses/revolution as well as absolute encoders for different communication interfaces such as IO-Link or Profinet for integration into Industry 4.0 concepts.

Suitable measuring wheels for all measuring surfaces
Circumference 300 mm - Measuring wheel lining available with O-ring or double O-ring, smooth or knurled plastic, cross-knurled surface and knobs.

Contact pressure up to max. 25 N
The internal springs provide a working range of the measuring wheel of up to 10 mm perpendicular to the measuring surface to compensate for tolerances.
Data sheet

MWE41

PDF ∼ 1,8 MB | 01.2024
DE
EN
FR
Operation Manual

MWE4x

Multilingual: German, English, French
PDF ∼ 2,0 MB | 08.2022

Declaration of conformity

MWEx1 MWEx2 CE

Multilingual: German, English, French
PDF ∼ 67,8 KB | 09.2022

Mechanical CAD / STEP

MWE41

ZIP ∼ 627,9 KB | 06.2022

MWE40 Spring mounting bracket

ZIP ∼ 207,1 KB | 06.2022

Electronic CAD / ePlan

Sendix KIS50 / KIH50

ZIP ∼ 3,4 MB | 02.2020

Product Certificates

UL CoC Encoder USA/ Canada

PDF ∼ 209,3 KB | 11.2023
EN

Accessories

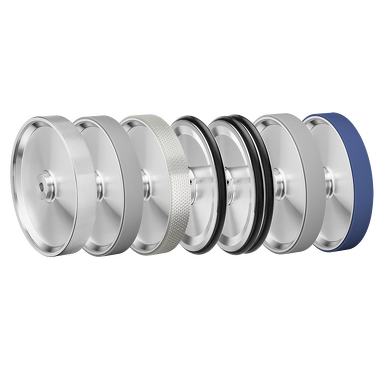

Measuring wheel in different surfaces: cross knurls, knobs, plastic smooth or ribbed and natural rubber smooth

Measuring wheel in different surfaces: cross knurls, knobs, plastic smooth or ribbed and natural rubber smooth

Measuring wheels for measuring the length of products in movement, e.g. in the paper, metal, textile, wood or plastic industry. Different wheel surfaces to meet the requirements of the various surfaces of the product to be measured – different circumferences, designed for use with Kübler encoders, available for metric and imperial systems. For evaluation, you can rely on a multitude of counters and displays from our Codix portfolio.
8.0000.3XXX.00XX
Data sheet
Measuring wheels
DE EN FR
Mechanical CAD / STEP
Measuring wheels

O-Ring

O-Ring

Spare part for corresponding measuring wheels with circumference 200 mm, 300 mm, 6" and 12".
8.0000.7000.00XX

Pulley and toothed belt

Pulley and toothed belt

The pulley with the toothed belt, combined with a rotary encoder, results in a flexible length measuring set for measuring positions and speeds. The complete system is easy to mount and compensates for unevenness or mounting tolerances within the application.
8.0000.AXX1.XXXX 8.0000.B1X1.XXXX

Rack and pinion

Rack and pinion

Measuring system with movable, spring-loaded encoder holder (with rack and pinion) for optimum contact pressure and protection of the encoder shaft.
Optimally matched components: One rotation of the pinion corresponds to a travel of 50 mm.
8.0010.7000.0001 8.0000.7000.000X

Spring bracket for incremental encoders KIS50, 5000 and 5805 as well as for absolute encoders M58, F58 and 58

Spring bracket for incremental encoders KIS50, 5000 and 5805 as well as for absolute encoders M58, F58 and 58

The MWE40 spring bracket in combination with a rotary encoder and a measuring wheel is the ideal solution for reliable speed, position and distance measurement in applications with linear movements. An integrated spring ensures the contact pressure of the measuring wheel on the measuring surface, which is necessary for reliable measured value acquisition. The system's compact design makes it suitable for even the tightest installation spaces and it can be quickly and easily installed horizontally or vertically.
8.MWE40.121.00.0000.0000
Data sheet
MWE40 - Spring bracket
DE EN FR
Mechanical CAD / STEP
MWE40 Spring mounting bracket

Cables and connectors
