Measuring Wheel Systems

MWE61

  • Maximum contact pressure
  • Flexible assembly
  • Different measuring wheels
  • Various encoders
  • Resolution max. 10.000 ppr incremental
  • Contact force 40 N
  • Measuring wheel circumference
    · 300 mm
    · 500 mm
    · 12"
Analog 0–10 V
EtherNet/IP
CANopen
EtherCAT
Push-pull
TTL / RS422
SAE J1939
SinCos
PROFIBUS DP
PROFINET IO
SSI, binary
BiSS
IO-Link

Capture linear movements rotationally

Measuring wheel systems from Kübler are the ideal solution for reliable speed, position and distance measurement in applications with linear movements. These are recorded rotationally via the measuring wheel with attached encoder directly on the surface of the material to be measured and converted into linear data.
The robust MWE61 measuring wheel system offers maximum spring travel at maximum contact force to compensate for tolerances perpendicular to the transport movement of the material to be measured.

Mechanical
Measuring system Measuring Wheel Systems
Measuring wheel circumference 300 mm
500 mm
12"
Contact force 40 N
Working temperature - 20 °C ... + 70 °C
Protection level IP65
Weight 1,00 kg
Electrical
Resolution max. 10.000 ppr incremental
Interfaces 2 x Optokoppler 5...35 V / 150 mA
Analog 0...10 V
Analog 4–20 mA
EtherNet/IP
CANopen
EtherCAT
Gegentakt
TTL / RS422
SAE J1939
SinCos
Potentiometer output
PROFIBUS DP
PROFINET IO
SSI, binär
BiSS
IO-Link
Robust design
With flexible mounting options: vertical, horizontal or overhead. Encoder can be mounted on the spring arm in 120° increments.

Wide range of encoders
Incremental Sendix rotary encoder with a max. resolution of up to 36,000 pulses/revolution as well as absolute rotary encoders for different communication interfaces such as IO-Link or Profinet for integration in Industry 4.0 concepts.

Suitable measuring wheels for all measuring surfaces
Circumference 300 mm or 12" - Measuring wheel lining available with O-ring or double O-ring, smooth or knurled plastic, cross-knurled surface and knobs.

Contact pressure up to max. 40 N
With continuously adjustable preload. To compensate for tolerances, the integrated spring ensures a working range of the measuring wheel up to a maximum of 150 mm perpendicular to the measuring surface.
Data sheet

MWE61

PDF ∼ 1,5 MB | 05.2023
DE
EN
FR
Operation Manual

MWE6x

Multilingual: German, English, French
PDF ∼ 1,9 MB | 08.2022

Declaration of conformity

MWEx1 MWEx2 CE

Multilingual: German, English, French
PDF ∼ 67,8 KB | 09.2022

Mechanical CAD / STEP

MWE61

ZIP ∼ 1,1 MB | 06.2022

MWE60 Encoder spring arm

ZIP ∼ 770,8 KB | 06.2022

Sendix KIS50

ZIP ∼ 5,2 MB | 12.2015

Accessories

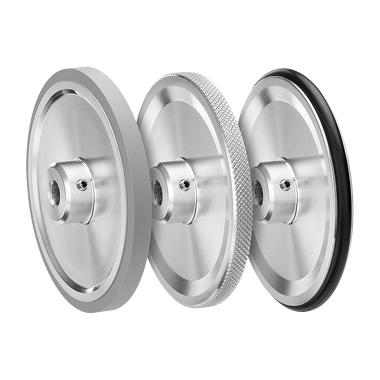

Measuring wheel in different surfaces: cross knurls, knobs, plastic smooth or ribbed and natural rubber smooth

Measuring wheel in different surfaces: cross knurls, knobs, plastic smooth or ribbed and natural rubber smooth

Measuring wheels for measuring the length of products in movement, e.g. in the paper, metal, textile, wood or plastic industry. Different wheel surfaces to meet the requirements of the various surfaces of the product to be measured – different circumferences, designed for use with Kübler encoders, available for metric and imperial systems. For evaluation, you can rely on a multitude of counters and displays from our Codix portfolio.
8.0000.3XXX.00XX
Data sheet
Measuring wheels
DE EN FR
Mechanical CAD / STEP
Measuring wheels

O-Ring

O-Ring

Spare part for corresponding measuring wheels with circumference 200 mm, 300 mm, 6" and 12".
8.0000.7000.00XX

Pulley and toothed belt

Pulley and toothed belt

The pulley with the toothed belt, combined with a rotary encoder, results in a flexible length measuring set for measuring positions and speeds. The complete system is easy to mount and compensates for unevenness or mounting tolerances within the application.
8.0000.AXX1.XXXX 8.0000.B1X1.XXXX

Rack and pinion

Rack and pinion

Measuring system with movable, spring-loaded encoder holder (with rack and pinion) for optimum contact pressure and protection of the encoder shaft.
Optimally matched components: One rotation of the pinion corresponds to a travel of 50 mm.
8.0010.7000.0001 8.0000.7000.000X

Encoder spring arm for incremental encoders KIS50, 5000 and 5805 as well as for absolute encoders M58, F58 and 58

Encoder spring arm for incremental encoders KIS50, 5000 and 5805 as well as for absolute encoders M58, F58 and 58

The encoder spring arm MWE60 in combination with an encoder and a measuring wheel is the ideal solution for reliable speed, position and distance measurement in applications with linear movements. An integrated spring ensures the contact pressure of the measuring wheel on the measuring surface, which is necessary for reliable measured value acquisition. The desired contact pressure is individually adjustable.
8.MWE60.X21.00.0000.0000
Data sheet
MWE60 - Encoder spring arm
DE EN FR
Mechanical CAD / STEP
MWE60 Encoder spring arm
