MWE20 Spring encoder arm
MWE20 Spring encoder arm

Measuring Wheel Systems

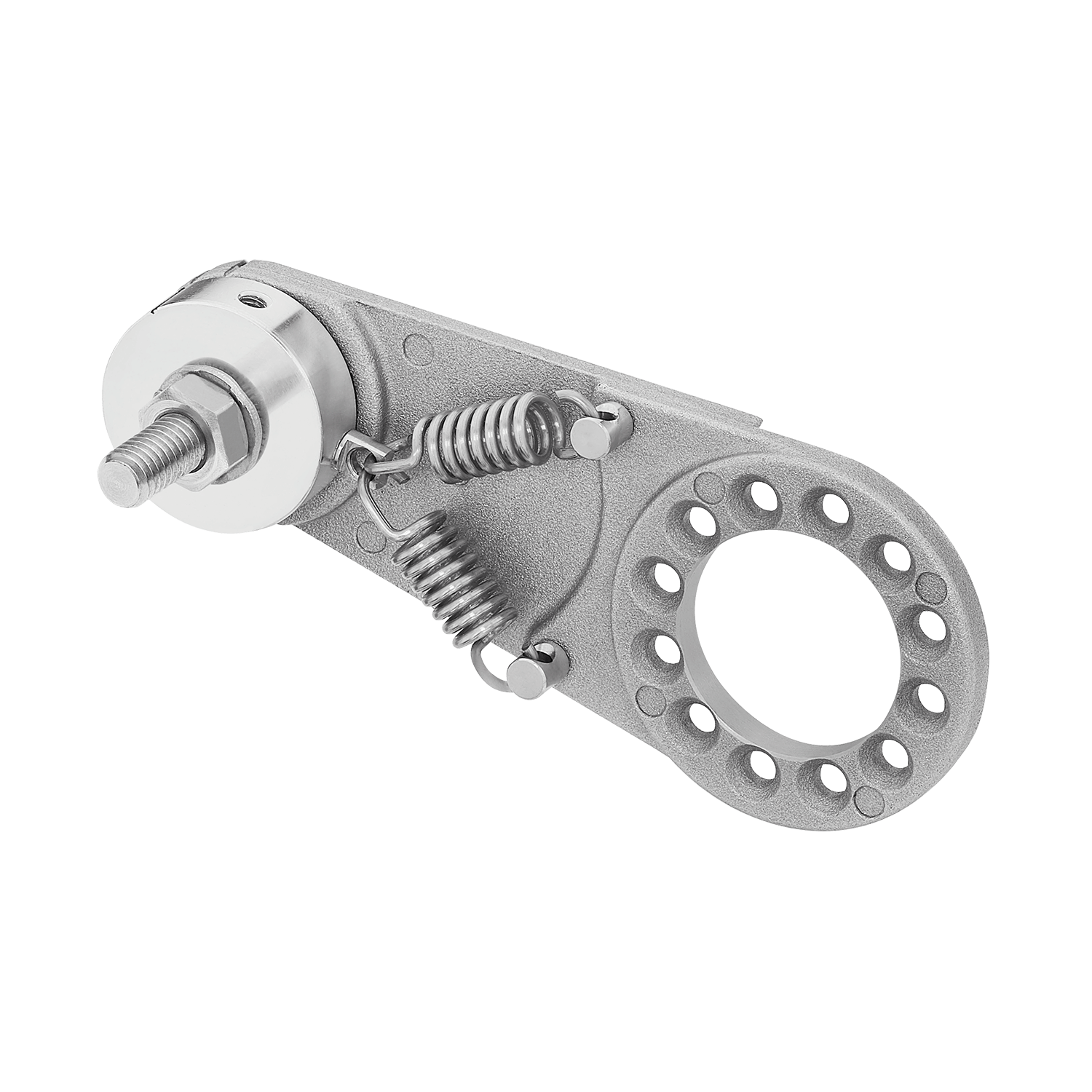

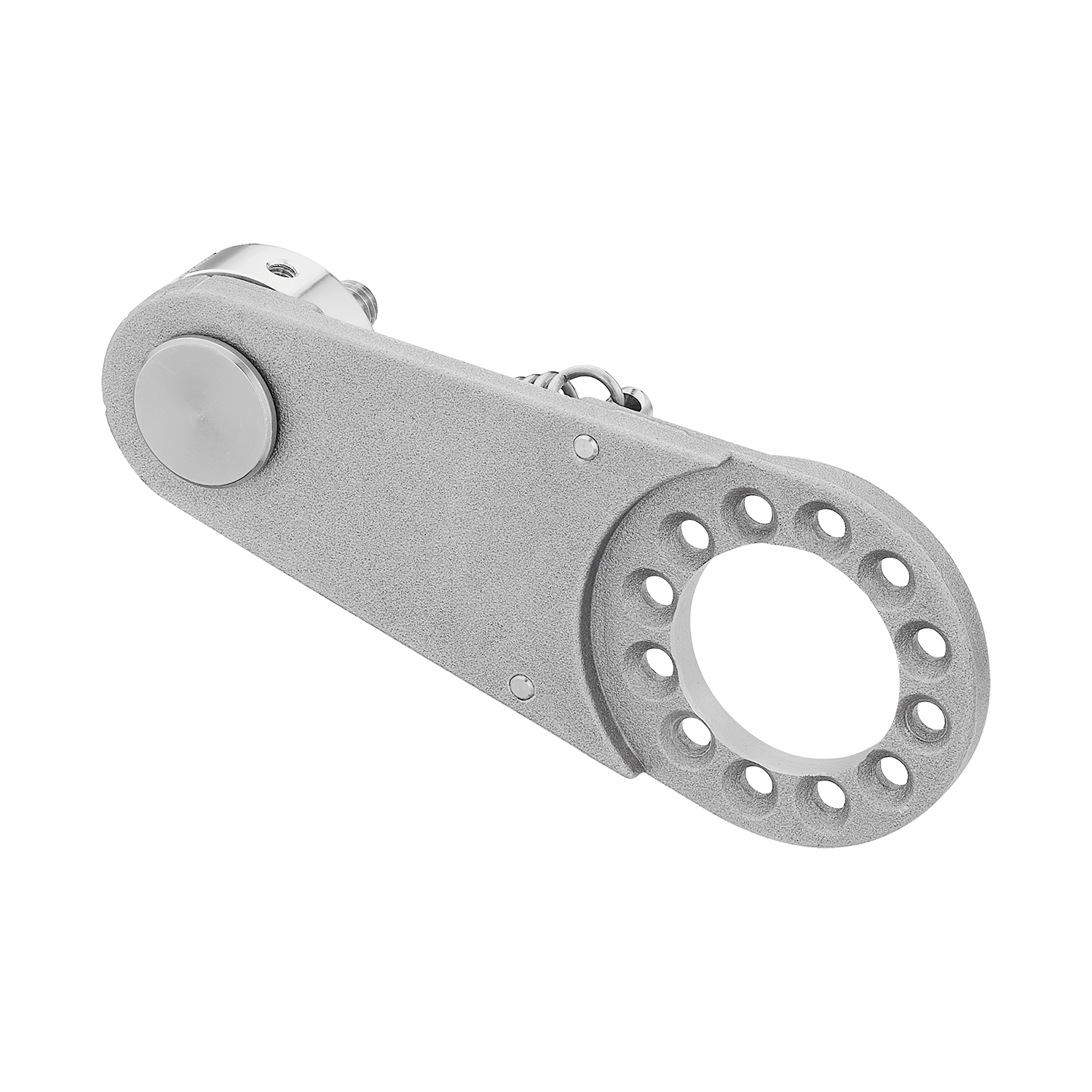

MWE20 Spring encoder arm

  • Compact solution
  • Flexible assembly
  • Encoder freely selectable
  • Encoder adaptable in 30° steps
  • Contact force 20 N

Encoder spring arm for incremental encoders KIS40 and 3610 as well as for absolute encoders M36 and F36

The MWE20 encoder spring arm in combination with an encoder and a measuring wheel is the ideal solution for reliable speed, position and distance measurement in applications with linear movements. An integrated spring ensures the contact pressure of the measuring wheel on the measuring surface required for reliable measured value acquisition. The system's compact design makes it suitable for even the tightest installation spaces and it can be installed quickly and easily horizontally, vertically or overhead.

Mechanical
Measuring system Measuring Wheel Systems
Contact force 20 N
Dimension 96,5 mm x 40 mm x 12 mm
Weight 37 g
Electrical
Data sheet

MWE20 - Encoder spring arm

PDF ∼ 594,5 KB | 08.2024
DE
EN
FR
Operation Manual

MWE2x

Multilingual: German, English, French
PDF ∼ 2,0 MB | 08.2022

Declaration of conformity

MWEx0 CE

Multilingual: German, English, French
PDF ∼ 64,1 KB | 09.2022

Mechanical CAD / STEP

MWE2x Mounting Bracket

ZIP ∼ 9,5 KB | 09.2021

MWE20 Encoder spring arm

ZIP ∼ 502,3 KB | 12.2021

Product video

MWE02/MWE21 Video SPS 2021

MP4 ∼ 150,7 MB | 06.2022
EN

Accessories

Measuring wheel in different surfaces: cross knurls, knobs, plastic smooth or ribbed and natural rubber smooth

Measuring wheel in different surfaces: cross knurls, knobs, plastic smooth or ribbed and natural rubber smooth

Measuring wheels for measuring the length of products in movement, e.g. in the paper, metal, textile, wood or plastic industry. Different wheel surfaces to meet the requirements of the various surfaces of the product to be measured – different circumferences, designed for use with Kübler encoders, available for metric and imperial systems. For evaluation, you can rely on a multitude of counters and displays from our Codix portfolio.
8.0000.3XXX.00XX
Data sheet
Measuring wheels
DE EN FR
Mechanical CAD / STEP
Measuring wheels

Mounting bracket for encoder spring arm MWE20

Mounting bracket for encoder spring arm MWE20

Or in combination with the measuring wheel system MWE21.
8.0000.7000.0065
Data sheet
MWE20 - Mounting bracket 8.0000.7000.0065
DE EN FR
