Hour meter electromechanical
SHK07.1
|
|

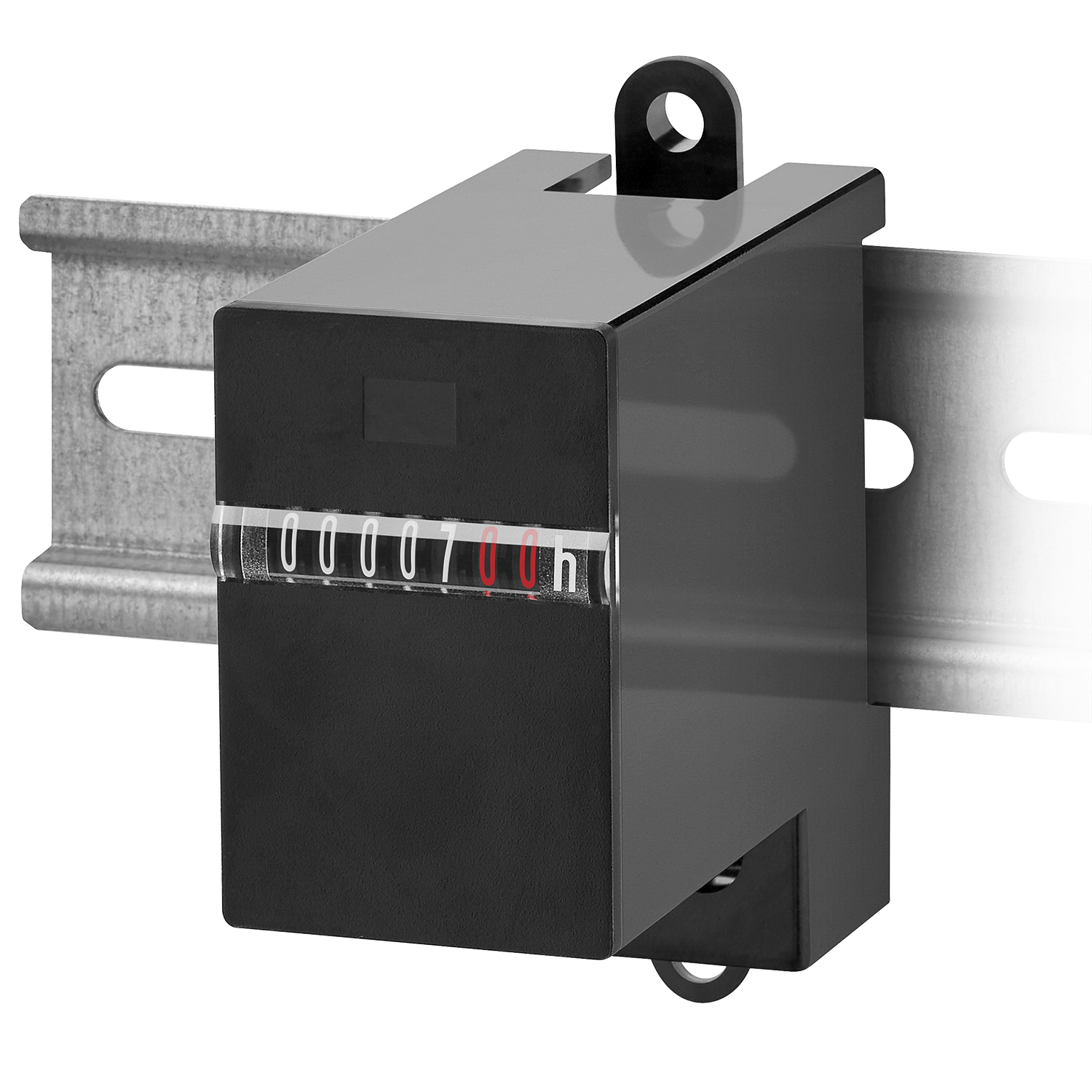

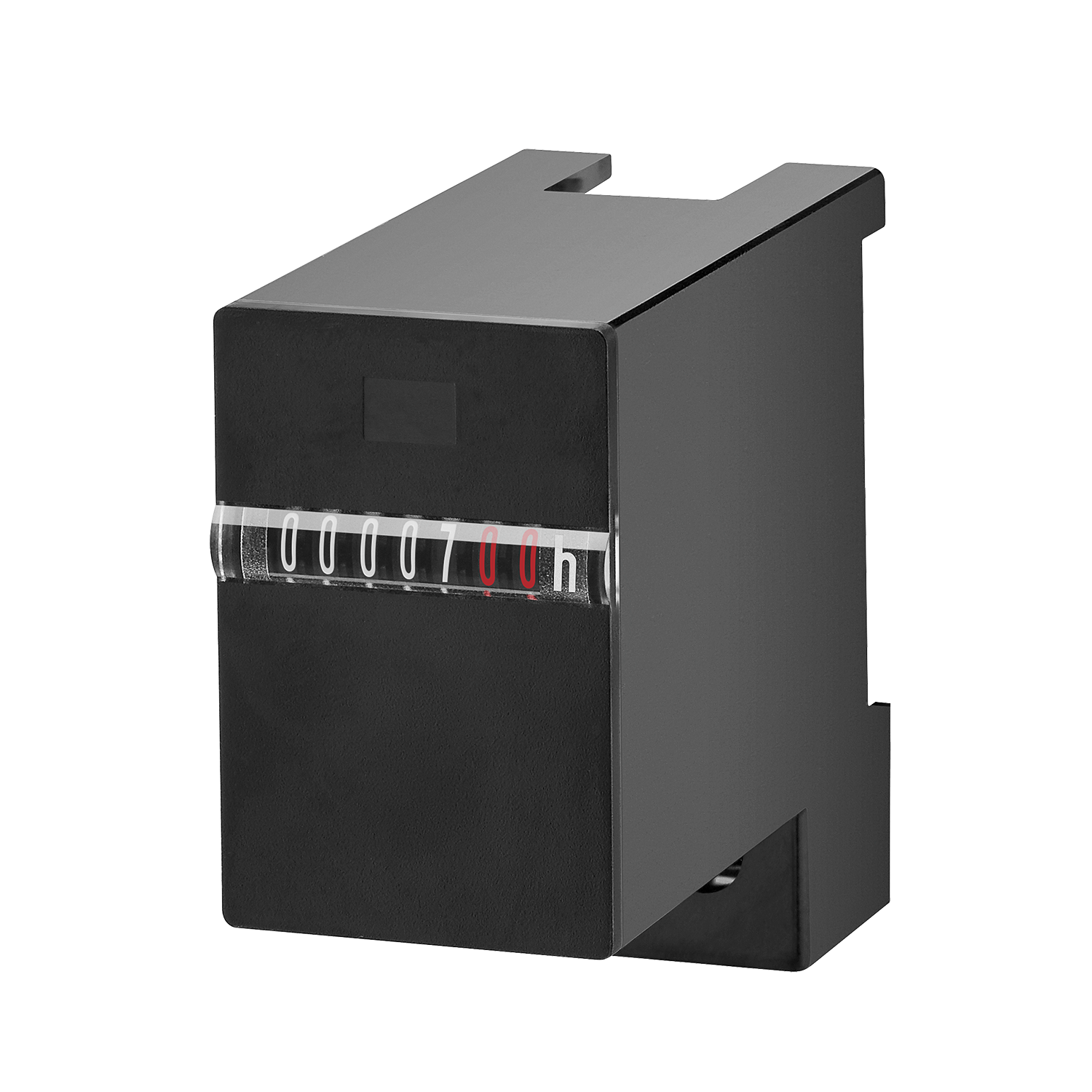

Micro-hour meter – Surface-mounted and DIN rail counter.
The micro hour meters SHK 07.1 have a very high shock resistance. As surface-mounted and DIN rail counters, they can be used in various application areas. The non-resettable counters are extremely tamper-proof.| Mechanical | |
|---|---|
| Model | electromechanical |
| Function |
Hour meters / timers |
| Dimension 1 |
30 x 58 mm |
| Protection level |
IP52 |
| Working temperature | -10 °C ... +60 °C |
| Weight | 55 g |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
20...30 V AC 187...264 V AC 4,5...35 V DC 100...130 V DC |
Properties
General time measurement, integration in control cabinets.
- 7-digit micro hour meter / timer.
- EN 50022-compatible rail mounting.

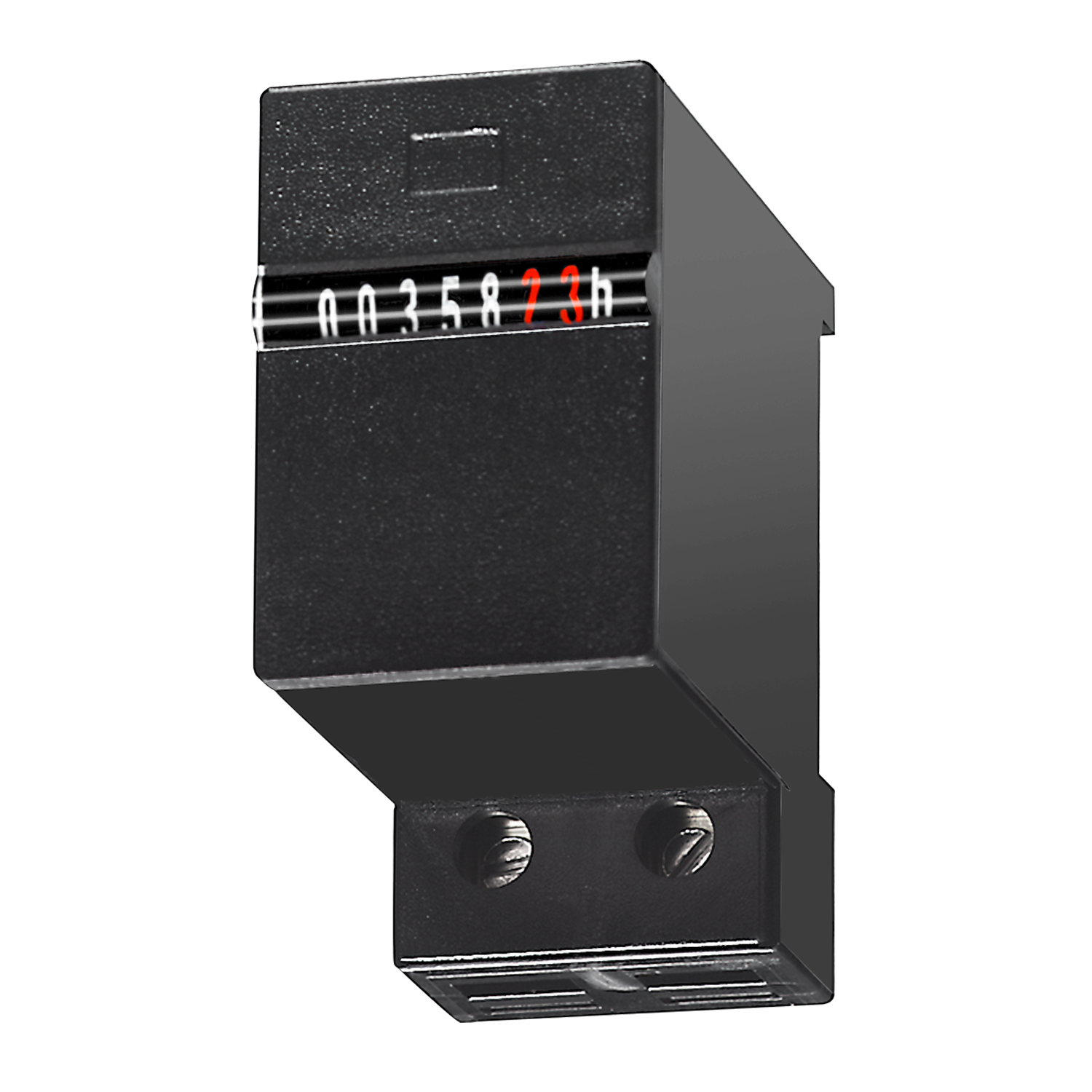

- Base mount counter.
- High shock resistance.
- Low power consumption.
- Small dimensions.
- Optically large digits.
- Display range 99999.99 hours.
- Wide voltage range from 4.5 to 35 VDC, 20 to 264 VAC.
- Retains value in the event of power failure.
- Long service life.
General time measurement, integration in control cabinets.
