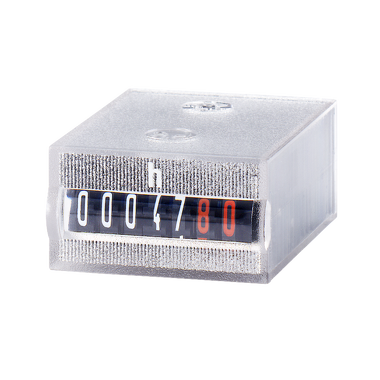

Hour meter electromechanical
HK47
|
|
Micro hour meter / timer – without zeroing.
The HK 47 micro hour meters have a very high shock resistance. As built-in and print counters, they can be used in various application areas. The non-resettable counters are extremely tamper-proof due to the encapsulated housing.| Mechanical | |
|---|---|
| Model | electromechanical |
| Function |
Hour meters / timers |
| Dimension 1 |
25 x 13,8 mm 30 x 20 mm | 27 x 14 mm |
| Protection level |
IP66 |
| Working temperature | -10 °C ... +60 °C |
| Weight | 15 g |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
4,5...35 V DC |
Properties
Time recording, maintenance intervals for measuring devices (ventilation, oxygen, dialysis), small devices, UV lamps, display panels
- 7-digit micro hour meter / timer
- Low cost
- High shock resistance
- Small dimensions
- Optically large digits
- Various reading options
- Built-in meter with injection-molded snap-in springs (HK 47.20)
- Print counter for circuit board mounting (HK 47.80)
- Low power consumption; suitable for battery operation
- Machine solderable and washable (HK 47.80)
- Retains value in the event of power failure
- Long service life
Time recording, maintenance intervals for measuring devices (ventilation, oxygen, dialysis), small devices, UV lamps, display panels
