Inclinometers

Precise and reliable measurement - suitable for use in the harshest environmental conditions

The right solution for every application. Whether static or dynamic applications, Kübler offers the right sensor technology for both 1-axis and 2-axis inclination measurement. Compared to alternative measuring systems, inclinometers offer more flexibility and degrees of freedom in system design, as the sensor does not require a mechanical connection to a shaft or rotary axis, for example. This simplifies installation and significantly reduces sources of error. With the help of simple tools, the sensors can be individually adapted to the respective application requirements.

Precise and reliable measurement

  • Suitable for the harshest environments
  • For static and dynamic applications
  • 1-axis and 2-axis versions
  • Simple commissioning and diagnostics
  • A wide range of interfaces
  • IO-Link as a door opener for IIoT

Inclinometers

Precise and reliable measurement - suitable for use in the harshest environmental conditions

The right solution for every application. Whether static or dynamic applications, Kübler offers the right sensor technology for both 1-axis and 2-axis inclination measurement. Compared to alternative measuring systems, inclinometers offer more flexibility and degrees of freedom in system design, as the sensor does not require a mechanical connection to a shaft or rotary axis, for example. This simplifies installation and significantly reduces sources of error. With the help of simple tools, the sensors can be individually adapted to the respective application requirements.

Static applications
Static applications

Static applications


for 1- or 2-axis inclination measurement

Applications in which the overall application does not move. The measurement is based on an acceleration measuring cell that provides a precise measurement at a moderate speed. Application examples: In mobile automation such as mobile cranes, lifting tables in intralogistics through to tracked photovoltaic systems in solar industry applications, and many more.

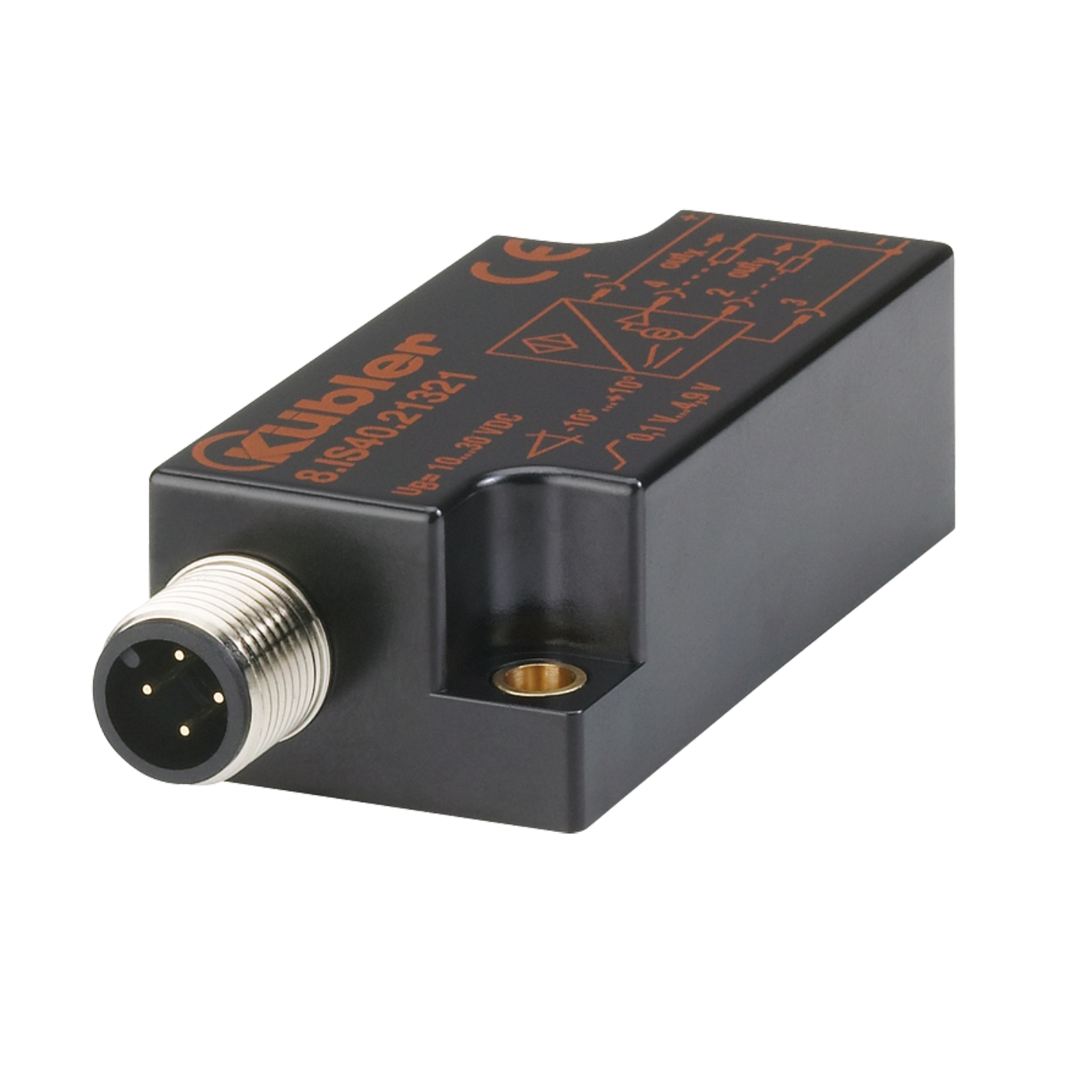

Individually parameterizable
Individually parameterizable
  • Various analog interfaces adjustable
  • Adjustable measuring range
  • Filter functions depending on application area
  • Easy-Teach via teach adapter
  • IO-Link interface for parameterization (FDT/IODD)
2 switching outputs
2 switching outputs
  • Individual parameterization
  • Simple commissioning
  • Spirit level function
  • IO-Link interface for parameterization (FDT/IODD)
Door opener for Industry 4.0 / IIoT
Door opener for Industry 4.0 / IIoT
  • Simple commissioning and diagnostics
  • Adjustable measuring range
  • Filter functions depending on the application
  • Parameterization via FDT/IODD
For fieldbus communication
For fieldbus communication
  • Fast commissioning and diagnostics
  • LED water carriage function for visual orientation
  • Adjustable measuring ranges and filter functions
  • Wide voltage range 8...36 VDC
  • 2x M12 plug for bus IN/OUT
Robust and precise
Robust and precise
  • Various analog interfaces
  • Optionally with additional switching outputs
  • Robust metal housing
  • Stackable for redundant measurement
  • High protection class IP69k
Various fieldbus interfaces
Various fieldbus interfaces
  • Parametric filter adjustment
  • Robust metal housing
  • Stackable for redundant measurement
  • High protection class IP69k
Maximum compactness
Maximum compactness
  • Suitable for the tightest installation spaces
  • Various analog interfaces
  • High degree of protection IP68/IP69k
  • Simple commissioning
Dynamic applications
Dynamic applications

Dynamic applications


for 1- or 2-axis inclination measurement

Applications in which the entire application is in motion or exposed to strong vibrations and oscillations.
In addition to the measurement via an acceleration measuring cell, a rotation is also determined via a rotation rate measuring cell. An intelligent calculation of the values from this sensor fusion enables the measurement result to be provided at a high speed.
Application examples: In mobile automation such as wheel loaders, timber harvesters, forklifts, pallet trucks and automated guided vehicles (AGV) in intralogistics, etc.

Inclinometers for dynamic applications


Thanks to innovative sensor fusion (acceleration and rotation rate), suitable for applications that move quickly or are exposed to a high degree of vibration. 1- or 2-dimensional measurement (0 ... 360° or ±85°)
Individually parameterizable
Individually parameterizable
  • Various analog interfaces adjustable
  • Adjustable measuring range
  • Filter functions depending on application area
  • Easy-Teach via teach adapter
  • IO-Link interface for parameterization (FDT/IODD)
2 switching outputs
2 switching outputs
  • Individual parameterization
  • Simple commissioning
  • Spirit level function
  • IO-Link interface for parameterization (FDT/IODD)
Door opener for Industry 4.0 / IIoT
Door opener for Industry 4.0 / IIoT
  • Simple commissioning and diagnostics
  • Adjustable measuring range
  • Filter functions depending on the application
  • Parameterization via FDT/IODD
For fieldbus communication
For fieldbus communication
  • Fast commissioning and diagnostics
  • LED water carriage function for visual orientation
  • Adjustable measuring ranges and filter functions
  • Wide voltage range 8...36 VDC
  • 2x M12 plug for bus IN/OUT
1-achsige Neigungsmessung
1-achsige Neigungsmessung

1-achsige Neigungsmessung Grundfläche des Sensors liegt senkrecht zur Erdoberfläche. Gemessen wir die Rotation um die Horizontale im Bereich 0° bis 360°.

2-achsige Neigungsmessung
2-achsige Neigungsmessung

Grundfläche des Sensors liegt parallel zur Erdoberfläche. Gemessen werden die Rotationen um Achse X und die Achse Y jeweils im Bereich von +85° bis -85° ausgehend von der Ausgangsposition.
