IN88
IN88

Inclinometer

IN88

  • Parameterizable filter setting
  • Robust design
  • Stackable assembly for redundancy
CANopen
SAE J1939
Modbus

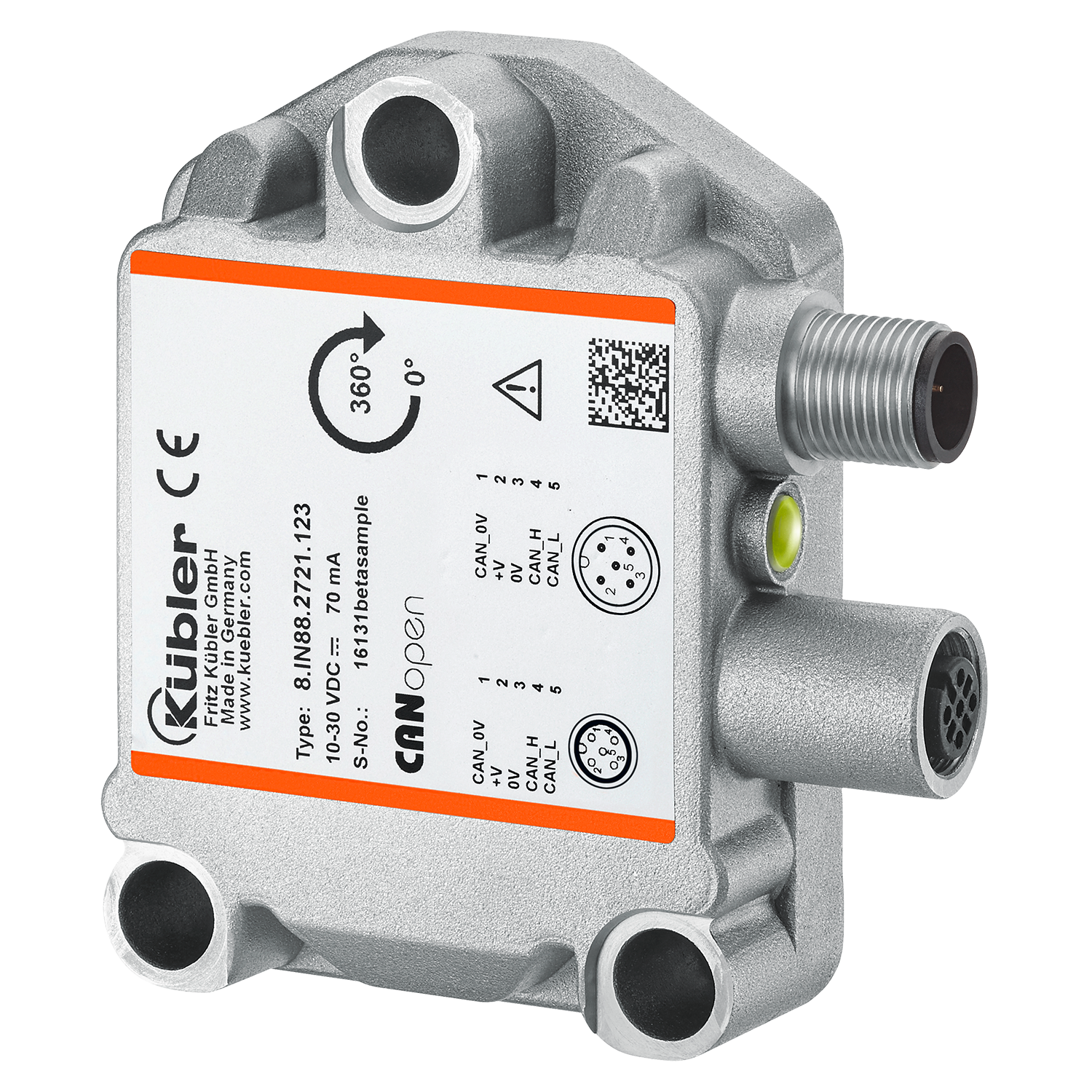

Robust and precise: inclination sensor with fieldbus interfaces.

The IN88 inclinometer is used for the acquisition of a tilt angle in the measuring range from 0 to 360°. Due to its high robustness and protection up to IP69k, as well as its wide temperature range from -40 °C to +85 °C, it is excellent for, among other uses, outdoor use in mobile automation.

Mechanical
Dimension 60 mm x 80 mm x 23 mm
Connection types M12 connector
Working temperature -40 °C ... +85 °C
Protection level IP67
IP69k
Electrical
Measuring range 0°...360° / -85°...+85°
Accuracy ± 0,2°
Interfaces CANopen
SAE J1939
Modbus
Power supply 10...30 V DC
Robust
  • High protection rating IP67 and IP69k in one device.
  • Highest robustness thanks to metal housing.
  • Stable accuracy over the whole temperature range from -40 °C up to +85 °C.
  • Non long-term drift thanks to sensor array technique.
Versatile
  • Parameterizable filter.
  • Measuring direction 1- or 2-dimensional.
  • With 1 x M12 connector or 2 x M12-connector.
  • Stacked installation possible for redundancy.
Data sheet

IN88 (CANopen, Modbus, SAE J1939)

PDF ∼ 847,8 KB | 10.2024
DE
EN
FR
Installation manual

IN81 / IN88

Multilingual: German, English
PDF ∼ 760,8 KB | 10.2017

Manual

IN88 CANopen

PDF ∼ 2,1 MB | 02.2021
DE
EN
FR

IN88 SAE J1939

PDF ∼ 2,9 MB | 02.2022
DE
EN

IN88 Modbus

PDF ∼ 4,4 MB | 05.2021
DE
EN
FR
Safety characteristics

IN88 MTTFd

Multilingual: German, English
PDF ∼ 183,3 KB | 06.2019

Declaration of conformity

IN88 CANopen CE

Multilingual: German, English, French
PDF ∼ 150,3 KB | 11.2022

IN88 Modbus CE

Multilingual: German, English, French
PDF ∼ 146,7 KB | 11.2022

Device file

IN88 CANopen

ZIP ∼ 16,1 KB | 08.2016

Mechanical CAD / STEP

IN88

ZIP ∼ 8,4 MB | 12.2017

Electronic CAD / ePlan

IN88 CANopen

ZIP ∼ 987,1 KB | 02.2020

IN88 SAE J1939

ZIP ∼ 1.017,2 KB | 02.2020

IN88 Modbus

ZIP ∼ 2,0 MB | 02.2020

Product Certificates

IN88 - E1

Multilingual: English
PDF ∼ 586,5 KB | 10.2020

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6021.E211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm
5 x 0,25 mm2
05.00.6081.2211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A311.XXXM

Data sheet
M12 cordset, PVC, female, angled, 5-pin, A-coded, end open, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A4A2.XXXM

Data sheet
M12 cable set, PVC, socket, 5-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8151-0/9

Data sheet
M12 socket, 5-pin
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8251-0/9

Data sheet
M12 socket, angled, 5-pin, A-coded
DE EN FR

M12 Connector ,  T-Connector

M12 Connector , T-Connector

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Male connector 5-pin
05.FKM5-FKM5-FSM5

Mechanical CAD / STEP
05-WAKS5-WAKS5-WASS5
Data sheet
M12 T-distributor, 5-pole
DE EN FR

M12 Connector , Abschlusswiederstand

M12 Connector , Abschlusswiederstand

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Male connector 5-pin
05.RSE 57 TR2

Data sheet
M12 pin, terminating resistor, CANopen
DE EN FR

M12 Connector ,  T-Connector

M12 Connector , T-Connector

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Male connector 5-pin
05.WAKS5-WAKS5-WASS5

Data sheet
M12 T-distributor shielded, 5-pole
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000

Data sheet
M12 socket, 5-pin, A-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
IO-Link
Power supply
Female connector 5-pin
8.0000.5116.0000.Ex

Data sheet
M12 socket, Ex 2/22, 5-pin, A-coded
DE EN FR

M12 Connector ,  Stainless steel V4A

M12 Connector , Stainless steel V4A

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000.V4A

Data sheet
M12 socket, stainless steel V4A, 5-pin, A-coded
DE EN FR
