Inclinometer
IN72
|
|
2 switching outputs: inclinometer for dynamic applications.

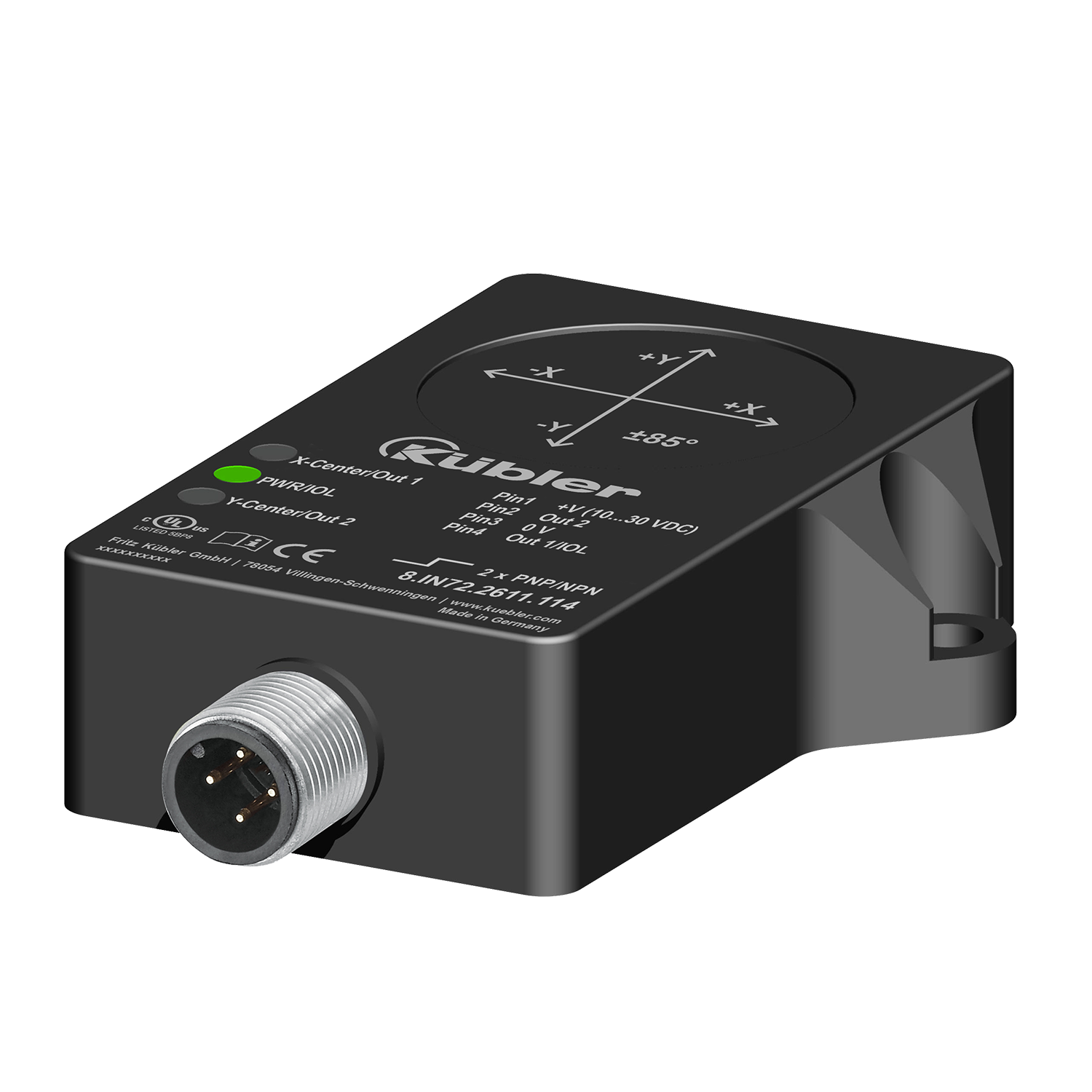

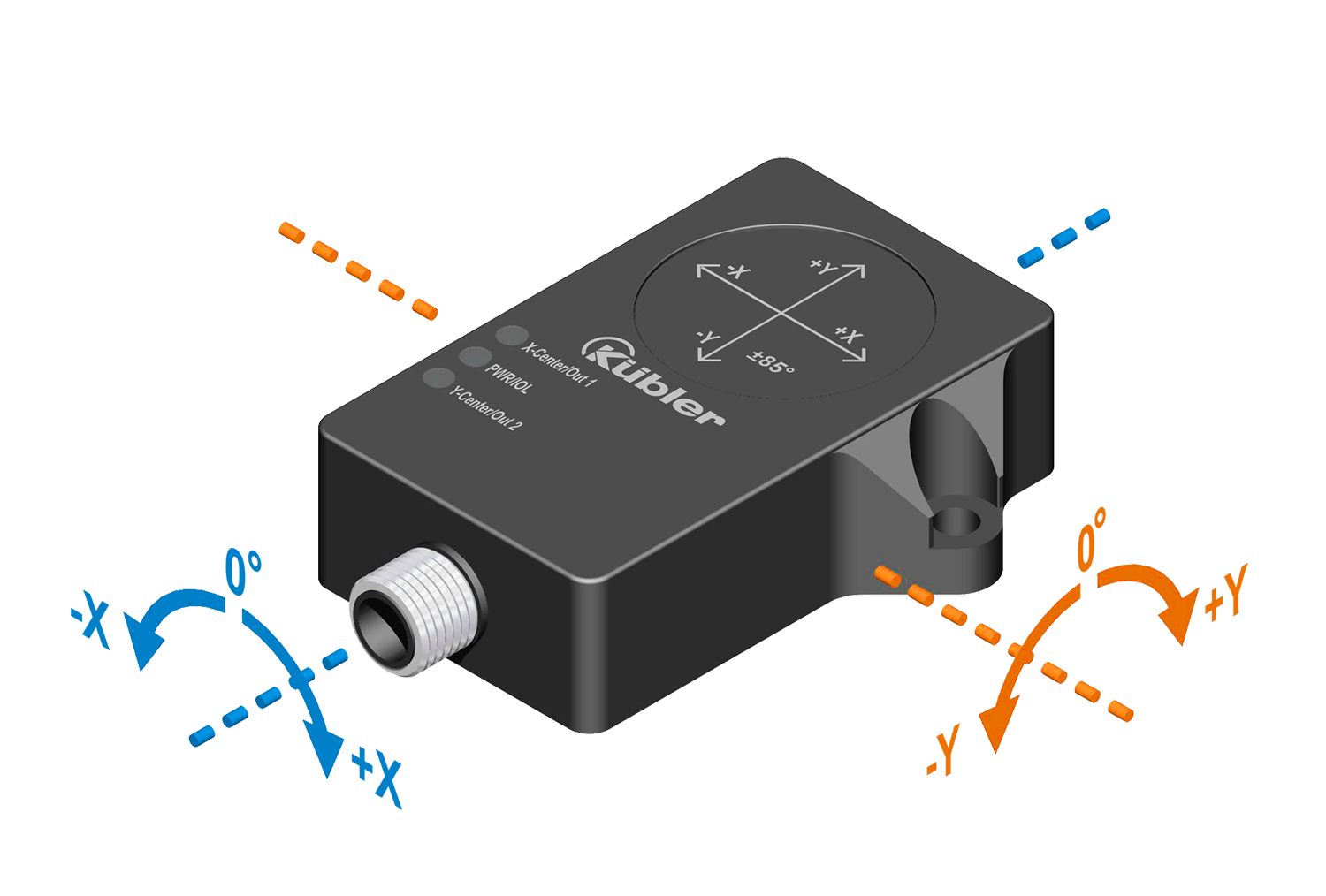

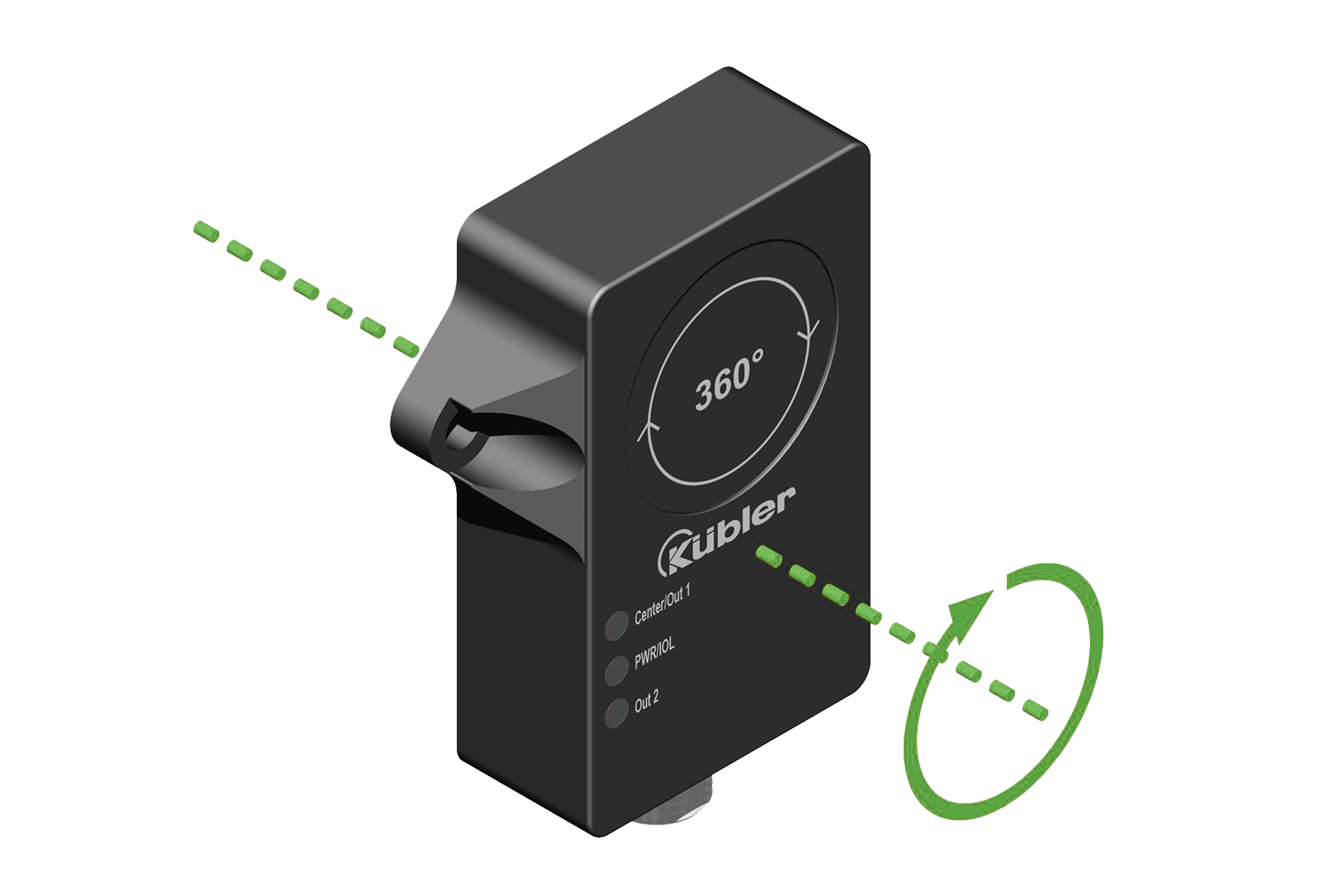

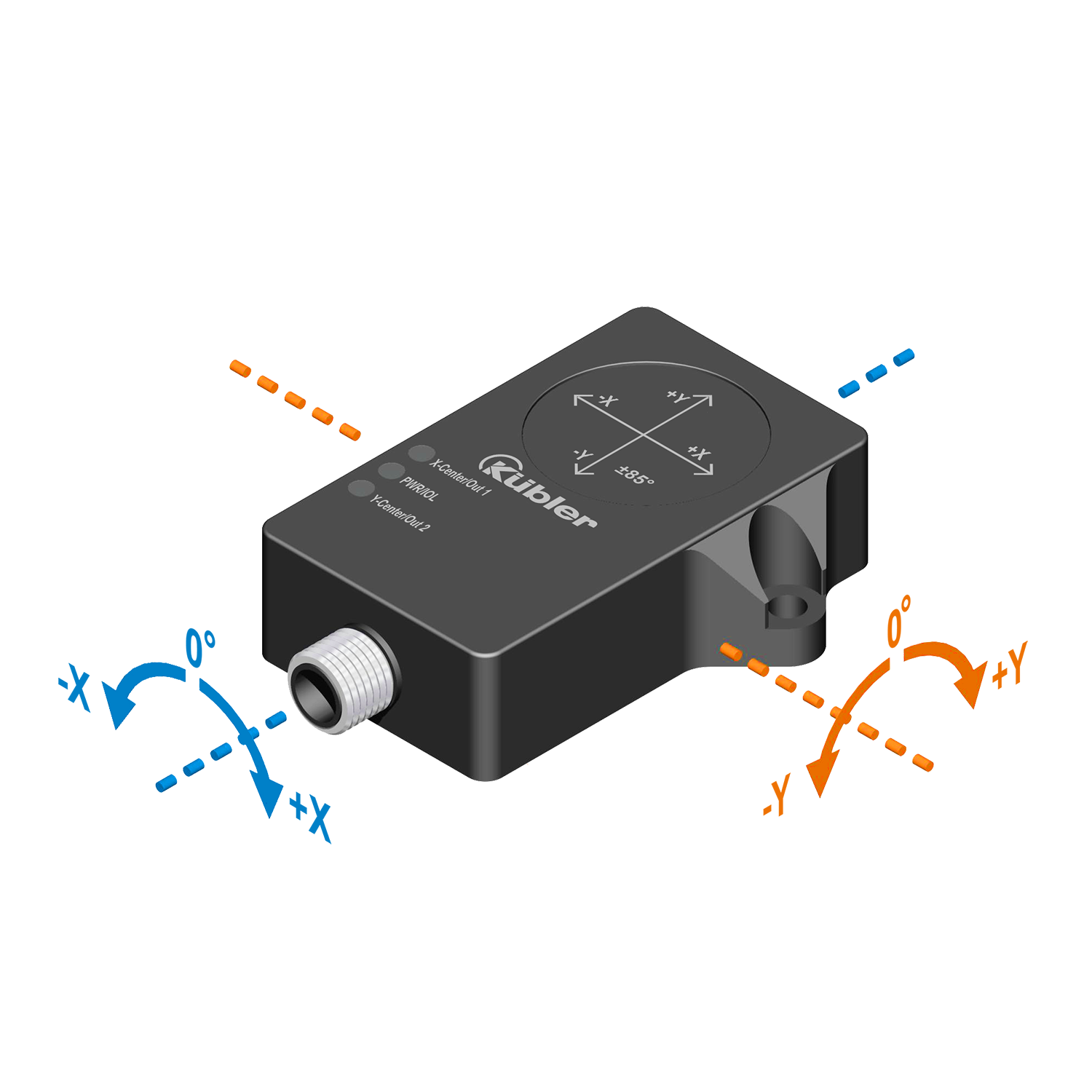

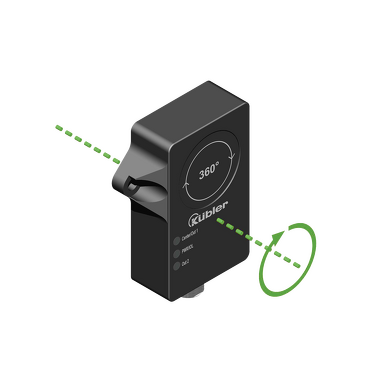

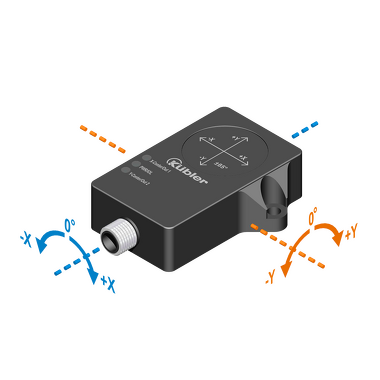

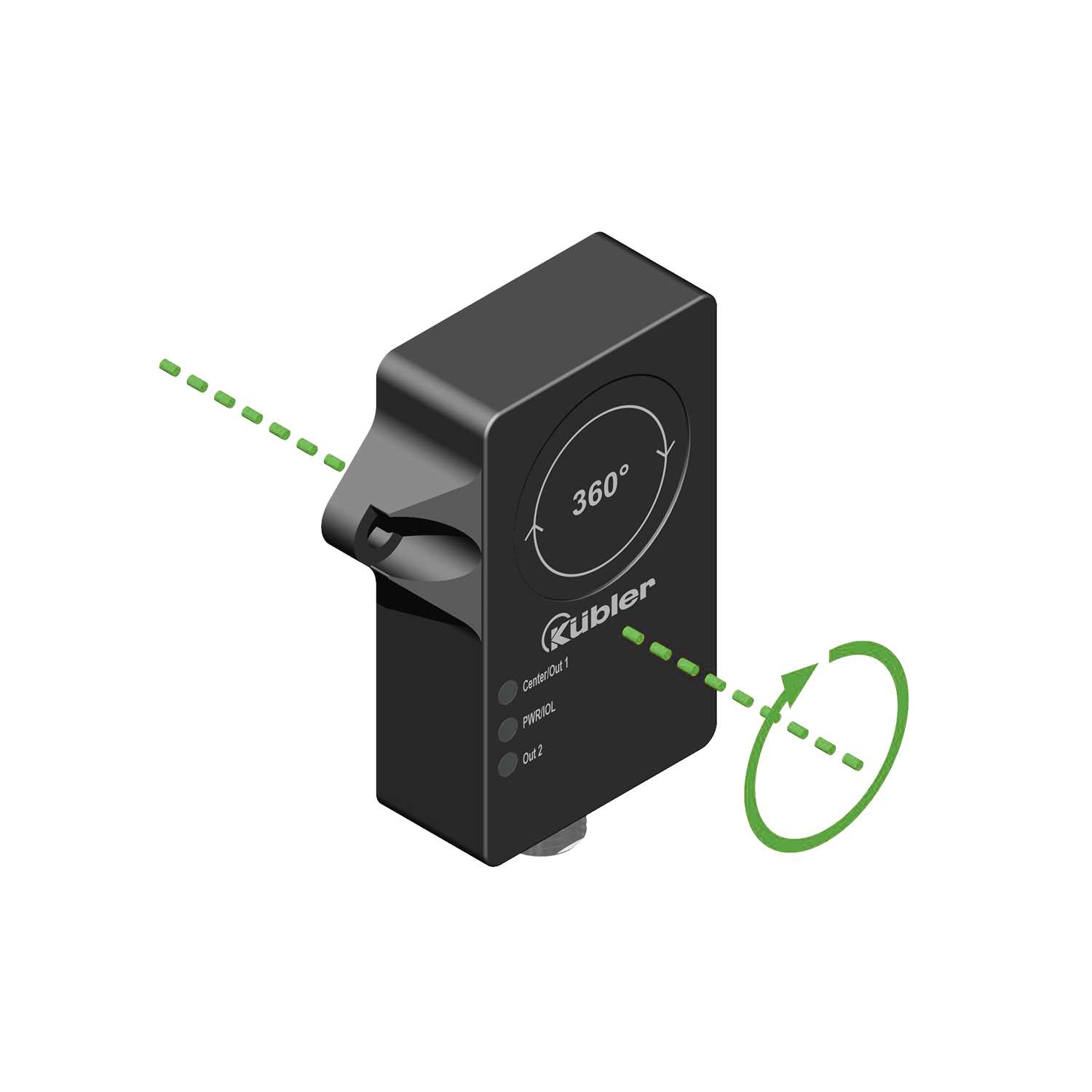

The inclinometers of the IN72 series are used to determine 2-axis inclinations in the measuring range of ±85° or 1-axis inclinations up to 360° via a sensor fusion of acceleration and rotation rate measuring cell (gyroscope). Various parameters can be customized for individual requirements (e.g. via the PACTware software). Thanks to their high robustness, the inclinometers are also ideally suited for outdoor use.| Mechanical | |
|---|---|
| Dimension | 62,6 mm x 71,6 mm x 20 mm |
| Connection types |
M12 connector |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP68 IP69k |
| Electrical | |
|---|---|
| Measuring range | 0°...360° / -85°...+85° |
| Accuracy | ≤0,03 % / ≤0,1 % |
| Interfaces |
PNP NPN |
| Power supply |
10...30 V DC |
Two freely parameterizable switching outputs/ranges (PNP/NPN)
- Simple setting of the required end position / ranges via integrated IO-Link interface.
- Two different switching ranges or redundant output of the same switching range possible
- Reset to factory setting
- Configuration of the switching outputs - NC or NO contact, switching range via input or current tilt angle.
- Switching the spirit level function on/off
- Filter settings
- Thanks to sensor fusion of acceleration measuring cell and gyroscope. This also minimizes the effects of vibrations and interfering accelerations are minimized.
- LED display for operating status and FDT/IODD communication and for setting the center point position (spirit level function).
- Temperature range -40°C ... +85°C and protection class IP68 / IP69K.
- Protection against the influence of salt spray and rapid temperature changes.
| Product Certificates | ||
|---|---|---|
|
UL CoC USA/ Canada - Inclinometers PDF ∼ 376,8 KB | 02.2025 |
EN |
