Inclinometer
IN58.6DoF
|
|
For dynamic applications: Inclinometers 6DoF with fieldbus interface

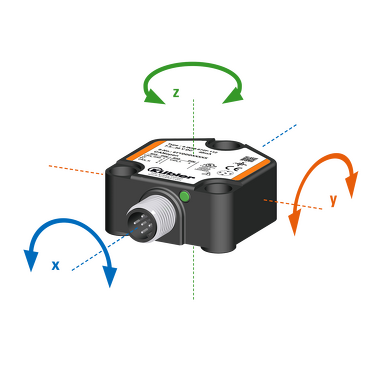

Data acquisition from three acceleration measurement cells and three rotation rate measurement cells – each for the x, y, and z axes (6 degrees of freedom, 6 DoF). In addition to the calculated angle values, all six raw data sets can be output individually and further processed.| Mechanical | |
|---|---|
| Dimension | 44,5 mm x 42,5 mm x 20 mm |
| Connection types |
Axial cable M12 connector |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP68 IP69k |
| Electrical | |
|---|---|
| Measuring range | ±90° / ±180° (6DoF) |
| Accuracy | ±0,15° ... ±0,5° |
| Interfaces |
CANopen SAE J1939 Modbus |
| Power supply |
5 V DC 7,5...30 V DC |
Accessories
Cables and connectors
M12 Connector with cable ,
Preassembled cable set
Female connector 5-pin
05.00.60F1.2211.002
