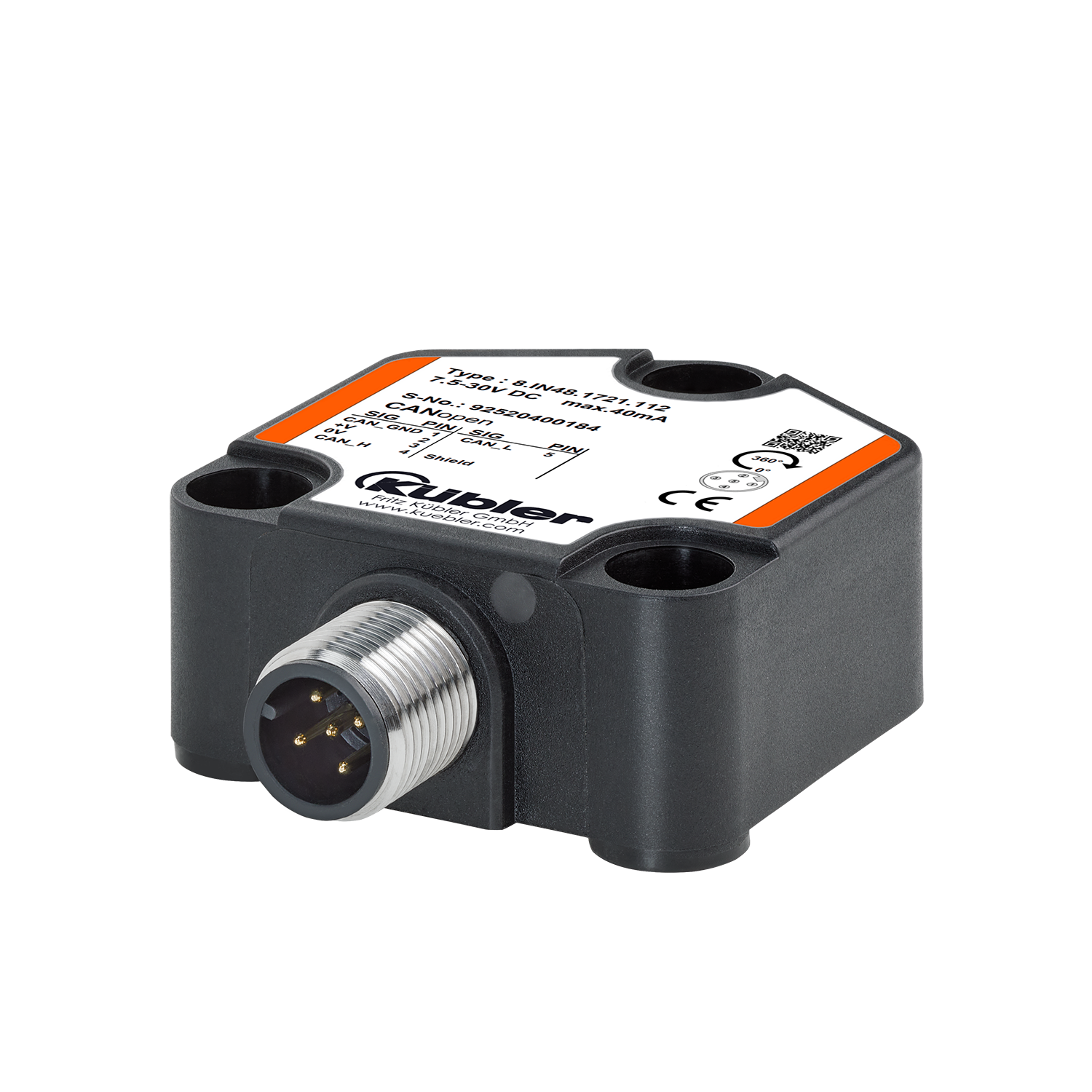

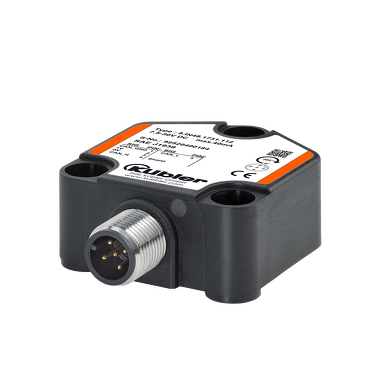

Inclinometer
IN48
|
|
For static applications: inclinometers with fieldbus interface.

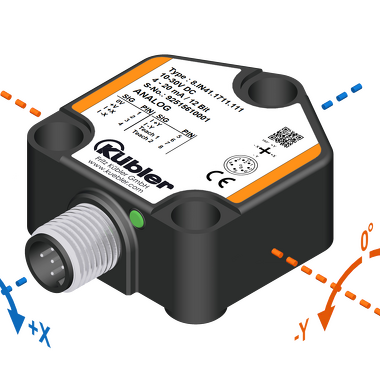

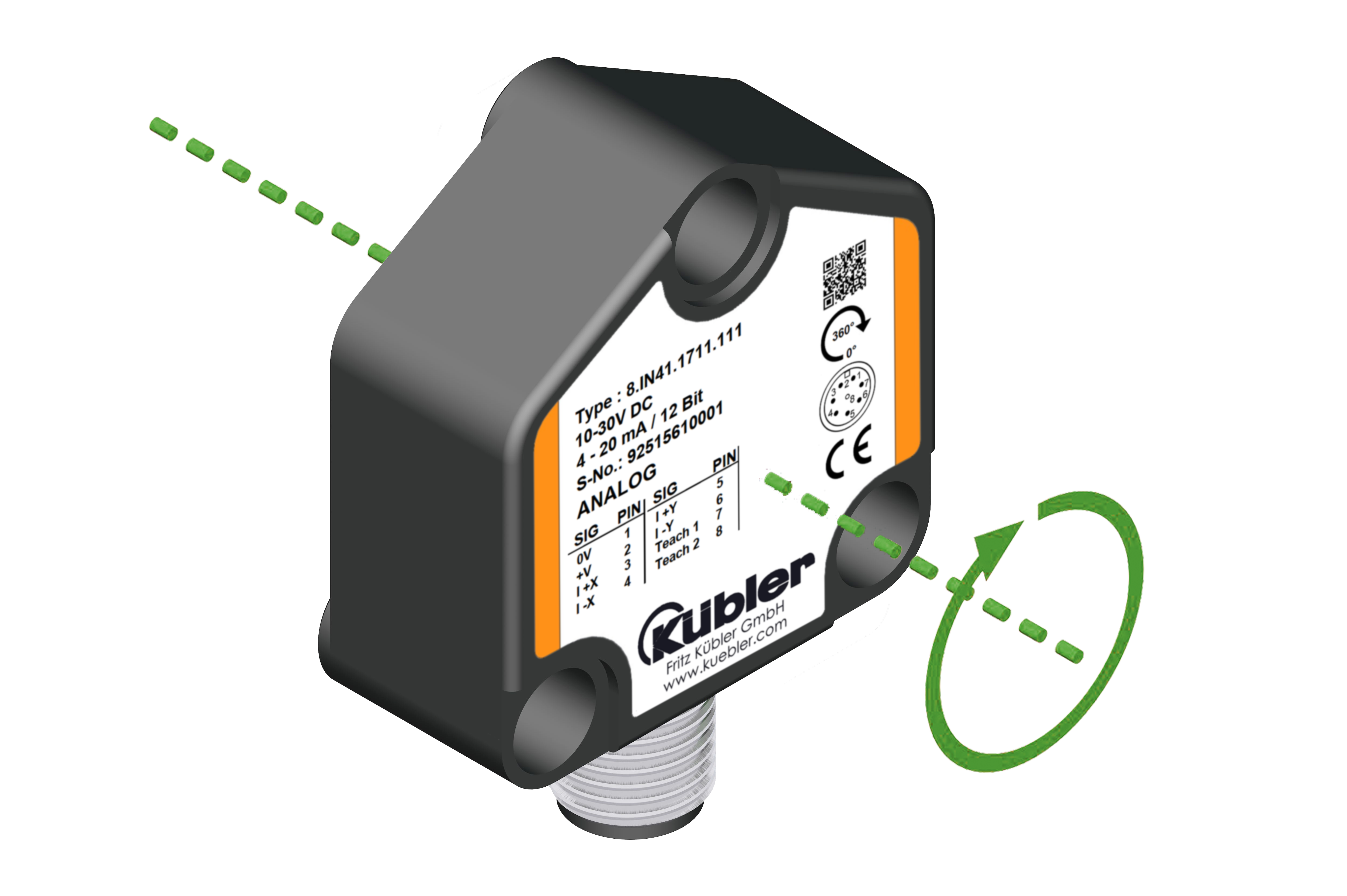

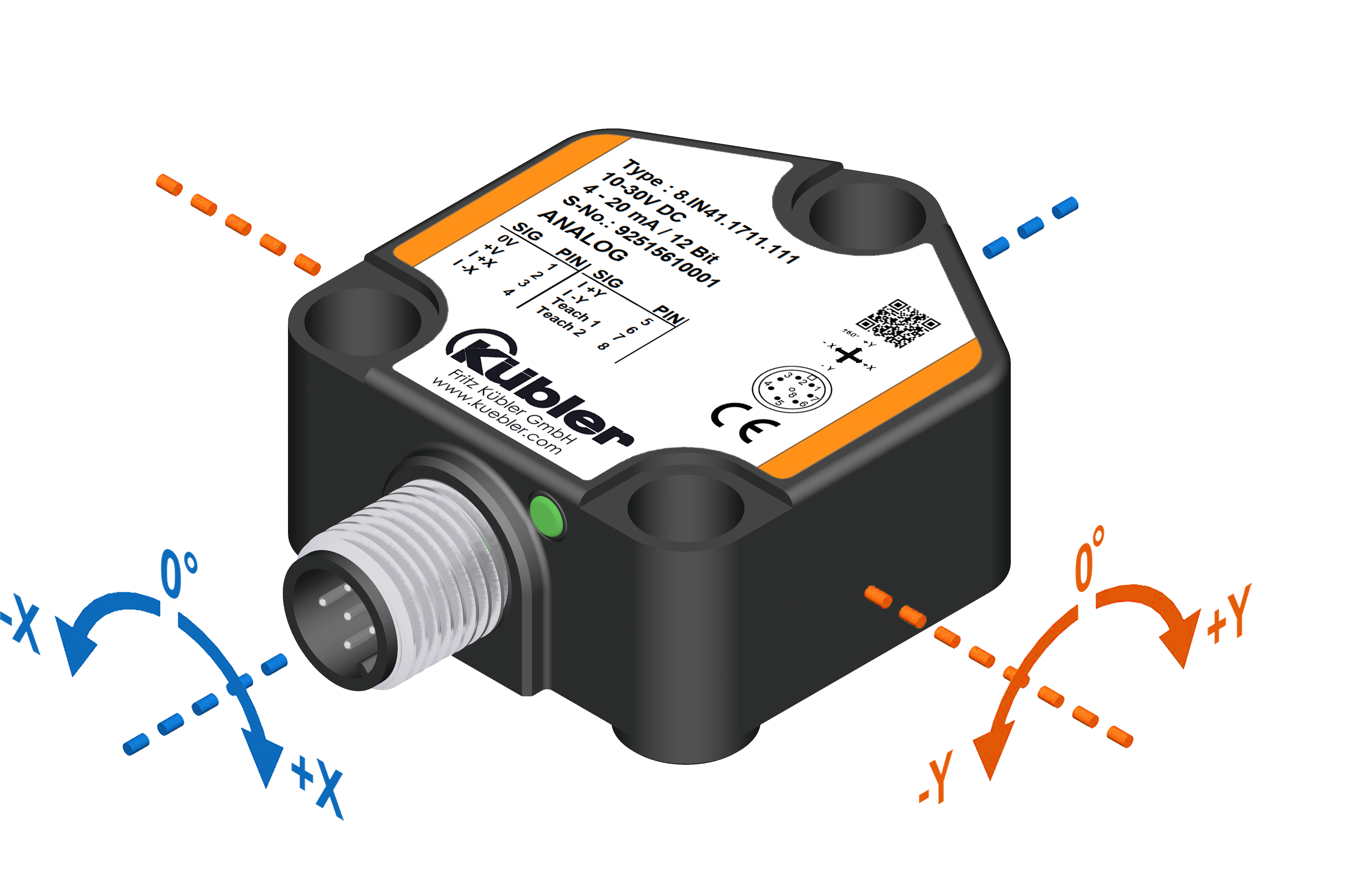

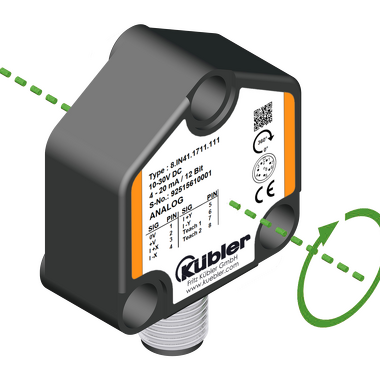

The IN48 series of inclinometers can reliably detect 2-axis inclinations in a measuring range of ±85° or 1-axis inclinations up to 360°. Thanks to their compact housing and high protection rating of up to IP68/IP69K, they are also suitable for use in demanding environments. Optionally selectable measuring ranges and integrated filter functions for different fieldbus systems enable flexible adaptation to different applications.| Mechanical | |
|---|---|
| Dimension | 44,5 mm x 42,5 mm x 20 mm |
| Connection types |
Axial cable M12 connector |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP68 IP69k |
| Electrical | |
|---|---|
| Measuring range | 0°...360° / -85°...+85° |
| Accuracy | ±0,15 ... ±0,2° / ±0,15° ... ±0,5° |
| Interfaces |
CANopen SAE J1939 Modbus |
| Power supply |
5 V DC 7,5...30 V DC |
Features and benefits
For different fieldbus systems
For different fieldbus systems
- Variants for CANopen, SAEJ1939, or Modbus
- Define preset (zero point / center position)
- Setting the sensor filter
- Reset to factory settings
- Economically viable solution with small size
- LED display for a quick overview of the operating status
- IP68/IP69k protection rating for use in demanding environments
- Protection against salt spray and rapid temperature changes
Accessories
Cables and connectors
M12 Connector with cable ,
Preassembled cable set
Female connector 5-pin
05.00.60F1.2211.002
