Inclinometer

IN71

  • Adjustable measuring range
  • Easy-Teach via Teach Adapter
  • High protection up to IP69k
Redundant Analog 0...10 V

Individually parameterizable: Inclinometer for dynamic applications.

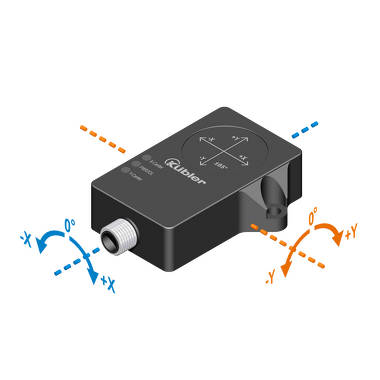

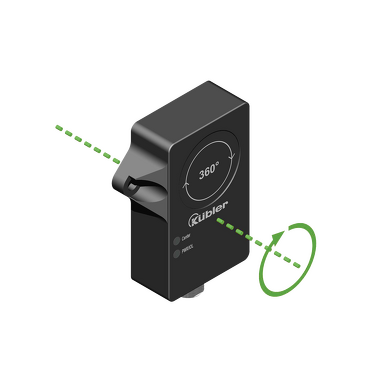

The inclinometers of the IN71 series are used to determine 2-axis inclinations in the measuring range of ±85° or 1-axis inclinations up to 360° via a sensor fusion of acceleration and rotation rate measuring cell (gyroscope). Various parameters can be customized for individual requirements (e.g. via the PACTware software). Thanks to their high robustness, the inclinometers are also ideally suited for outdoor use.

Mechanical
Dimension 62,6 mm x 71,6 mm x 20 mm
Connection types M12 connector
Working temperature -40 °C ... +85 °C
Protection level IP68
IP69k
Electrical
Measuring range 0°...360° / -85°...+85°
Accuracy ≤0.03 % / ≤0.06 %
Interfaces Redundant Analog 0...10 V
Redundant Analog 4...20 mA
Power supply 15...30 V DC
Analog sensor with integrated IO-Link communication
  • Configurable interfaces
  • Parameterization via IO-Link
  • Redundant / counter-rotating signals possible (1-axis)
"Easy-Teach" settings via teach adapter
  • Reset to factory setting
  • Center point of the measurement and start and end point for 1-dimensional measurement
Individual setting options via O-Link Master In addition to the "Easy-Teach" functions:
  • Switching the spirit level function on/off
  • Settings on the measuring range
  • Type of output signals
  • Filter settings
Fast measurement result and high accuracy
  • Thanks to sensor fusion of acceleration measuring cell and gyroscope. This also minimizes the effects of vibrations and interfering accelerations are minimized.
Simple commissioning and diagnostics
  • LED display for operating status and FDT/IODD communication and for setting the center point position (spirit level function).
Precise measurement even under harsh environmental conditions
  • Temperature range -40°C ... +85°C and protection class IP68 / IP69K.
  • Protection against the influence of salt spray and rapid temperature changes.
