Encoders Absolute multiturn

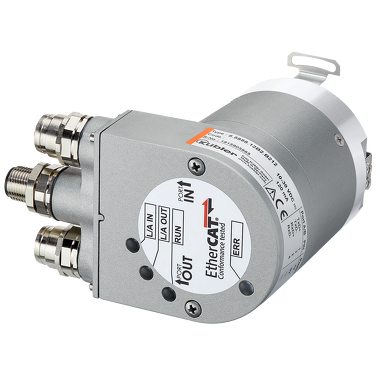

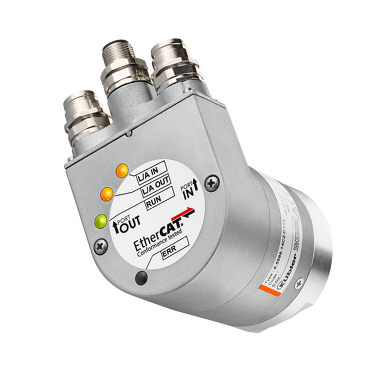

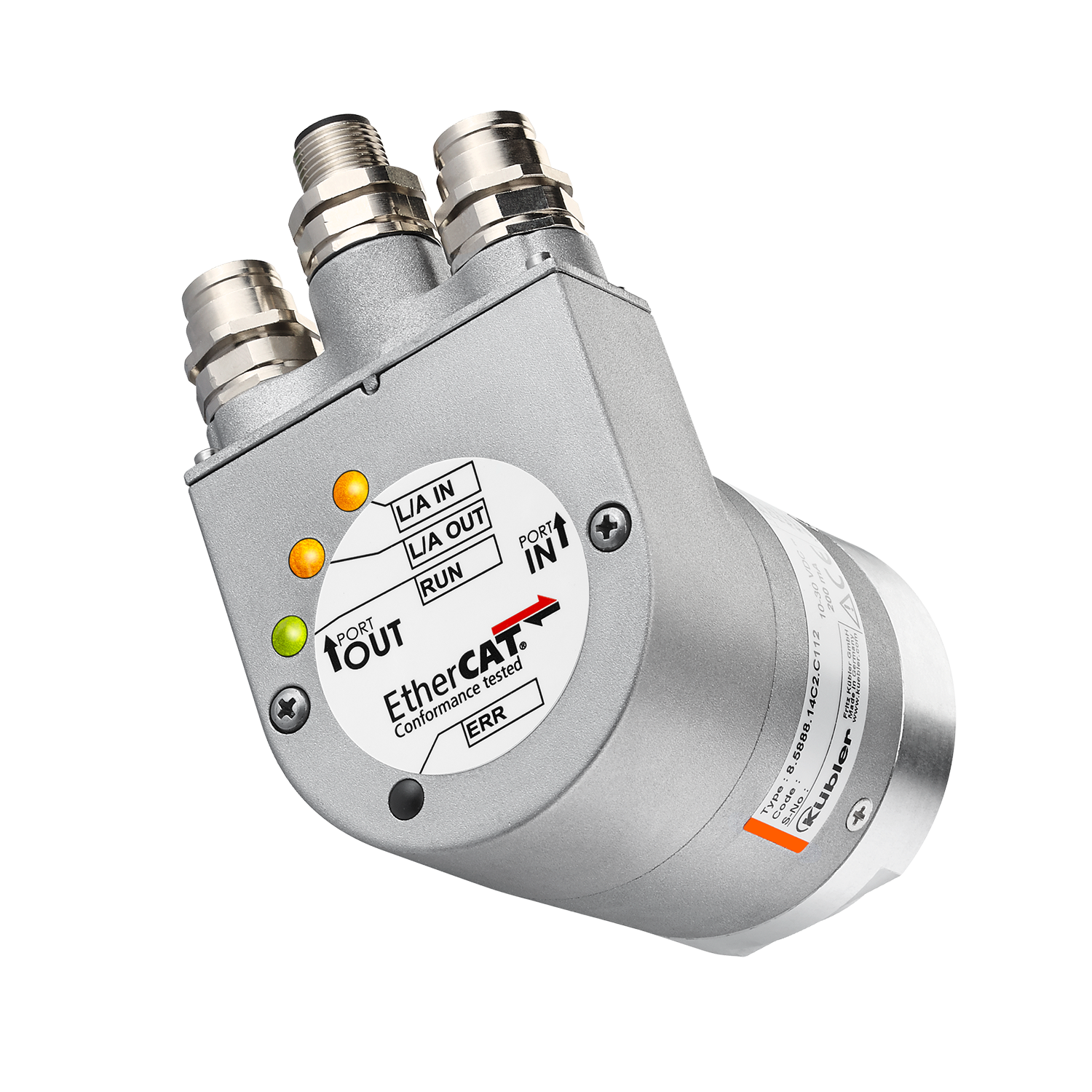

Sendix 5888

  • Minimum cycle time
  • Reliable
  • Latest slave stacks from Beckhoff V 5.01
  • Industry 4.0 / IIoT ready

  • Dimension Ø 58 mm
  • 16 bits singleturn
  • 12 bits multiturn
  • Max 1/2" hollow shaft, blind hole
  • Max 15 mm hollow shaft, blind hole
EtherCAT

For real-time communication: Industrial Ethernet encoders with EtherCAT interface.

The absolute encoders Multiturn Sendix 5868 / 5888 with 2nd-generation EtherCAT interface and optical sensors can be used in all applications with EtherCAT technology. The data communication is based on CAN over EtherNet and is ideally suited for real-time applications. These encoders are available with shafts up to a maximum diameter of 10 mm or as blind hollow shafts up to 15 mm.

Connectivity stands for the ability to communicate additional information and / or to be integrated in a network. This can take the form of additional interfaces such as OPC-UA (e.g. for additional edge communication) or Industrial Ethernet communication as well as a digital interface such as "BISS" or "SCS open link".

Identification is the ability to transmit technical information by means of an electronic data sheet / type plate. In addition, further information about the machine can be transmitted (e.g. information about the axis where the encoder is installed). Essentially, all the information required in the application for asset management is recorded here.

Mechanical
Dimension Ø 58 mm
Shaft type 3/8 " hollow shaft, blind hole
10 mm hollow shaft, blind hole
12 mm hollow shaft, blind hole
14 mm hollow shaft, blind hole
15 mm hollow shaft, blind hole
1/2 " hollow shaft, blind hole
Flange type Ø 58.00 mm
Ø 63.00 mm
Ø 65.00 mm
Ø 72.00 mm
Working temperature -40 °C ... +80 °C
Protection level IP65
IP67
Connection types M12 connector radial
Max. rotational speed 9.000 min-1
Weight 570 g
Electrical
Scanning optical
Resolution max. 16 bits singleturn
12 bits multiturn
Power supply 10...30 V DC
Interfaces EtherCAT
Reliable
  • EtherCAT conformance tested.
  • Integration of the latest slave – EtherCAT stack from Beckhoff, Version 5.01.
  • Ideally suited for use in harsh outdoor environments, thanks to IP67 protection and rugged housing construction.
Flexible
  • Use of CoE (CAN over EtherNet).
  • Genuine new position information as a result of minimal cycle time of 62.5 μs in the DC mode.
  • Faster, easier error-free connection thanks to M12 connectors.
  • Supports Hot Connect.
Data sheet

Sendix 5868 / 5888 EtherCAT

PDF ∼ 776,4 KB | 07.2024
DE
EN
FR
Operation Manual

Operating manual for encoders with ATEX 2/22

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 3,6 MB | 05.2023

Operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Manual

Encoder with EtherCAT interface

PDF ∼ 2,1 MB | 09.2020
DE
EN
Safety characteristics

Sendix 5888 MTTFd

Multilingual: German, English
PDF ∼ 215,0 KB | 06.2019

Declaration of conformity

Sendix 5868 / 5888 CE

Multilingual: German, English
PDF ∼ 387,9 KB | 04.2016

Device file

Sendix 58x8 EtherCAT

ZIP ∼ 42,7 KB | 05.2024

Mechanical CAD / STEP

Sendix 5888

ZIP ∼ 10,9 MB | 12.2017

Electronic CAD / ePlan

Sendix 5868 / 5888 EtherCAT

ZIP ∼ 5,5 MB | 02.2020

Product Certificates

Sendix 58x8 EtherCAT ETG Certificate

PDF ∼ 688,1 KB | 10.2014
EN

Salt spray test ManufacturersDeclaration

PDF ∼ 39,6 KB | 05.2023
DE
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Stator coupling

Stator coupling

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.5 mm
For lateral mounting on the encoder flange.
For applications with axial and radial play at high dynamics.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws

8.0010.1602.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.1602.0000

Torque stop, flexible

Torque stop, flexible

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 39.5 ... 142.75 mm
Designed for functional safety technology.
For applications with axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 M3x6 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw

8.0010.4047.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4047.00FS
Operation Manual
8.0010.4047.00FS - Accessories torque stop, flexible (FS)

Fastening arm set, rigid

Fastening arm set, rigid

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 32.5 ... 143.5 mm
Designed for functional safety technology.
For applications with very low axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 screws M3x6 for mounting to the encoder

Connection to the application (not included in delivery)
- 1 torque pin 8.0010.4049.0075
8.0010.4051.00FS
Mechanical CAD / STEP
8.0010.4051.00FS
Operation Manual
8.0010.4051.00FS - Accessories torque stop, rigid (FS)

Stator coupling (FS)

Stator coupling (FS)

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 31.5 mm
Designed for functional safety technology by 4-screw principle.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws M3x6 for mounting to the encoder

Connection to application (not included in delivery)
- 4 screws

8.0010.40B2.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40B2.00FS
Operation Manual
Supplement to stator coupling operating instructions (FS)

Fastening arm, medium (flexible)

Fastening arm, medium (flexible)

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.5 ... 45.75 mm
For applications with axial and radial play with constant rotary movements.

Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw
8.0010.40E0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40E0.0000

Stator coupling

Stator coupling

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.5 mm
For lateral mounting on the encoder flange.
For applications with axial and radial play at high dynamics.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws

8.0010.40L0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40L0.0000

Fastening arm, short (flexible)

Fastening arm, short (flexible)

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 32.25 mm
For applications with axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw
8.0010.40M0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40M0.0000

Spring tether element

Spring tether element

For hollow shaft encoders
with flange ø 50 ... 58 mm
For applications with low radial and axial play and low dynamics.

Scope of delivery
- Wire spring element
- 1 screw for mounting on the encoder.

Connection to the application (not included in delivery)
- 1 screw
8.0010.40W0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR

Torque pin, long with fastening thread

Torque pin, long with fastening thread

For hollow shaft encoders
with flange ø 36 ... 58 mm
With mounting thread.

Suitable for:
- Spring element short (8.0010.4H00.0000)
- Spring element long (8.0010.4I00.0000)
8.0010.4700.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR

Stator coupling, double-winged

Stator coupling, double-winged

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 31.5 mm
For lateral mounting on the encoder flange. For applications with high accuracy requirements.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 2 screws

8.0010.4D00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4D00.0000

Spring element, short

Spring element, short

For hollow shaft encoders
with flange ø 36 ... 58 mm
Mounting radius 16 ... 27 mm
For applications with limited axial play at low dynamics and limited installation space.

Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder

Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
8.0010.4H00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4H00.0000

Spring element, long

Spring element, long

For hollow shaft encoders
with flange ø 36 ... 58 mm
Mounting radius 30.7 ... 36.7 mm
For applications with high axial play, at low dynamics.

Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder

Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
8.0010.4I00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4I00.0000

Fastening arm, long, (flexible)

Fastening arm, long, (flexible)

For hollow shaft encoders
with flange ø 50 ... 58 mm
Mounting radius 36.5 ... 85 mm
For applications with axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw
8.0010.4R00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4R00.0000

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± mm
2 x 2 x 0,34 mm2
05.00.6031.4411.XXXM

Data sheet
M12 cable satez, PUR, pin, 4-pin, D-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin PUR Ø 6,5 mm ± 0,2 mm
2 x 2 x 0,34 mm2
05.00.6031.4444.XXXM

Data sheet
M12 cable set, PUR, 2xpin, 4-pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± 0,2 mm
2 x 2 x 0,34 mm2
05.00.6031.4511.XXXM

Data sheet
M12 cordset, PUR, male, angled, 4-pin, D-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin
05.00.6031.4544.XXXM

Data sheet
M12 cordset, PUR, male straight - angled, 4-pin, D-coded
DE EN FR

RJ45 Connector with cable ,  Ethernet cable

RJ45 Connector with cable , Ethernet cable

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 8-pin

Male connector 4-pin PUR Ø 6,5 mm ± mm
4 x 0,34 mm2
05.00.6031.7444.XXXM

Data sheet
Cordset RJ45 connector + M12 pin, 4-pin, D-coded, PUR cable, Profibus
DE EN FR

M12 Connector with cable ,  mit Edelstahl Überwurf

M12 Connector with cable , mit Edelstahl Überwurf

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± mm
1 x 4 x AWG22 mm2
05.00.6031.G411.XXXM

Data sheet
M12, PUR, male, 4-pin, D-coded, stainless steel + open 05.00.6031.G411
DE EN FR

M12 Connector with cable ,  mit Edelstahl Überwurf

M12 Connector with cable , mit Edelstahl Überwurf

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin PUR Ø 6,5 mm ± mm
1 x 4 x AWG22 mm2
05.00.6031.G4G4.XXXM

Data sheet
M12, PUR, male, 4-pin, D-coded, stainless steel
DE EN FR

M12 Connector with cable ,  mit Edelstahl Überwurf

M12 Connector with cable , mit Edelstahl Überwurf

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± mm
1 x 4 x AWG22 mm2
05.00.6031.G511.XXXM

Data sheet
M12, PUR, male angled, 4-pin, D-coded, stainless steel
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± mm
4x0,34 mm2
05.00.6061.6211.XXXM

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Male connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4x0,34 mm2
05.00.6061.6311.xxxM

Data sheet
M12 cordset, PUR, socket, angled, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin

Male connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6061.6462.XXXM

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded + pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6061.D211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,  mit Edelstahl Überwurf

M12 Connector with cable , mit Edelstahl Überwurf

Preassembled cable set

IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± mm
4 x 0,34 mm2
05.00.6061.D311.XXXM

Data sheet
M12, PUR, socket, 4-pin, A-coded, stainless steel
DE EN FR

M12 Connector with cable ,  mit Edelstahl Überwurf

M12 Connector with cable , mit Edelstahl Überwurf

Preassembled cable set

IO-Link
Power supply
Male connector 4-pin

Female connector 4-pin PUR Ø 4,7 mm ± mm
4 x 0,34 mm2
05.00.6061.D4D2.XXXM

Data sheet
M12, PUR, socket, 4-pin, A-coded, stainless steel + pin 05.00.6061.D4D2
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8141-0

Data sheet
M12 socket, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8241-0

Data sheet
M12 socket, angled, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin
05.WASCSY4S

Data sheet
M12 pin, 4-pole, D-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 5-pin
8.0000.5121.0000.Ex

Data sheet
M12 pin, Ex 2/22, 5-pin, D-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin
8.0000.5128.0000

Data sheet
M12 male, angled, 4-pin, D-coded
DE EN FR

„Do you have technical questions about Kübler encoders or are you looking for individual solutions? We at Application Support are here for you.“

Rainer Grueninger
Application support
Rainer Grueninger
Application Engineer

support@kuebler.com
+49 7720 3903 849

„We will be pleased to give you information about prices and delivery times. We are looking forward to your inquiry.“

Fritz Kübler GmbH
Sales
Fritz Kübler GmbH
Sales Germany

info@kuebler.com
+49 7720 3903 871
+49 7720 21564
