2420 2420
2420

Encoders Incremental

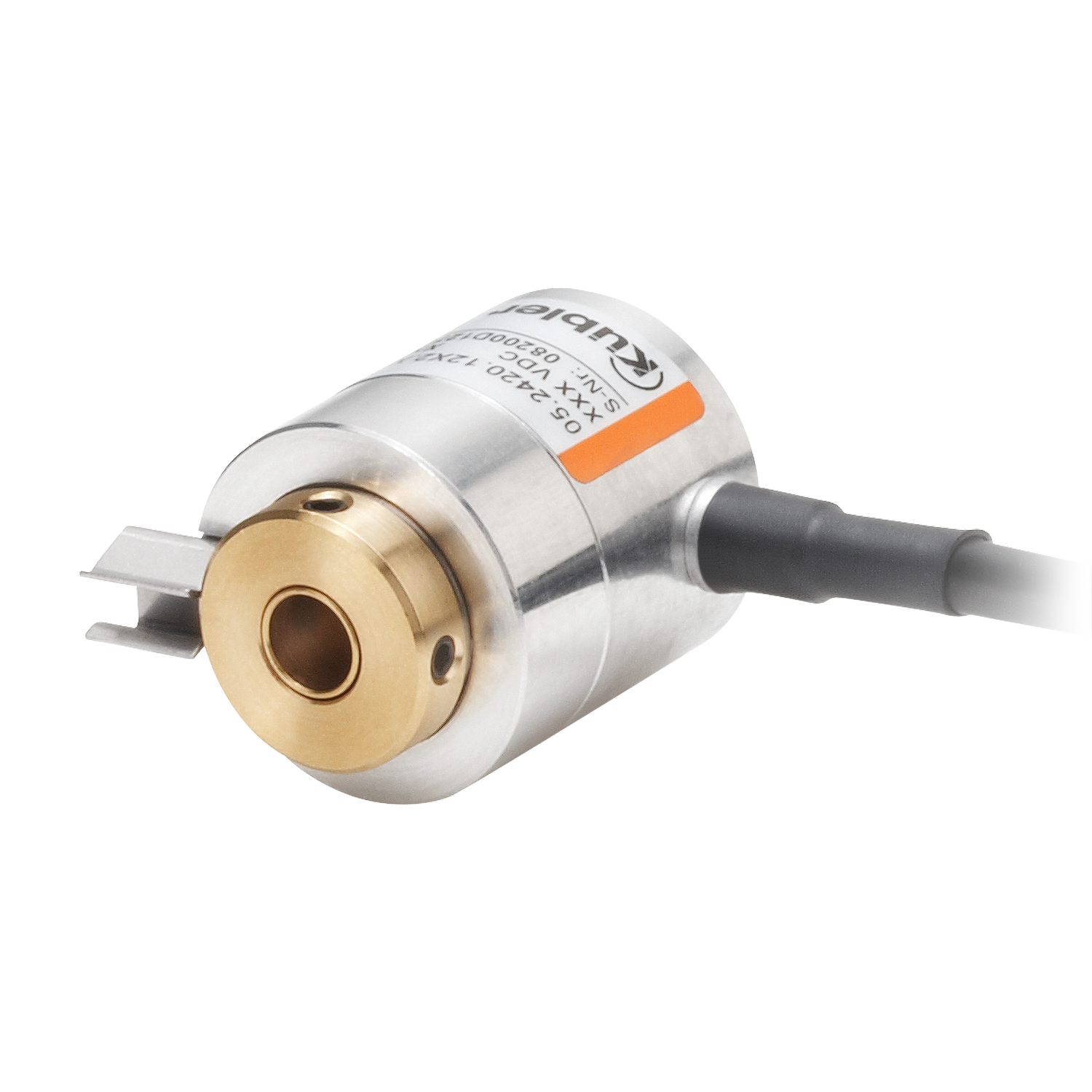

2420

  • Ideal for small devices
  • Robust bearing structure
  • Adaptable
  • Dimension Ø 24 mm
  • 1.024 ppr incremental
  • Max 6 mm hollow shaft, blind hole
Push-pull

Ideal for the tightest installation spaces: Optical miniature encoders.

The 2400 / 2420 incremental miniature encoders with their optical sensor technology provide a resolution of up to 1024 pulses per revolution.
With a diameter of only 24 mm, these encoders are particularly suitable for use in confined spaces.

Mechanical
Dimension Ø 24 mm
Shaft type 4 mm hollow shaft, blind hole
6 mm hollow shaft, blind hole
Flange type Ø 24.00 mm
Working temperature -20 °C ... +85 °C
Protection level IP50
IP64
IP65
Connection types Axial cable
Radial cable
Max. rotational speed 12.000 min-1
Weight 60 g
Electrical
Scanning optical
Resolution max. 1.024 ppr incremental
Supply voltage 5...24 V DC
8...30 V DC
Interfaces Push-pull
Options
on request
Reliable
  • Robust bearing structure
  • Multiple clamping gives the cable outlet a high strain relief
  • Short-circuit resistant outputs
Versatile
  • Ideally suited for use in small devices
  • meet the certification requirements of the EN 50121 railway standard
Data sheet

2400 / 2420 Incremental

PDF ∼ 691,8 KB | 08.2019
DE
EN
FR
Operation Manual

General operating instructions

Multilingual: German, English, French
PDF ∼ 2,2 MB | 03.2020

Safety characteristics

2420 MTTFd

Multilingual: German, English
PDF ∼ 156,1 KB | 06.2019

2420 MTTFd Application slip ring

Multilingual: German, English
PDF ∼ 185,6 KB | 06.2019

mechanical CAD / STEP

2420

ZIP ∼ 943,7 KB | 12.2014

Declaration of conformity

2400 / 2420

Multilingual: German, English, French
PDF ∼ 360,2 KB | 04.2016

electronic CAD / ePlan

2400 / 2420

ZIP ∼ 2,2 MB | 02.2020

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Cables and connectors

M12 Connector ,

M12 Connector ,

Field-wireable connector

Male connector 5-pin
05.BMSWS 8151-8.5

Data sheet
M12 connection technology
DE EN FR
Data sheet
M12_Stift_5-polig-B_05.BMSWS_8151-8.5
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Male connector 5-pin
05.BMSWS 8251-8.5

Data sheet
M12_Stift-gew_5-polig-B_05.BMSWS-8251-8.5
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

IO-Link
Female connector 5-pin
05.BMWS 8151-8.5

Data sheet
M12_Buchse_5-polig-B_05.BMWS 8151-8.5
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Female connector 5-pin
05.BMWS 8251-8.5

Data sheet
M12_Buchse-gew_5-polig-B_05.BMWS 8251-8.5
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Female connector 8-pin
05.CMB 8181-0

Data sheet
M12_Buchse_8-polig-A_05.CMB_8181-0
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Male connector 8-pin
05.CMBS 8181-0

Data sheet
M12_Stift_8-polig-A_05.CMBS-8181-0
DE EN FR
