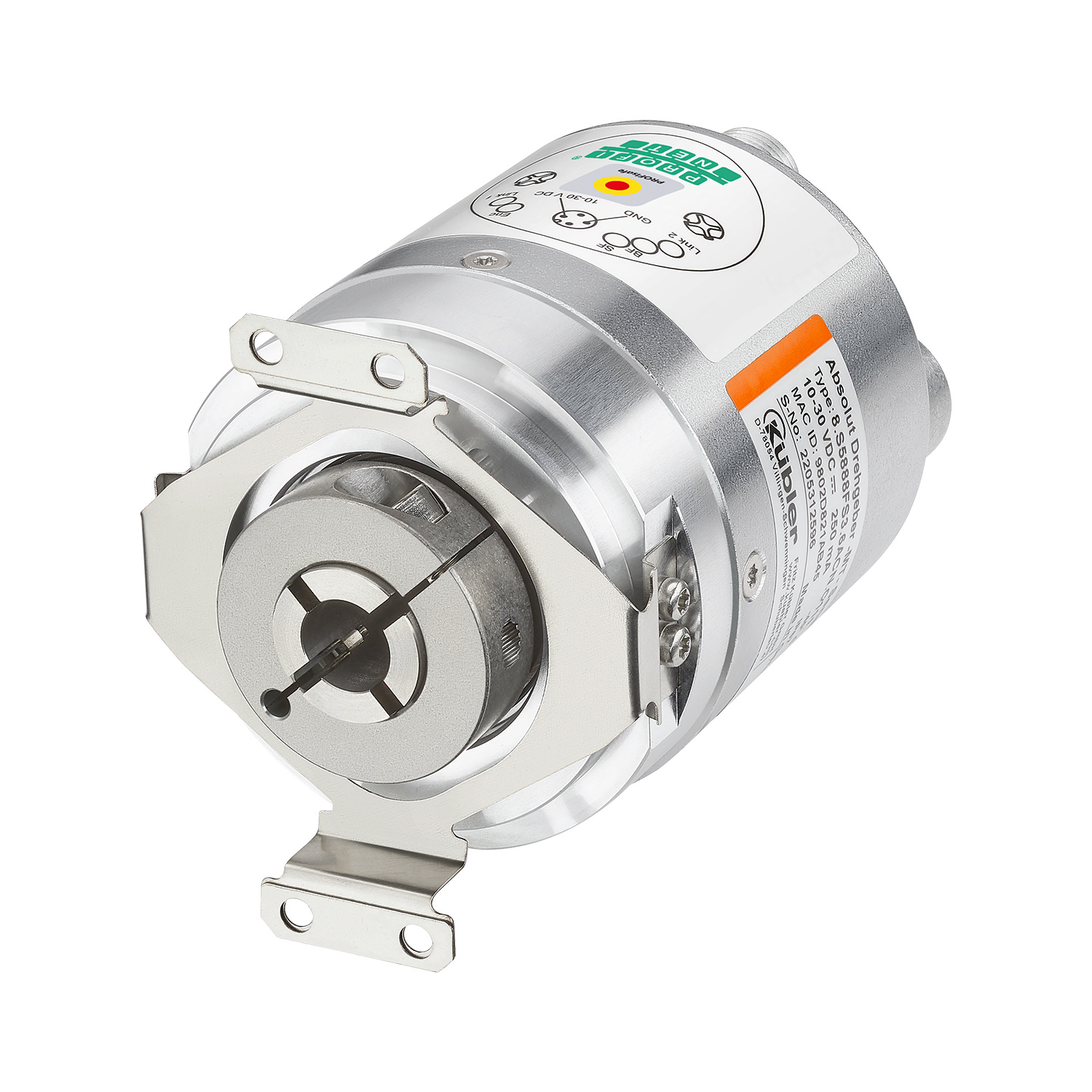

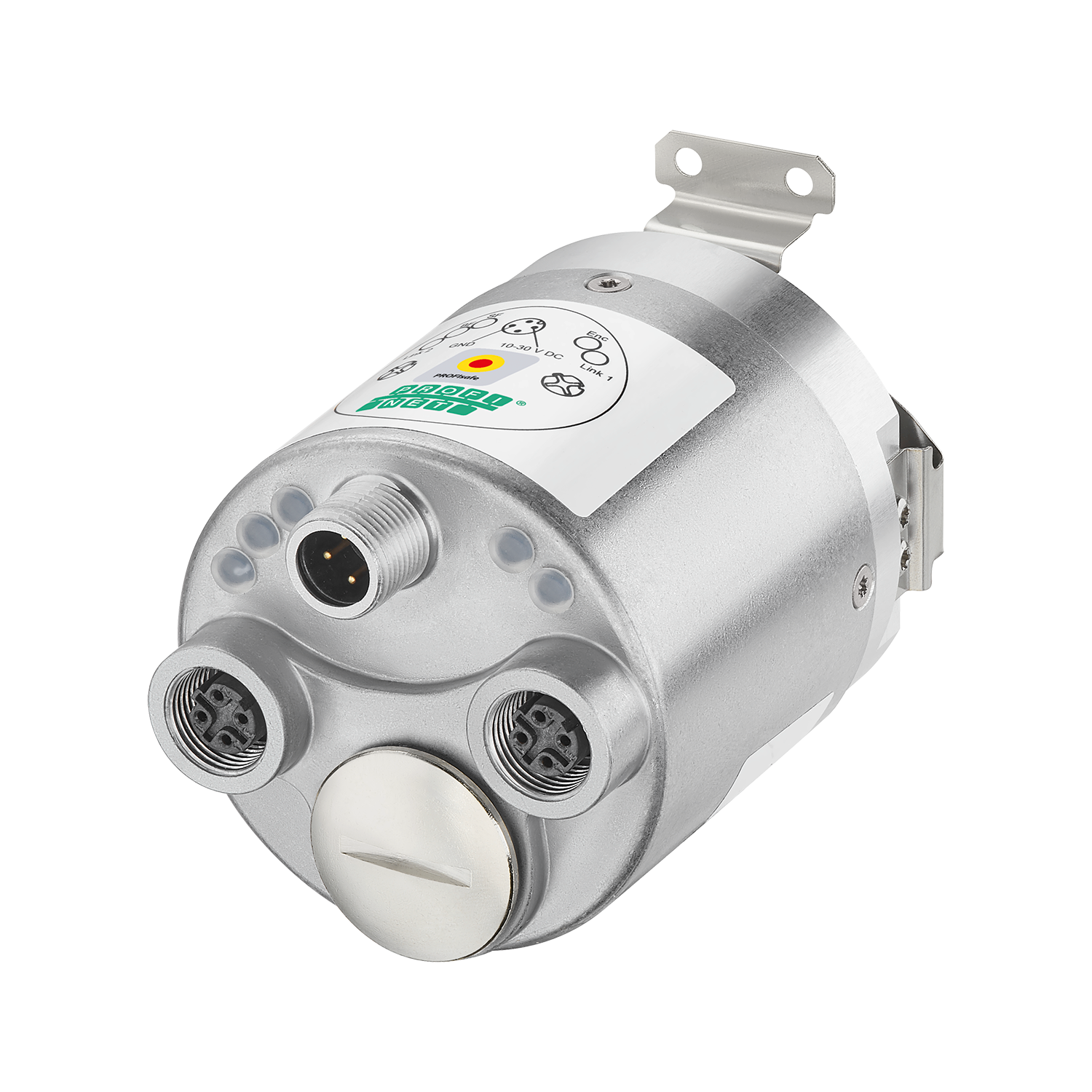

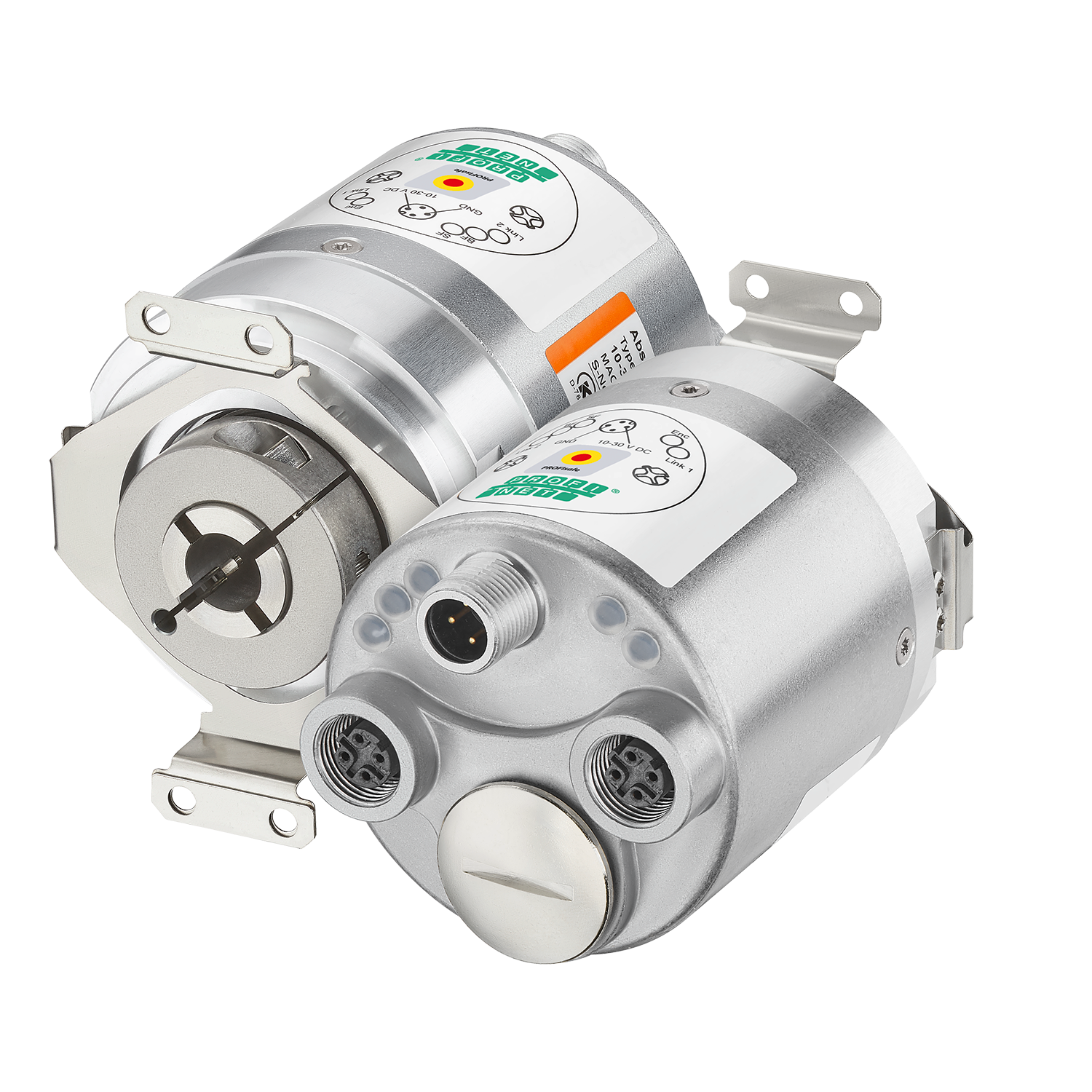

Sendix S5888FS3 Sendix S5888FS3
Sendix S5888FS3 Sendix S5888FS3

Encoders Absolute multiturn

Sendix S5888FS3

  • Dimension Ø 58 mm
  • 24 bits singleturn
  • 12 bits multiturn
  • Max 1/2" hollow shaft, blind hole
  • Max 15 mm hollow shaft, blind hole
PROFIsafe
PROFINET IO

For safety applications – Sendix S58 PROFIsafe encoders

The optical absolute Sendix S58 PROFIsafe encoders are based on the new Kübler Industrial Ethernet encoder platform and are therefore already designed today for future Industry 4.0 concepts.
One example of this is the integrated web server: Features or adjustments can be implemented quickly and easily at any time.
As certified SIL3 / PLe encoders with redundant design and PROFINET interface, they support the PROFIsafe profile and are predestined for safety applications.

Series availability from Sept.2022 – due to the current tense situation on the supplier market, there may be extended delivery times.

Mechanical
Dimension Ø 58 mm
Shaft type 3/8 " hollow shaft, blind hole
10 mm hollow shaft, blind hole
12 mm hollow shaft, blind hole
14 mm hollow shaft, blind hole
15 mm hollow shaft, blind hole
1/2 " hollow shaft, blind hole
Flange type Stator coupling FS
Torque bracket FS, fixed
Torque bracket FS, flexible

Ø 58.00 mm
Working temperature -40 °C ... +80 °C
Protection level IP65
IP67
Connection types M12 connector axial
Max. rotational speed 9.000 min-1
Weight 450 g
Electrical
Scanning optical
Resolution max. 24 bits singleturn
12 bits multiturn
Power supply 10...30 V DC
Interfaces PROFIsafe
PROFINET IO
Options
on request
  • EX protection zone 2/22
  • Salt spray test
Reliable and safe
  • Robust
    • Sturdy bearing construction in Safety-Lock™ Design for resistance against vibration and installation errors.
  • High resolution
    • Singleturn 15 bit (safe) or 24 bit (non safe).
    • Multiturn 12 bit (safe).
  • Safe
    • SIL 3, performance level Ple, safety category Cat. 3.
    • Fully redundant multiturn information due to redundant multiturn gearbox.
    • Transmission via safety telegrams 36/37, according to BP and XP.
  • 100 % future-proof
    • Implement features and adaptations quickly and easily.
    • Cyber Security update in preparation / High system availability, protection against misuse (acc. IEC 62443).
Latest PROFINET functionality
  • PROFINET IO, RT, IRT allows integration in applications with different performance requirementsorderungen.
  • Supports the Isochronous Mode, can thus be implemented in networks for hard real-time requirements with clock cycles up to 500 μs.
  • PROFINET v2.4.1, encoder profile V 4.2, PROFIsafe profile v2.6.1, PROFIdrive profile v4.2
  • Ideal for highly synchronous applications, such as e. g. axis synchronization.
  • Interoperability between many different control and drive manufacturers thanks to the PROFIdrive profile.
  • Integrated web server for firmware update.
Data sheet

Sendix S5868FS3 / S5888FS3 PROFIsafe

PDF ∼ 883,7 KB | 04.2022
DE
EN
FR
Mechanical CAD / STEP

S5878FS3 / S5888FS3 / CAD

ZIP ∼ 3,6 MB | 02.2022

Accessories

Screw retention Loctite 243 (5 ml)

Screw retention Loctite 243 (5 ml)

Loctite 243 is a universally usable screw retention. Screws and nuts are secured against loosening due to vibrations and sealed in the same time.
8.0000.4G05.0000
Data sheet
Screw retention Locitite
DE EN FR

Torque stop, flexible

Torque stop, flexible

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 39.5 ... 142.75 mm
Designed for functional safety technology.
For applications with axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 M3x6 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw

8.0010.4047.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4047.00FS
Operation Manual
8.0010.4047.00FS - Accessories torque stop, flexible (FS)

Cylindrical pin (replacement)

Cylindrical pin (replacement)

For hollow shaft encoders
with flange ø 58 mm
Designed for functional safety technology.

suitable for:
Torque brackets 8.0010.4051.00FS
8.0010.4049.0075
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4049.0075

Fastening arm set, rigid

Fastening arm set, rigid

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 32.5 ... 143.5 mm
Designed for functional safety technology.
For applications with very low axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 screws M3x6 for mounting to the encoder

Connection to the application (not included in delivery)
- 1 torque pin 8.0010.4049.0075
8.0010.4051.00FS
Mechanical CAD / STEP
8.0010.4051.00FS
Operation Manual
8.0010.4051.00FS - Accessories torque stop, rigid (FS)

Stator coupling (FS)

Stator coupling (FS)

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 31.5 mm
Designed for functional safety technology by 4-screw principle.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws M3x6 for mounting to the encoder

Connection to application (not included in delivery)
- 4 screws

8.0010.40B2.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40B2.00FS
Operation Manual
Supplement to stator coupling operating instructions (FS)

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± mm
2 x 2 x 0,34 mm2
05.00.6031.4411.XXXM

Data sheet
M12 cable satez, PUR, pin, 4-pin, D-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin PUR Ø 6,5 mm ± 0,2 mm
2 x 2 x 0,34 mm2
05.00.6031.4444.XXXM

Data sheet
M12 cable set, PUR, 2xpin, 4-pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± 0,2 mm
2 x 2 x 0,34 mm2
05.00.6031.4511.XXXM

Data sheet
M12 cordset, PUR, male, angled, 4-pin, D-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin
05.00.6031.4544.XXXM

Data sheet
M12 cordset, PUR, male straight - angled, 4-pin, D-coded
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± mm
4x0,34 mm2
05.00.6061.6211.XXXX

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Male connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4x0,34 mm2
05.00.6061.6311.xxxM

Data sheet
M12 cordset, PUR, socket, angled, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin

Male connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6061.6462.XXXM

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded + pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6061.D211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 4-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8241-0

Data sheet
M12 socket, angled, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin
05.WASCSY4S

Data sheet
M12 pin, 4-pole, D-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 5-pin
8.0000.5121.0000.Ex

Data sheet
M12 pin, Ex 2/22, 5-pin, D-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin
8.0000.5128.0000

Data sheet
M12 male, angled, 4-pin, D-coded
DE EN FR
