Encoders Incremental
RIM2000
|
|
Maximum flexibility and higher performance thanks to programmability.

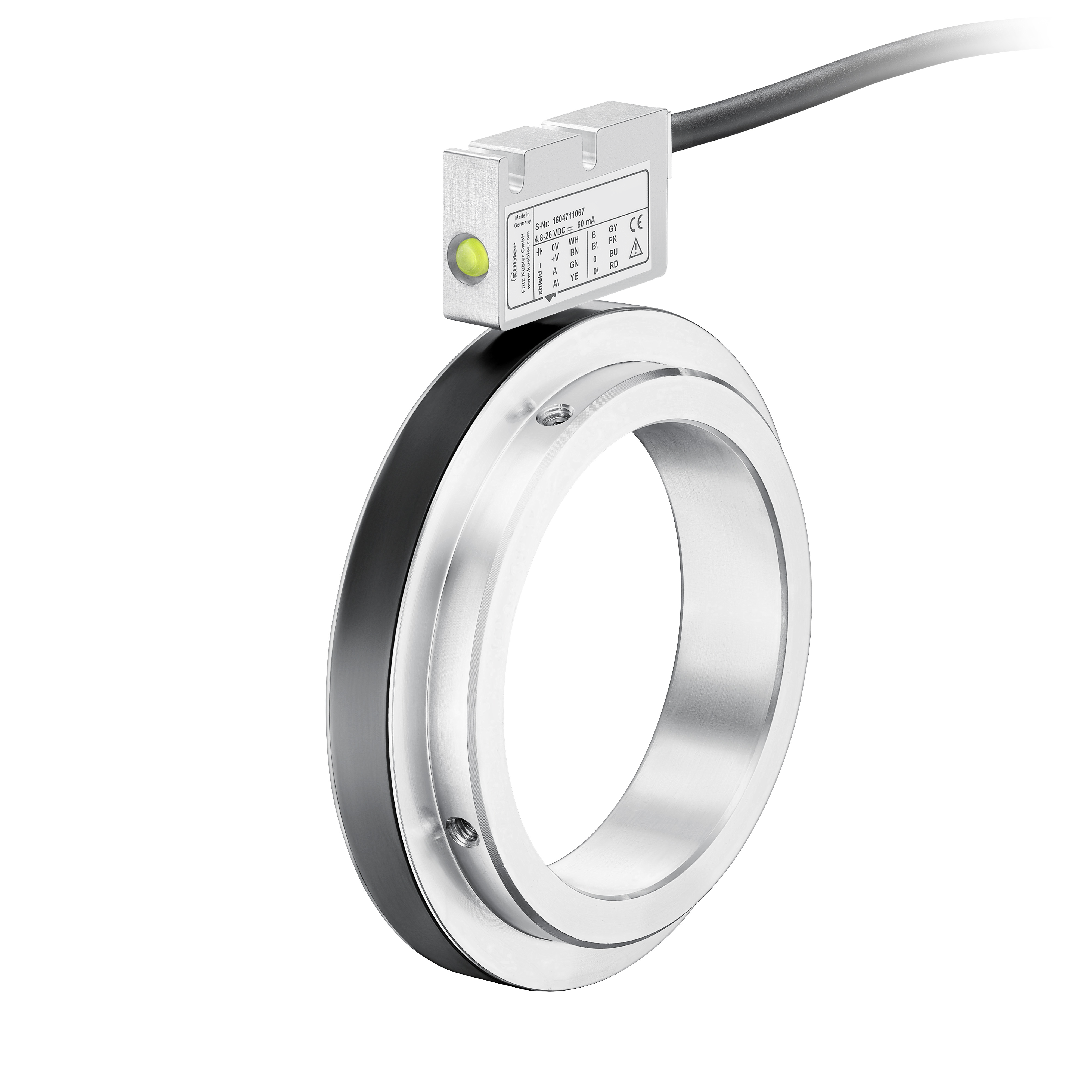

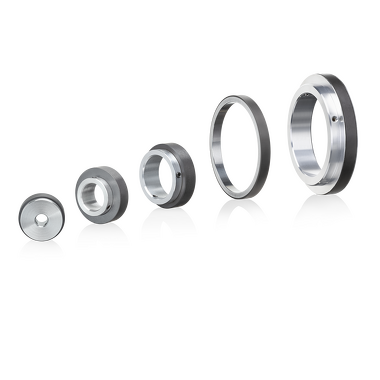

With a new technology approach based on digital signal processing independent of previous ASIC solutions, Kübler has expanded the range of applications for bearingless encoders. In conjunction with the available magnetic rings, the best possible accuracy is now always achieved. Influences due to individual installation and temperature differences during operation are automatically compensated in the sensor head. This facilitates integration into applications and makes the overall system even more powerful.| Mechanical | |
|---|---|
| Shaft type |
8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 15 mm hollow shaft, through 18 mm hollow shaft, through 20 mm hollow shaft, through 25 mm hollow shaft, through 28 mm hollow shaft, through 30 mm hollow shaft, through 45 mm hollow shaft, through 76 mm hollow shaft, through 180 mm hollow shaft, through 5/8 " hollow shaft, through 1 " hollow shaft, through 1 1/8 " hollow shaft, through |
| Working temperature | -20 °C ... +80 °C |
| Protection level |
IP67 IP68 IP69k |
| Connection types |
Radial cable |
| Max. rotational speed |
12.000 min-1 |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Resolution max. |
999.999 ppr incremental |
| Power supply |
4,8...26 V DC |
| Interfaces |
Gegentakt TTL / RS422 |
Maximum flexibility thanks to programmability
- Programmable via programming device with touch display.
- Freely selectable resolution up to 999 999 ppr independent of the magnetic ring diameter.
- Systems based on both 2 mm and 5 mm pole lengths are available. This allows you to choose between greater operating and mounting tolerances or a focus on the best possible performance.
- Many variants of magnetic ring and bore diameters.
- Active offset, phase and amplitude control automatically optimizes the sensor to the current operating situation. Influences due to individual installation and temperature differences during operation are automatically compensated in the sensor head.
- For use in small installation spaces.
- Mounting tolerance between magnetic ring and sensor head are compensated by the electronics.
- Simple adjustment by fastening via slotted holes.
- Function display via LED.
- Non-contact and wear-free measuring system for a long service life.
- High shock and vibration resistance.
- Sturdy housing with degree of protection IP67, optional: Special housing for high resistance to condensation (IP68 / IP69k, Resistance to cyclical humidity acc. to EN 60068-3-38 and humidity-heat acc. to EN 60068-3-78).
