Inclinometer

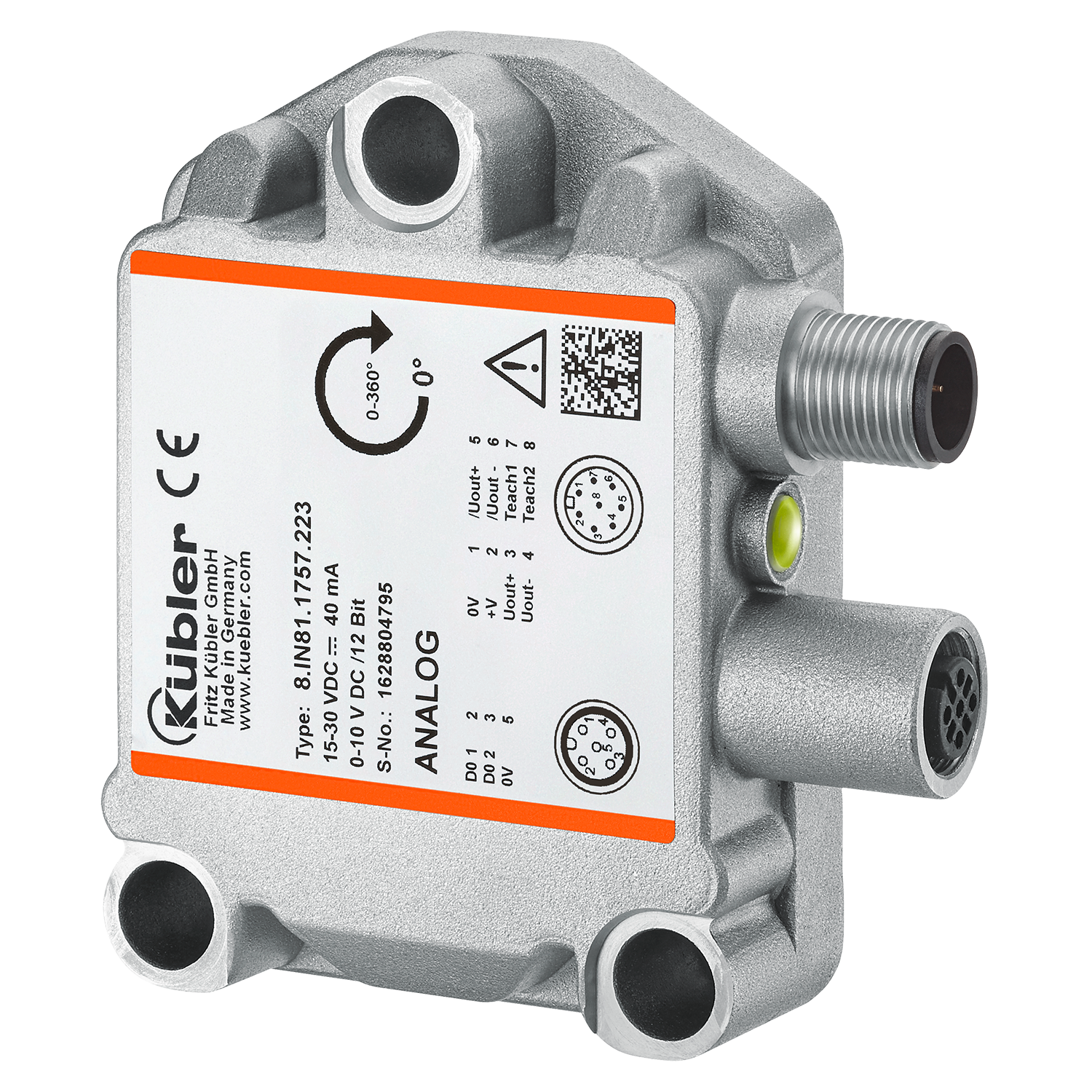

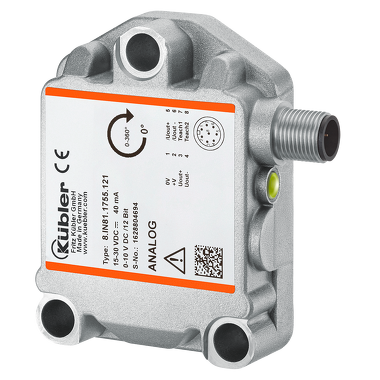

IN81

  • Preset and Teach functions
  • Robust design
  • Stackable assembly for redundancy
Analog 0.5–4.5 V

1-dimensional inclinometer. Unmistakable accuracy – even in harsh environments.

The IN81 inclinometer is used for the acquisition of a tilt angle in the measuring range from 0 to 360°. Due to its high robustness and protection up to IP69k, as well as its wide temperature range from -40°C to +85°C, it is excellent for, among other uses, outdoor use in mobile automation.

Mechanical
Dimension 60 mm x 80 mm x 23 mm
Connection types M12 connector
Working temperature -40 °C ... +85 °C
Protection level IP67
IP69k
Electrical
Measuring range 360°
Accuracy ± 0,2°
Interfaces Analog 0.5–4.5 V
Analog 0.1–4.9 V
Analog 0–10 V
Analog 0–5 V
Analog 4–20 mA
Supply voltage 10...30 V DC
Robust
  • High IP67 and IP69k protection in one device.
  • Highest resistance due to metal housing.
  • Stable accuracy over the entire temperature range from -40 to +85°C.
  • No long-term drift thanks to sensor array technology.

Versatile
  • Preset and Teach functions.
  • Measuring direction 1- or 2-dimensional.
  • With switching outputs.
  • Stack mounting for redundancy possible.
Data sheet

IN81 Analog

PDF ∼ 1,2 MB | 07.2020
DE
EN
FR
Installation manual

IN81/IN88 - Installation manual

Multilingual: German, English
PDF ∼ 760,8 KB | 10.2017

Manual

IN81 Analog

PDF ∼ 1,2 MB | 01.2018
DE
EN
Safety characteristics

IN81 MTTFd

Multilingual: German, English
PDF ∼ 212,8 KB | 06.2019

Declaration of conformity

IN81

Multilingual: German, English, English (USA), French
PDF ∼ 346,1 KB | 05.2017

mechanical CAD / STEP

IN81

ZIP ∼ 1,1 MB | 12.2017

electronic CAD / ePlan

IN81 Analog

ZIP ∼ 1,3 MB | 02.2020

Product Certificates

IN81 E1

Multilingual: German, English
PDF ∼ 585,2 KB | 04.2018

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
DeviceNet
SAE J1939
Modbus
CAN
IO-Link
Female connector 5-pin
05.00.6021.2211.XXXM

Data sheet
M12-Kabelsatz-PUR_Buchse-5-pol-A+offen_DeviceNet_05.00.6021.2211.002M
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
DeviceNet
SAE J1939
Modbus
CAN
IO-Link
Male connector 5-pin
05.00.6021.2411.XXXM

Data sheet
M12-Kabelsatz-PUR_Stift-5-pol-A+offen_DeviceNet_05.00.6021.2411.002M
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

IO-Link
Female connector 5-pin
05.B-8151-0/9

Data sheet
M12_Buchse_5-polig-05.B-8151-0_9
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Male connector 5-pin
05.BS-8151-0/9

Data sheet
M12_Stift_5-polig-A_05.BS-8151-0_9
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Male connector 5-pin
05.BS-8251-0/9

Data sheet
M12_Stift-gew_5-polig-A_05.BS-8251-0_9
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Male connector 5-pin
8.0000.5111.0000

Data sheet
M12_Stift_5-polig-A_8.0000.5111.0000
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Female connector 5-pin
8.0000.5116.0000

Data sheet
M12_Buchse_5-polig-A_8.0000.5116.0000
DE EN FR

Cable 5x0,14 mm<sup>2</sup>  ,

Cable 5x0,14 mm2 ,

Unassembled yard ware

PVC Ø 4,7 mm ± 0,2 mm
5x0,14 mm2
8.0000.6300.XXXX
Data sheet
Kabel_5-adrig_PVC_8.0000.6300.xxxx
DE EN FR

Cable 5x0,75 mm<sup>2</sup>  ,

Cable 5x0,75 mm2 ,

Unassembled yard ware

Push-pull
TTL / RS422
TPE Ø 7,5 mm ± 0,3 mm
5x0,75 mm2
8.0000.6600.XXXX
Data sheet
Cable 5-core PE-X 8.0000.6600.xxxx
DE EN FR

„Do you have technical questions about Kübler inclinometers or are you looking for individual solutions? I would be pleased to help you.“

Rainer Grueninger
Application support
Rainer Grueninger
Application Engineering


rainer.grueninger@kuebler.com
+49 7720 3903 764
+49 7720 21564

„We will be pleased to give you information about prices and delivery times. We are looking forward to your inquiry.“
