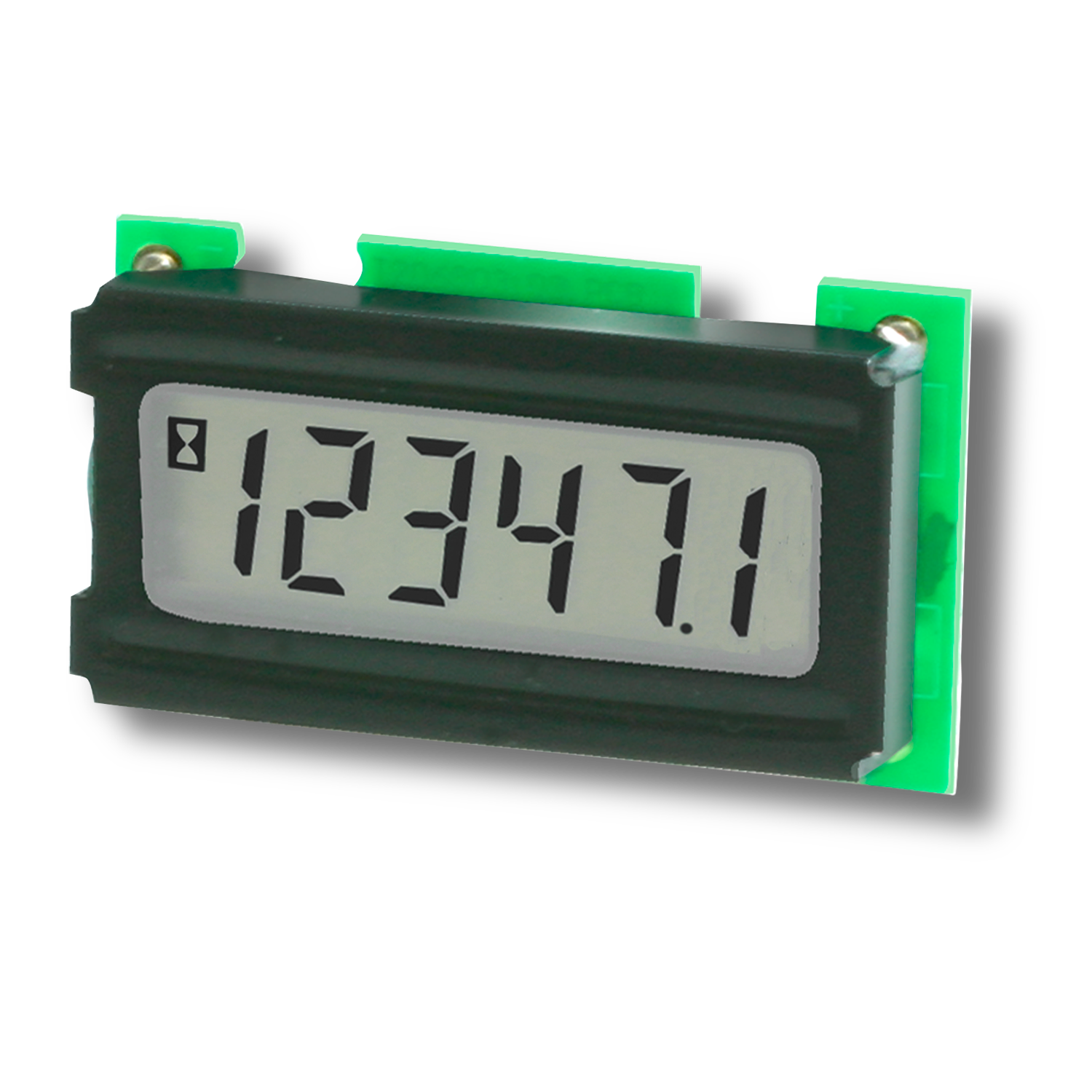

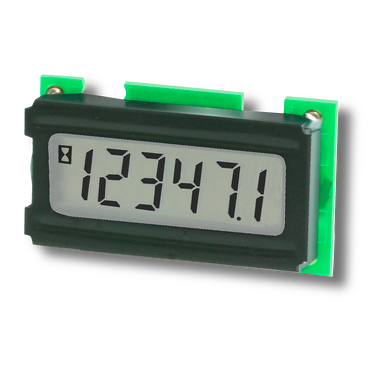

Hour meter electronic
198
|
|
Hour meter with large voltage range.
The timer module of the type 198 with 6-digit LCD display for PCB mounting features a wide voltage range from 8 to 28 V DC.It is extremely robust and suitable for many different applications thanks to its wide temperature range.
| Mechanical | |
|---|---|
| Model | electronic |
| Function |
Hour meters / timers |
| Dimension 1 |
32 x 19 mm |
| Working temperature | -40 °C ... +85 °C |
| Weight | 15 g |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
8...28 V DC |
| Signal input |
PNP |
Efficient
- Display range up to 99999.9 hours
- 6-digit LCD display, 5 mm high
- Low power consumption
- Wide voltage and temperature range
- High shock and vibration resistance
- Non-volatile memory (no battery)
- Start/Stop input
- Electrical reset
- Very high reliability
- Small size and very reasonable price
