Preset counter electronic

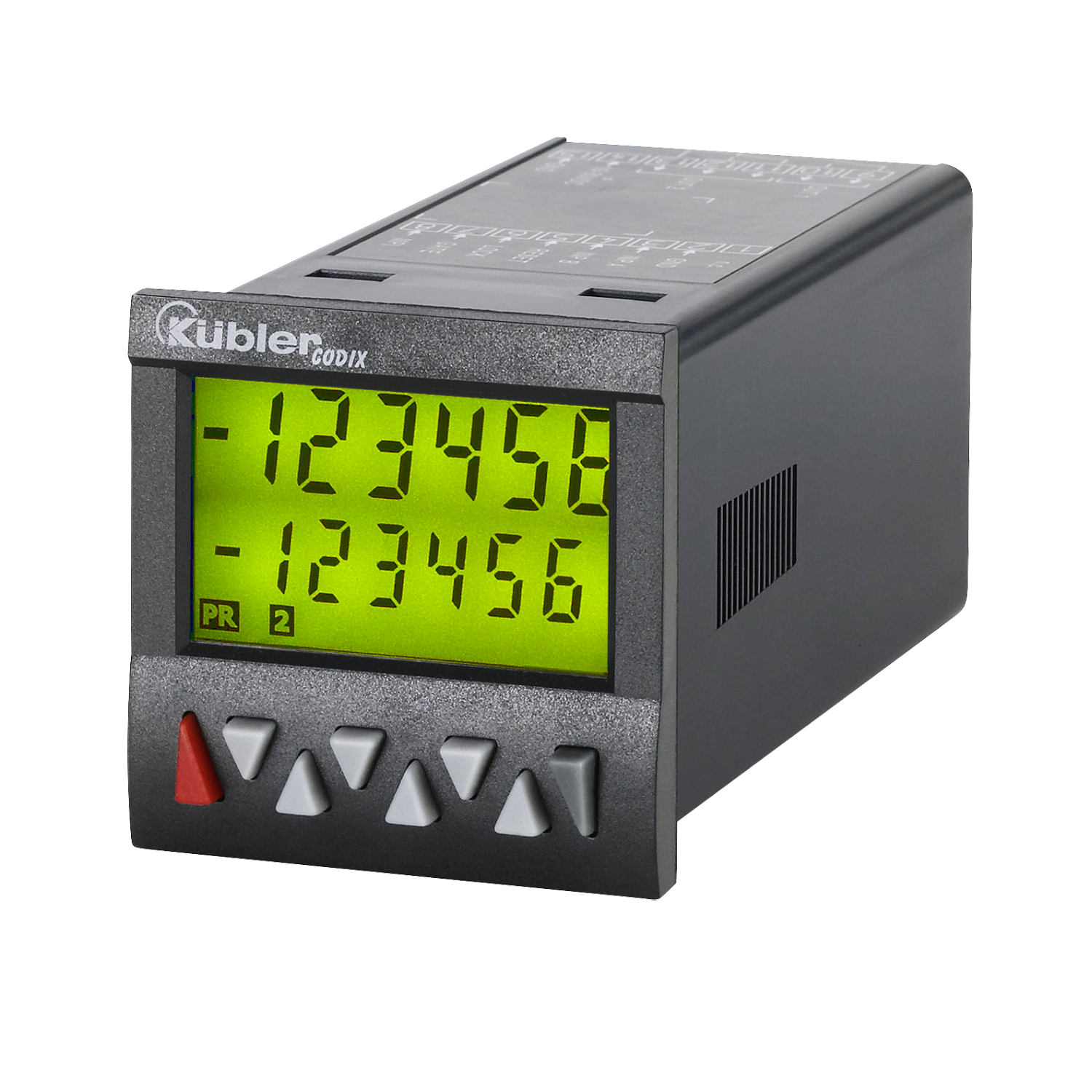

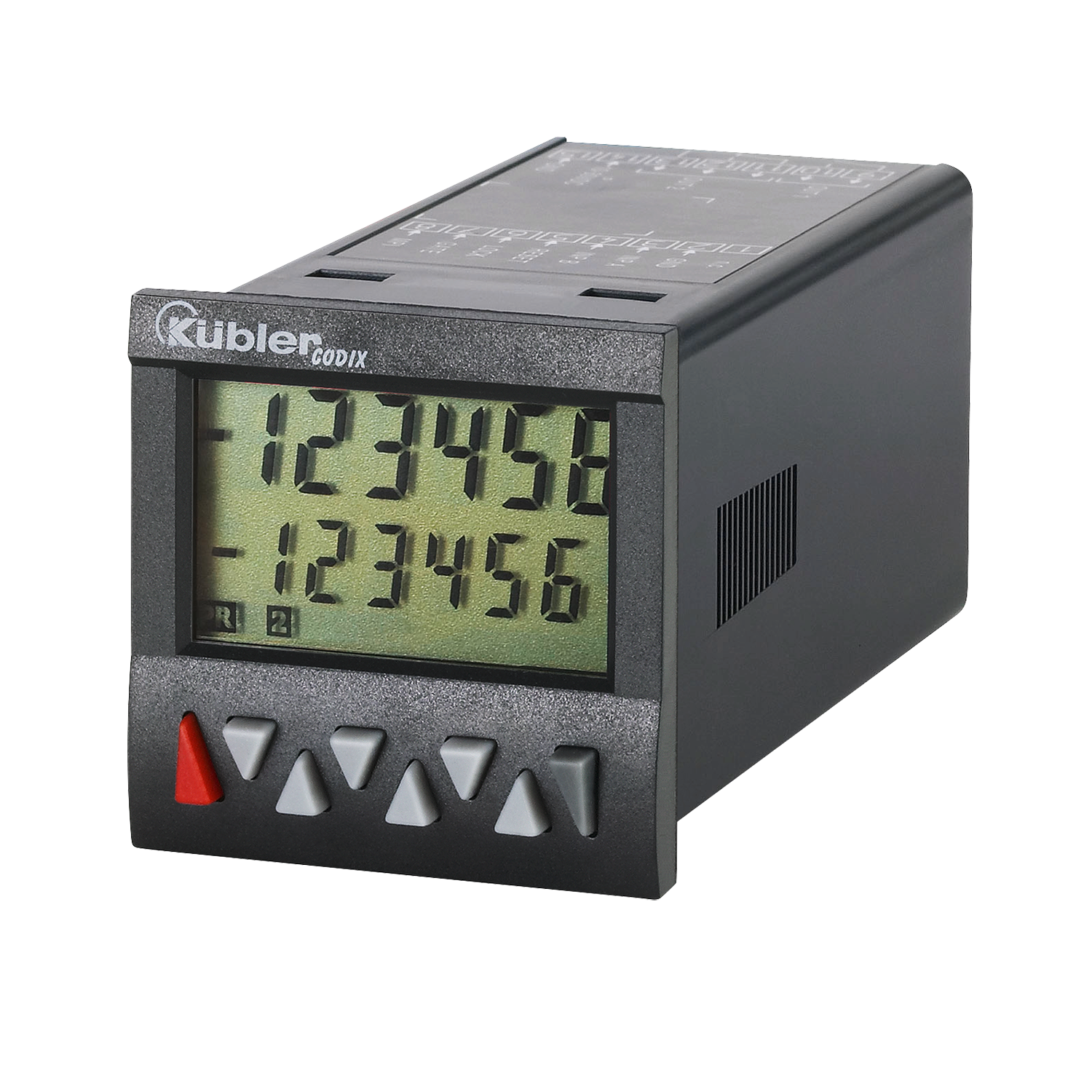

Codix 923

  • Relay or optocoupler outputs
  • Relay or optocoupler outputs
  • Multirange power supply
  • Multirange power supply
  • Display scalable by multiplier or dividing factor
  • Display scalable by multiplier or dividing factor
  • Dimension
    · 48 x 48 mm | 45 x 45 mm
  • Supply voltage:
      · 90...260 V AC
      · 10...30 V DC
  • Display 6-digit number, LCD

Pulse preset counter, tachometer or time preset counter with one preset.

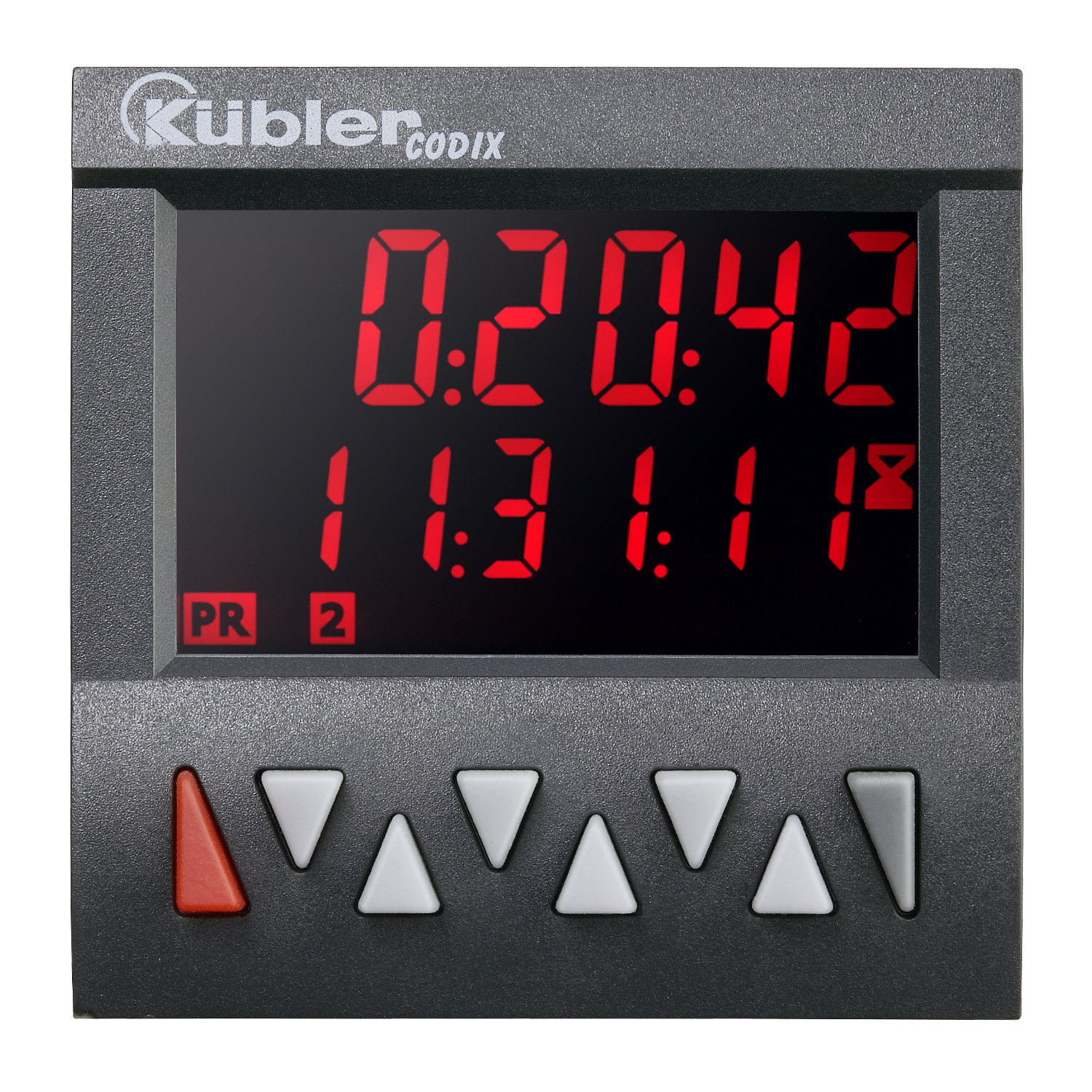

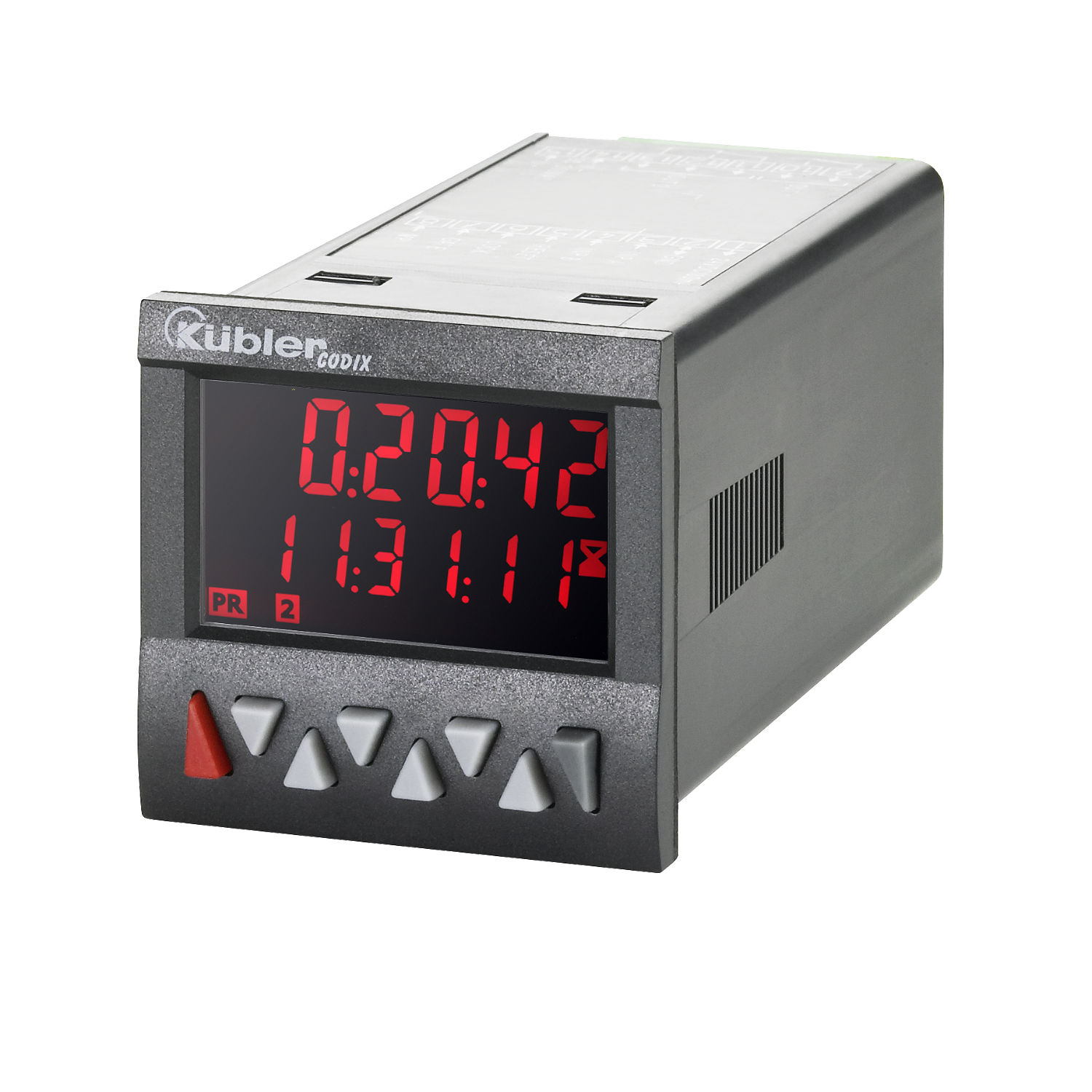

The Codix 923 / 924 multifunction preset counter can be used universally. As a pulse preset counter, tachometer or time preset counter with up to 6 presets it offers various possibilities to solve control and monitoring tasks in every application. With the 2-line display in 4 different variants, the meter is easy to read and easy to program using the clearly arranged decade keys. More complex controls can also be implemented using a batch counter or total sum function.

Mechanical
Model Multifunction device electronic
Functions Multifunction devices
Time preset counter
Tachometer with limit values
Position displays with limit values
Dimension 1 48 x 48 mm | 45 x 45 mm
Protection level IP65
Working temperature -20 °C ... +65 °C
Weight 125 g
Reset electronic

(1) Front panel size | Panel cut-out
Electrical
Supply voltage 90...260 V AC
10...30 V DC
Signal input NPN
PNP
Signal output 1 relay
Multifunctional
  • Counter, tachometer and hour meter in one device
  • Can be used as preset counter, batch counter or total counter
  • Presets 923: 1, 924: 2, 924-4: 4, 924-6: 6
  • Relay or optocoupler outputs
  • Many different counting modes for pulse, time and frequency
  • Display scalable by multiplier or dividing factor
  • Set value
  • Averaging, start delay (tachometer)
  • Steps or drag presets (no need to re-program the presignal)
  • Multirange power supply
Fast and comfortable
  • Direct input of presets via front keys or teach-in input
  • Quick installation due to pluggable screw terminals
  • Max. Counting frequency 65 kHz
  • Simultaneous display of actual value and presets, batch number or total sum
  • Symbols for displayed preset and status of the outputs
  • 3 predefined parameter settings
  • Direct access to programming
  • Low installation depth
  • 4-stage RESET modes
  • 3-stage keyboard lock

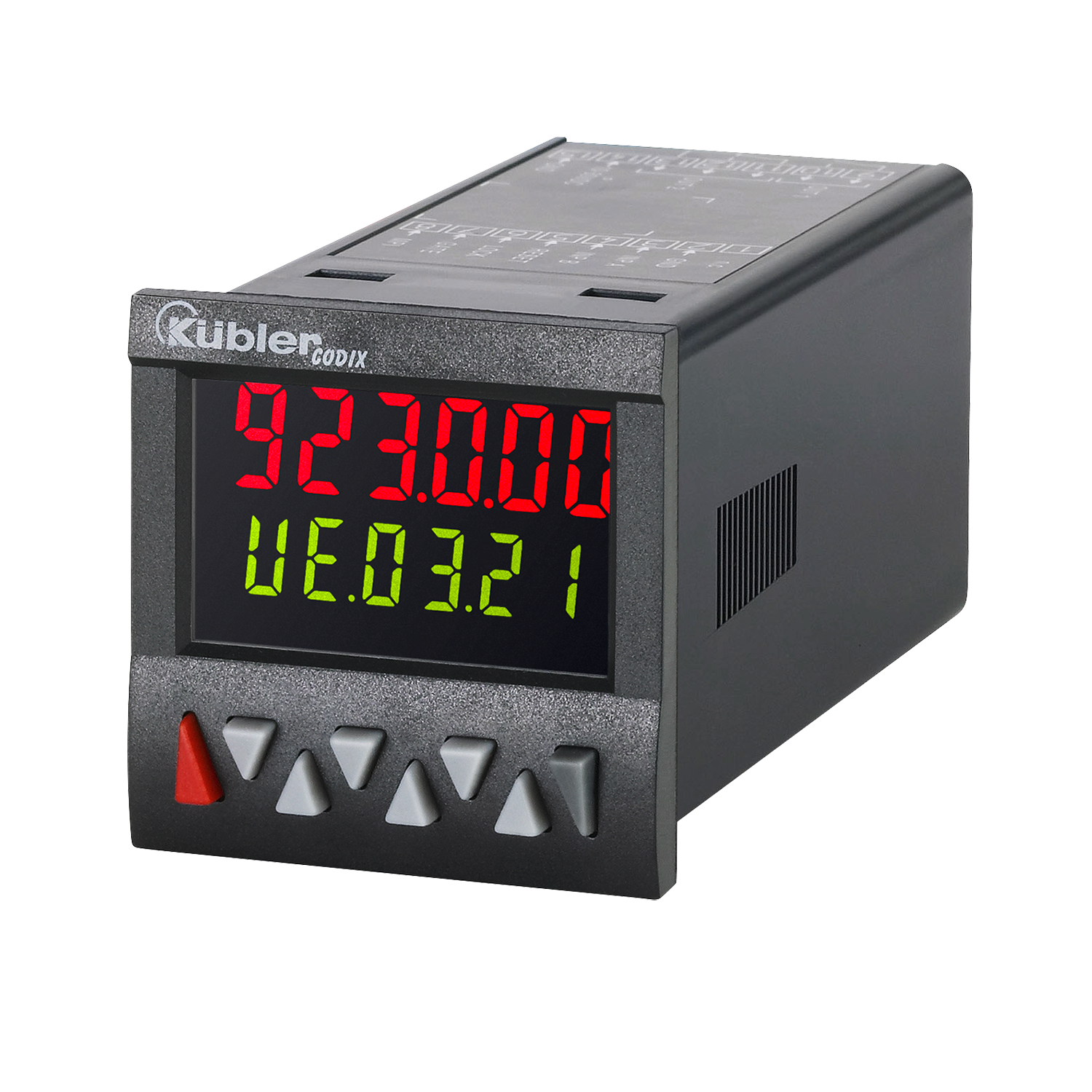

  • Multicolor display for better differentiation
Multifunctional
  • Counter, tachometer and hour meter in one device
  • Can be used as preset counter, batch counter or total counter
  • Presets 923: 1, 924: 2, 924-4: 4, 924-6: 6
  • Relay or optocoupler outputs
  • Many different counting modes for pulse, time and frequency
  • Display scalable by multiplier or dividing factor
  • Set value
  • Averaging, start delay (tachometer)
  • Steps or drag presets (no need to re-program the presignal)
  • Multirange power supply
Fast and comfortable
  • Direct input of presets via front keys or teach-in input
  • Quick installation due to pluggable screw terminals
  • Max. Counting frequency 65 kHz
  • Simultaneous display of actual value and presets, batch number or total sum
  • Symbols for displayed preset and status of the outputs
  • 3 predefined parameter settings
  • Direct access to programming
  • Low installation depth
  • 4-stage RESET modes
  • 3-stage keyboard lock
  • Multicolor display for better differentiation
Data sheet

Codix 923 / 924 Preset counters

PDF ∼ 1,3 MB | 10.2018
DE
EN
FR
Operation manual

Codix 923

Multilingual: German, English, English (USA), French, Italian, Spanish
PDF ∼ 7,5 MB | 08.2016

Programming instruction

Codix 923

PDF ∼ 128,2 KB | 05.2011
DE
Declaration of conformity

Codix 923 / 924

Multilingual: German, English, French
PDF ∼ 400,0 KB | 04.2016

Product Certificates

Counting and Process UL Canada

PDF ∼ 78,6 KB | 01.2019
EN

Counting and Process UL USA

PDF ∼ 76,1 KB | 01.2019
EN

Accessories

Transparent cover, lockable

Transparent cover, lockable

Transparent cover lockable with adapter frame for meter with installation dimension 45x45mm on cutout 50x50mm.

Seal, 2 mounting screws.
G.008.143
Data sheet
Transparent cover 1
DE EN FR

Transparent cover, key lock

Transparent cover, key lock

Transparent cover lockable with adapter frame for meter with installation dimension 45x45mm on cutout 50x50mm.

Seal, 2 mounting screws.
G.008.153
Data sheet
Transparent cover 1
DE EN FR

Sealing cover K2

Sealing cover K2

Flexible sealing cap for dimension F2, IP65 protection. Suitable for BVa15.13, BVa15.31, BVa15.33 and HVa15.31 within F2B. 2 B counters or 2 HB counters and MVs16.03 in frame F2M and junction box 926.1. 716, 717 901, 907, 908, 923, 924 with adapter frame 45 (T.008.860).
Grau G.008.302
Schwarz G.008.303
Data sheet
Sealing cover accessories
DE EN FR

Enclosure, 48x48

Enclosure, 48x48

For the installation of all meters, timers with the DIN dimensions 48x48mm. Cutout 50x50mm. For snap-on mounting on 35mm DIN top hat rail

Meter holder (chrome-plated sheet steel), DIN hat-rail adapter (fiber-reinforced polyamide).
G.300.003
Data sheet
Enclosure
DE EN FR

Bezel adapter 60

Bezel adapter 60

Push-on frame for front panel cutout diameter 60mm to 45x45mm.
N.510.226
Data sheet
Adapter front bezel (3)
DE EN FR

Bezel adapter 72

Bezel adapter 72

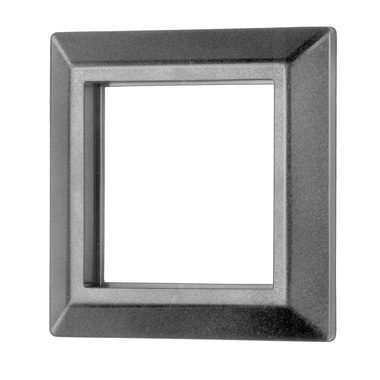

Adapter front frame for 68x68mm to 45x45mm cutout; additional holding frame available. Available in black and gray.
Grau T.008.176
Schwarz T.008.177
Gegenhalter T.009.420
Data sheet
Adapter front bezel (3)
DE EN FR

Bezel adapter 55

Bezel adapter 55

Adapter frame 55 for electric meter with 45x45mm installation space for 50x50mm cutout. Available in anthracite.
T.008.853
Data sheet
Adapter front bezel
DE EN FR

Adapter 45

Adapter 45

Adapter 75x60mm for 50x50mm to 45x45mm cutout for screw mounting. Available in black.
T.008.860
Data sheet
Adapter front bezel (3)
DE EN FR
