Hour meter electronic
194
|
|
Hour meter with 2 voltage ranges.

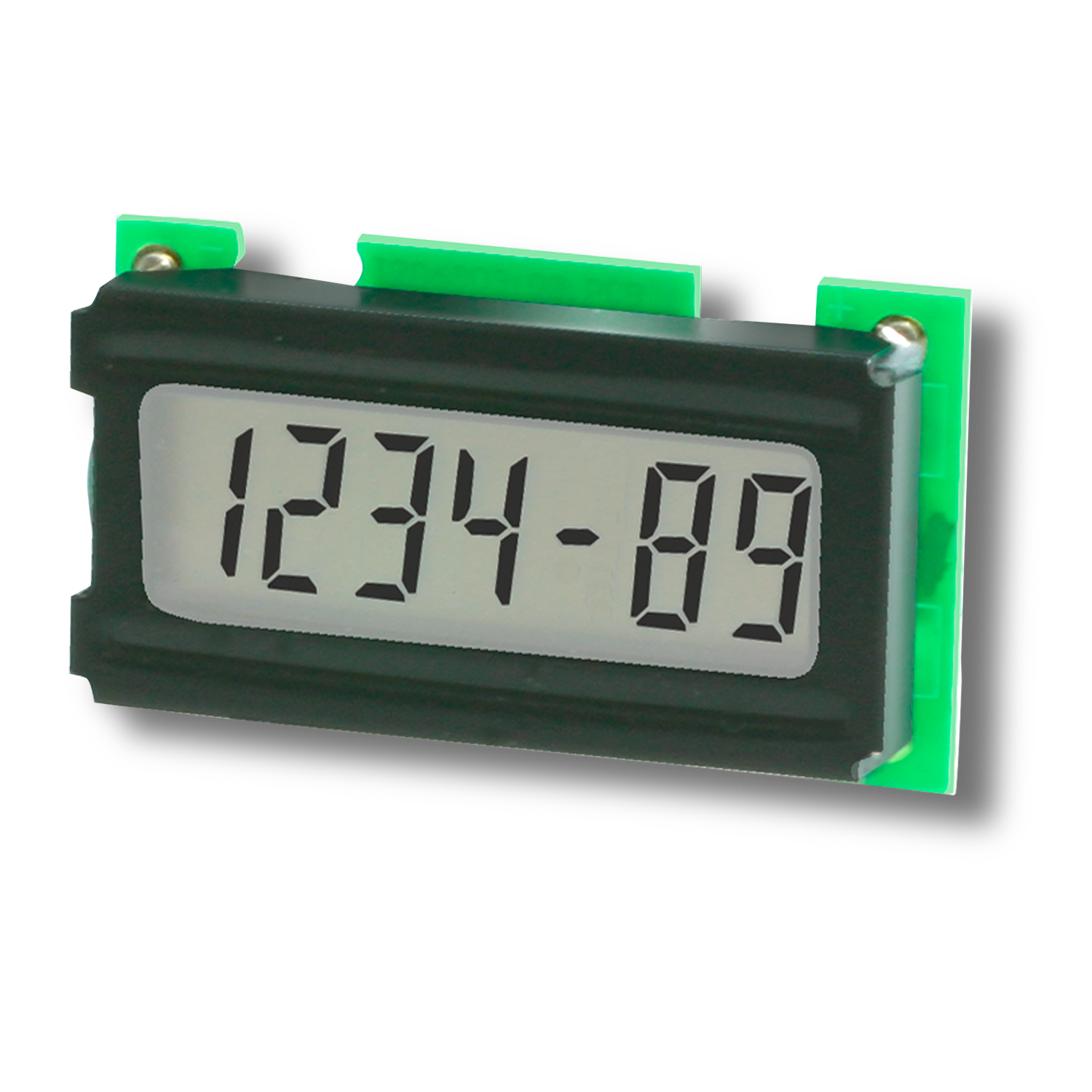

The time counter module type 194 for circuit board mounting with 6-digit LCD display has 2 voltage ranges (4.75 to 15 V DC and 9 to 60 V Due to the very wide temperature range it is extremely robust and suitable for many applications.| Mechanical | |
|---|---|
| Model | electronic |
| Function |
Hour meters / timers |
| Dimension 1 |
32 x 19 mm |
| Working temperature | -40 °C ... +85 °C |
| Weight | 8 g |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
4,75...15 V DC 9...60 V DC |
| Signal input |
PNP |
Efficient
- Display range up to 9999-99 hours
- 6-digit LCD display, 6 mm high
- Low power consumption
- Wide voltage and temperature range
- High shock and vibration resistance
- Non-volatile memory (no battery)
- Counting start with power supply applied
- Electrical reset
- Very high reliability
- Small size and very reasonable price
