RLA50 RLA50
RLA50 RLA50

Encoders Absolute singleturn

RLA50

  • Wear-free
  • Space and cost savings
  • Contactless
  • 24 bits singleturn
  • Max 30 mm hollow shaft, through
CANopen
SSI, binary

Absolute contactless measuring principle, ideal for position or angle detection

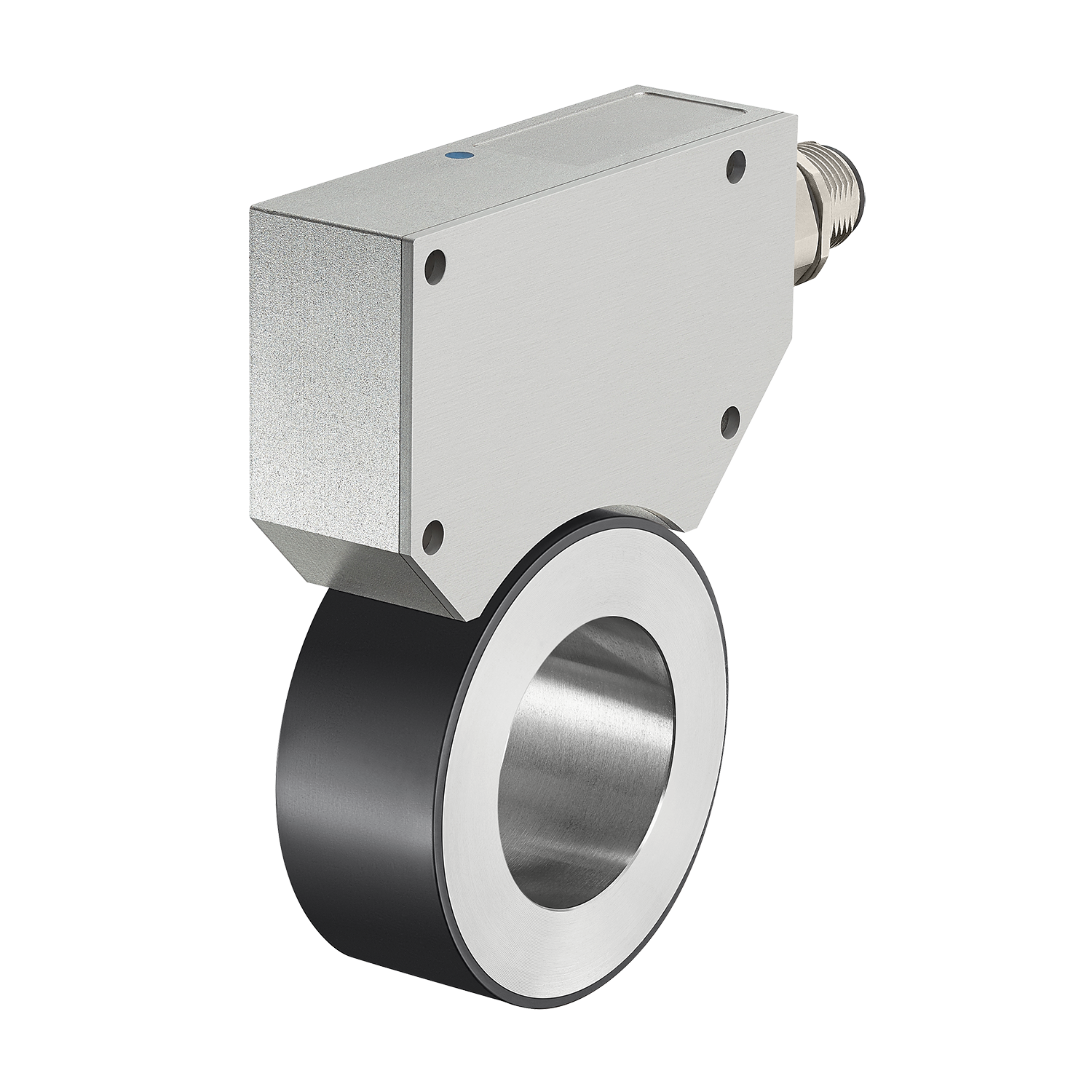

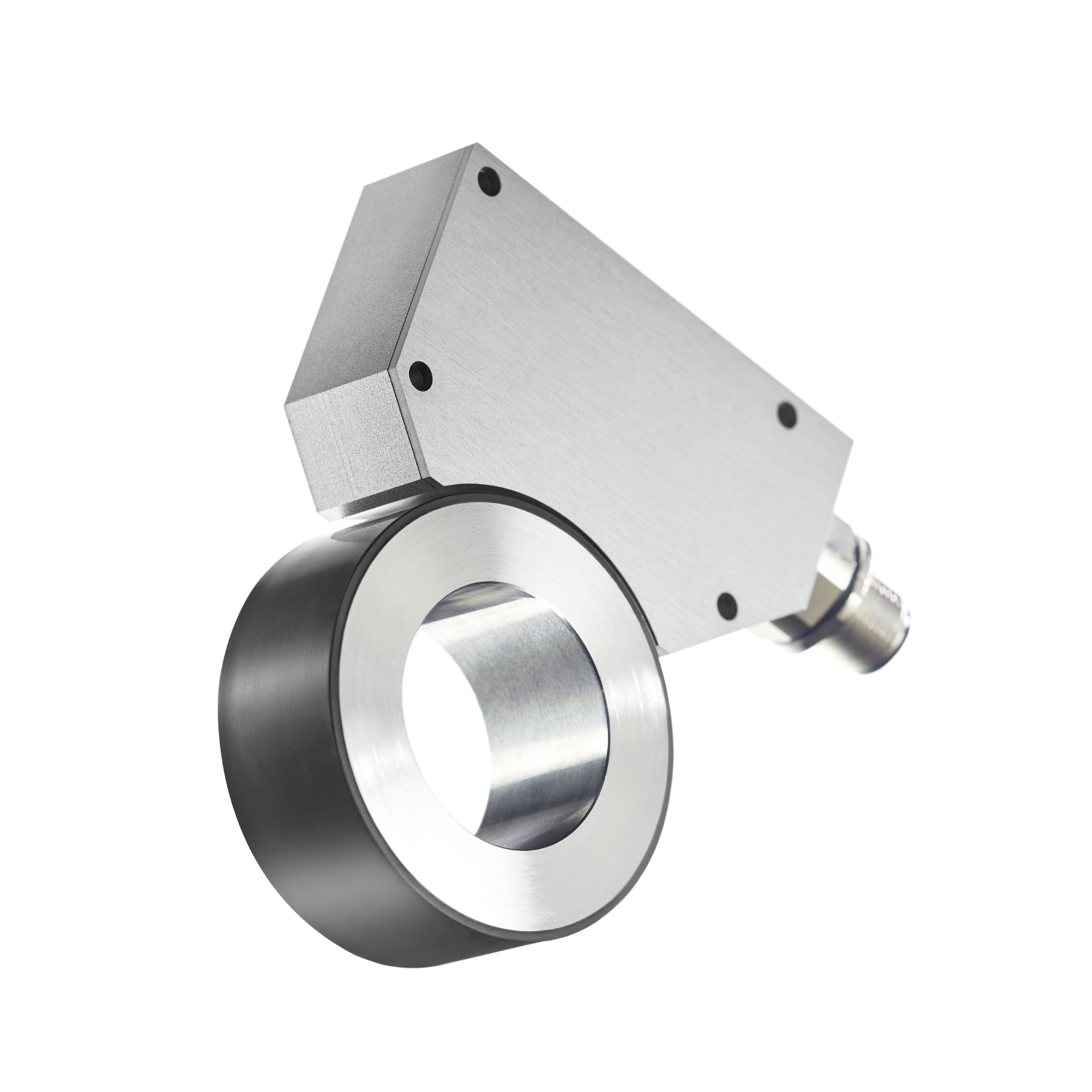

The RLA50 bearingless encoder, consisting of magnetic ring and sensor head, with its installation depth of only 20 mm is ideally suited for narrow installation possibilities. Its contactless measuring principle enables error-free operation even under adverse environmental conditions and a long service life.

This bearingless encoder can be mounted on shafts with a diameter of 30 mm.

Mechanical
Shaft type 30 mm hollow shaft, through
Working temperature -10 °C ... +70 °C
Protection level IP50
Connection types M12 connector axial
Max. rotational speed 1.000 min-1
Electrical
Scanning magnetic
Resolution max. 24 bits singleturn
Supply voltage 10...30 V DC
Interfaces CANopen
SSI, binary
SSI, gray
Efficient
  • High shock and vibration resistance.
  • Contactless and wear-free measuring system for
    long service life.
  • High resolution, 16 000 measuring steps / revolution.
  • Direct measurement on shaft or axis.
Fast commissioning
  • Distance monitoring by LED.
  • Large mounting tolerance between magnetic ring and sensor head.
  • Requires very little installation space.
  • Connection via M12 plug.
Data sheet

RLA50 absolute singleturn

PDF ∼ 347,4 KB | 05.2020
DE
EN
FR
Manual

RLA50

PDF ∼ 766,2 KB | 01.2018
DE
EN
FR
mechanical CAD / STEP

RLA50

ZIP ∼ 134,8 KB | 05.2017

electronic CAD / ePlan

RLA50

ZIP ∼ 507,7 KB | 02.2020

Notice

Safety instructions for magnetic rings

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 566,2 KB | 05.2017
