Sendix 5868 Sendix 5868
Sendix 5868 Sendix 5868

Encoders Absolute multiturn

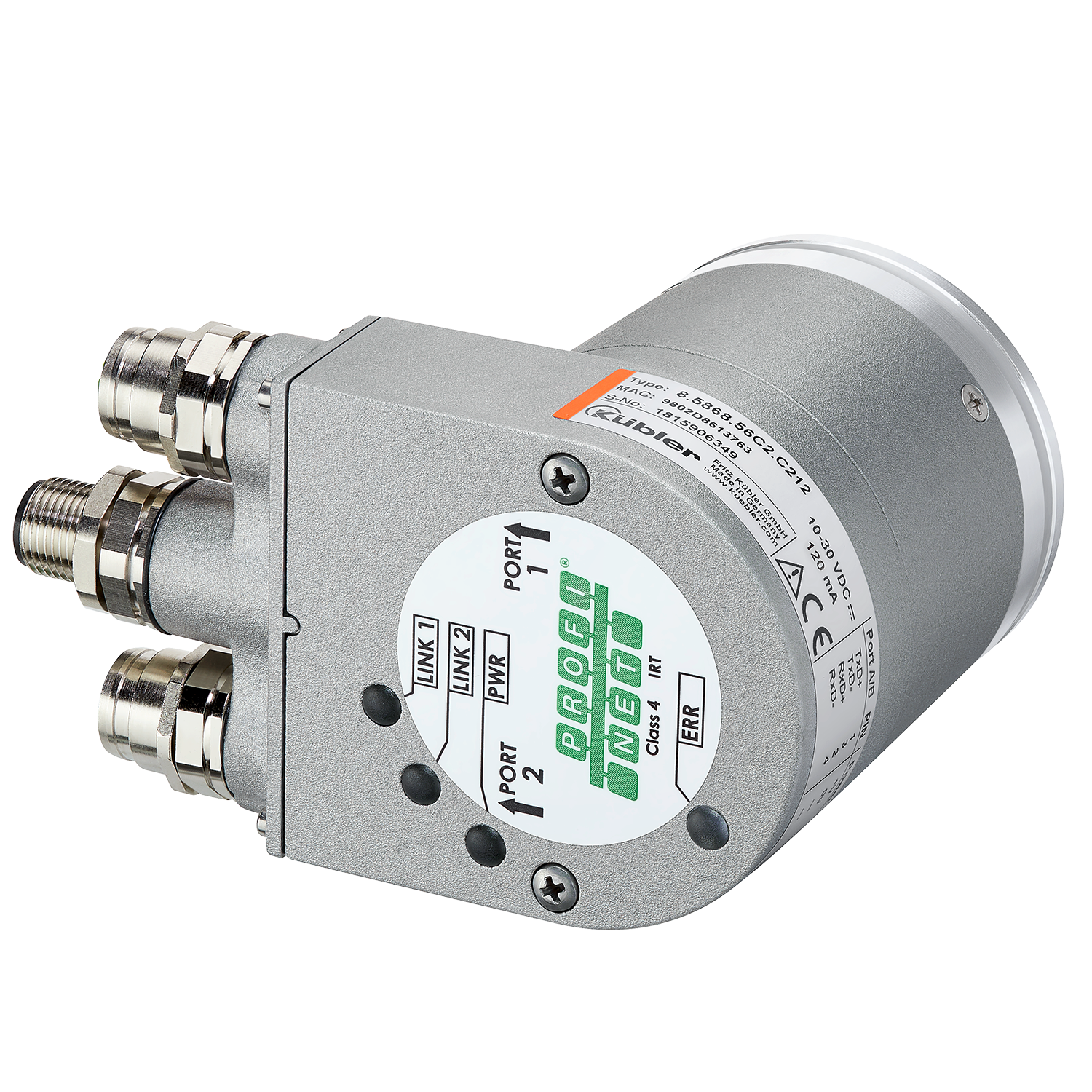

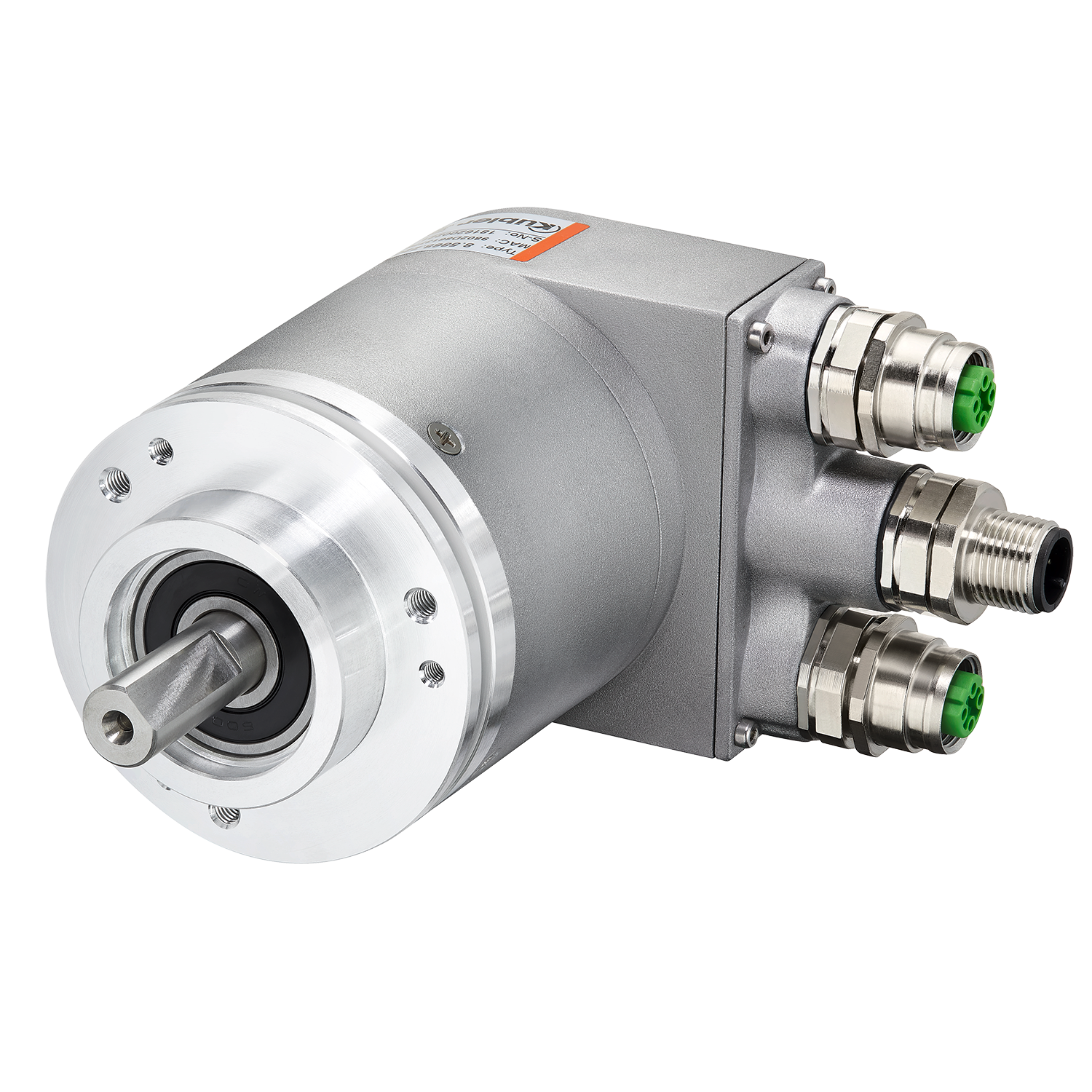

Sendix 5868

  • Rapid ramp-up < 1 sec
  • Isochronous Real-Time Mode
  • Reliable
  • Industry 4.0 / IIoT ready

  • Dimension Ø 58 mm
  • 16 bits singleturn
  • 12 bits multiturn
  • Max 10 mm shaft, with flat surface
  • Max 3/8" shaft, with flat surface
PROFINET IO

For real-time communication: Industrial Ethernet encoders with PROFINET IO-interface.

The absolute encoders Multiturn Sendix 5868 / 5888 with PROFINET IO interface and optical sensors can be used in all applications with Profinet technology. These encoders support IRT mode and are therefore ideally suited for real-time applications.

Connectivity stands for the ability to communicate additional information and / or to be integrated in a network. This can take the form of additional interfaces such as OPC-UA (e.g. for additional edge communication) or Industrial Ethernet communication as well as a digital interface such as "BISS" or "SCS open link".

Identification is the ability to transmit technical information by means of an electronic data sheet / type plate. In addition, further information about the machine can be transmitted (e.g. information about the axis where the encoder is installed). Essentially, all the information required in the application for asset management is recorded here.

Mechanical
Dimension Ø 58 mm
Shaft type 6 mm shaft, with flat surface
10 mm shaft, with flat surface
1/4 " shaft, with flat surface
3/8 " shaft, with flat surface
Flange type Synchro flange / Servo flange
Clamping flange
Square flange

Ø 58.00 mm
❏ 63,50 mm
Working temperature -40 °C ... +85 °C
Protection level IP65
IP67
Connection types M12 connector radial
Max. rotational speed 9.000 min-1
Weight 540 g
Electrical
Scanning optical
Resolution max. 16 bits singleturn
12 bits multiturn
Power supply 10...30 V DC
Interfaces PROFINET IO
Reliable
  • Suitable for all PROFINET applications by using the encoder profile 4.1.
  • With IP67 protection and a robust housing construction, it is optimally suited for the toughest external operating conditions.
Flexible
  • Easy setting of a preset value using a control bit (telegram 860).
  • IRT-Mode.
  • Cycle time ≥ 1 ms.
  • Firmware updater allows for easy expansion of characteristics without having to disassemble the encoder.
Data sheet

Sendix 5868 / 5888 PROFINET

PDF ∼ 1,3 MB | 11.2023
DE
EN
FR
Operation Manual

Operating manual for encoders with ATEX 2/22

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 3,6 MB | 05.2023

Operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Manual

Encoder with PROFINET interface

PDF ∼ 8,1 MB | 06.2024
DE
EN
Safety characteristics

Sendix 5868 MTTFd

Multilingual: German, English
PDF ∼ 157,9 KB | 06.2019

Declaration of conformity

Sendix 5868 / 5888 CE

Multilingual: German, English
PDF ∼ 387,9 KB | 04.2016

Device file

Sendix 58x8 PROFINET GSDML

ZIP ∼ 15,2 KB | 09.2016

Mechanical CAD / STEP

Sendix 5868

ZIP ∼ 13,2 MB | 11.2022

Electronic CAD / ePlan

Sendix 5868 / 5888 PROFINET IO

ZIP ∼ 5,7 MB | 02.2020

Product Certificates

58xx PROFINET IO

PDF ∼ 291,9 KB | 04.2016
DE

Salt spray test ManufacturersDeclaration

PDF ∼ 39,6 KB | 05.2023
DE
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

58x8 PROFINET IRT Test Report

PDF ∼ 114,6 KB | 10.2014
EN

Sendix 58x8 PROFINET PNO Test Report

PDF ∼ 137,4 KB | 10.2014
EN
YouTube Video

How to set a preset with a PROFINET encoder using Std.Tel.81


Website

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
8.0000.1102.0606
Data sheet
Bellows and spring washer couplings
DE EN FR
Mechanical CAD / STEP
Bellows and spring washer couplings

Assembly bell

Assembly bell

For shaft encoders with flange ø 50 ... 58 mm
Fast encoder mounting. Electrical and thermal insulation through glass-fibre reinforced plastic and insulating spring washer coupling - complete delivery as a set.

Scope of delivery
- Mounting bell
- Spring washer coupling (8.0000.1401.XXXX)
- Mounting eccentric (8.0000.4B00.0000)
- Mounting accessories
8.0000.4500.XXYY
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0000.4500.XXXX

Adapter flange, square, 4 mm

Adapter flange, square, 4 mm

For shaft encoders with clamping flange ø 50 ... 58 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 4 screws
58,0 mm x 4 mm 8.0010.2100.0000
63,5 mm x 3 mm 8.0010.2120.0000
70,0 mm x 10 mm 8.0010.2600.0000
80,0 mm x 4 mm 8.0010.2800.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2100.0000

Flange, Ø 115mm Euroflange

Flange, Ø 115mm Euroflange

For shaft encoders with flange ø 50 ... 58 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to the application (not included in delivery)
- 6 screws
Drehgeber 580x/5000 8.0010.2160.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2160.0000

Flange, Ø 58mm

Flange, Ø 58mm

For shaft encoders with flange ø 50 ... 58 mm
Adapter for converting a clamping flange into a synchro flange.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws
8.0010.2180.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2180.0000 Accessories flange / CAD

Flange, Ø 65mm

Flange, Ø 65mm

For shaft encoders with flange ø 50 ... 58 mm
With this flange adapter, Kübler encoders of size 58 mm can replace third-party encoders of size 65 mm.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws
8.0010.2230.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2230.0000

Flange, Ø 90mm

Flange, Ø 90mm

For shaft encoders with flange ø 50 ... 58 mm
Adapter for converting a clamping flange into a synchro flange. Mechanically compatible with encoder type 9000.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to the application (not included in delivery)
- 6 screws
8.0010.2270.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2270.0000

Angular flange

Angular flange

For shaft encoders with flange ø 50 ... 58 mm

Scope of delivery
- Angle flange (aluminium)
- 3 screws for fastening to the encoder.

Connection to the application (not included in delivery)
- 2 screws
8.0010.2300.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2300.0000

Fastening eccentrics

Fastening eccentrics

For shaft encoders with synchro flange ø 50 ... 70 mm

Scope of delivery
- 3 eccentric
- 3 screws
8.0010.4100.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.4100.0000

Bearing box

Bearing box

For shaft encoder with clamping flange ø 58 mm and shaft 10 x 20 mm
When the encoder is driven by a toothed or chain wheel, V-belt or toothed belt, impeller, etc., the permissible axial or radial shaft loads are usually exceeded during operation. For these cases, the bearing box equipped with reinforced bearings is ideally suited.

Scope of delivery
  • Bearing box with lock and O-ring
  • Coupling for shaft 10 mm
  • Adapter flange 8.0010.2100.0000
  • Mounting accessories
8.0010.8200.0004
Data sheet
Bearing box
DE EN FR

Robust bearing unit

Robust bearing unit

For shaft encoders with clamping flange ø 50 ... 58 mm and shaft 10 mm
The separation of the bearing load and the sensor system provides the encoder with additional protection in harsh environments.

Scope of delivery
  • Robust bearing unit
  • 3 x cheese head screw M4x25 (SW3)
  • 1 x O-ring
8.0010.8200.000C
Data sheet
Robust bearing unit
DE EN FR
Installation manual
Robust bearing unit

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± mm
2 x 2 x 0,34 mm2
05.00.6031.4411.XXXM

Data sheet
M12 cable satez, PUR, pin, 4-pin, D-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin PUR Ø 6,5 mm ± 0,2 mm
2 x 2 x 0,34 mm2
05.00.6031.4444.XXXM

Data sheet
M12 cable set, PUR, 2xpin, 4-pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± 0,2 mm
2 x 2 x 0,34 mm2
05.00.6031.4511.XXXM

Data sheet
M12 cordset, PUR, male, angled, 4-pin, D-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin
05.00.6031.4544.XXXM

Data sheet
M12 cordset, PUR, male straight - angled, 4-pin, D-coded
DE EN FR

RJ45 Connector with cable ,  Ethernet cable

RJ45 Connector with cable , Ethernet cable

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 8-pin

Male connector 4-pin PUR Ø 6,5 mm ± mm
4 x 0,34 mm2
05.00.6031.7444.XXXM

Data sheet
Cordset RJ45 connector + M12 pin, 4-pin, D-coded, PUR cable, Profibus
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± mm
4x0,34 mm2
05.00.6061.6211.XXXX

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Male connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4x0,34 mm2
05.00.6061.6311.xxxM

Data sheet
M12 cordset, PUR, socket, angled, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin

Male connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6061.6462.XXXM

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded + pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6061.D211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 4-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8141-0

Data sheet
M12 socket, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8241-0

Data sheet
M12 socket, angled, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin
05.WASCSY4S

Data sheet
M12 pin, 4-pole, D-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 5-pin
8.0000.5121.0000.Ex

Data sheet
M12 pin, Ex 2/22, 5-pin, D-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin
8.0000.5128.0000

Data sheet
M12 male, angled, 4-pin, D-coded
DE EN FR

„Do you have technical questions about Kübler encoders or are you looking for individual solutions? We at Application Support are here for you.“

Rainer Grueninger
Application support
Rainer Grueninger
Application Engineer

support@kuebler.com
+49 7720 3903 849

„We will be pleased to give you information about prices and delivery times. We are looking forward to your inquiry.“

Fritz Kübler GmbH
Sales
Fritz Kübler GmbH
Sales Germany

info@kuebler.com
+49 7720 3903 871
+49 7720 21564
