Pulse counter Pneumatics

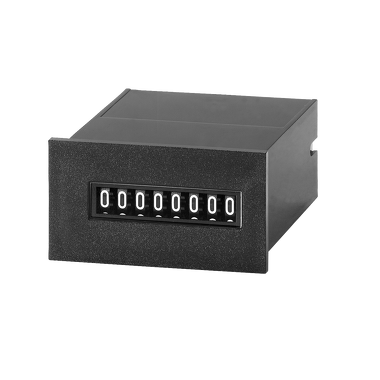

PMk18
|
|
Mini totaling counter, 8-digit actuated via compressed air.
The pneumatic totalizers PMk14, PMk16 (manually resettable) and PMk18 (not resettable) have a robust design. They are used in harsh industrial environments where the meters are controlled directly via compressed air.| Mechanical | |
|---|---|
| Model | Pneumatics |
| Dimension 1 |
52 x 28 mm | 48 x 24 mm 53 x 40 mm | 48 x 24 mm |
| Protection level |
IP41 |
| Working temperature | -10 °C ... +60 °C |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Signal input |
1,5...8 bar |
Properties
Pneumatically operated devices and systems.
- Low-cost pneumatic totalizers.
- PMk 14 and PMk 16 with manual zero setting.
- PMk 18 without zero position.
- Counting via anchor escapement system with diaphragm
- No leakage.
- Also available with quick plug-in system.
Pneumatically operated devices and systems.
