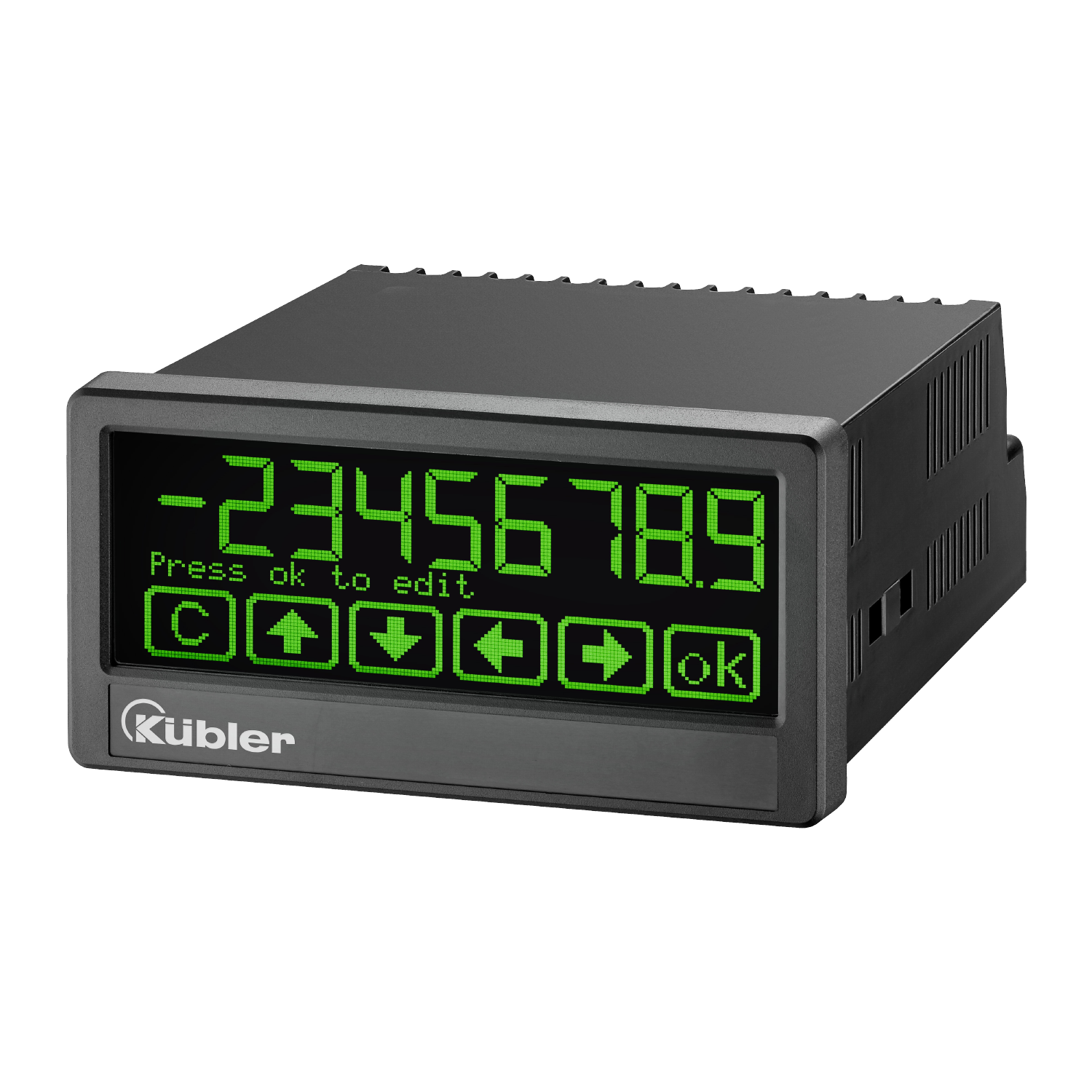

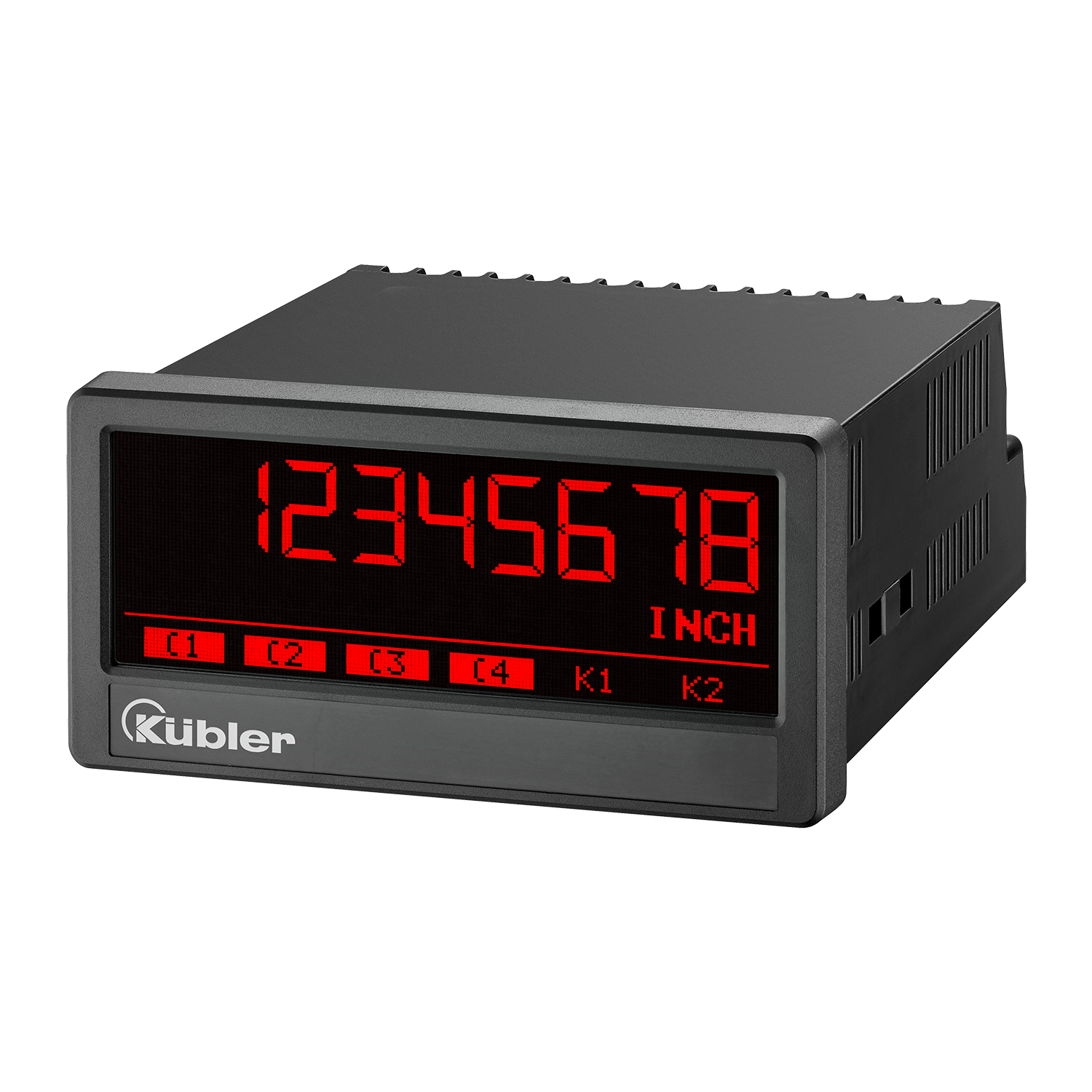

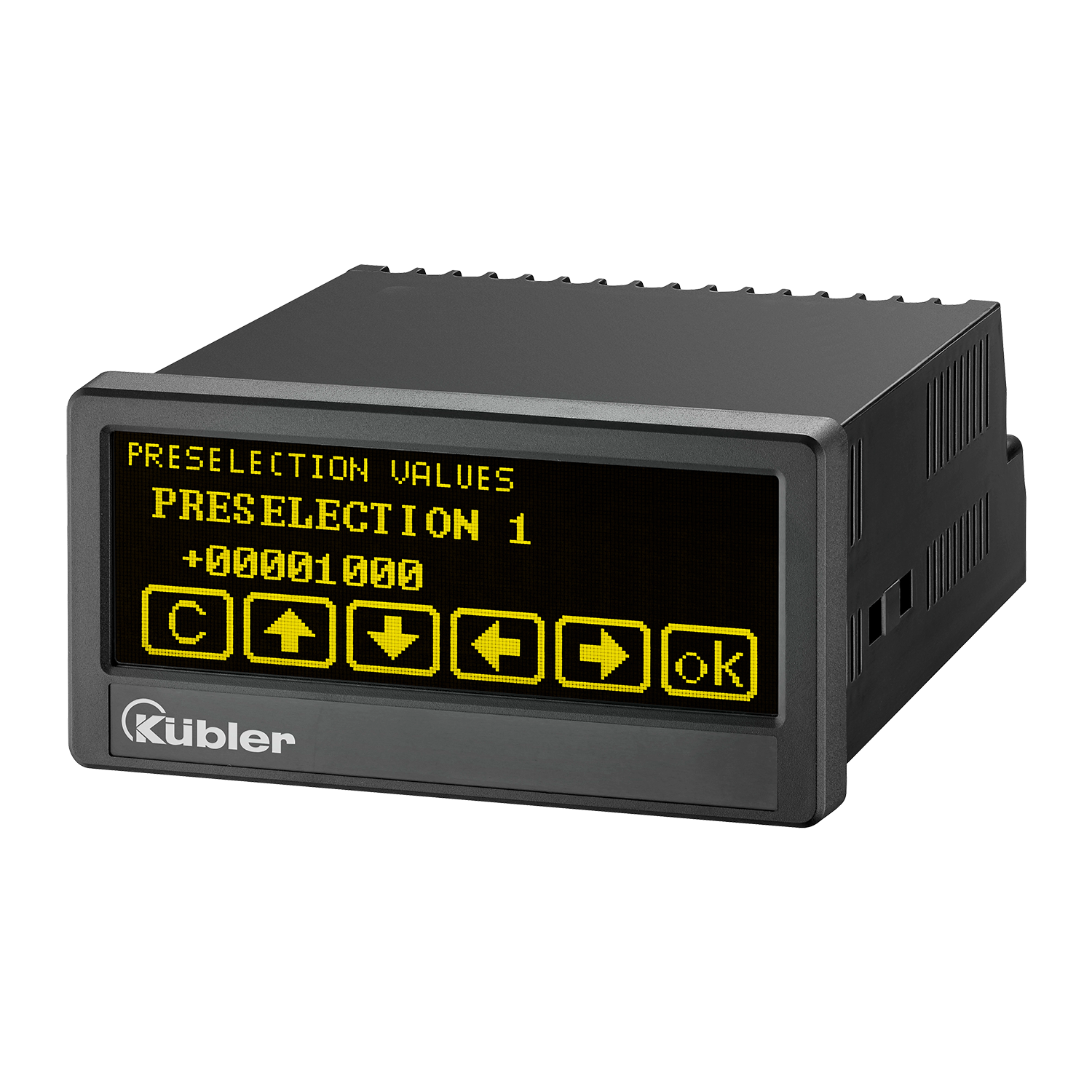

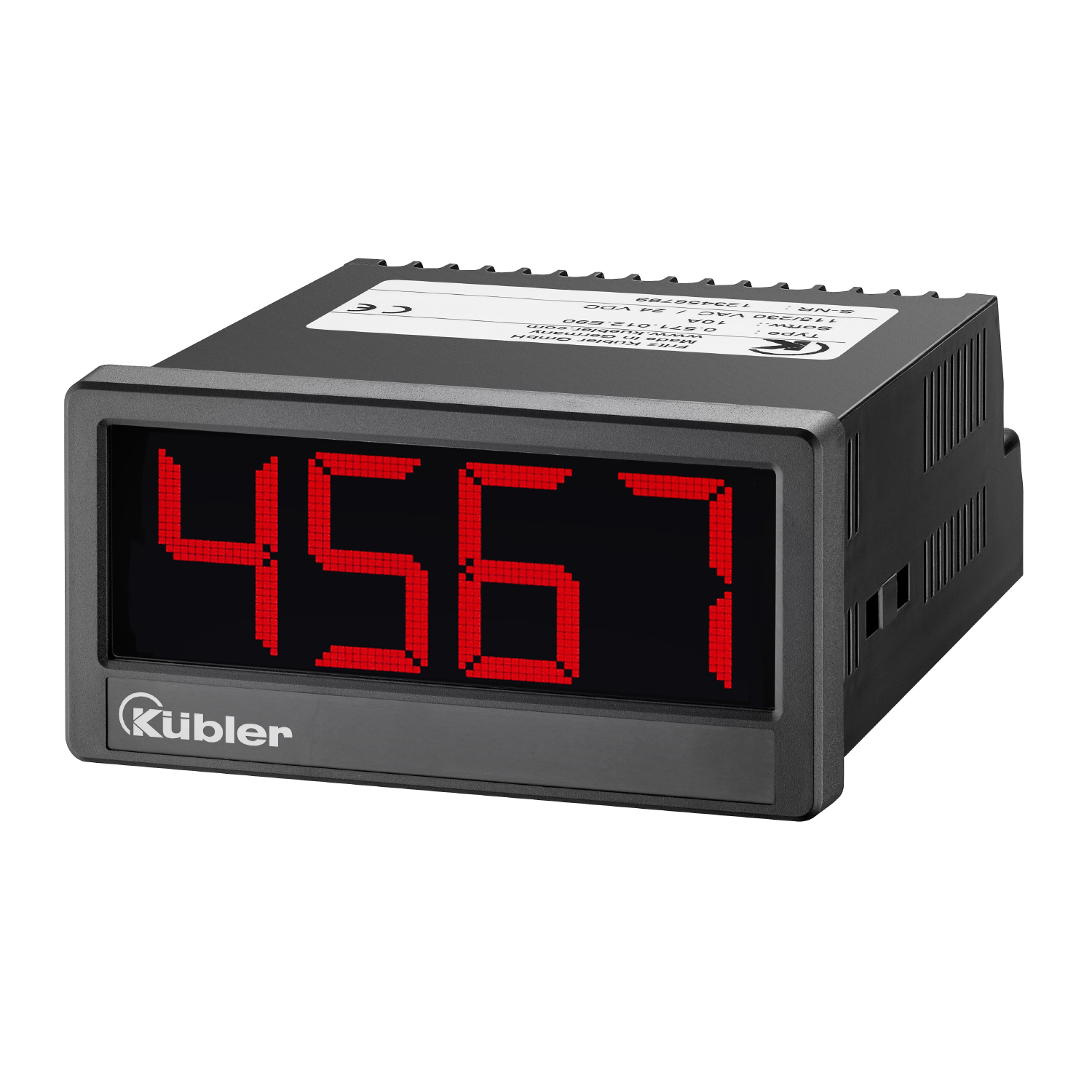

573T IO-Link
|
|
Touch IO-Link display for maximum two measured values
The 573T IO-Link display can display a maximum of 2 measured values simultaneously and can be used with 2 additional analog inputs in both single-channel and dual-channel operation. For dual channel operation, all arithmetic operations are available to display sum, difference, ratio or the product. Inputs and outputs are separately scalable.| Mechanical | |
|---|---|
| Model | Dual-function device electronic |
| Functions |
Position displays without limit values Position displays with limit values |
| Dimension 1 |
96 x 48 mm | 92 x 45 mm |
| Protection level |
IP20 IP65 |
| Working temperature | -20 °C ... +60 °C |
| Weight | 200 g |
| Reset |
electronic |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
115 V AC 230 V AC 18...30 V DC |
| Signal input |
Analog ±10 V Analog 0...20 mA Analog 4–20 mA PNP |
| Signal output |
Analog ±10 V Analog 0...20 mA Analog 4–20 mA RS232 RS485 2 x Relais 4 x PNP |
| Interfaces |
IO-Link Modbus Printer CR/LF Drivecom DIN ISO 1745 |
Innovative
Compact and multifunctional
- IO-Link input/output interface with Device 1.1 protocol.
- 2 separate freely scalable analog inputs ±10 V and 0/4 ... 20 mA, resolution 16 bit.
- Tare function – the unit can be set to 0 for any input voltage.
- Programmable linearization: with up to 24 control points, input via key-pad or via the teach-in function.
- Averaging measurement over 2 to 16 measuring cycles, for use with serious fluctuations of the input signals.
- Easy to program - the desired display value is simply keyed-in for a specific input signal.
- Fast 1 ms sampling rate per channel alternating.
- Serial interface RS232 or RS485 for reading data in and out.
- Total sum counter for single and total values – time-controlled or manually controlled.
Compact and multifunctional
- Up to 3 display values in one device, display 1, display 2 + display calculated based on 1 and 2.
- AC and DC supply voltage in one device.
- Simple menu-driven programming via touch display, as well as tare or teach-in key.
- Can be used as a simple process signal converter, process controller (ON/OFF controller) or for complex measuring tasks where the relationship between two values, one to the other, must be monitored, calculated or further processed in a higher-level controller.
- Mathematical operation of the measured values of input 1 and 2. The result can also if required be multiplied, divided or added to an offset value, in order to obtain the desired display value.
- Analog output 0/4 ... 20 mA or ±10 V.
- 4 fast PNP switching outputs (reaction time < 1 ms), with switching hysteresis, step or tracking preset.
- Programmable display refresh time.
